Yanmar EF453T hydraulic filter mounting / 1"1/2-16UNF / 6-08-203-03
Do you have any questions?
Yanmar EF453T hydraulic filter mounting / 1"1/2-16UNF / 6-08-203-03

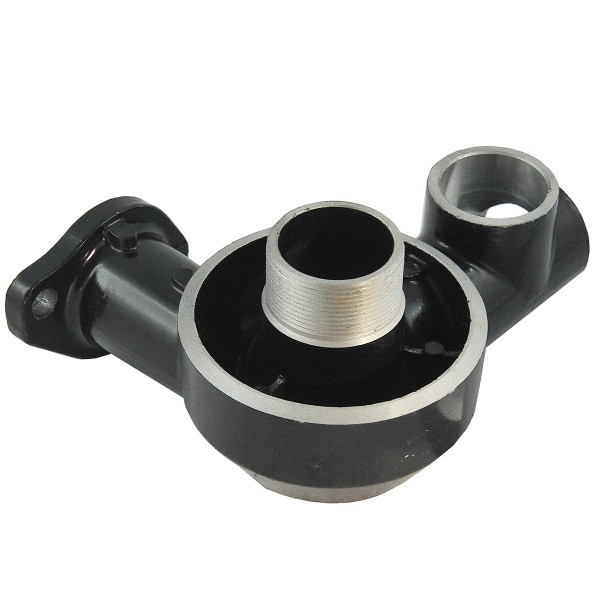

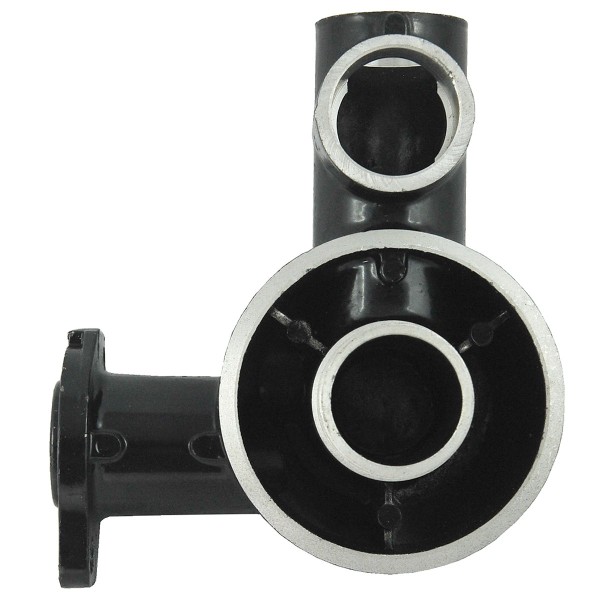

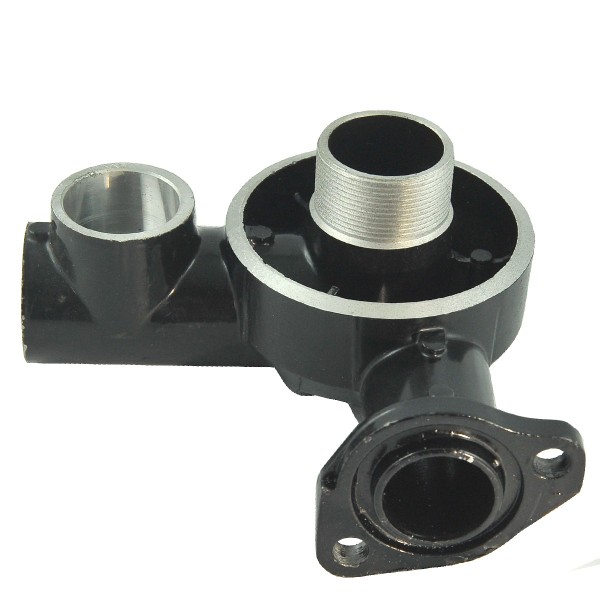

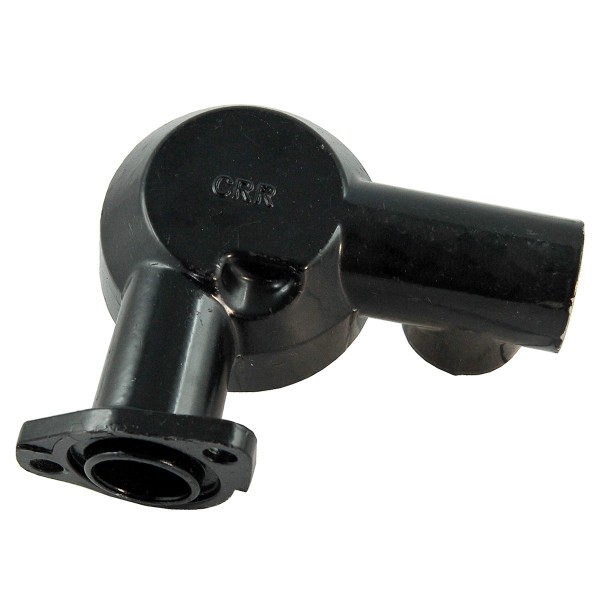

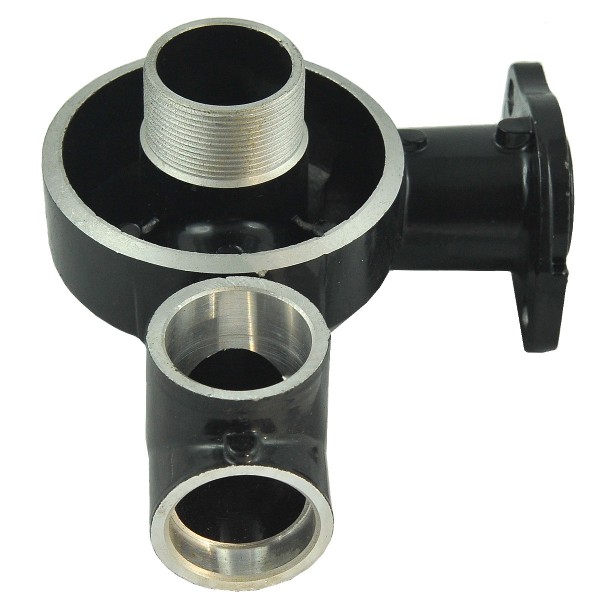

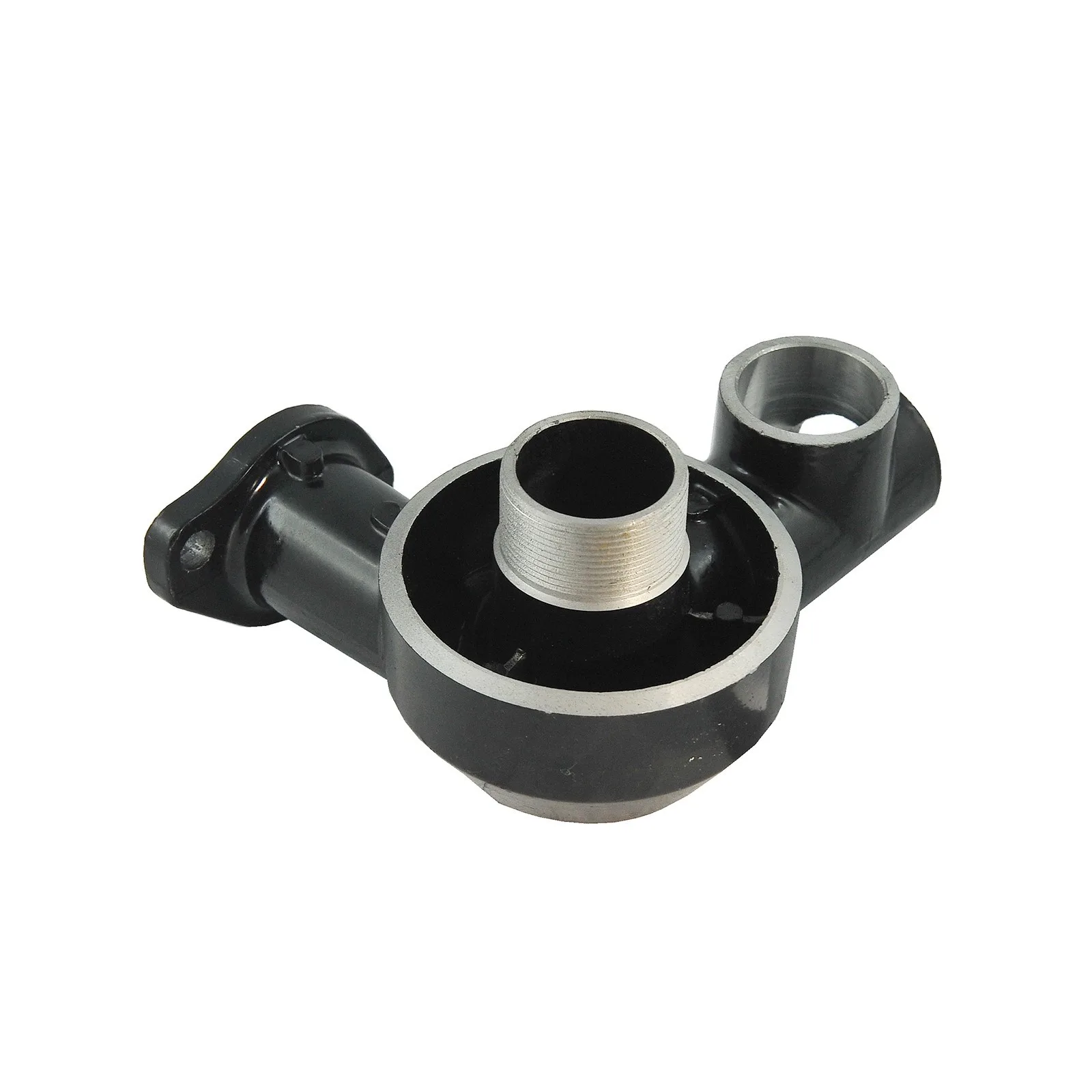

Hydraulic filter holder with dimensions of 125 x 140 mm with a 1"1/2-16UNF thread for Yanma tractors of the Yanmar EF453T series and others.
The hydraulic filter mount is mounted in the tractor's hydraulic system.
The hydraulic oil filter mounting may vary depending on the model and manufacturer of the machine. Typically, however, hydraulic oil filters are attached using special brackets or clips that hold the filter in place. In some cases, the filters are also screwed on with screws or nuts. To install a hydraulic oil filter , first remove the old filter, clean the mounting surface and install a new filter according to the manufacturer's instructions. Then attach the filter carefully, making sure it is firmly and securely attached. To install the hydraulic oil filter , first remove the old filter , clean the mounting surface and install a new filter according to the manufacturer's instructions. Then attach the filter carefully, making sure it is stable and secure.
Dimensions:
- dimensions: 125 x 140 mm.
- hole diameter: 27.70 / 28 / 31.50 / 32 mm,
- thread: 1"1/2-16UNF,
- spacing of holes for mounting screws: 58 mm,
- part numbers: 6-08-203-03.
Tractor models :
Yanmar :
- Yanmar EF453T.
Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
Warehouse :
M01:D63
