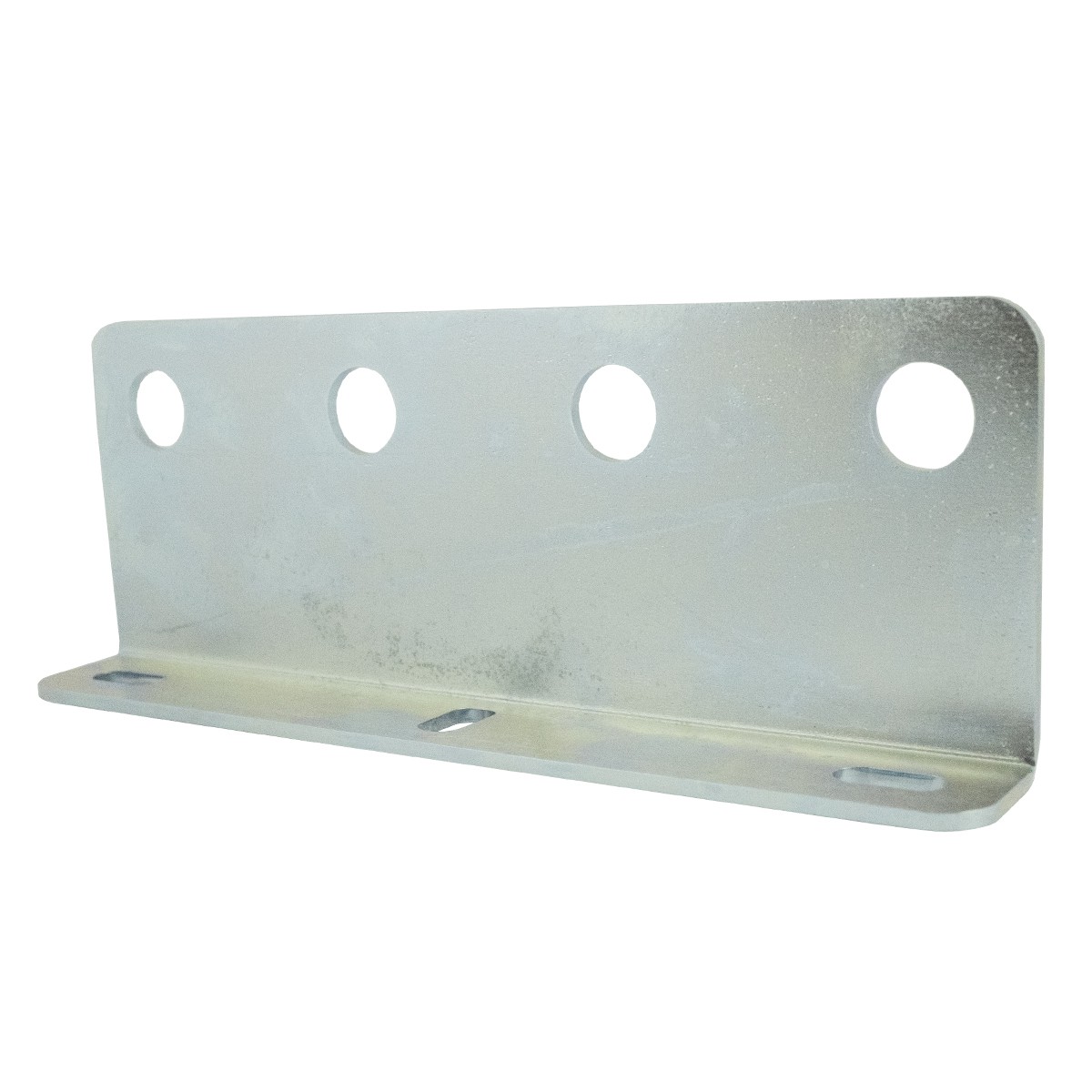

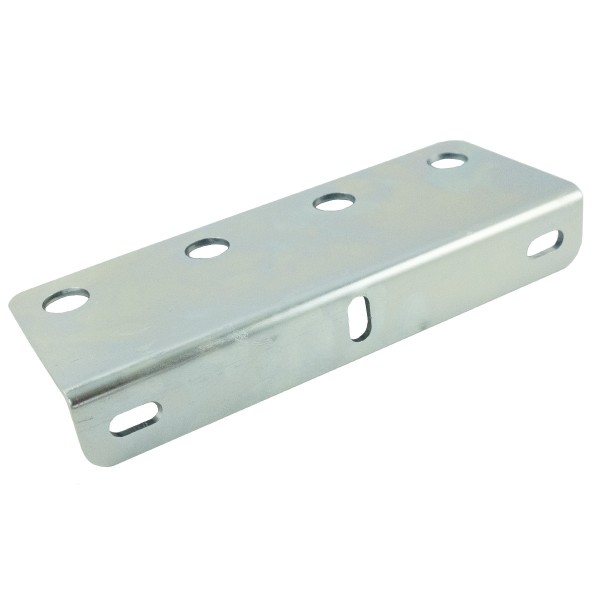

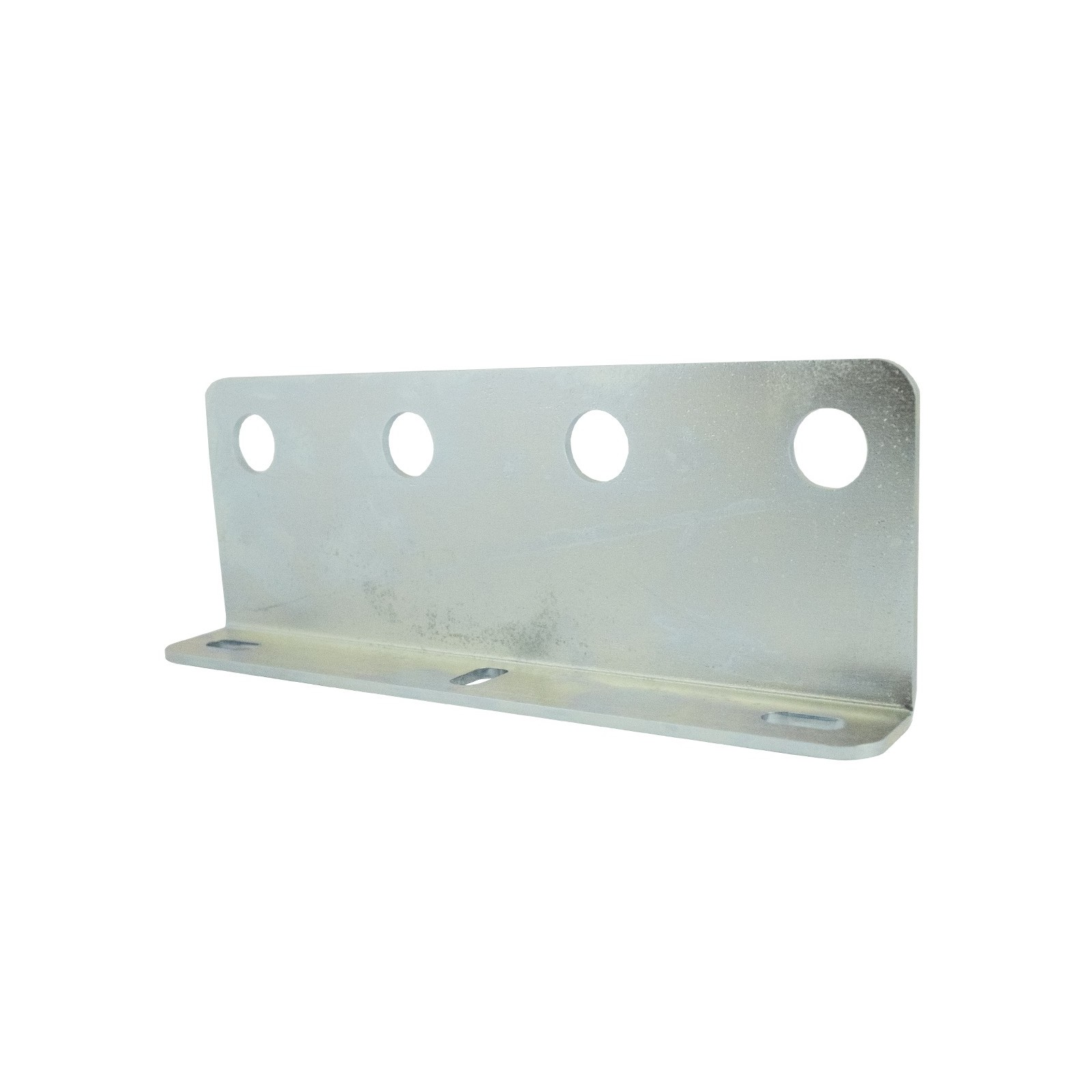

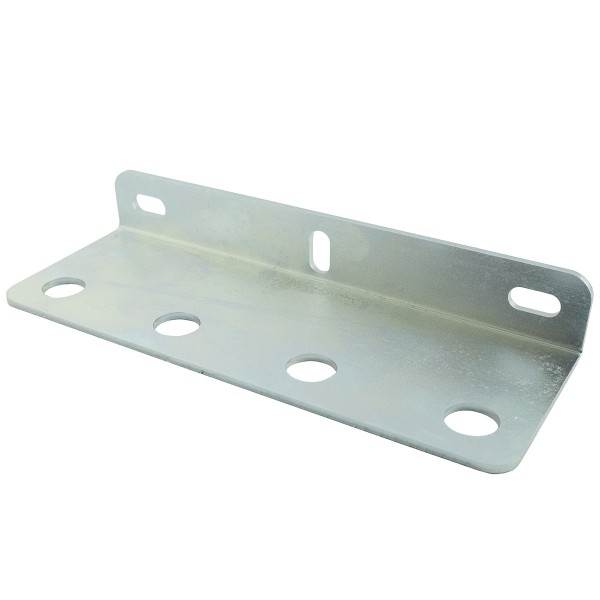

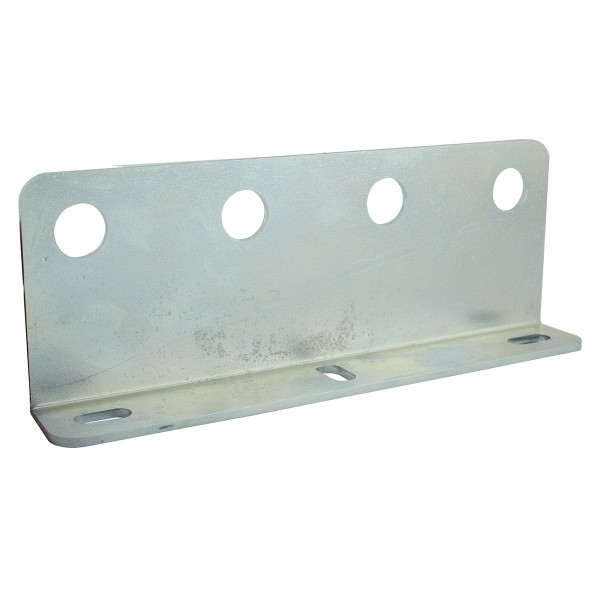

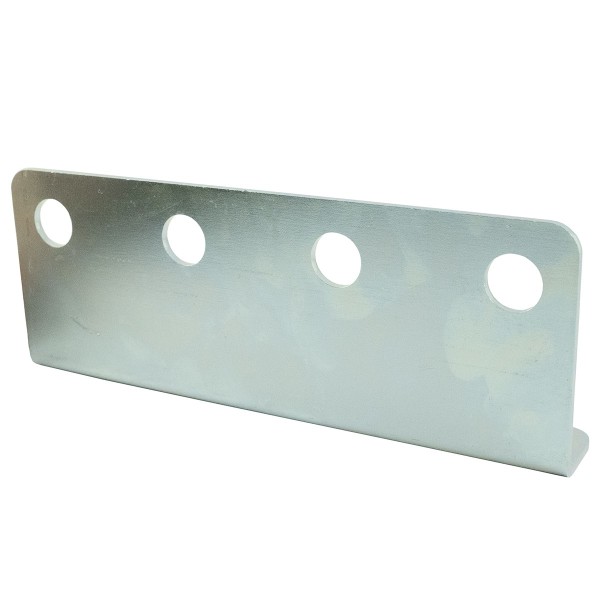

Hydraulic socket mounting plate / 220 x 82 mm

Hydraulic socket array for four hydro-couplers with a total width of 220 mm and a height of 82 mm. 3.20 mm thick sheet metal with holes for four 18 mm diameter sockets and 9.30 x 15/19 mm mounting bolt holes. The mount allows for the installation of two types of hydraulic connectors with diameters of M18 and M16 .

Hydraulic quick coupler mountings , commonly known as a plate, are used to mount hydraulic sockets on tractors, construction machinery, and many other devices. In agriculture, they are often used to mount Euro hydraulic couplers on front loaders , on the TUR itself, at the hydraulic distributor, or behind the driver's seat to operate hydraulically powered machinery or equipment. This type of solution can be used on all machinery and equipment in a broad range of industries, including construction, agriculture, and forestry, that utilize hydraulic connections. The plate can be bolted or permanently welded directly to the ground.

Dimensions :

• Width: 220 mm,
• Height: 82 mm,
• Diameter of holes for hydraulic connectors: 18 mm,
• Hole spacing for euro connector: 60 / 60 / 60 mm,
• Diameter of mounting screw holes: 9.30 x 15/19 mm,
• Spacing of mounting screw holes: 88 / 88 mm,
• Sheet thickness: 3 mm.

Magazine : K18:B35:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
