Hydraulic socket mounting plate / M18 / 100 x 50 mm / 2 sockets

TMGH_N_2-M18
zł12.00
Tax included PL 23%

9,76 netto

  • Dostępność (12 Quantity): stock

Do you have any questions?

Hydraulic socket mounting plate / M18 / 100 x 50 mm / 2 sockets

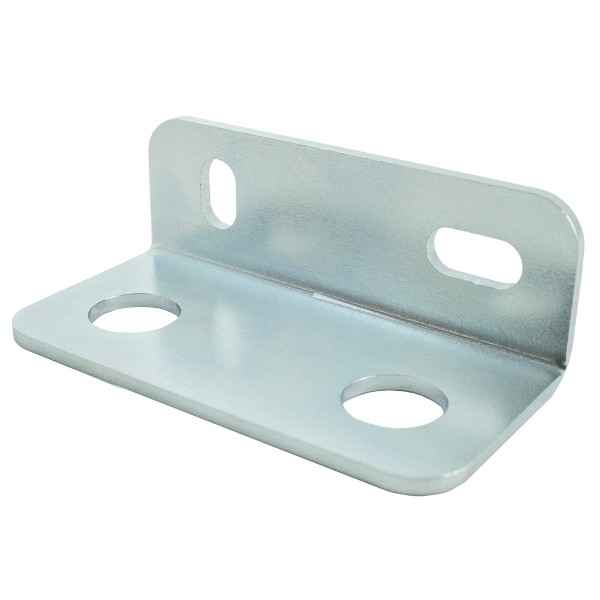

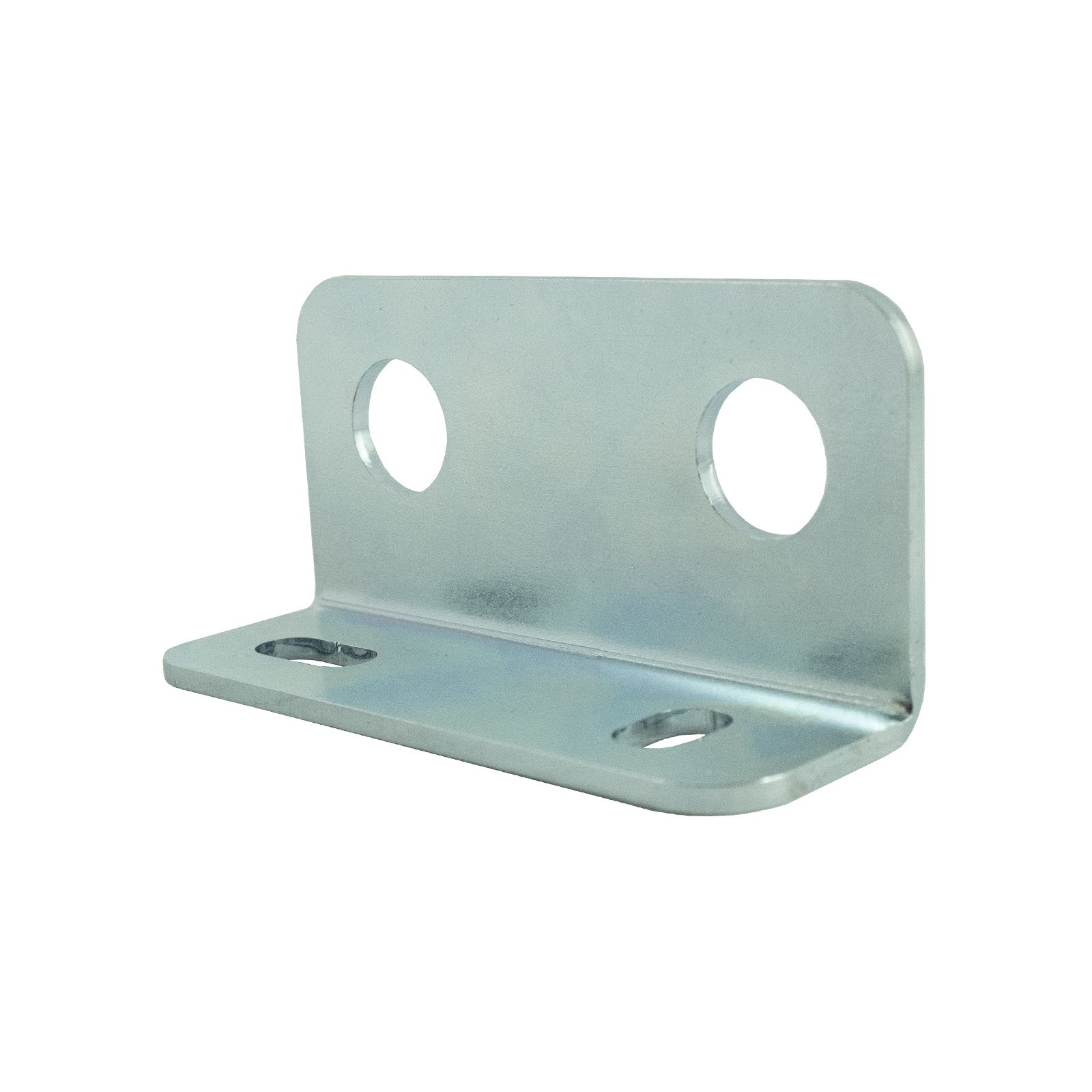

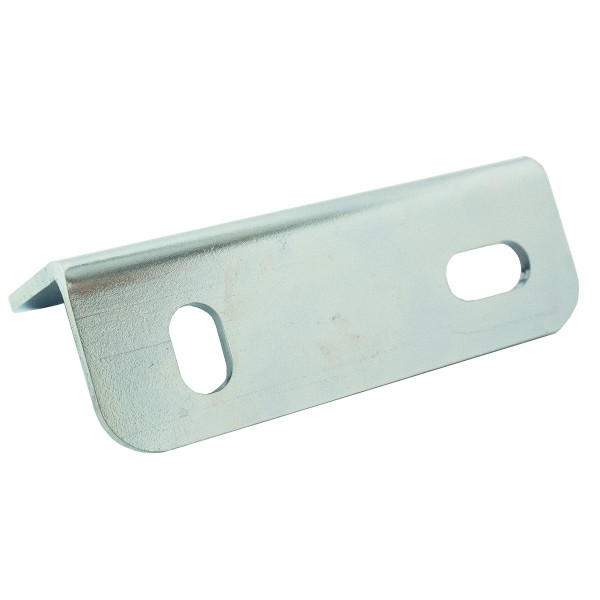

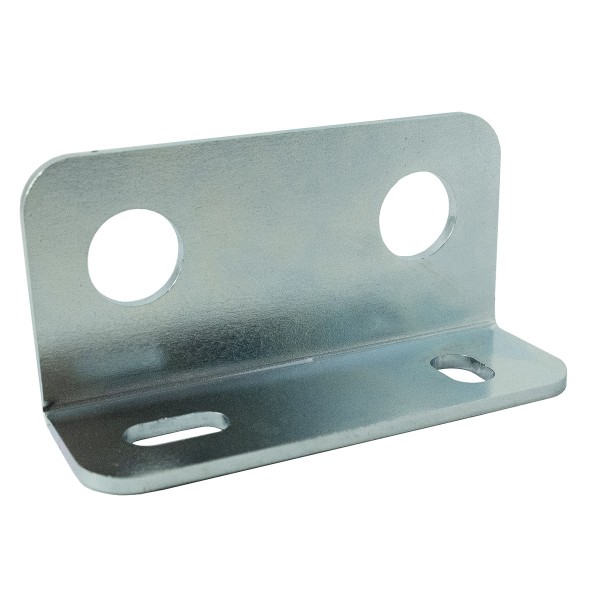

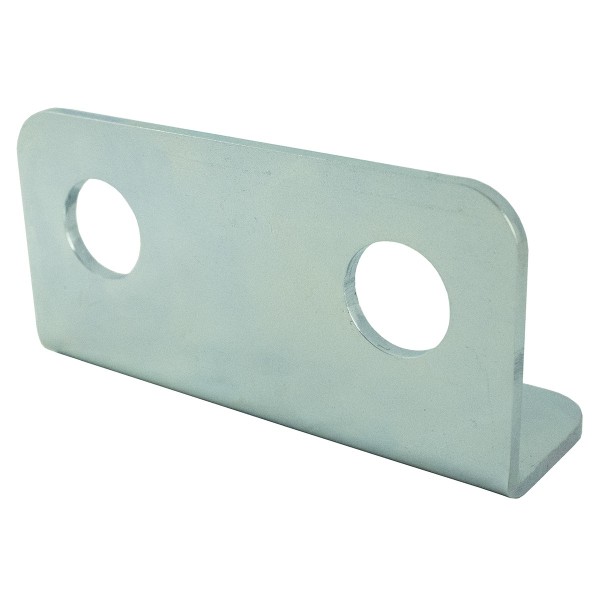

Hydraulic socket array for two hydro-couplers, 100 mm wide and 50 mm high. 3 mm thick sheet metal with holes for two 18 mm diameter sockets and 9.30 x 15/19 mm mounting bolt holes. The mount allows for the installation of two types of hydraulic connectors, M18 and M16 .

Hydraulic quick coupler mountings , commonly known as a plate, are used to mount hydraulic sockets on tractors, construction machinery, and many other devices. In agriculture, they are often used to mount Euro hydraulic couplers on front loaders , on the TUR itself, at the hydraulic distributor, or behind the driver's seat to operate hydraulically powered machinery or equipment. This type of solution can be used on all machinery and equipment in a broad range of industries, including construction, agriculture, and forestry, that utilize hydraulic connections. The plate can be bolted or permanently welded directly to the ground.

Dimensions :

  • width: 100 mm,
  • height: 50 mm,
  • diameter of holes for hydraulic connectors: 18 mm,
  • hole spacing for euro connector: 60 mm,
  • diameter of mounting screw holes: 9.30 x 15/19 mm,
  • spacing of mounting screw holes: 60 mm,
  • sheet thickness: 3 mm.

Magazine : K18:B35:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:B35:S02
Condition
New
Parts
Hydraulic system
Thickness (mm)
3
Height (mm)
50
Hole diameter (mm)
18
Hole spacing (mm)
60
Width (mm)
100
Mounting bolt(s) hole diameter (mm)
9,30 x 15/19
Bolt hole spacing (mm)
60
