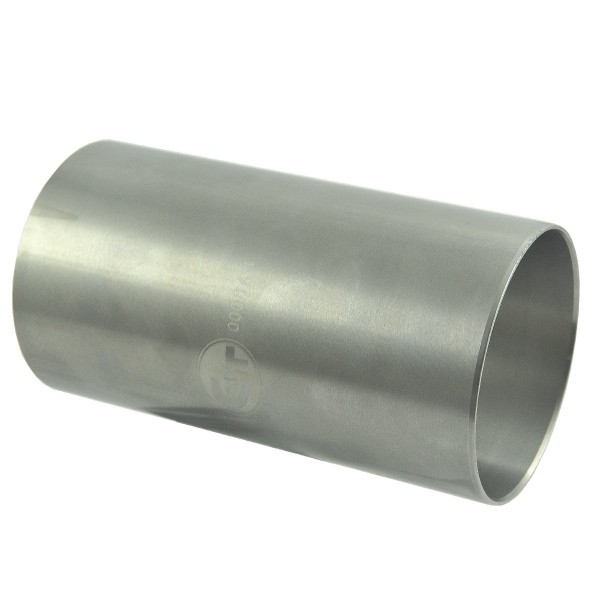

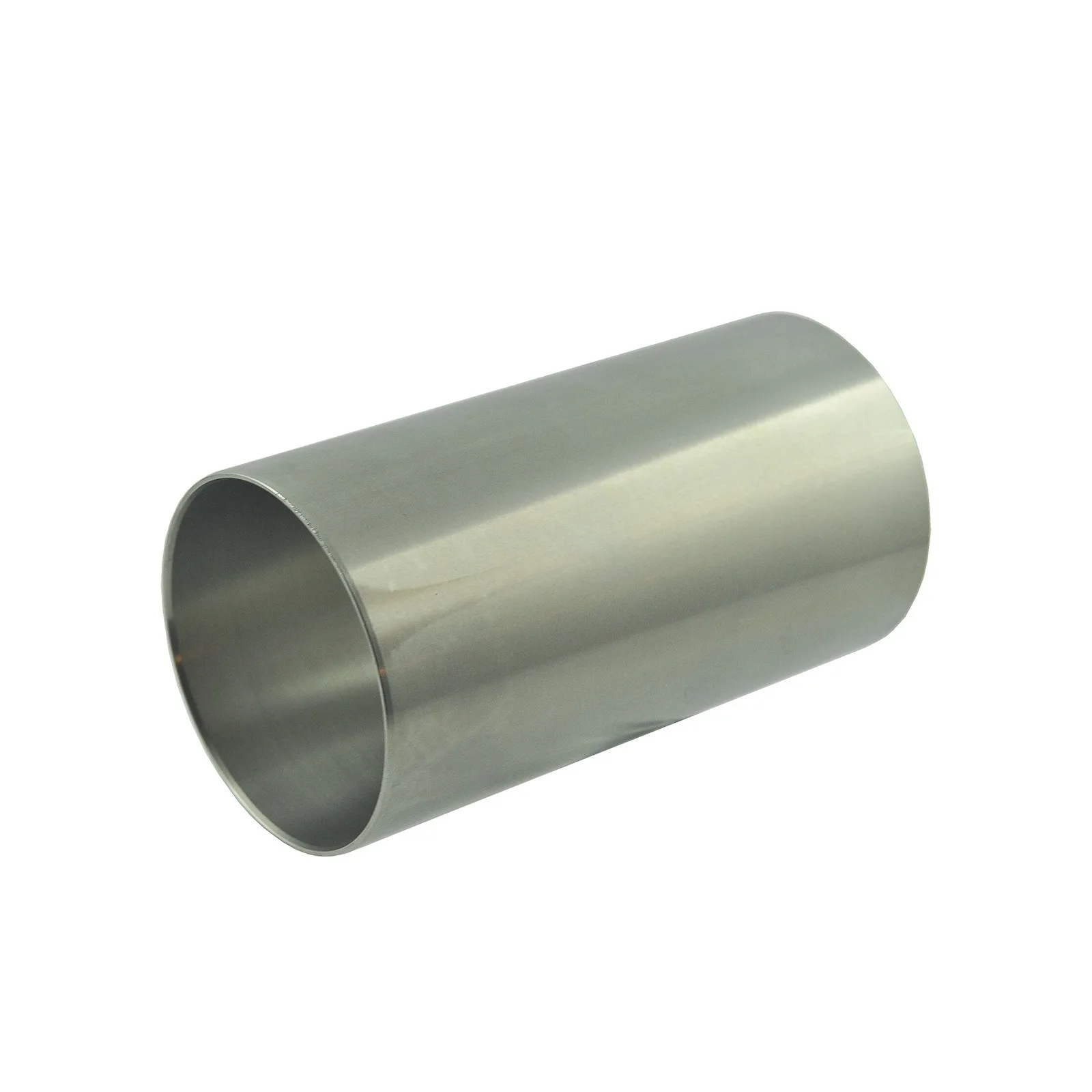

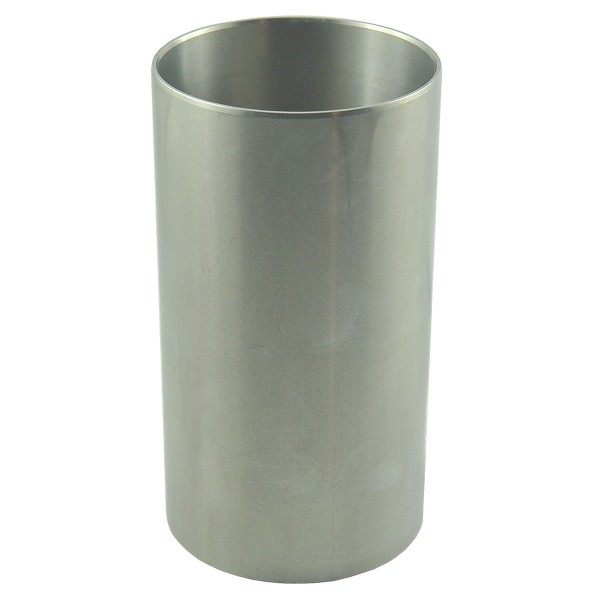

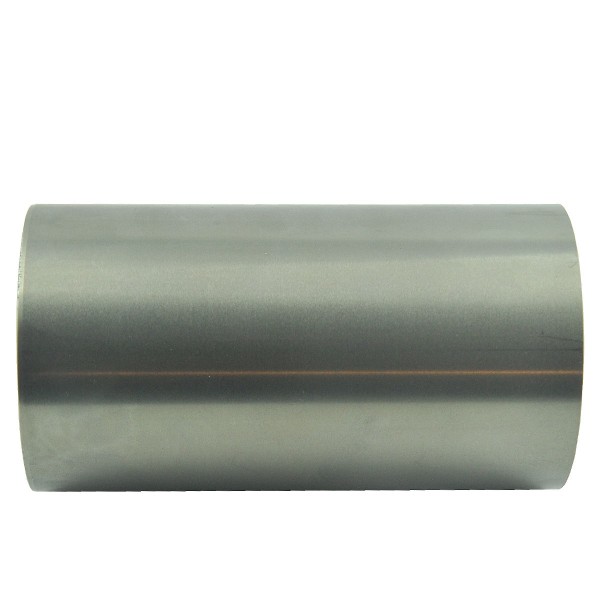

Cylinder liner / 165 mm / Kubota L2202 / L3408 / Kubota V2203-M-DI / V2203-M-E2B / V2403 / V2403-M

Cylinder liner with a length of 165 mm , an outer diameter of 90 mm and an inner diameter of 85.50 mm , for Kubota tractors of the Kubota L2202, Kubota L3408 series with Kubota V2203-M-DI, Kubota V2203-M-E2B, Kubota V2403, Kubota V2403-M and other engines.

The dry pressed cylinder sleeve is an element whose task is to separate the working piston from the engine block. The main task of the piston sleeve is to accumulate the energy generated during fuel combustion in the air. The use of the piston sleeve significantly extends the life of the engine and allows the use of a lighter or cheaper material for the construction of the block itself.

Dimensions :

• outer diameter: 90 mm,
• inner diameter: 85.50 mm,
• length: 165mm,
• part numbers: 6-15-104-05.

Tractor models:

Kubota:

• Kubota L2202,
• Kubota L3408.

Engine models :

• Kubota V2203-M-DI,
• Kubota V2203-M-E2B,
• Kubota V2403,
• Kubota V2403-M.

The first signs of wear of the piston sleeves are excessive oil consumption, problems with starting the engine , reduced engine power or engine overheating . It is recommended to replace the sleeves as soon as possible if damage to the sleeve is detected. The sleeves should be replaced together with the matched pistons.

Magazine : M01:B32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
