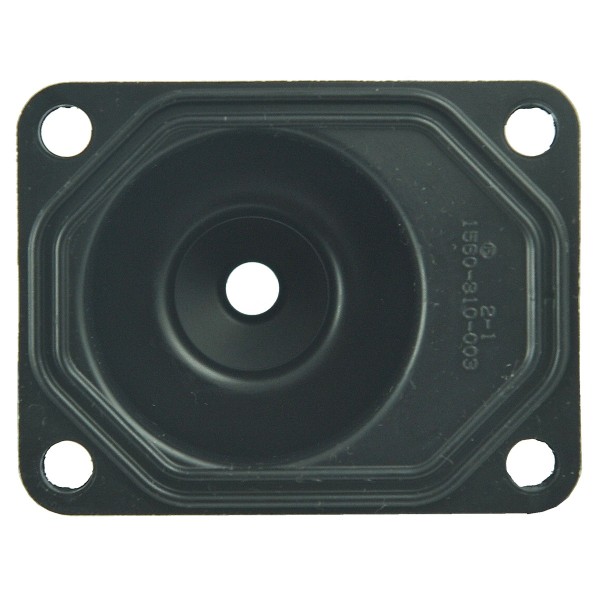

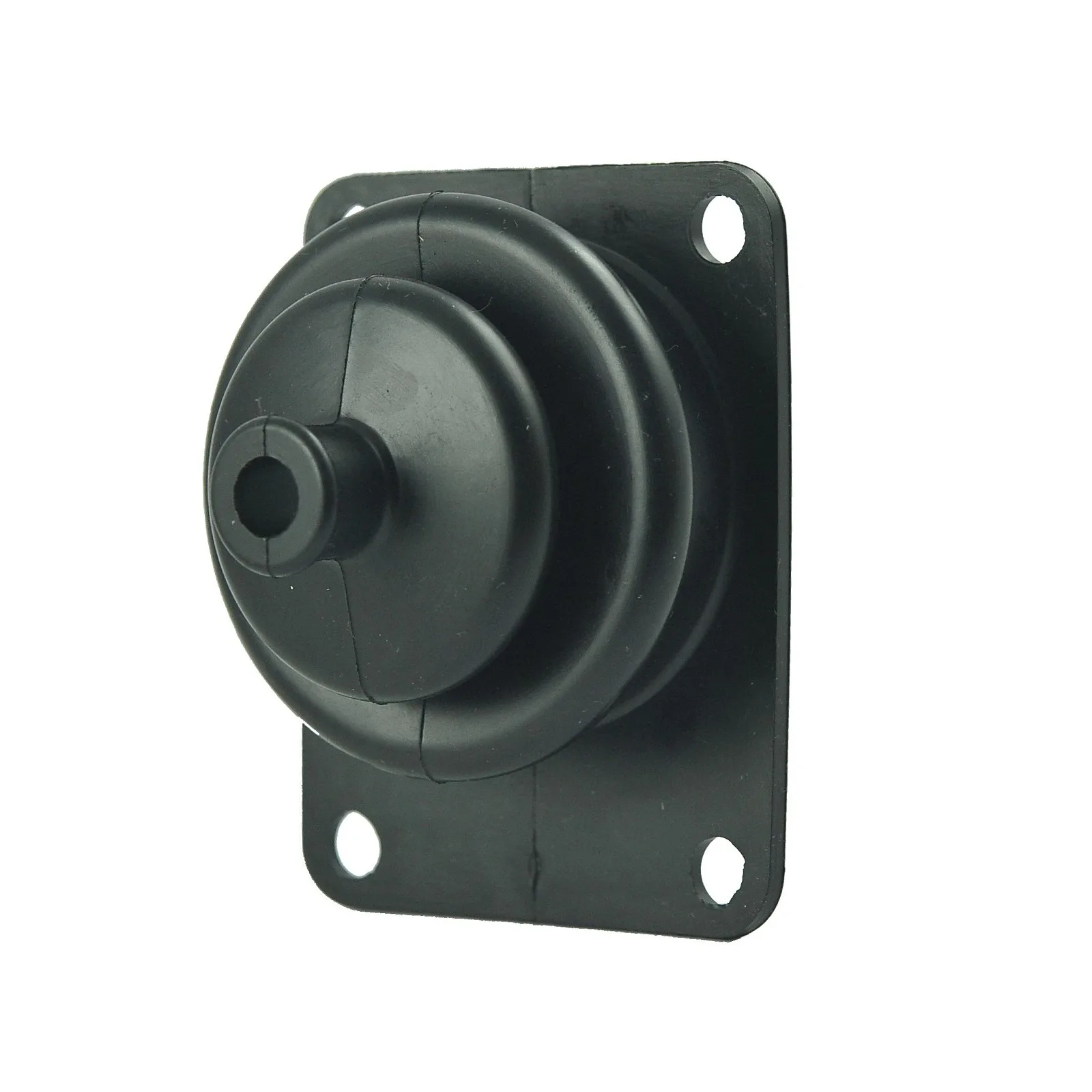

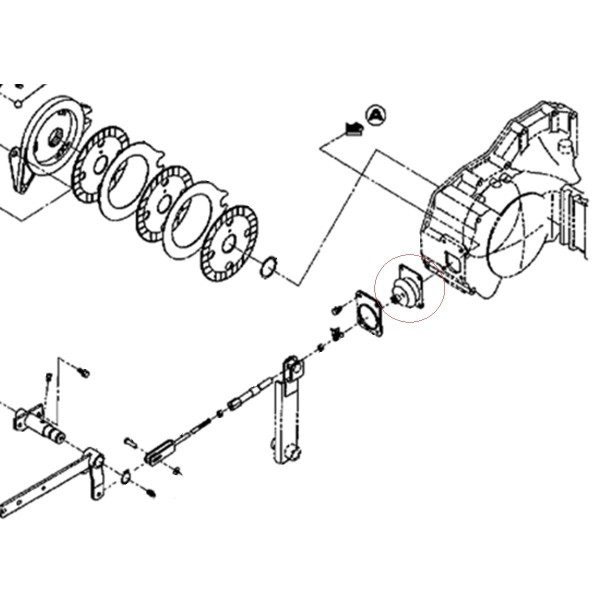

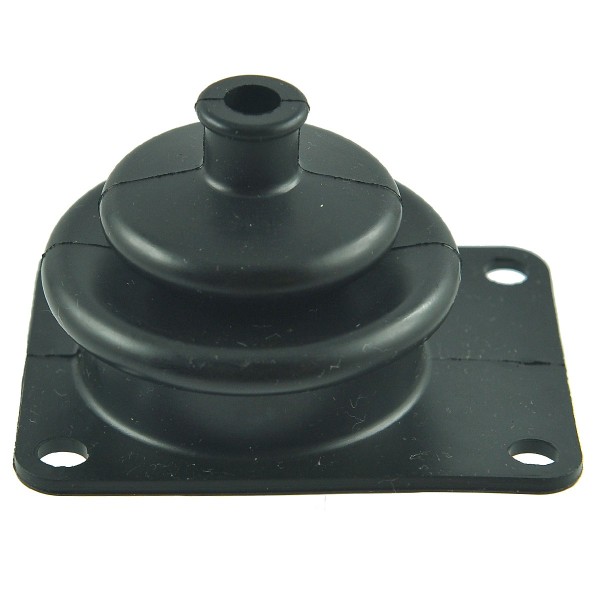

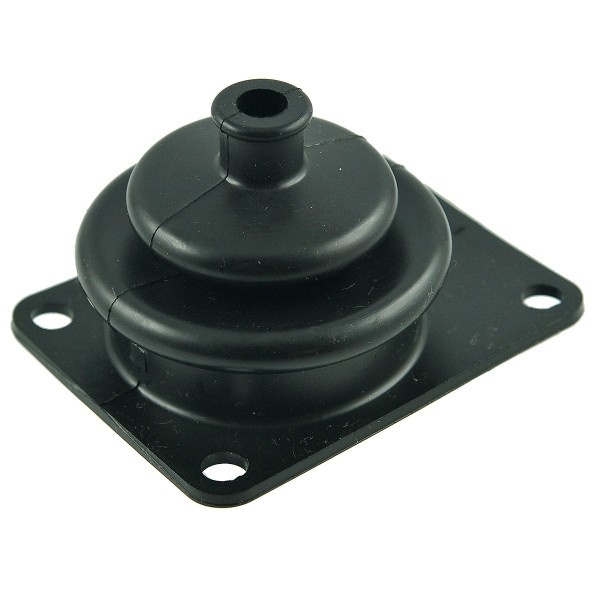

Rubber cover / Iseki TA207 / TA2010 / 5035 / TJ75 / TK532 / TK538 / TK546F

Rubber seal, brake cable guide for Iseki tractors of the Iseki 5035 series, Iseki TA207, Iseki TA210, Iseki TA215, Iseki TA227, Iseki TA230, Iseki TA235, Iseki TA247, Iseki TA250, Iseki TA255, Iseki TA262, Iseki TA267, Iseki TA270, Iseki TA287, Iseki TA290, Iseki TA295, Iseki TA317, Iseki TA320, Iseki TJ75, Iseki TK532, Iseki TK538, Iseki TK546 and others.

A rubber cover , commonly known as a "powder cap ," is most often a rubber cone (or tube), tapered on one or both ends with a groove for easier installation, such as a tourniquet. This type of cover is used not only for gear shifts and rod ends, but is also used internally within machine systems, sealing components such as axle shafts or various shafts that are not subjected to high rotational speeds during operation. The main purpose of the "powder cap" is to protect the mechanical assembly from contaminants and prevent the washout of the lubricant found in many moving parts of the tractor.

Dimensions :

• Dimensions: 68 x 90 mm (base),
• Height: 53 mm,
• Hole diameter: 9 / 55 mm,
• Diameter of mounting screw holes: 8.50 mm,
• Spacing of mounting screw holes: 54 x 75 mm,
• Comparison numbers: -,
• Part numbers: 1560-310-003-40.

Tractor models :

• Iseki 5035,
• Iseki TA207,
• Iseki TA210,
• Iseki TA215,
• Iseki TA227,
• Iseki TA230,
• Iseki TA235,
• Iseki TA247,
• Iseki TA250,
• Iseki TA255,
• Iseki TA262,
• Iseki TA267,
• Iseki TA270,
• Iseki TA287,
• Iseki TA290,
• Iseki TA295,
• Iseki TA317,
• Iseki TA320,
• Iseki TJ75,
• Iseki TK532,
• Iseki TK538,
• Iseki TK546F.

Damaged mechanical seals (abrasions, breaks caused by rubber deterioration) must be replaced with new ones as soon as possible to avoid contamination of the internal parts of the system, which may result in damage or seizure of the mechanical unit.

Magazine : M01:C62:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
