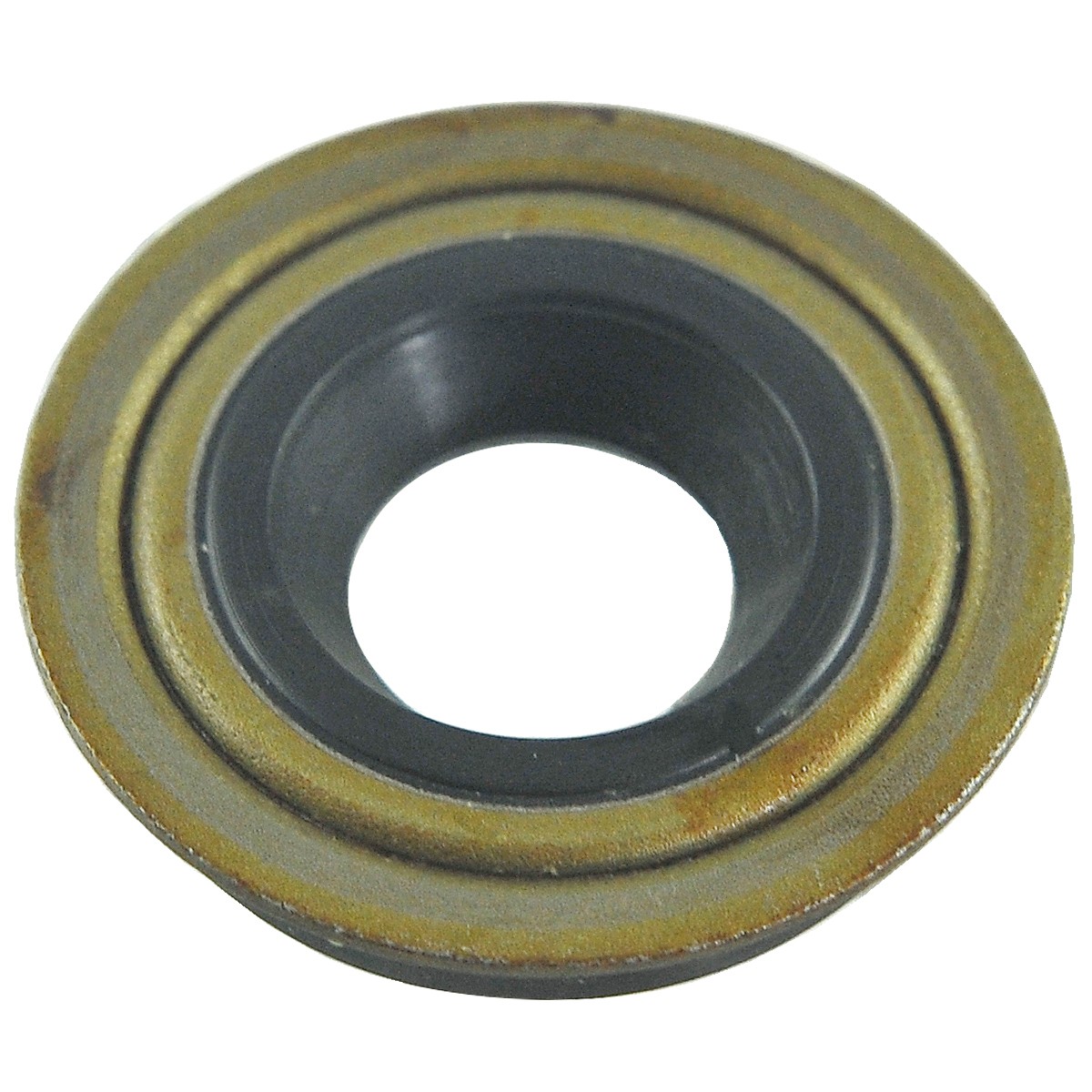

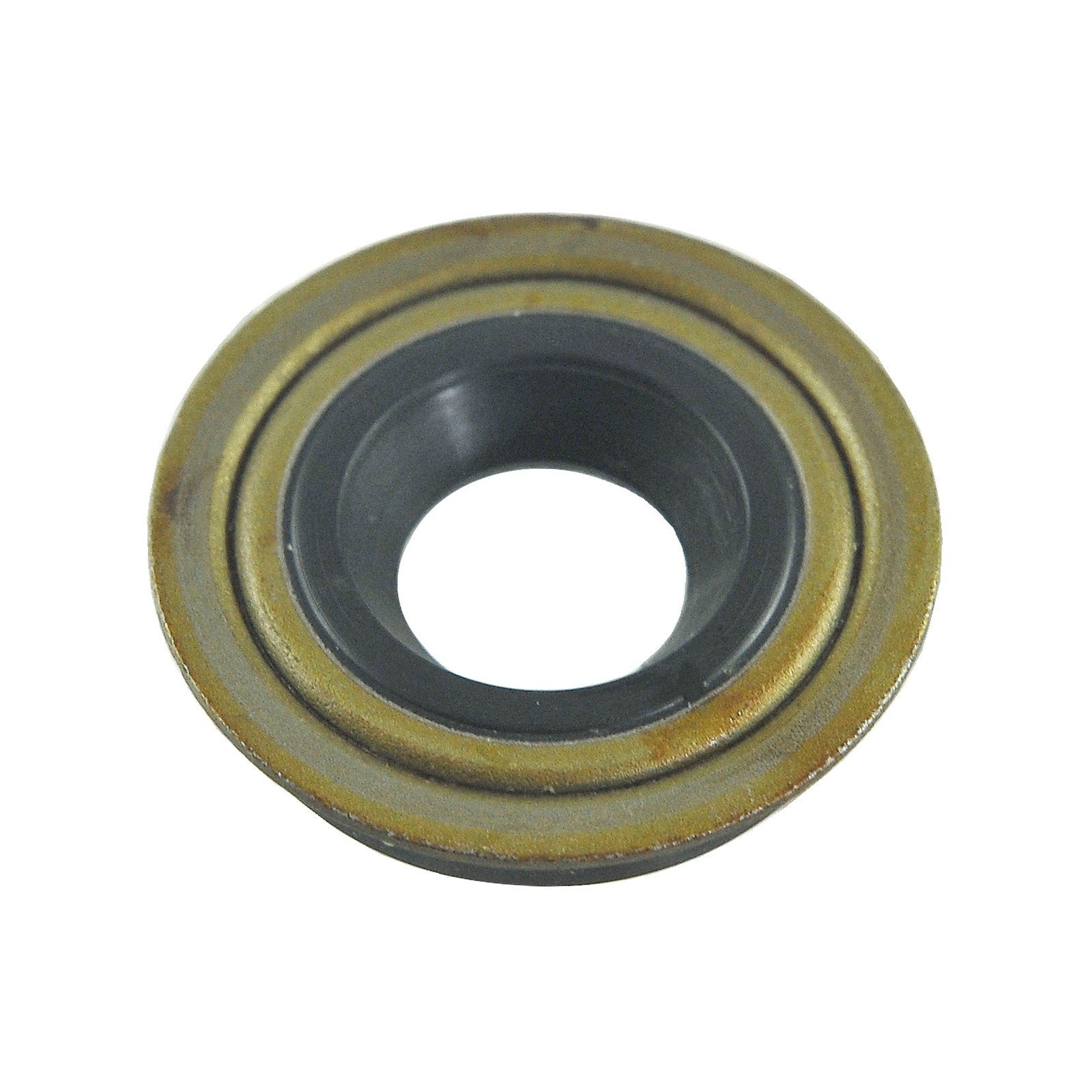

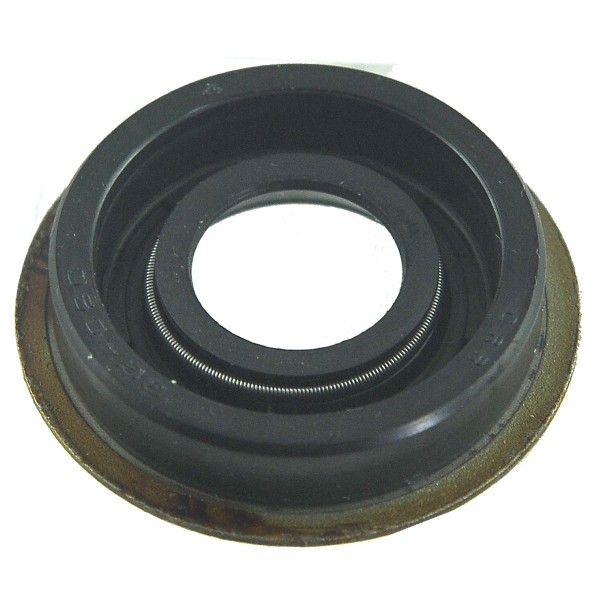

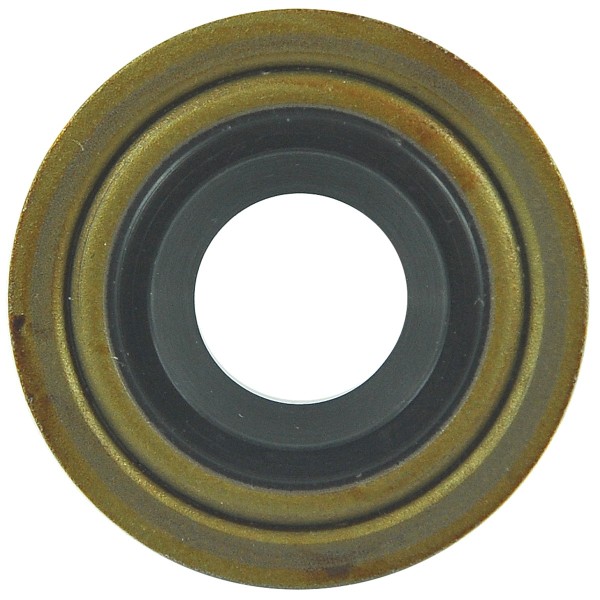

Injector seal / 20.50 x 36.25 x 8 mm / Kubota V3307 / V3800 / Kubota M6040 / M7040 / M7060 / M9540 / 5-08-116-03

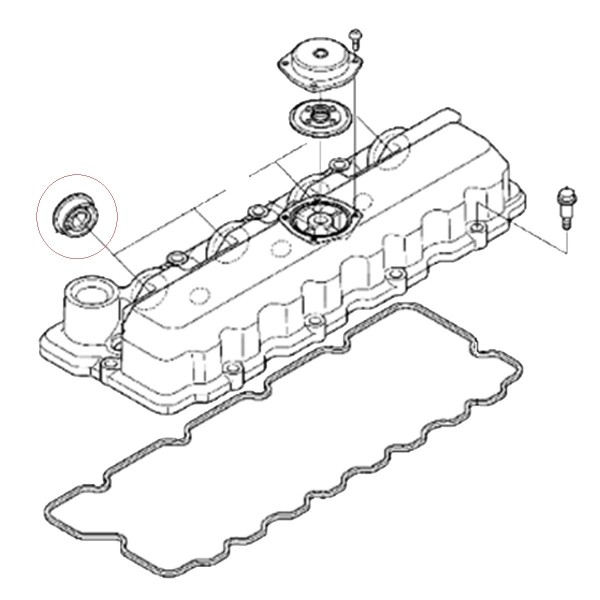

Valve cover seal, injection pipe (cover 1G772-14504) oil seal with an inner diameter of 20.50 mm , outer diameter of 36.25 mm and height of 8 mm for Kubota tractors of the Kubota M6040, Kubota M7040, Kubota M7060, Kubota M8540, Kubota M8560, Kubota M9540 series with Kubota V3307, Kubota V3800 and other engines.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed in, most often oil, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• outer diameter. 36.25 mm,
• inner diameter: 20.50 mm,
• collar diameter: 42 mm,
• height: 8 mm,
• original part numbers: 1C020-53810,
• comparison numbers: ,
• part numbers: 5-08-116-03.

Tractor models:

Kubota:

• Kubota M6040,
• Kubota M7040,
• Kubota M7060,
• Kubota M8540,
• Kubota M8560,
• Kubota M9540.

Engine models :

Kubota :

• Kubota V3307,
• Kubota V3800.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse:
K18:F08.S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
