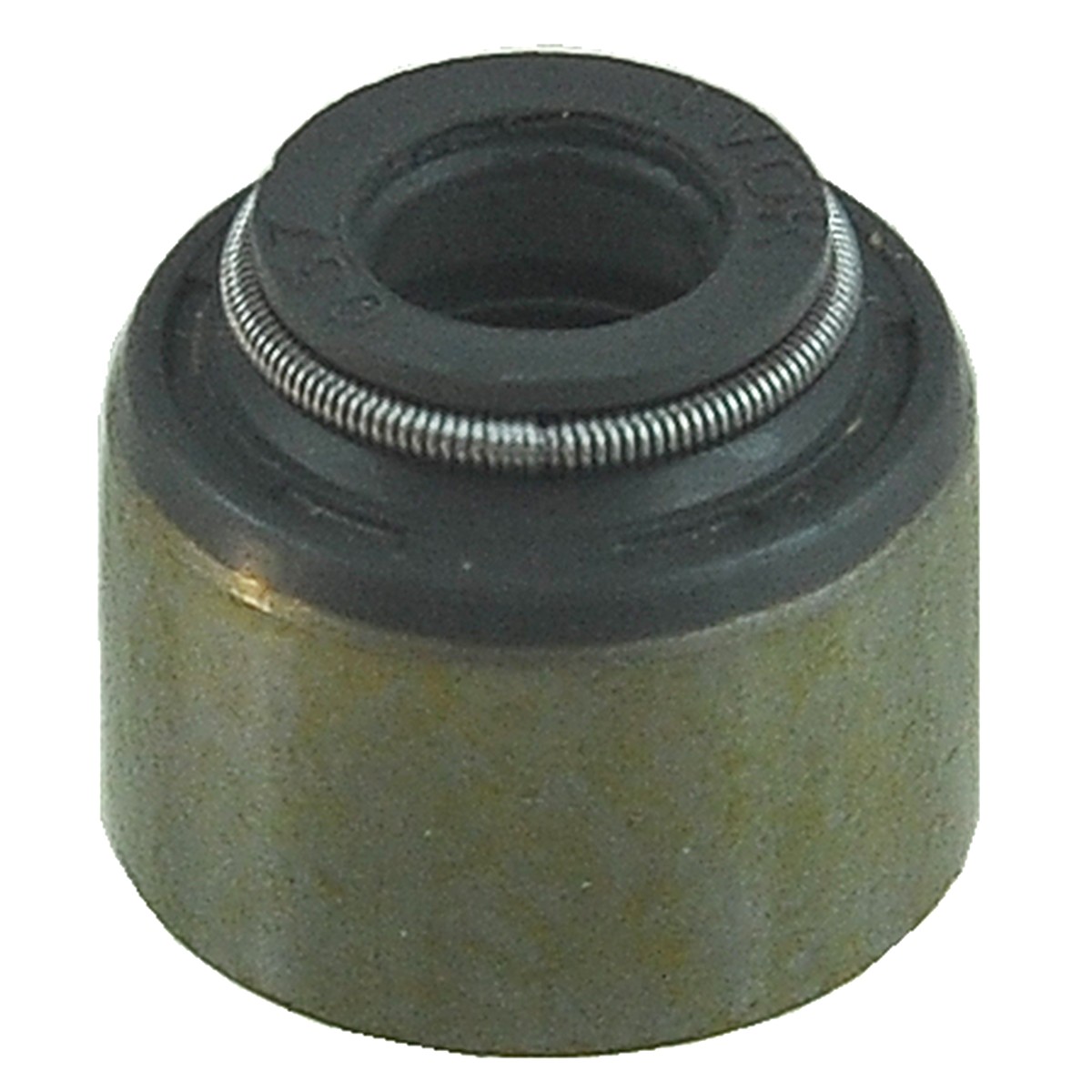

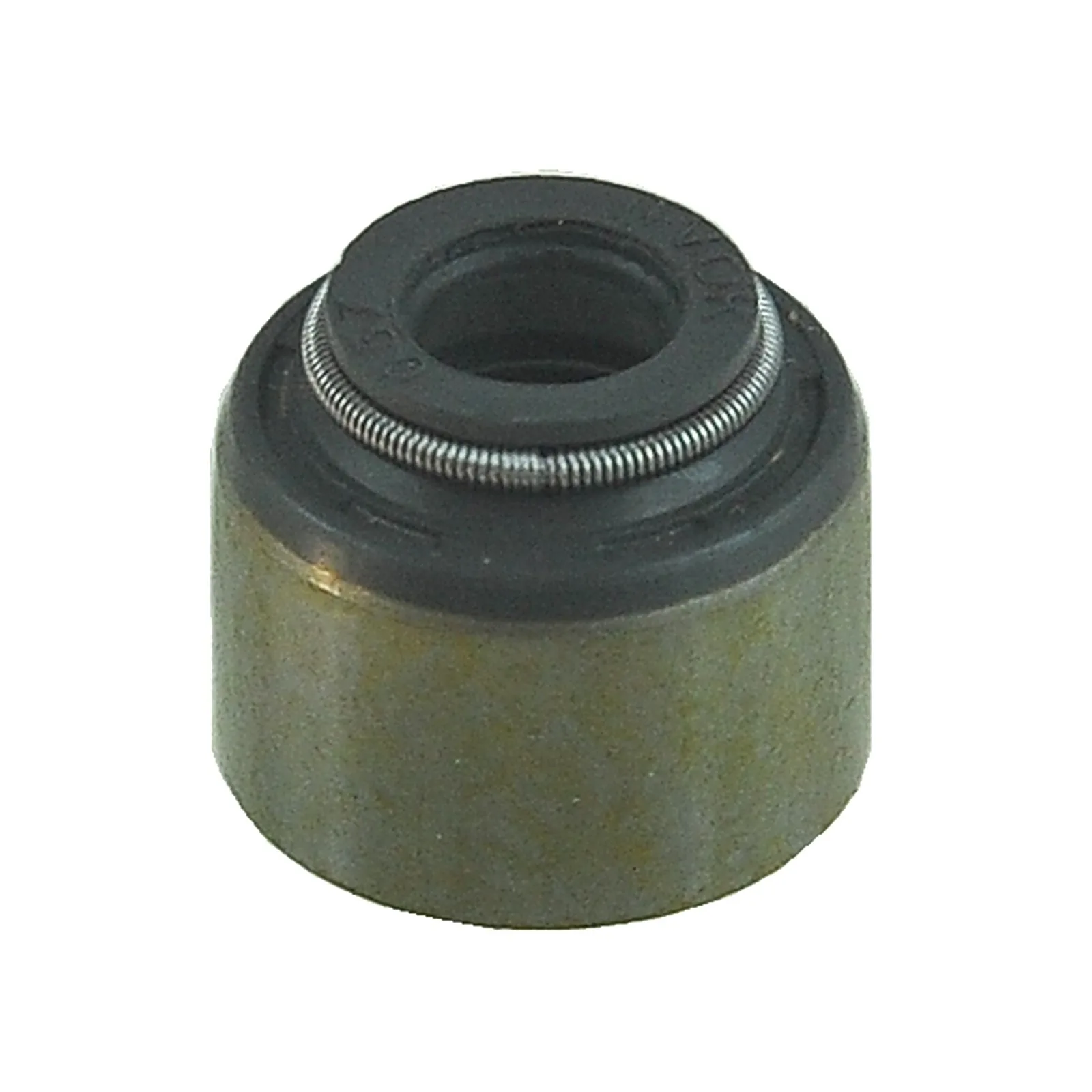

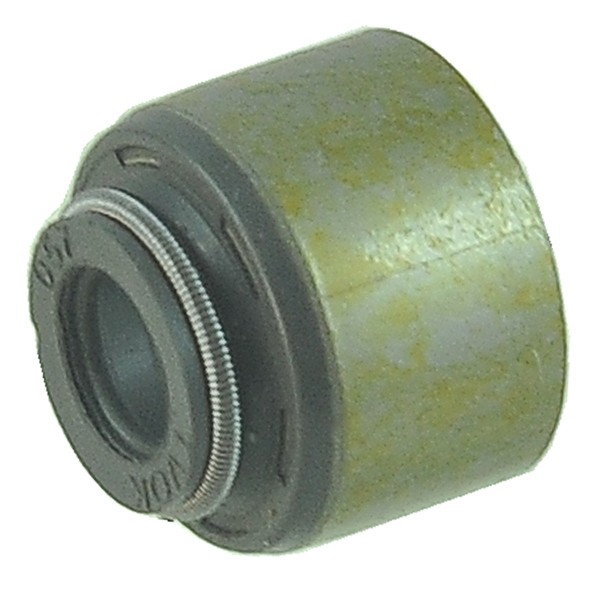

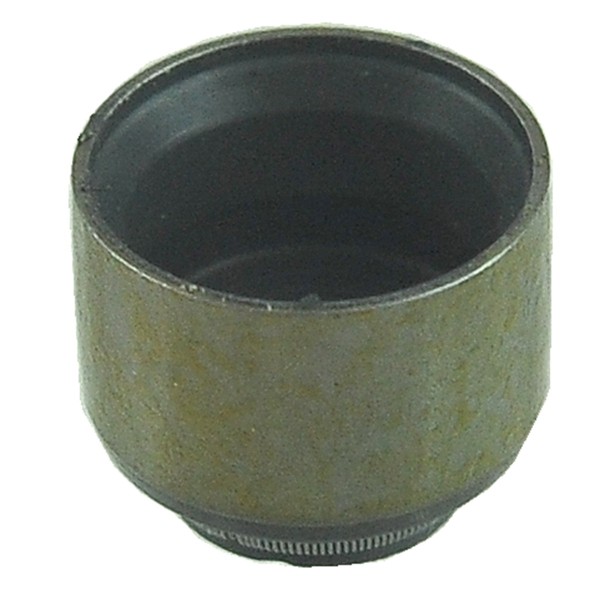

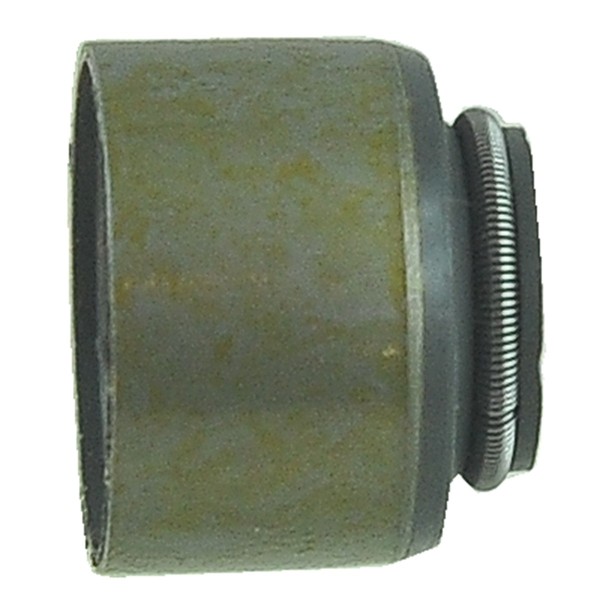

Valve seal / Mitsubishi K4A / K4E / MD115472

Valve seal with an inner diameter of 6.60 / 12 mm , outer diameter of 11.20 / 14.50 mm and a height of 12 mm for Mitsubishi tractors of the Mitsubishi D1500, Mitsubishi D2650, Mitsubishi D3200, Mitsubishi MT26, Mitsubishi ST1800, Mitsubishi ST2300, Mitsubishi ST2600 series with Mitsubishi K4A, Mitsubishi K4E and other engines.

The valve stem seal is a rubber gasket that is designed to provide a tight seal between the valve and the camshaft chamber. The engine valve seal is designed to prevent oil from getting into the cylinders from the engine.

Dimensions:

• outer diameter: 11.20 / 15 mm
• inner diameter: 6.60 / 12 mm,
• height: 12 mm,
• original part numbers: MD115472, MD016490,
• comparison numbers: 22224-21010, 22224-33005,
• part numbers: -.

Engine models :

Mitsubishi :

• Mitsubishi K4A,
• Mitsubishi K4E.

Tractor models :

Mitsubishi :

• Mitsubishi D1500,
• Mitsubishi D2650,
• Mitsubishi D3200,
• Mitsubishi MT26,
• Mitsubishi ST1800,
• Mitsubishi ST2300,
• Mitsubishi ST2600.

The first signs of valve stem seal damage are loss of engine oil and increased smoke coming out of the exhaust pipe when starting the engine, while driving when increasing engine speed. A worn valve stem seal should be replaced with a new one as soon as possible.

Warehouse :
K18:A12:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
