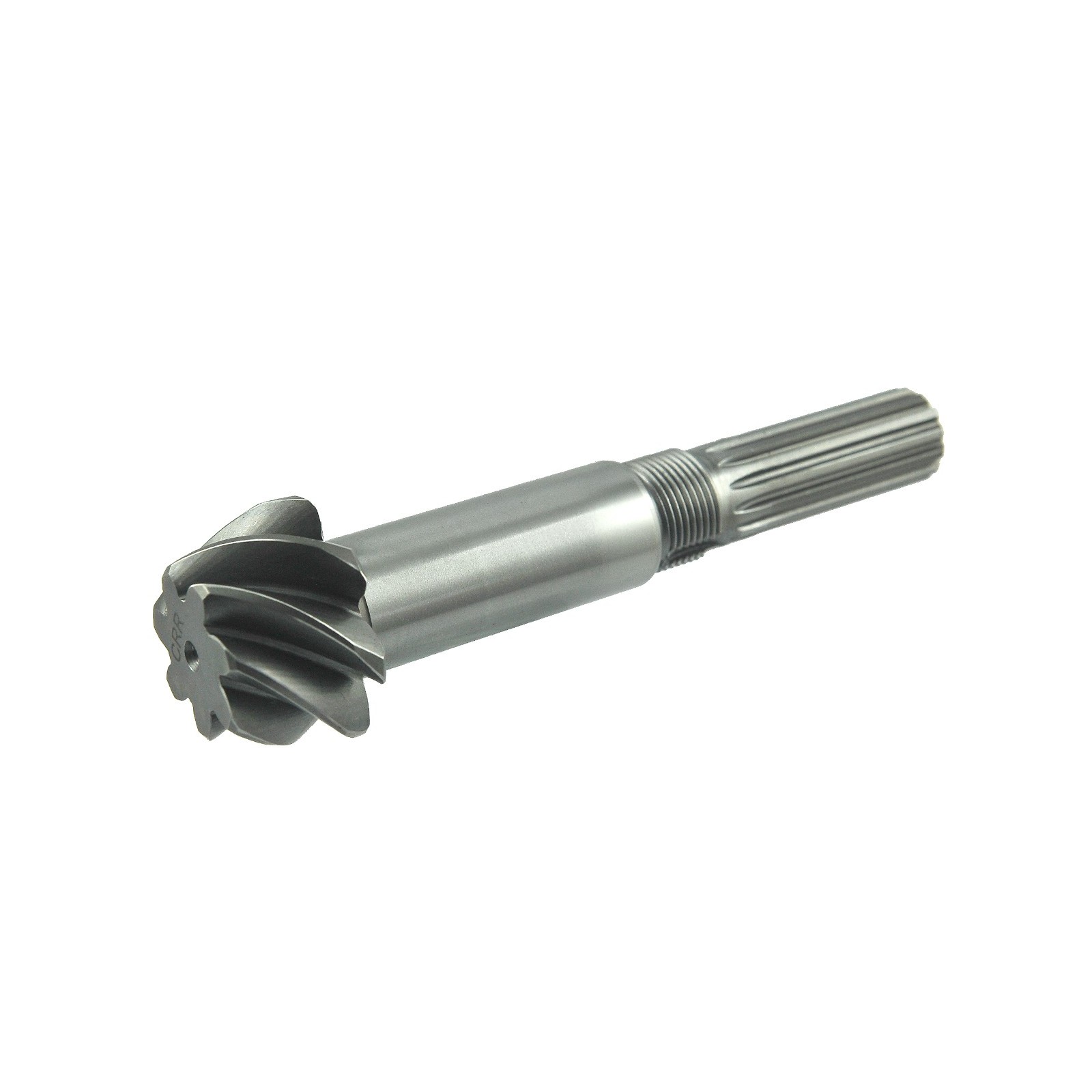

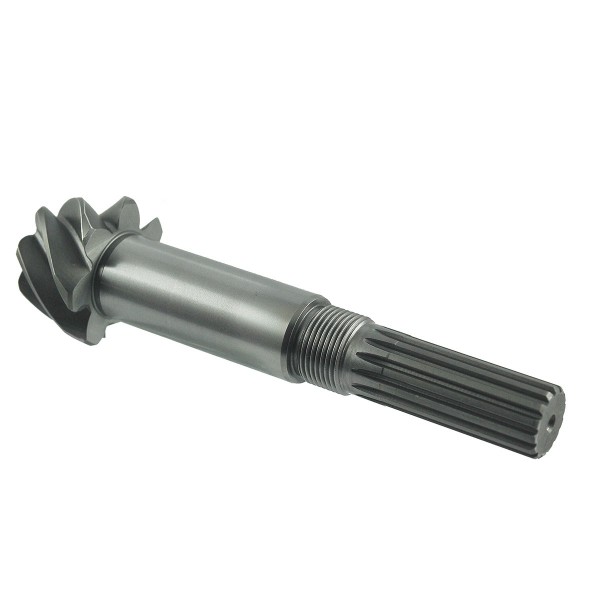

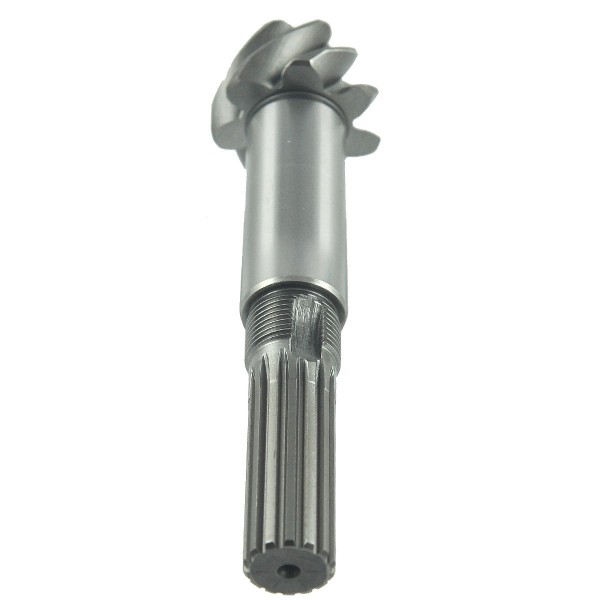

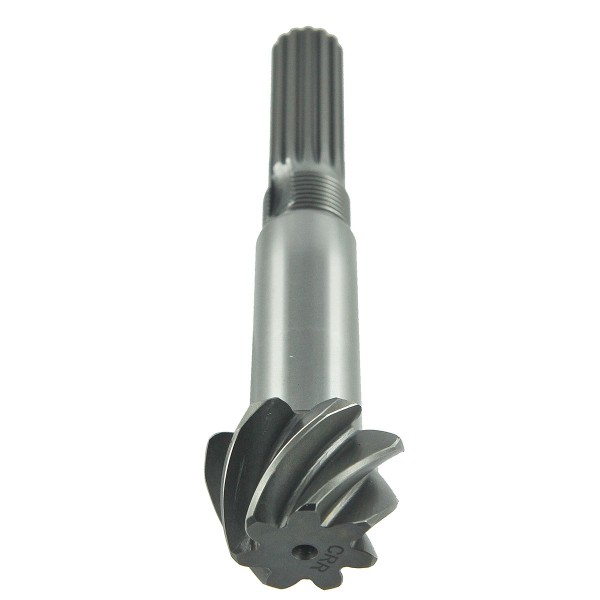

Pinion / 7T/14T / 161 mm / Kubota L1-18 / L1-20 / L1-22 / L1-24 / L1-26 / L1-28 / L1-R18 / L1-R20 / L1-R22

7T / 14T pinion shaft ( 5-19-127-22 ring gear, 31353- 43393, 31353-99120) of the front axle drive with a total length of 161 mm (6.34″ in) for Kubota tractors of the Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-28, Kubota L1-R18, Kubota L1-R20, Kubota L1-R22, Kubota L1-R24, Kubota L1-R26, Kubota L1-R28 series and others.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive , the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

Roller dimensions :

• total length: 161 mm,
• helical gear diameter: 30 / 43.50 mm,
• helical gear width: 25.75 mm,
• cutter diameter: 16 mm (measured between teeth), 19.20 mm (measured with teeth),
• cutter working length: 43 mm,
• thread: M22 x 1.5 mm,
• thread length: 12 mm,
• number of teeth: 7T / 14T,
• original part numbers: 31353-99120, 31353-43210,,
• part numbers: 5-18-117-22.

Tractor models :

Kubota :

• Kubota L1-18,
• Kubota L1-20,
• Kubota L1-22,
• Kubota L1-24,
• Kubota L1-26,
• Kubota L1-28,
• Kubota L1-R18,
• Kubota L1-R20,
• Kubota L1-R22,
• Kubota L1-R24,
• Kubota L1-R26,
• Kubota L1-R28.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.
