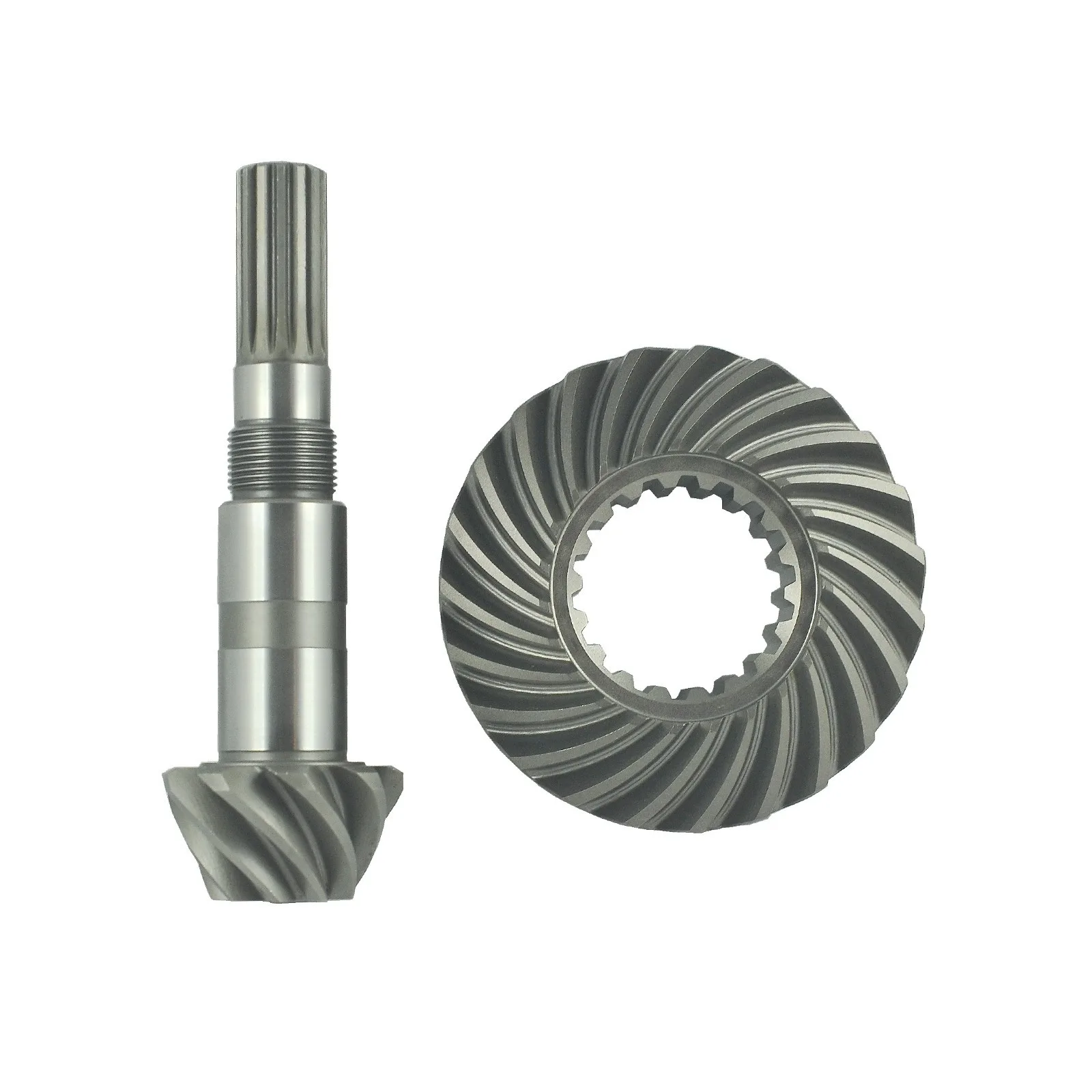

Crown wheel 18T / 23T / 108 mm + pinion shaft 9T / 14T / Kubota L3130 / L3240 / L3430 / L3540 / L3830 / L4508

Product code: 5-19-127-07
Brand 4FARMER
View other model
zł1,544.72 netto
zł1,900.00
Includes VAT 23%

Lowest price from 30 days: zł1,900.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
2 pieces
Delivery See details Leasing & financing for businesses See details

Product description

18T / 23T crown wheel + 9T / 14T pinion shaft of the front axle drive for Kubota tractors of the Kubota L3130, Kubota L3240, Kubota L3430, Kubota L3540, Kubota L3830, Kubota L4508 series and others.

The crown wheel with the pinion is a part of the differential mechanism responsible for transferring the drive from the engine drive shafts to the road wheels. In addition to transferring the drive , the shaft + crown wheel drive unit increases the torque transmitted by the longitudinal shaft to the transverse shaft while changing the direction of rotation.

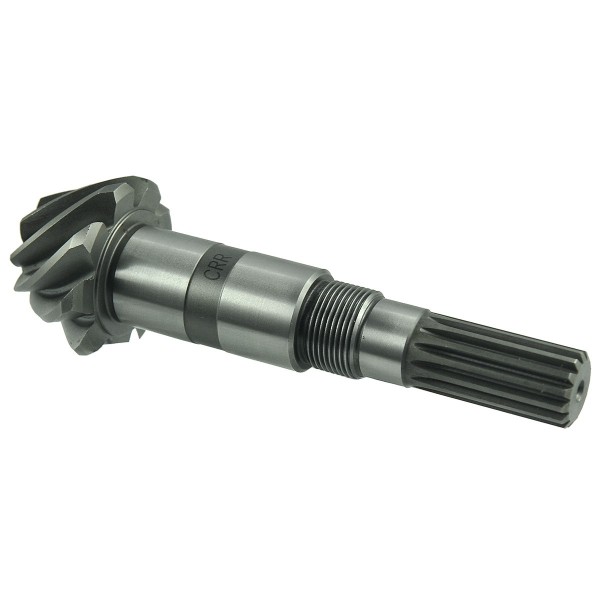

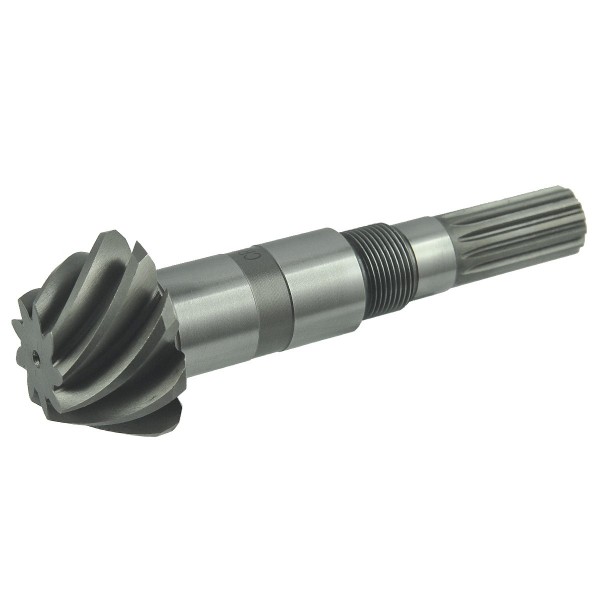

Roller dimensions :

  • total length: 158 mm,
  • helical gear diameter: 32 / 52 mm,
  • helical gear width: 30 mm,
  • cutter diameter: 20 mm (measured together with the cutter teeth), 16 mm (measured between the cutter teeth),
  • cutter working length: 35 mm,
  • thread: M24 x 1.5 mm,
  • thread length: 14 mm,
  • number of teeth: 9T / 14T,
  • original part numbers: 34070-12010, TA020-12010,
  • reference numbers: 5-19-127-05 , TA020-12013,
  • part numbers: TD030-12010.

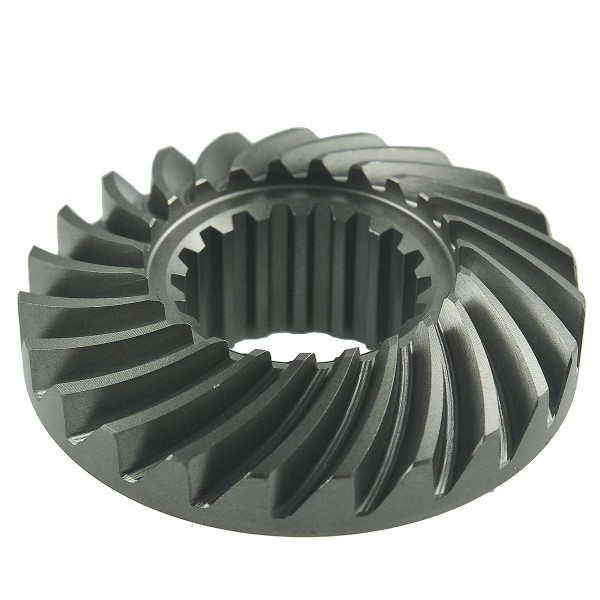

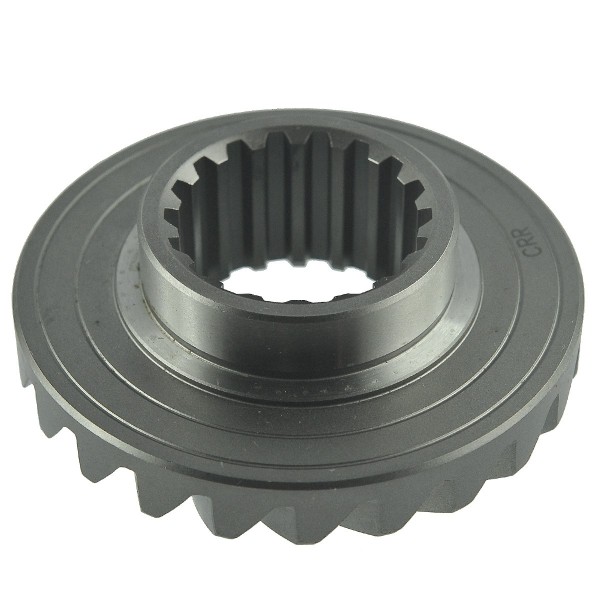

Dimensions of the crown wheel :

  • outer diameter: 108 mm,
  • inner diameter: 45 mm (measured together with the cutter teeth), 50 mm (measured between the cutter teeth),
  • height: 40 mm,
  • number of teeth: 18T (IN) / 23T (OUT),
  • original part numbers: 34070-12010, TA020-12010,
  • reference numbers: 5-19-127-05 , TA020-12013,
  • part numbers: TD030-12010.

Tractor models :

Kubota :

  • Kubota L3130,
  • Kubota L3240,
  • Kubota L3430,
  • Kubota L3540,
  • Kubota L3830,
  • Kubota L4508.

The first signs of damage to the drive unit, crown wheel or pinion shaft are the observation of play in the main gear, or a distinct knocking sound when starting and an increased noise level during operation.

Warehouse:
 M01:F71:S03

Specifications

Condition
New
Diameter of helical gear (mm)
32 / 52
Rack width (mm)
30
Overall length (mm)
158 (roller)
Thread
M24 x 1.5
Parts
Chassis
Inner Diameter (mm)
45 / 50
Outer diameter (mm)
108 (circle)
Tractor models
- Kubota L3130 , - Kubota L3830, - Kubota L3240, - Kubota L3430, - Kubota L3540, Kubota L4508
Comparison numbers
5-19-127-05, TA020-12013
Number of teeth (pcs/T-teeth)
18T (IN) / 23T (OUT)
Thread(s) length (mm)
14
Diameter of Cutter(s) (mm)
16 / 20
Production
Substitute
Part number
TD030-12010
Original Part Number (OEM)
34070-12010, TA020-12010
