To order
Others in the offer of this manufacturer >
Condition
New
Production
OEM
Parts
Drive
Tractor models
VST Fieldtrac 927D
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
Number of teeth (pcs/T-teeth)
14T / 14T
Inner Diameter (mm)
17.30 / 19.90
Diameter (mm)
20 (cross)
Go to full specification >

Cardan shaft / 14T / VST Fieldtrac 927/MT180/MT224/MT270 / 10070552000

10070552000
zł237.00
Tax included PL 23% Dostępny na zamówienie

192,68 netto

  • To order

Do you have any questions?

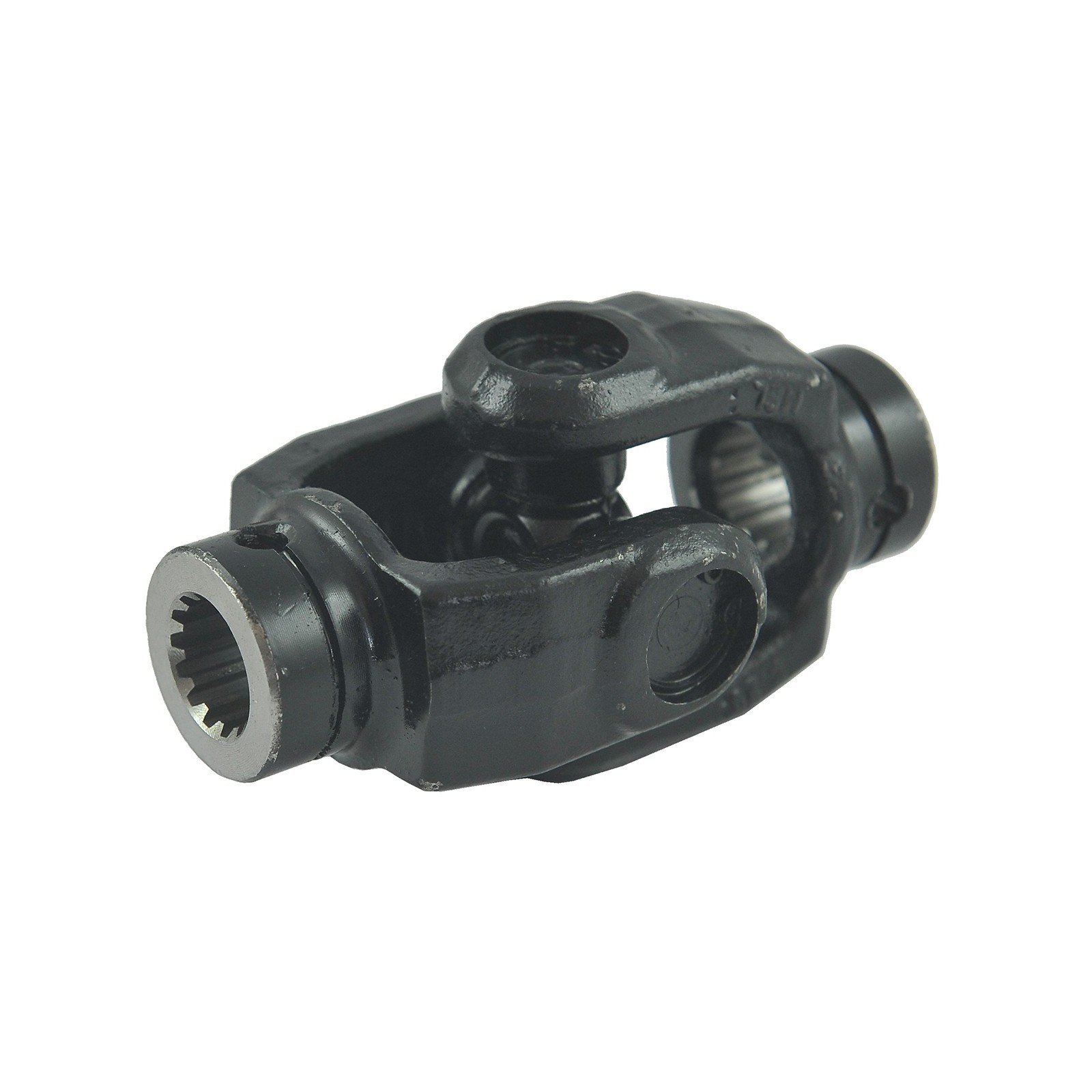

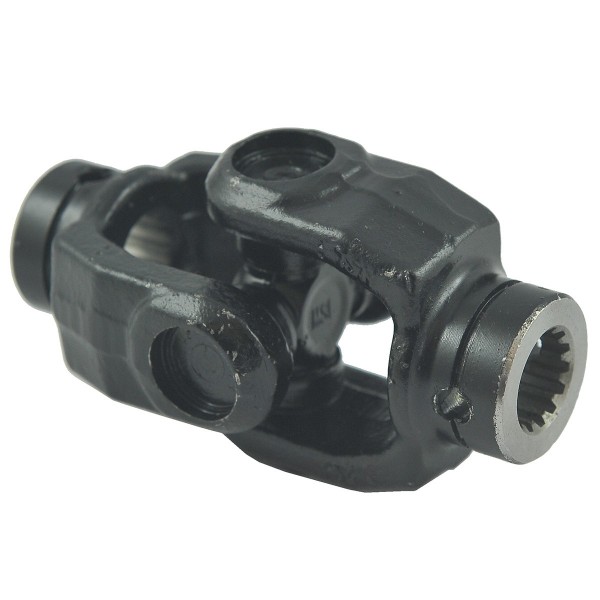

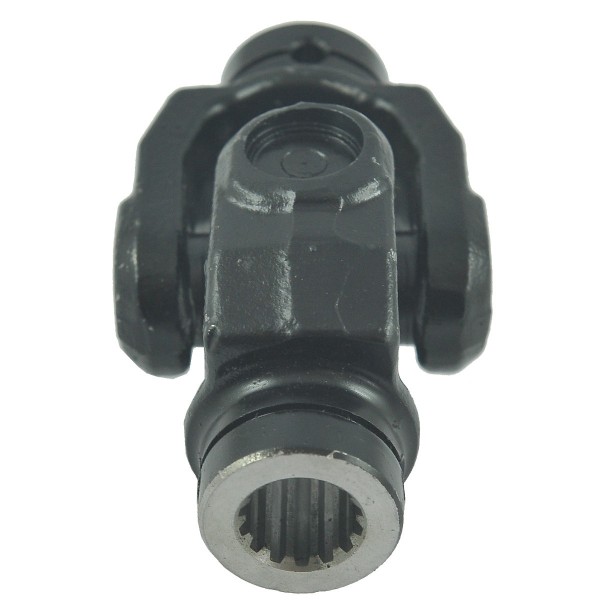

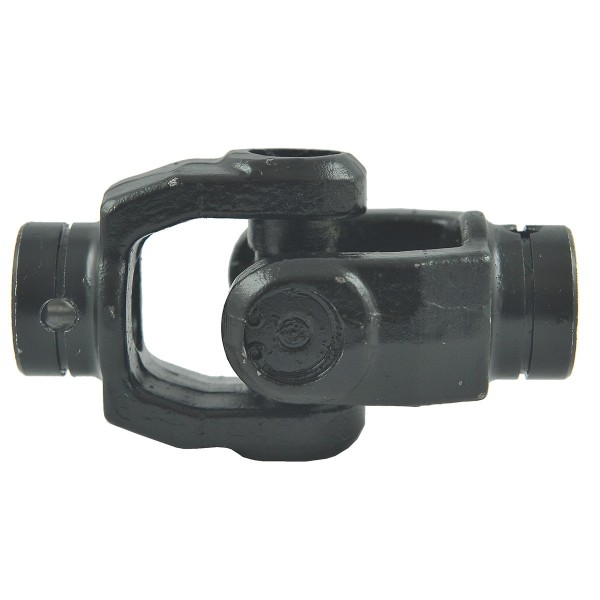

Cardan shaft / 14T / VST Fieldtrac 927/MT180/MT224/MT270 / 10070552000

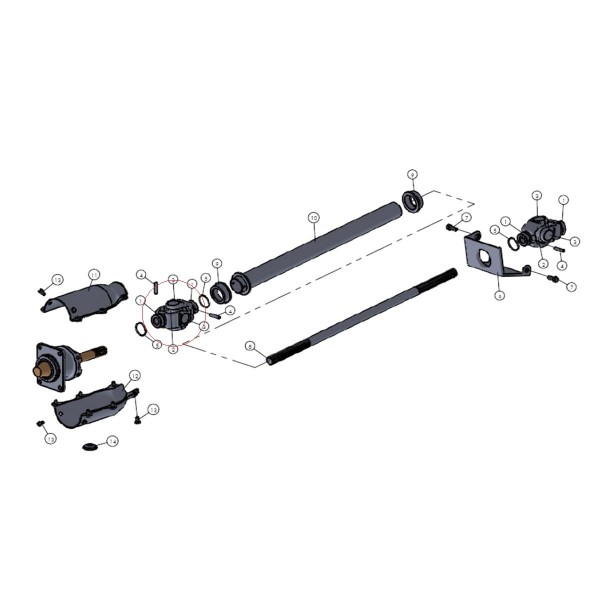

Cardan joint 14T / 14T (drive shaft 180513008X0 ) with a total length of 80 mm for VST tractors of the VST Fieldtrac 927 series, VST MT180, VST MT224, VST MT270 and others.

A Cardan joint, a universal joint or a pivot joint is an element whose main task is to transfer the drive and torque from the active shaft to the passive shaft, which may be at a significant angle to each other. Cardan coupling, cross coupling or swing coupling are all correct names for a joint that consists of two fork-shaped elements joined together by a cross joint. Cardan joints are available with shafts, with ends with a cutter or fork, blocked with a wedge.

Dimensions :

  • total length: 80 mm,
  • dimensions of the cross: 54 x 54 mm,
  • cross diameter: 20 mm,
  • inner diameter: 19.90 mm measured between the cutter teeth), 17.30 mm (measured together with the cutter),
  • number of teeth: 14T / 14T ,
  • comparison numbers: BFA12A00020A0 ,
  • part numbers: 10070552000.

Tractor models :

VST :

Warehouse :
M01:C42:S03

Specification

Magazyn: M01:C42:S03
Condition
New
Production
OEM
Parts
Drive
Tractor models
VST Fieldtrac 927D
VST Fieldtrac MT180
VST Fieldtrac MT224
VST Fieldtrac MT270
Number of teeth (pcs/T-teeth)
14T / 14T
Inner Diameter (mm)
17.30 / 19.90
Diameter (mm)
20 (cross)
Overall length (mm)
80
Dimensions (mm)
54 x 54 (cross)
Comparison numbers
BFA12A00020A0
Part number
10070552000

VST

VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.

In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.

VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).

Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
