zł890.00
To order
Condition
New
Production
Substitute
Parts
Hydraulic system
Number of teeth (pcs/T-teeth)
4T
Length (mm)
150
Height (mm)
85
Hole diameter (mm)
18

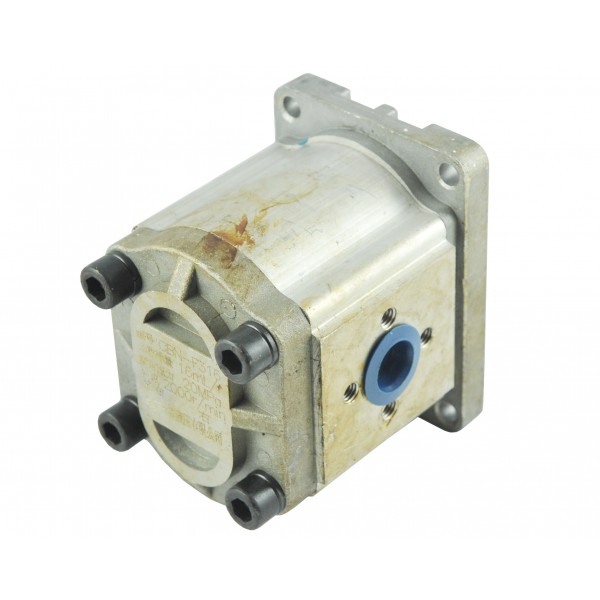

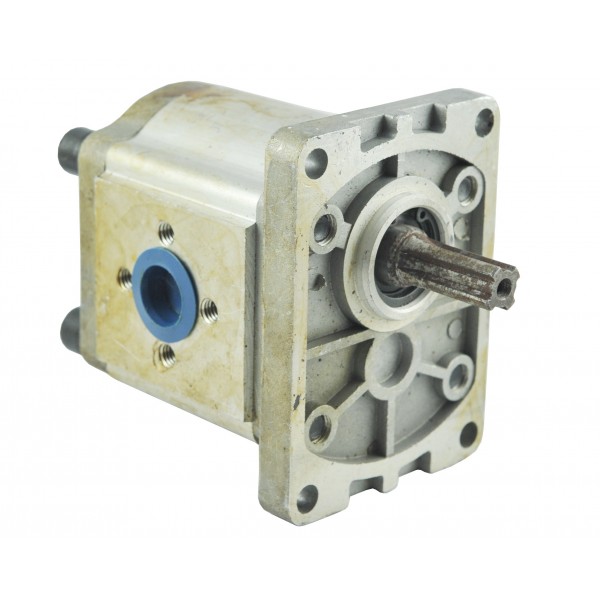

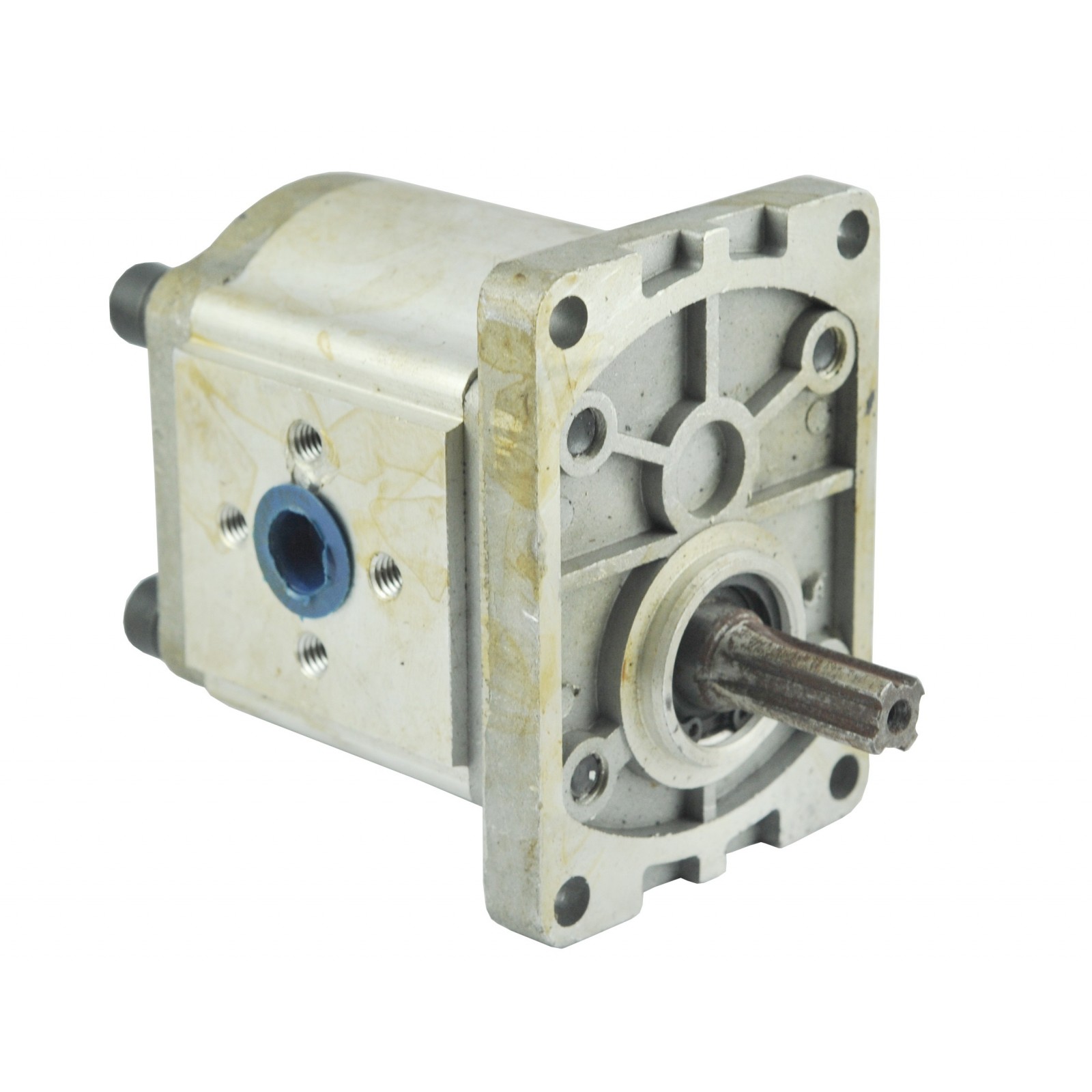

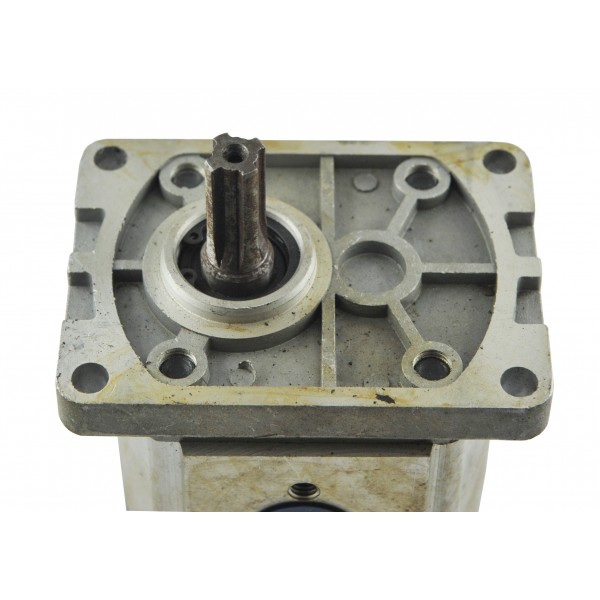

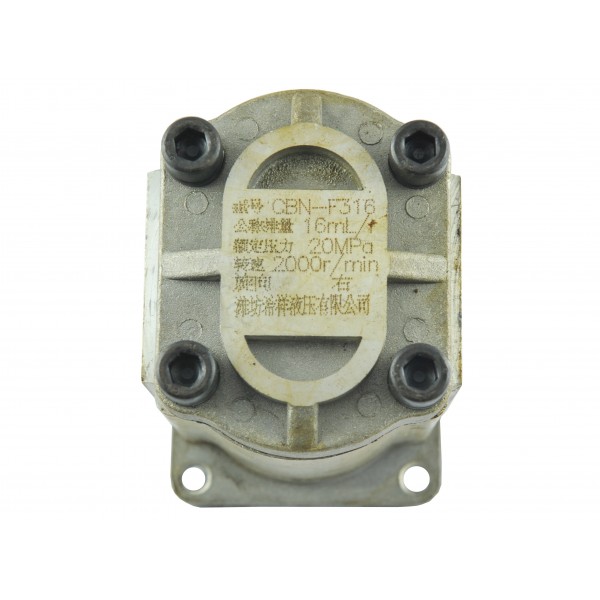

Hydraulic pump / CBN-F316
A hydraulic pump is a robust component of the hydraulic system responsible for generating and maintaining the appropriate operating pressure in agricultural and construction machinery. Thanks to its precise design and proven technical solutions, it ensures reliable operation even under heavy loads. It's ideal as a replacement part for repairing or upgrading hydraulic systems.
Dimensions:
- Dimensions: 150 x 115 x 85 mm,
- Spacing of mounting screw holes: 70 x 100 mm,
- Diameter of mounting screw holes: 8.50 mm,
- Inlet/outlet hole diameter: 13/18 mm,
- Spacing of holes for mounting screws of hydraulic outlets: 38 mm (measured diagonally),
- Roller dimensions: 15 x 35 mm,
- Number of shaft teeth: 4T,
- Index: CBN-F316.
Magazine: M01:A42
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:A42
18
Condition
New
Production
Substitute
Parts
Hydraulic system
Number of teeth (pcs/T-teeth)
4T
Length (mm)
150
Height (mm)
85
Hole diameter (mm)
18
Width (mm)
115
Shaft length (mm)
Mounting bolt(s) hole diameter (mm)
8.50
Shaft diameter (mm)
15
Bolt hole spacing (mm)
70
100
100
Spacing of mounting holes for hydraulic outlets (mm)
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
