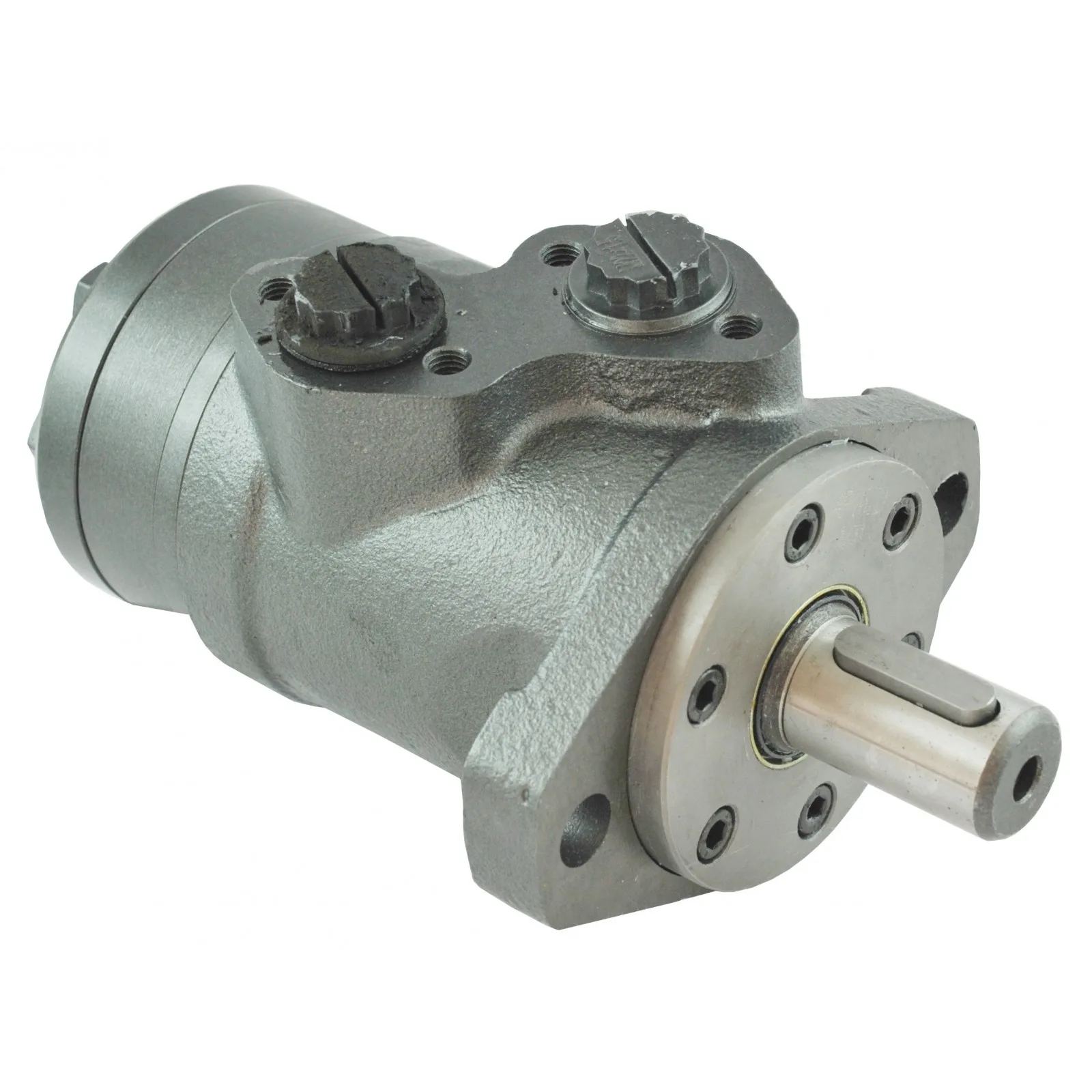

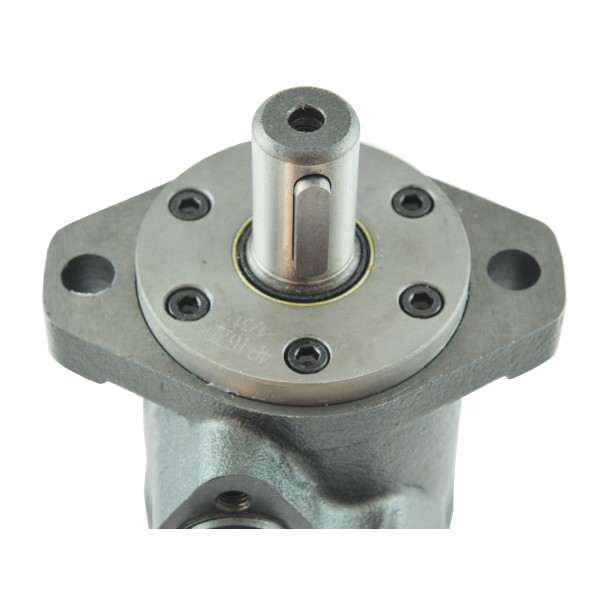

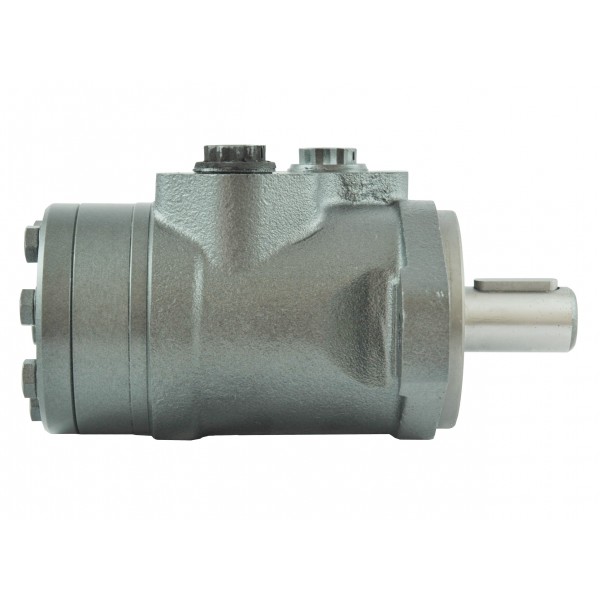

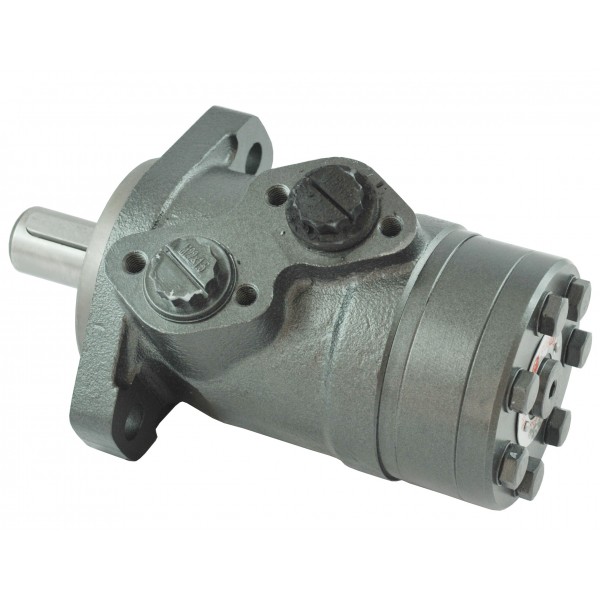

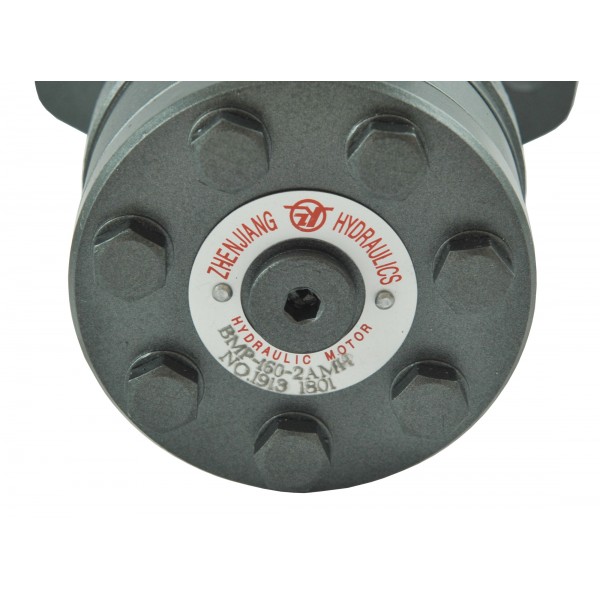

Hydraulic pump / BMP-160-2AMH
BMP-160-2AMH
Do you have any questions?
Hydraulic pump / BMP-160-2AMH
The hydraulic pump is a robust hydraulic system component with a capacity of 160 cm³/rev and a speed of 375 rpm, manufactured by Zhenjiang Hydraulics. Its compact design and standard mounting dimensions (including a 25 mm shaft diameter and M22x15 holes) facilitate its integration with various agricultural equipment. It ensures reliable operation in challenging conditions and is available upon request.
Dimensions:
- Total length: 205 mm,
- Length without shaft: 160 mm,
- Diameter: 85 mm,
- Width: 100 mm,
- Roller diameter: 25 mm,
- Spacing of mounting screw holes: 105 mm,
- Diameter of mounting screw holes: 13.50 mm,
- Spacing of mounting bolt holes at hydraulic outlets: 40 mm (measured from each other),
- Thread diameter for mounting screws at hydraulic outlets: M22 x 156.50 mm,
- Hydraulic outlet thread M22 x 1.50,
- Manufacturer: Zhenjiang Hydraulics,
- Index: BMP-160-2AMH.
Magazine: M01:C64
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:C64
Condition
New
Production
Substitute
Length (mm)
160
Diameter (mm)
85
Overall length (mm)
205
Width (mm)
100
Mounting bolt(s) hole diameter (mm)
13.50
Shaft diameter (mm)
25
Bolt hole spacing (mm)
105
Thread
M22 x 1.50
Spacing of mounting holes for hydraulic outlets (mm)
