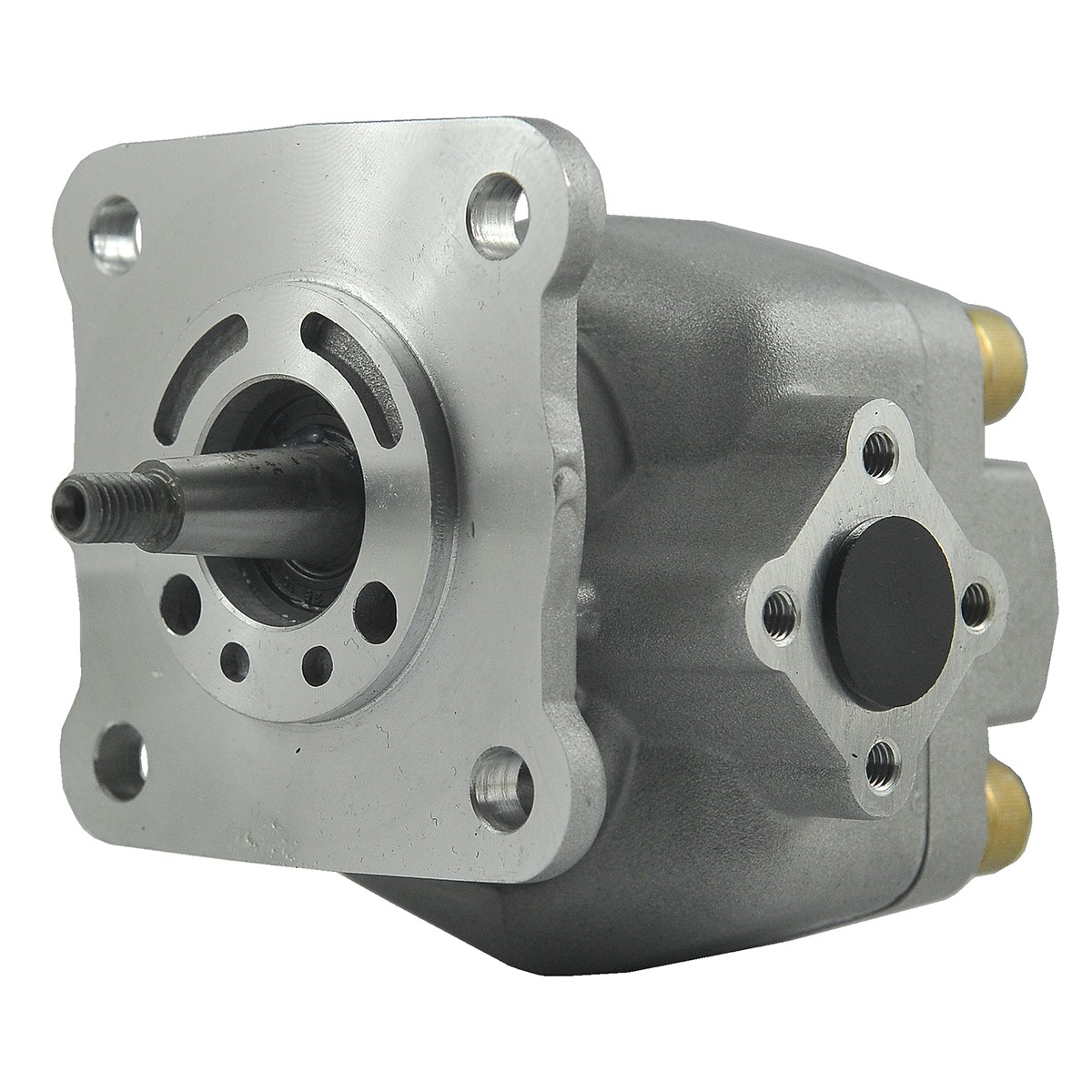

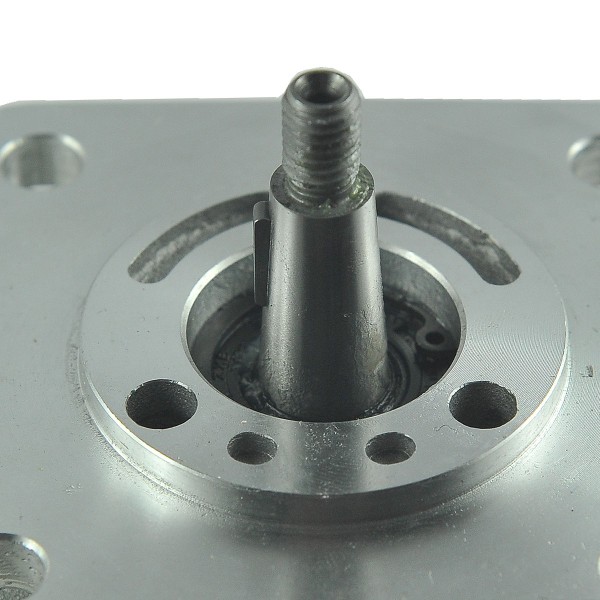

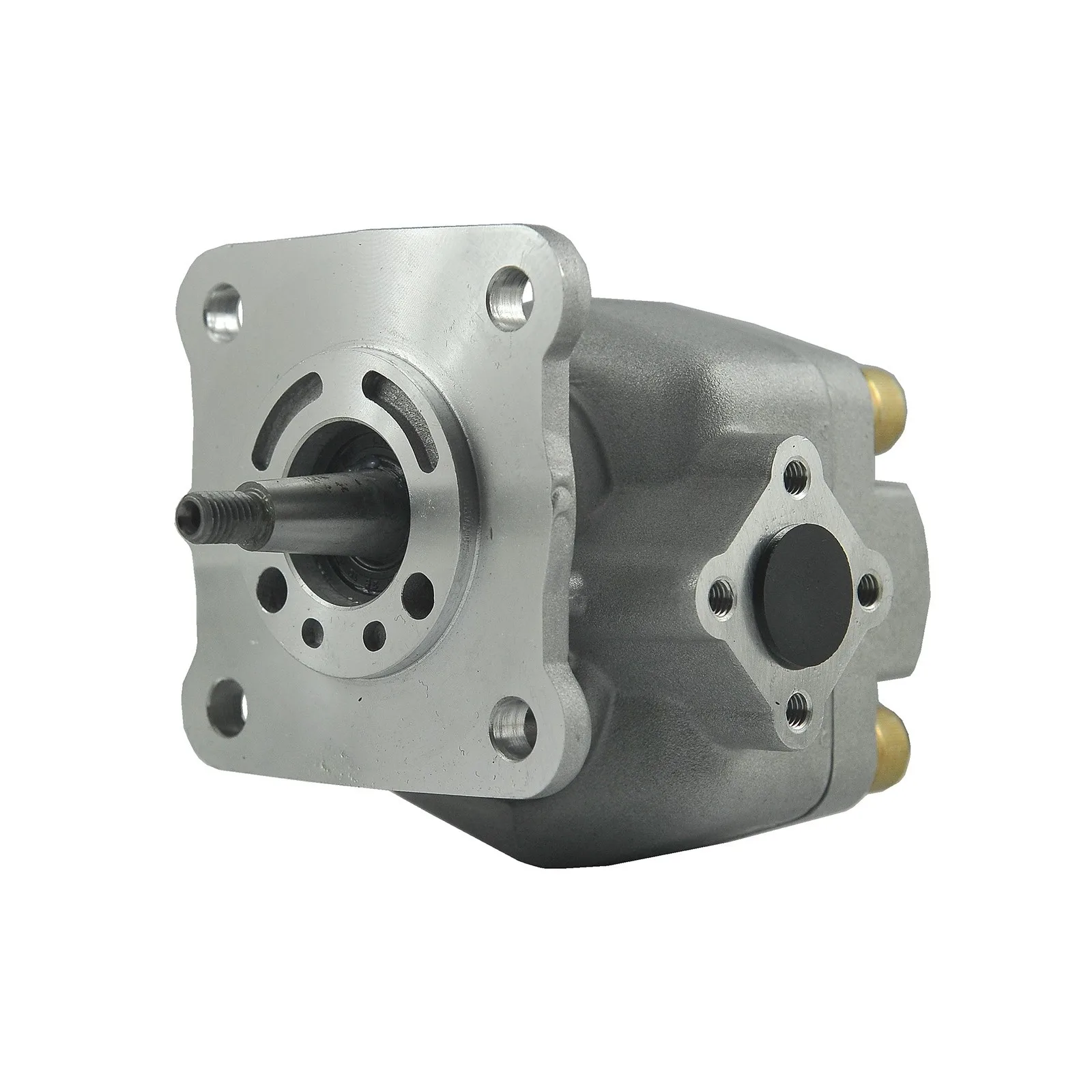

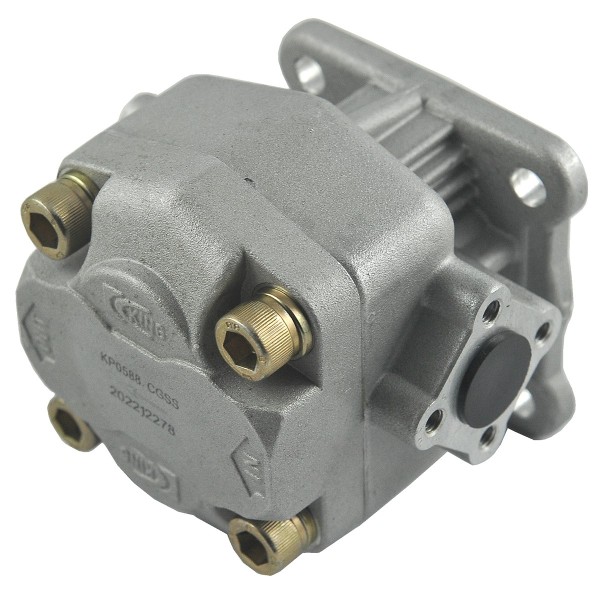

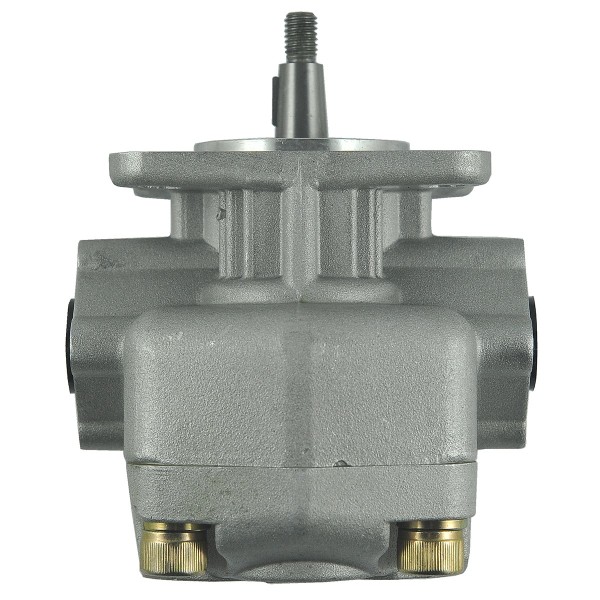

Hydraulic pump / Hinomoto E14 / E16 / E18 / E23 / E25 / KP0588 CGSS

Hydraulic pump with dimensions 100 x 100 x 100 mm (repair kit 9-07-102-02 , shaft seal 31381-76190 ) for Hinomoto tractors of the Hinomoto E14, Hinomoto E16, Hinomoto E18, Hinomoto E23, Hinomoto E25 series and others.

A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Technical data :

• length: 100 mm,
• width: 100 mm
• height: 100 mm,
• diameter of mounting screw holes: 9 mm,
• mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
• diameter of hydraulic holes: 16 mm (OUT), 16 mm (IN),
• spacing of holes for mounting screws of hydraulic outlets: 25 mm (measured from each other), 35 mm (measured diagonally),
• pump rotation movement: LEFT,
• flow: 8.80 l/min,
• pressure: 100 bar,
• rotational speed: 500-3500 rpm,
• original part numbers: 35110-76100, 34150-36100, 34150-36102,
• reference numbers: 9-96-100-01 , KP0588CGSS ,
• part numbers: KP0588 CGSS.

Tractor models:

• Hinomoto E14,
• Hinomoto E16,
• Hinomoto E18,
• Hinomoto E23,
• Hinomoto E25.

Magazine : K18:F15

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
