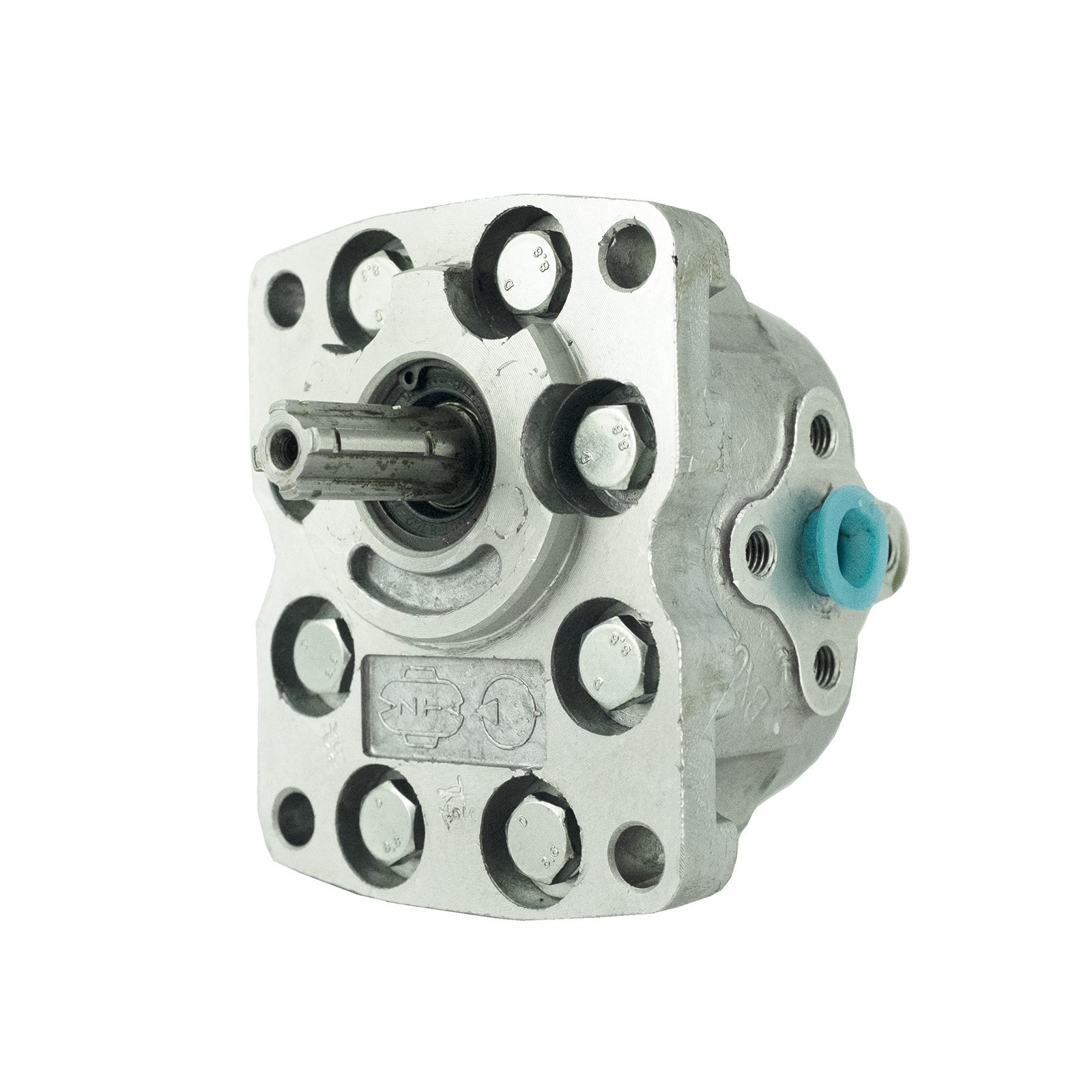

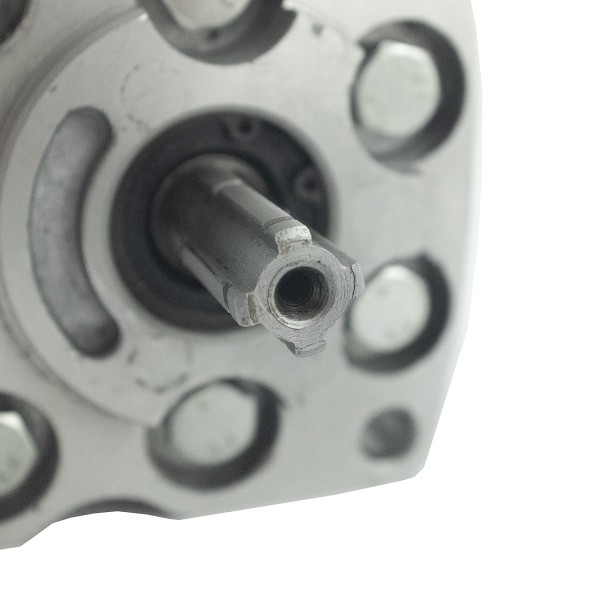

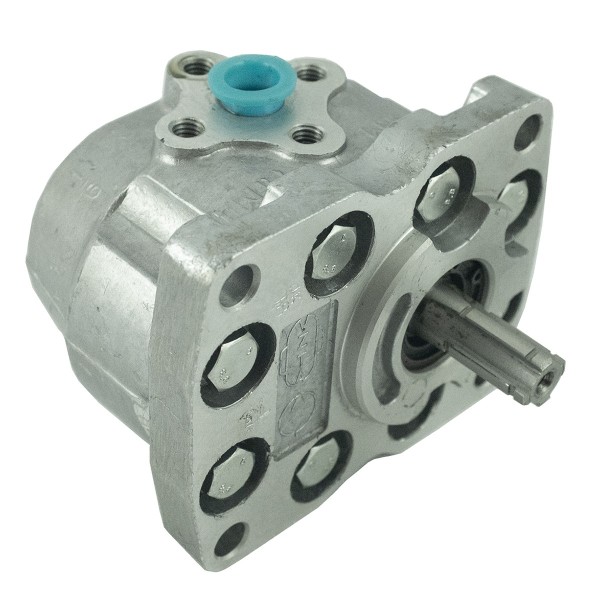

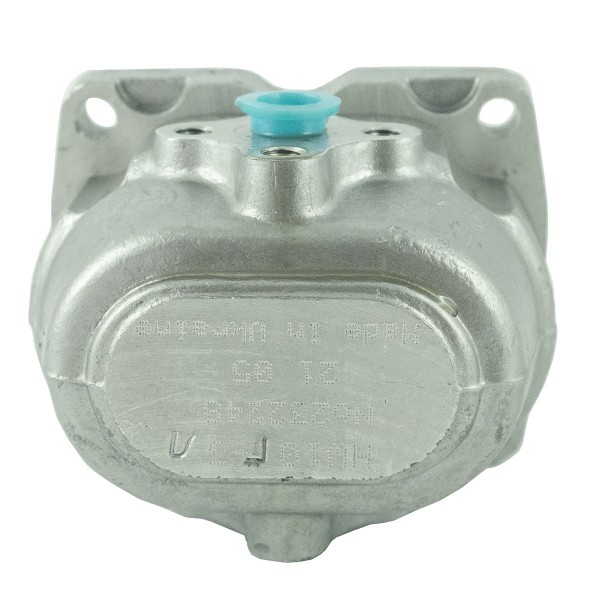

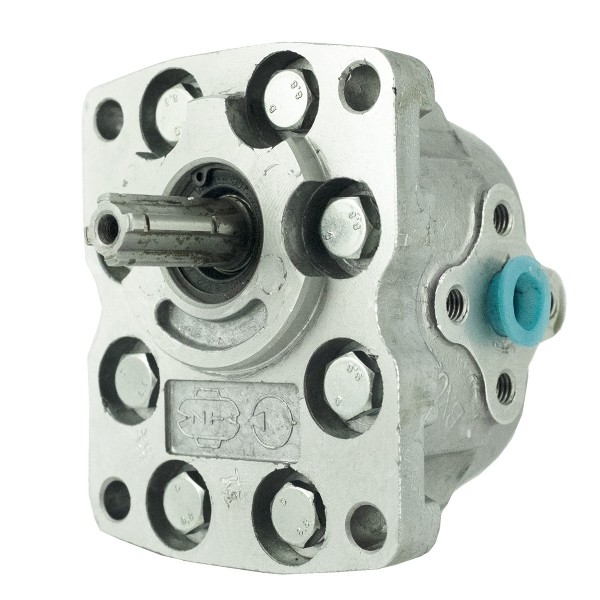

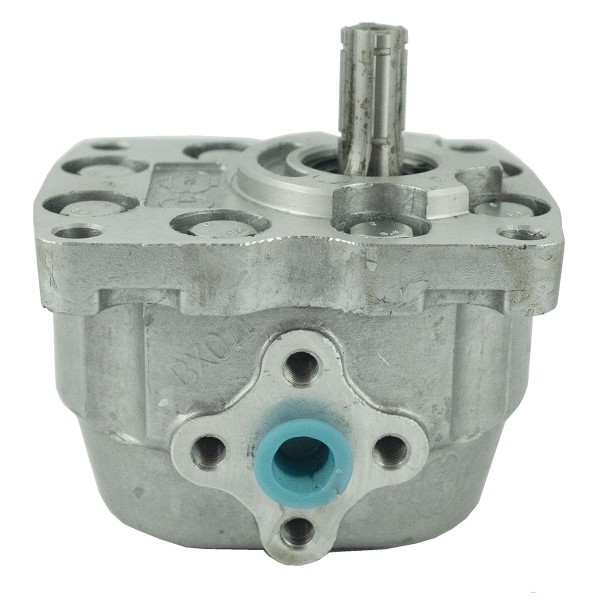

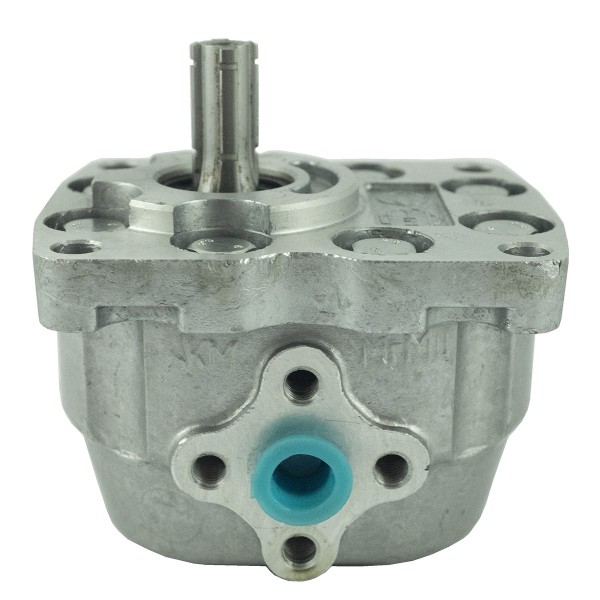

Hydraulic pump Wladimiriec T-25 / HW10D-3 / 39cm3 / 1500 rpm / 10 l/min / D7FB-402B4

Hydraulic pump with dimensions 115 x 94 x 85 mm for tractors and other machines and vehicles.

The gear hydraulic pump is a device responsible for the operation of the rear linkage, hydraulically operated additional equipment, and in modern tractors the hydraulic pump is responsible for the power steering. With the help of a hydraulic pump, we can control additional functions of an agricultural trailer, flail mower, rotary tiller or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g. crankshaft). The hydraulic oil pumped to the pump goes to the high pressure regulating valve, where the excess returns to the gearbox and then goes to the main distributor. Some hydraulic pumps may have additional sections to supply oil under increased pressure to the steering system.

Technical data :

• dimensions: 115 x 94 x 85 mm,
• diameter of holes for mounting screws: 9.50 mm,
• spacing of holes for mounting screws: 75 mm (measured from each other), 115 mm (measured diagonally),
• diameter of hydraulic holes: 14.30 / 14.30 mm,
• spacing of holes for mounting screws: inlet (IN) 38 mm (measured diagonally), 27 mm (measured apart),
• spacing of holes for mounting screws: outlet (OUT) 38 mm (diagonally), 27 mm (measured from each other),
• pump rotation movement: counterclockwise, left,
• number of teeth: 4T,
• weight: 1.5 kg,
• nominal flow: 10 l/min,
• part numbers: D7FB-402B4, HW10D-3.

The first signs of a hydraulic pump failure are the lift falling too fast or problems with steering the trailer. The most common failure is the control valve or the pump seals, and in both cases the pump has been successfully rebuilt.
