Product description

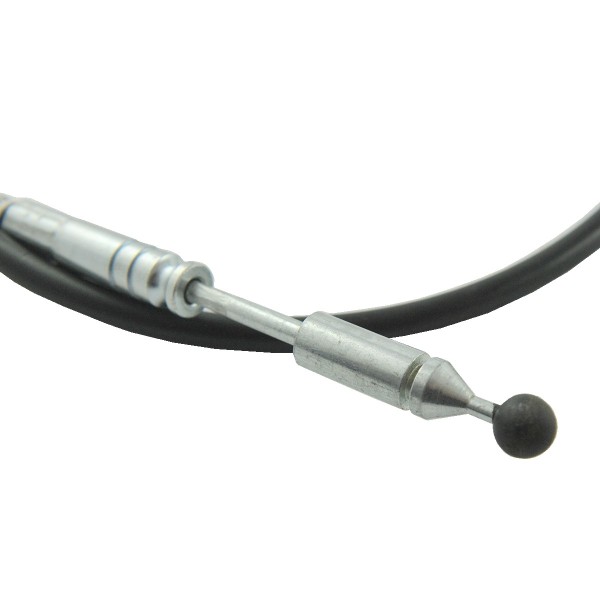

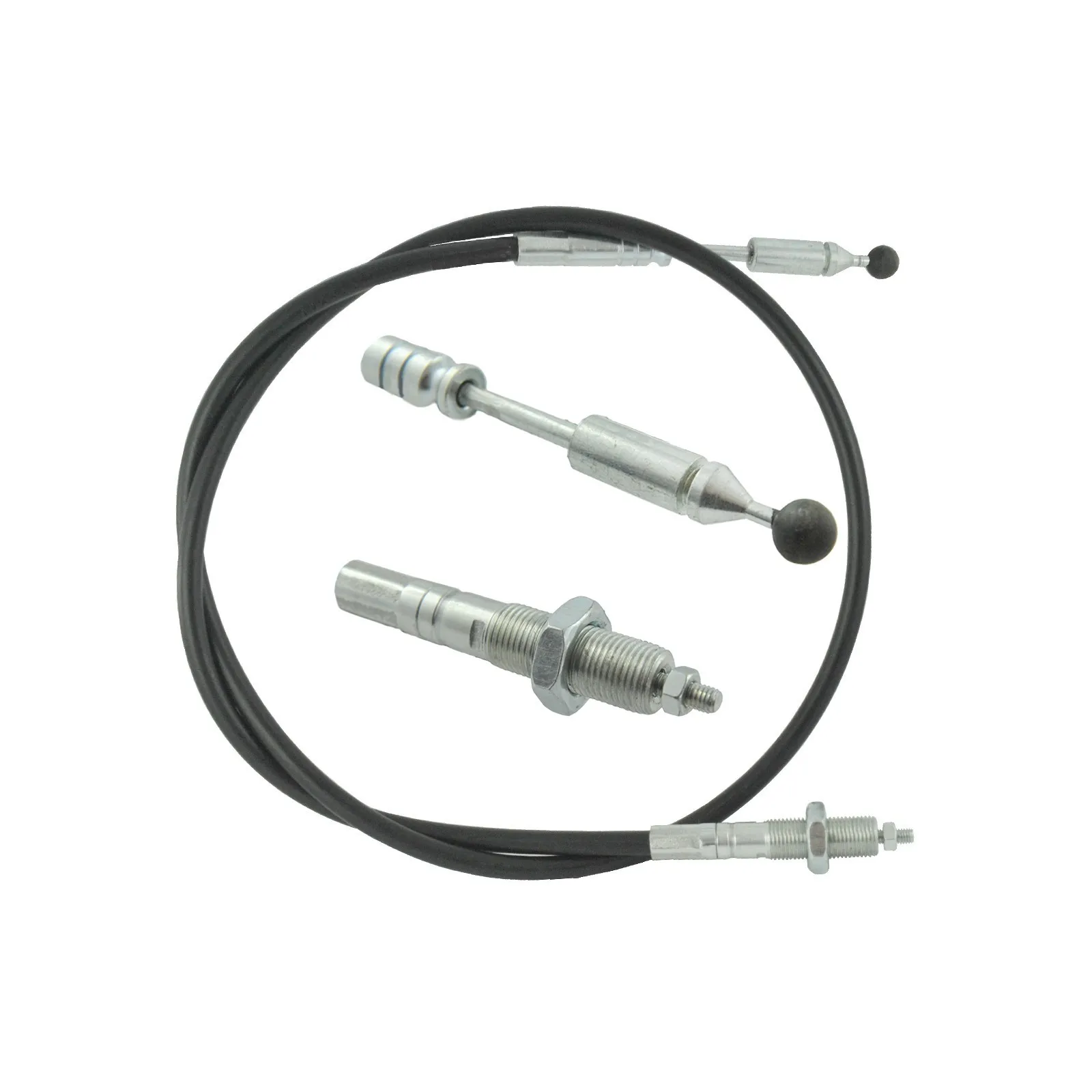

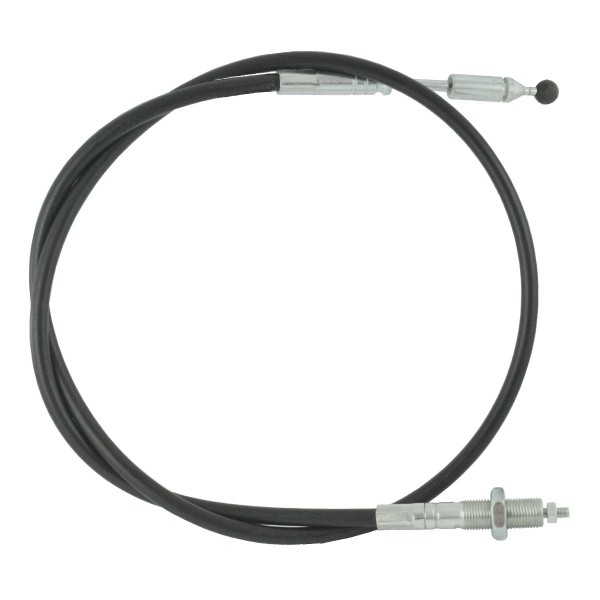

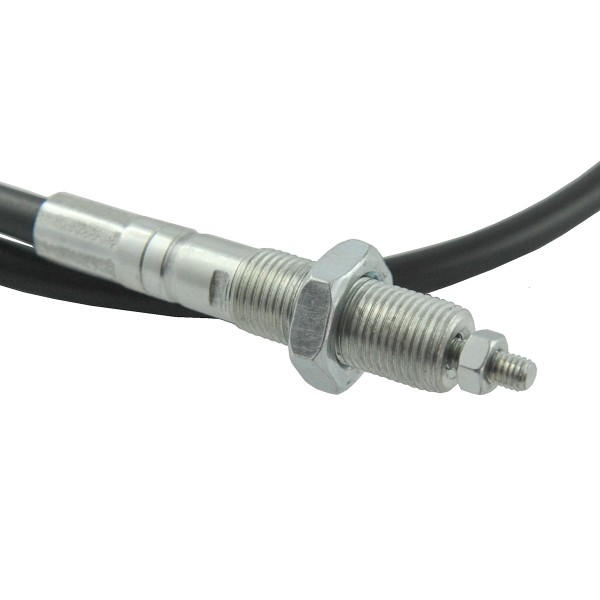

Control cable with a total length of 1300 mm with a rivet with M16 x 1.5 thread and a ball end with a ball of 14 mm diameter for a hydraulic distributor with a joystick .
The distributor control cable is a steel cable in armor thanks to which we can control the flow of fluid in hydraulic lines. The cable is connected to the control joystick on one side, and directly to the hydraulic distributor on the other. The basic element of the tractor's hydraulic system are hydraulic lines . The most common lines are rubber, metal or other plastic lines resistant to corrosion and chemical properties of hydraulic fluids. Hydraulic lines differ in braiding, length and diameter and differ in length, diameter and working pressure to which they have been adapted. We distinguish several basic types of hydraulic hoses, including high and low pressure, fireproof and adapted to work at high temperatures.
Dimensions :
- total length: 1300 mm,
- armour length with rivets: 1180 mm,
- armor diameter: 9.50 mm,
- ball diameter: 14 mm,
- thread: M16 x 1.5 / M6 x 1.00,
- thread length: 40 mm,
Before selecting the appropriate hydraulic hose, you should pay attention to the pressure, conditions and fluids your hydraulic lines will operate under and ensure the proper quality of the crimping.
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
Specifications
Podobne produkty
Reviews of Hydraulic..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
