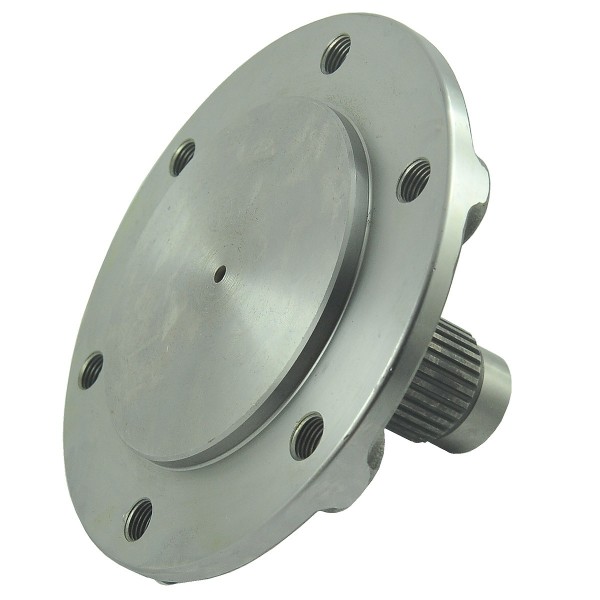

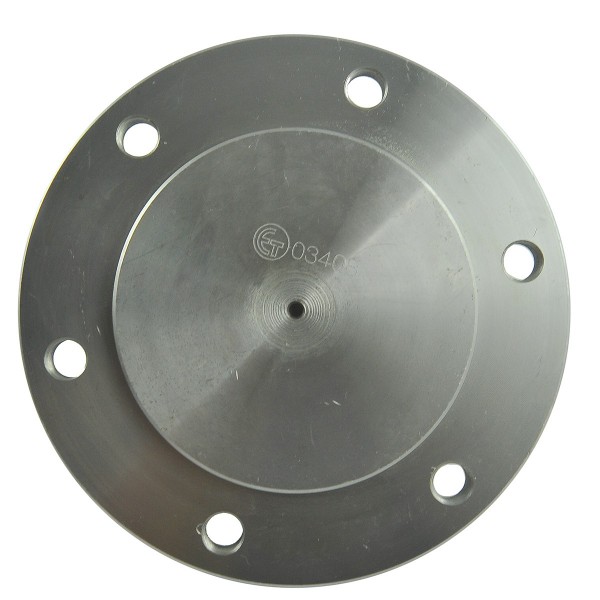

Wheel hub 180 mm / 30T / Kubota GL32/L3408 / 34070-13330 / 5-18-122-05

5-18-122-05
zł690.00
Tax included PL 23%

560,98 netto

  • To order
wishlist

Do you have any questions?

Wheel hub 180 mm / 30T / Kubota GL32/L3408 / 34070-13330 / 5-18-122-05

Front wheel hub with a diameter of 180 mm , a height of 110 mm and the number of teeth of the cutter 30T for Kubota tractors of the Kubota GL32, Kubota GL33, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota L2800DT, Kubota L3010DT tractors , Kubota L3130DT, Kubota L3200DT, Kubota L3408, Kubota L3430, Kubota L3600DT, Kubota L3710DT, Kubota L3830, Kubota L4200DT, Kubota L4310DT, Kubota L4630 and others.

A hub is an element of a drive, road or transmission wheel that is mounted on a shaft or axle. There are many ways to attach the hubs to the wheel, the most popular are wedge, spline or press-fit connections.

Dimensions :

  • diameter: 180mm,
  • total height: 110 mm,
  • shaft length: 88 mm,
  • cutter diameter: 36.50 mm (measured between the teeth of the cutter), 39.70 mm (measured together with the cutter),
  • cutter working length: 29 mm,
  • number of teeth: 30T,
  • diameter of holes for mounting screws: M13,
  • bolt hole spacing: 155 mm (measured diagonally), 75 mm (measured apart),
  • original part numbers: 34070-13330,
  • part numbers: 5-18-122-05.

Tractor models:

Kubota:

  • Kubota GL32,
  • Kubota GL33,
  • Kubota GL300,
  • Kubota GL301,
  • Kubota GL320,
  • Kubota GL321,
  • Kubota GL337,
  • Kubota GL338,
  • Kubota L2800DT,
  • Kubota L3010DT,
  • Kubota L3130DT,
  • Kubota L3200DT,
  • Kubota L3408,
  • Kubota L3430,
  • Kubota L3600DT,
  • Kubota L3710DT,
  • Kubota L3830,
  • Kubota L4200DT,
  • Kubota L4310DT,
  • Kubota L4630,

Warehouse :
M01:B62

Specification

Magazyn: M01:B62
Condition
New
Production
Substitute
Parts
Chassis
Tractor models
- Kubota L3130DT
- Kubota L3430
- Kubota L3830
Kubota GL32
Kubota GL33
Kubota GL300
Kubota GL301
Kubota GL320
Kubota GL321
Kubota GL337
Kubota GL338
Kubota L2800DT
Kubota L3010DT
Kubota L3408
Kubota L3600DT
Kubota L3710DT
Kubota L4200DT
Kubota L4310DT
Kubota L4630
Height (mm)
110
Plate diameter (mm)
180
Diameter (mm)
19
Shaft length (mm)
88
Cutter(s) length (mm)
29
Diameter of Cutter(s) (mm)
36.50 / 39.70
Mounting bolt(s) hole diameter (mm)
M13
Bolt hole spacing (mm)
75 / 155
Original Part Number (OEM)
34070-13330
TC220-33310
Part number
5-18-122-05
