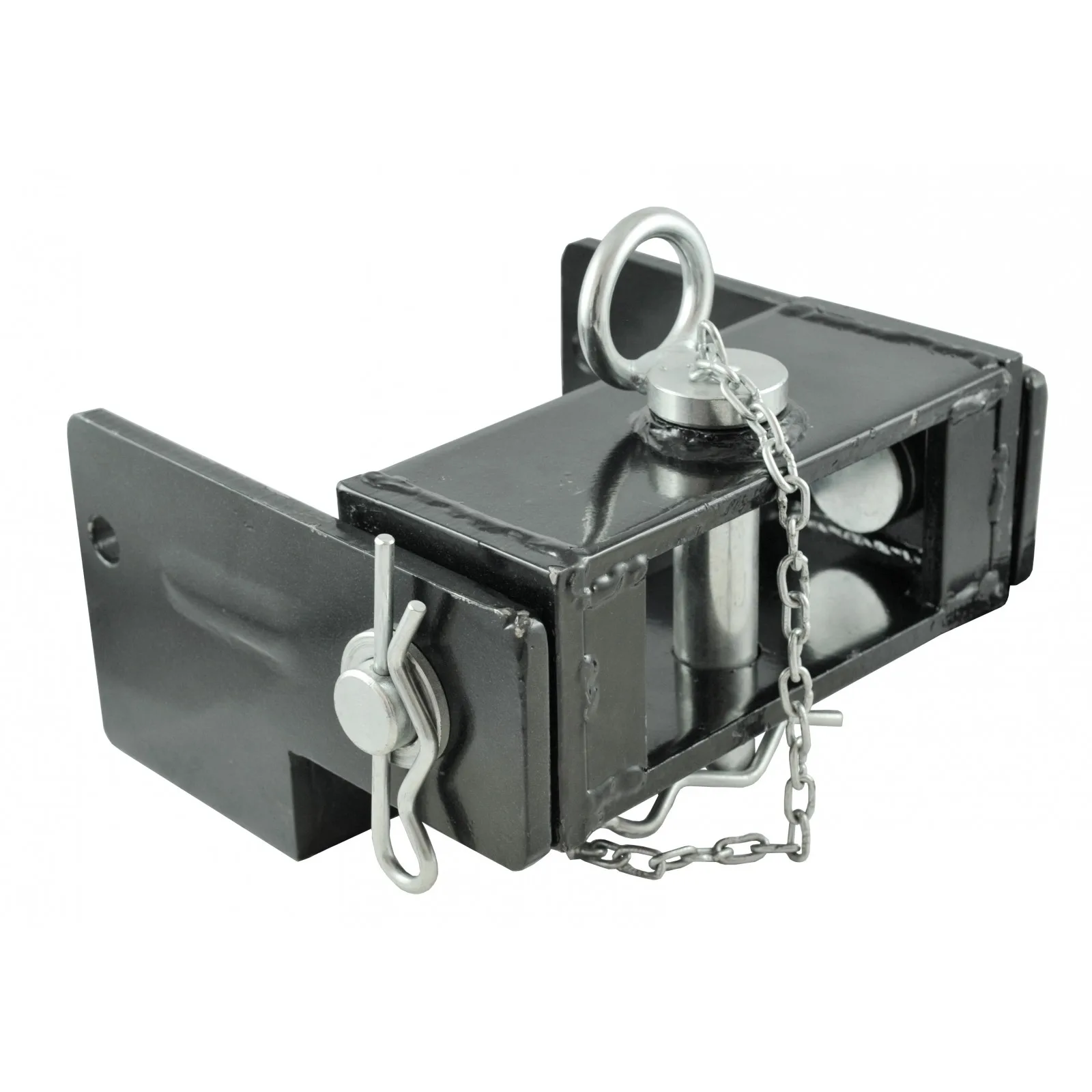

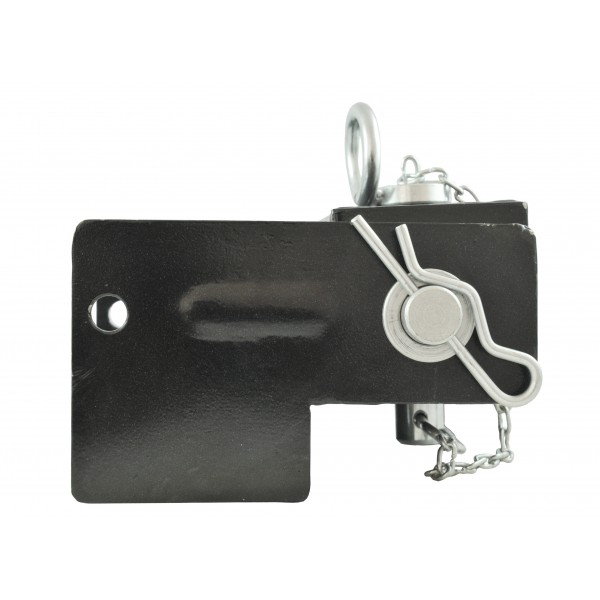

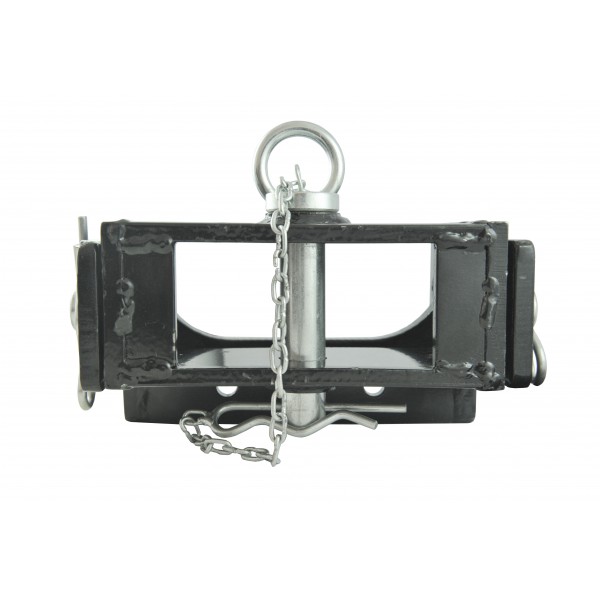

Trailer hitch, movable, 62x180 mm, with pin

The TUZ trailer hitch is a specialized mounting element designed to connect trailers, implements and agricultural machinery to agricultural tractors equipped with a three-point hitch system. The TUZ is commonly used in agriculture and other areas where a precise and stable connection between the vehicle and the trailer is crucial for work efficiency. The TUZ trailer hitch is a versatile and reliable mounting system that provides a stable, safe and precise connection between the agricultural tractor and the trailer. Thanks to its design, adjustments and durability, the TUZ is an ideal solution for various applications in agriculture, transport and construction, enabling efficient and safe towing and work with trailers and implements.

Movable trailer hitch 62x180 mm with pin.

The movable hitch element rotates several degrees up and down, designed for Mitsubishi VST tractors and mounted at the rear of the tractor, but can be used on tractors of other brands after appropriate adaptation.

Dimensions:

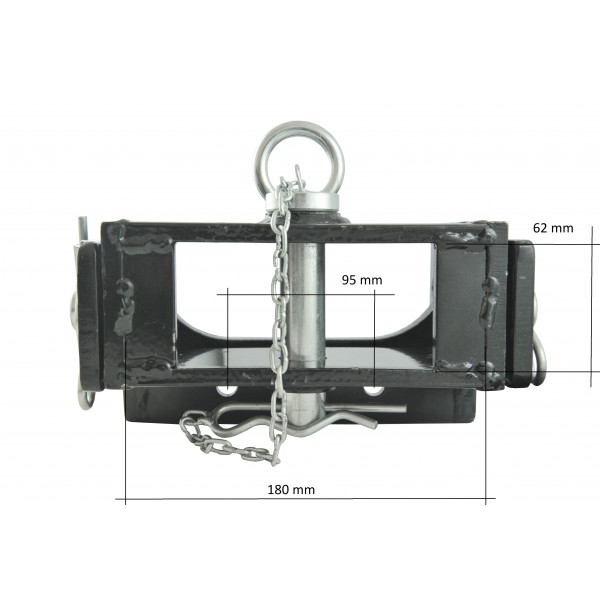

• Internal height of drawbar mounting point: 62 mm.
• Internal width of the drawbar mounting point: 180 mm.
• Internal depth of drawbar mounting point: 80 mm.

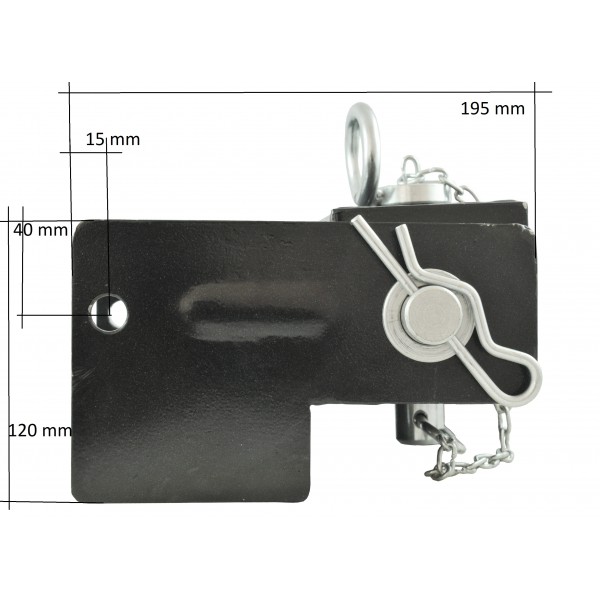

• Side mounting plate dimensions: 120 x 195 mm.

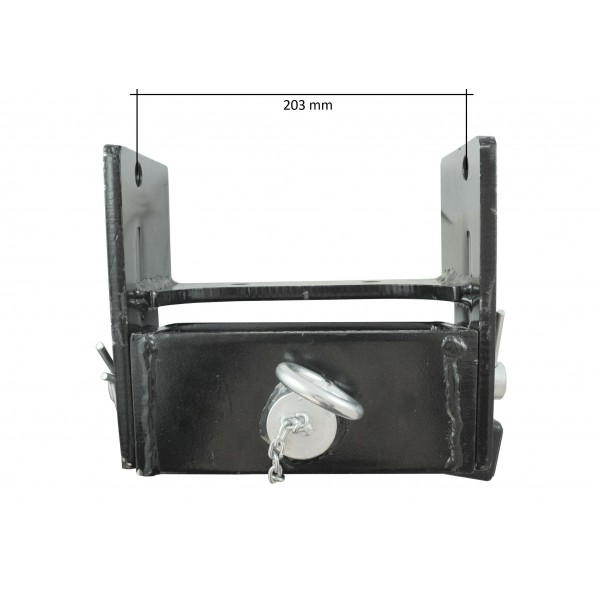

• Mounting screw hole spacing: 203 / 95 mm.
• Diameter of mounting screw holes: 14.50 / 13 mm.
• Sheet thickness: 10 mm.
• Working length of pin: 120 mm.
• Pin diameter: 25 mm.
• Weight: 10 kg.

Magazine: K01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
