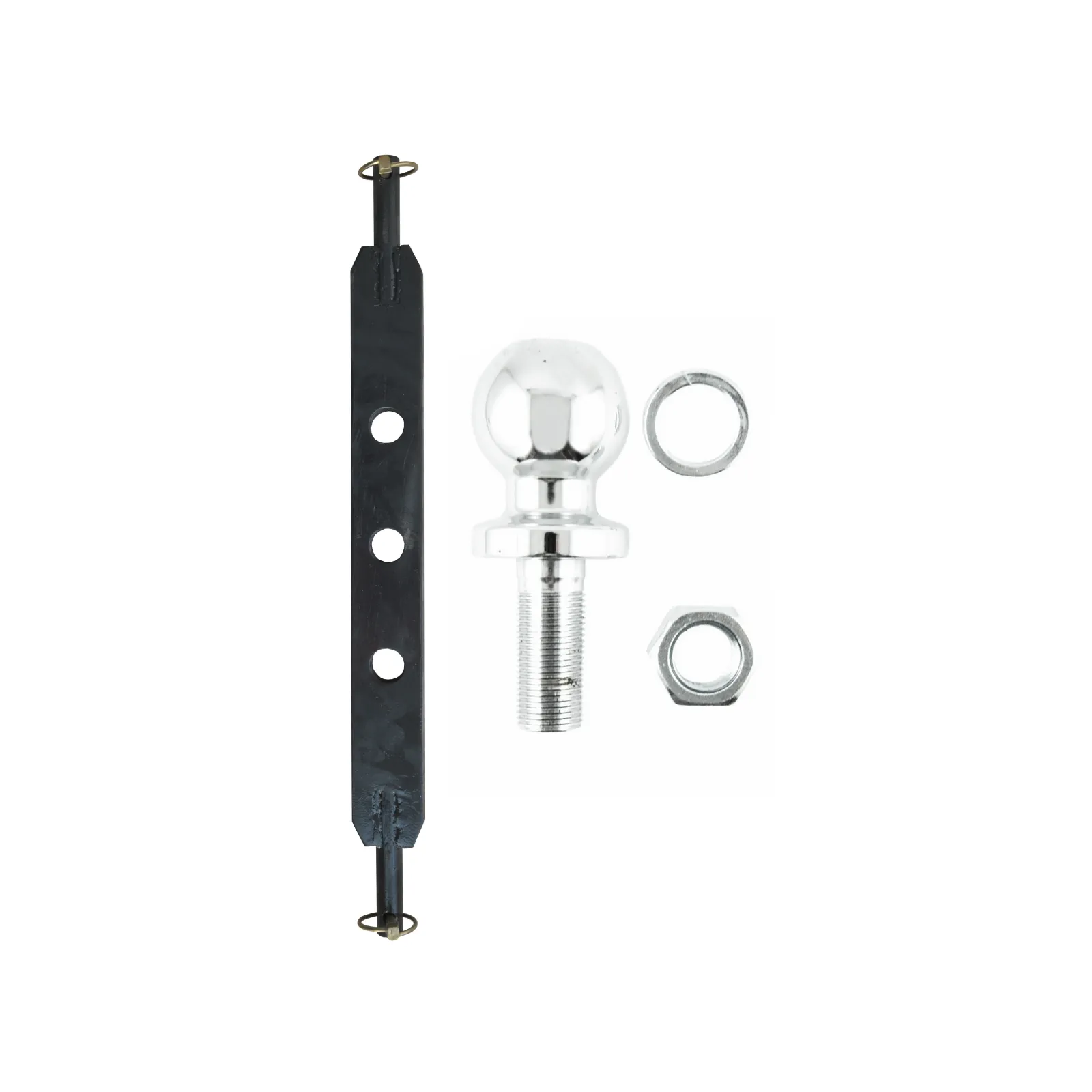

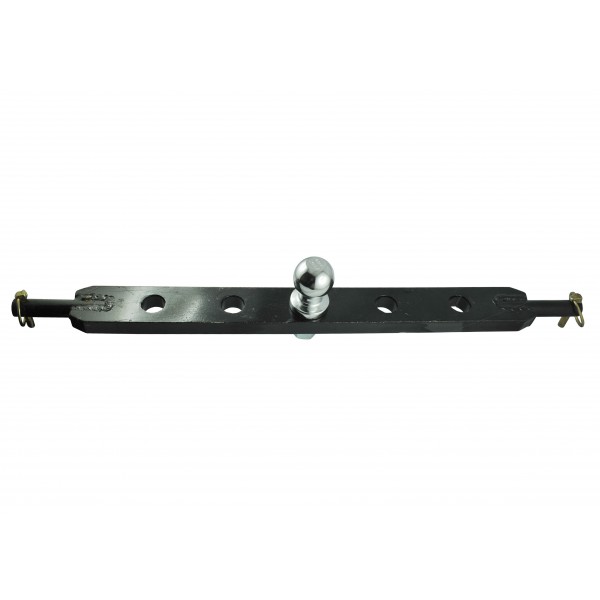

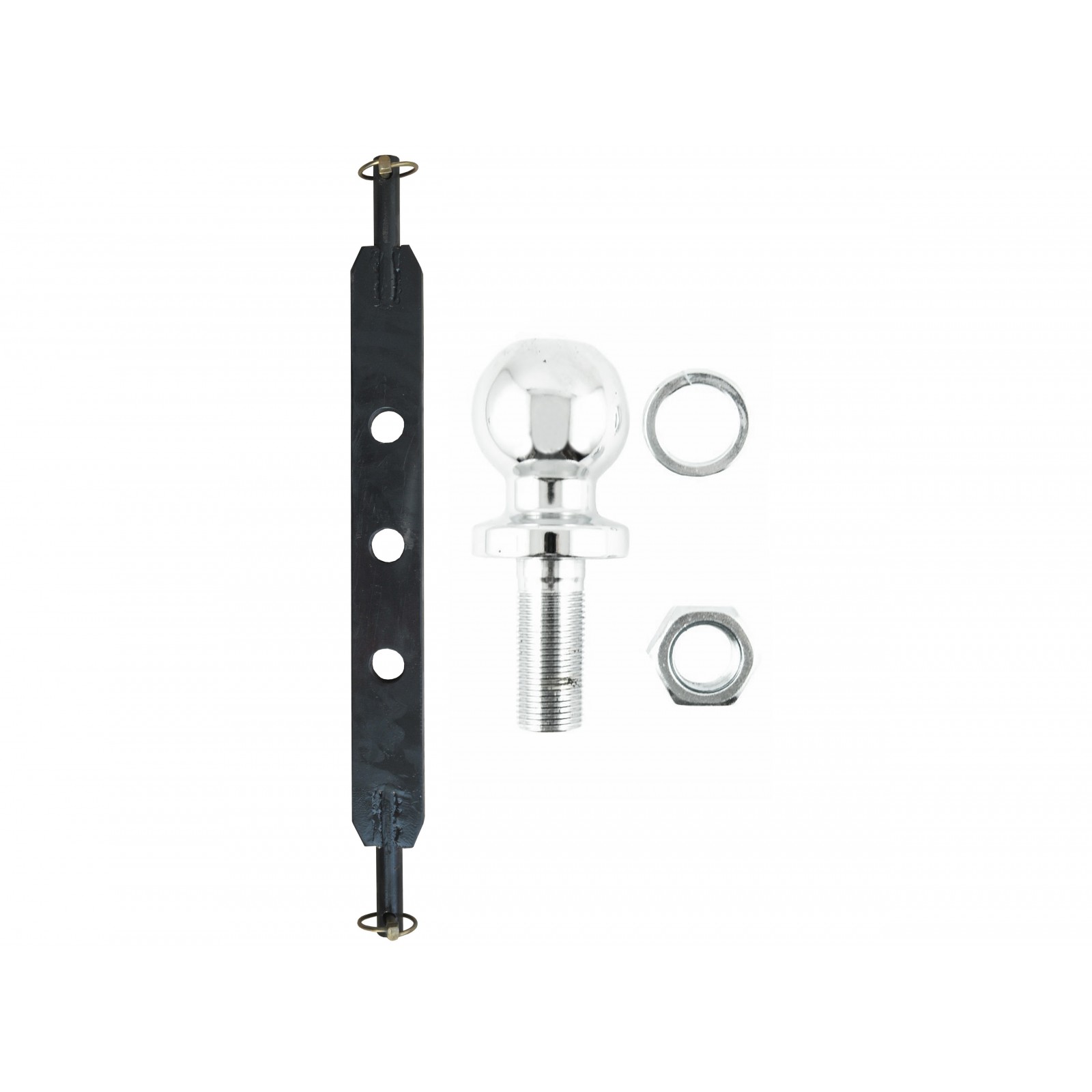

Beam + hitch ball 50 cm CAT 1 universal for three-point linkage suspensions

The drawbar is an important structural element used in agricultural tractors and other machines, which is used to attach equipment such as trailers, cultivation machines or transport tools. It is a solid and durable beam usually mounted on the rear or front of the tractor, enabling a safe and stable connection to various agricultural equipment. The drawbar is widely used in agriculture, where it plays a key role in working with various equipment such as ploughs, trailers, spreaders or harvesting machines. Thanks to its solid construction and versatility, the drawbar allows farmers to quickly adapt the tractor to various tasks, which significantly improves the efficiency and effectiveness of work on the farm.

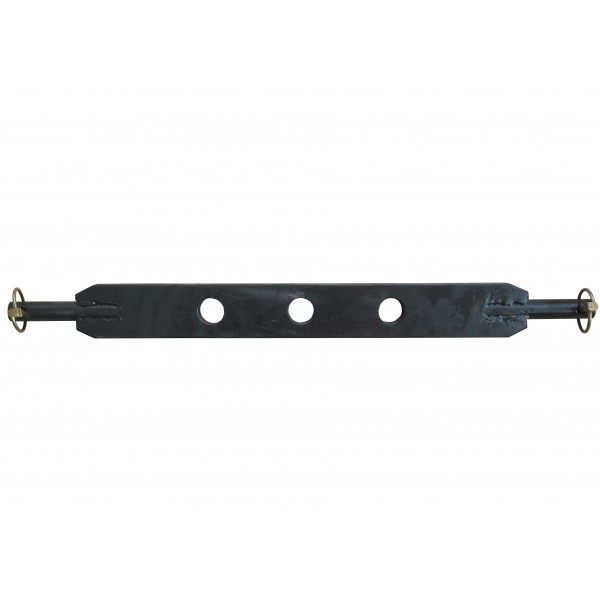

Beam + coupling ball 50 cm CAT 1 universal for three-point linkage suspensions .

Dimensions :
- Total length: 645 mm.
- Beam length: 500 mm.
- Hole diameter: 28 mm.
- Hole spacing: 100 mm.
- Diameter of hitch pins: 22 mm.

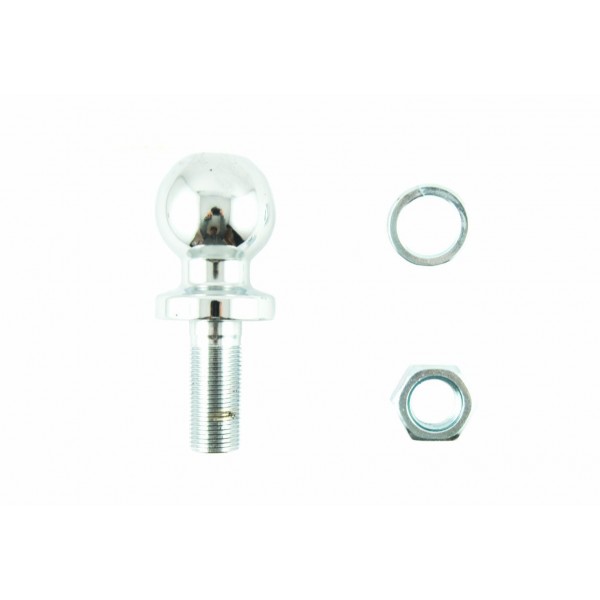

Hitch ball for tractor drawbar .

Dimensions :
- Ball diameter: 50 mm.
- Total length: 120 mm.
- Thread length: 40 mm.
- Thread: 22 mm.

Application: tractors, mini-tractors and tractors with three-point linkage (TUZ) cat. 1 .
