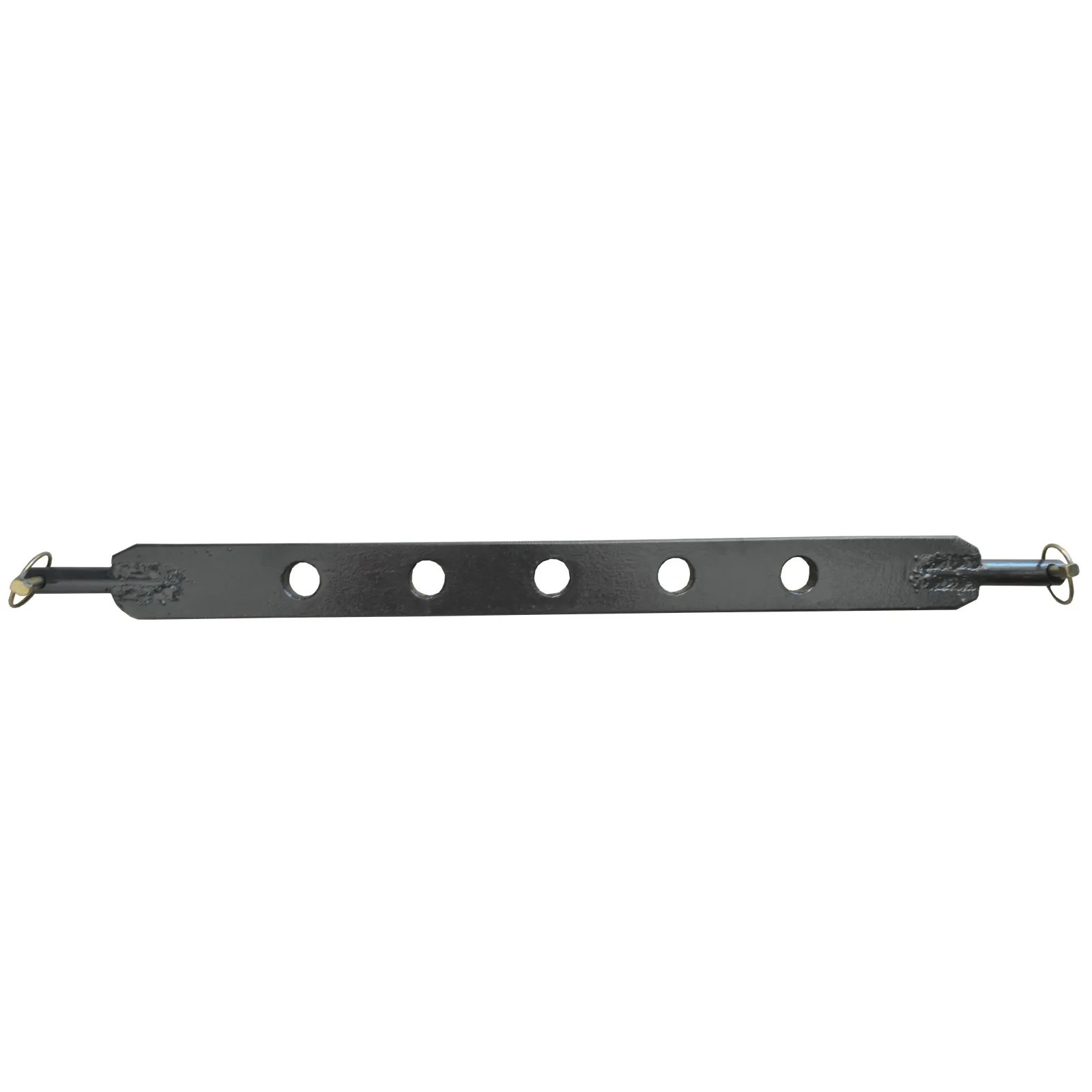

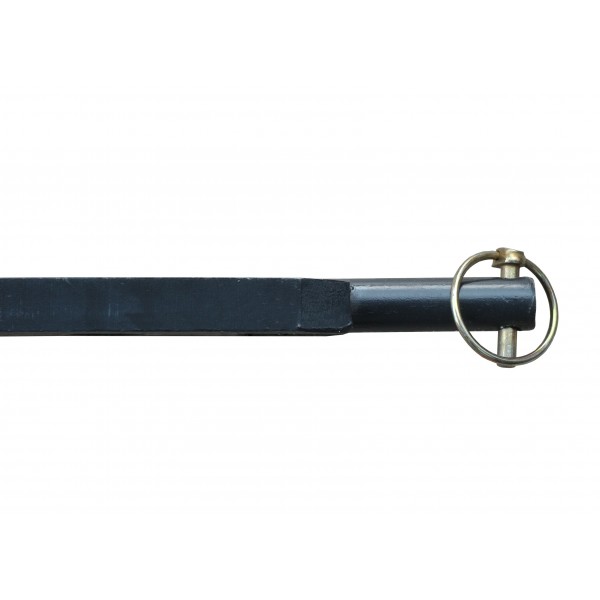

Hitch beam 70 cm CAT 1 universal for three-point linkage suspensions

Hitch beam 70 cm CAT 1 universal for three-point linkage suspensions

The drawbar is an important structural element used in agricultural tractors and other machines, which is used to attach equipment such as trailers, cultivation machines or transport tools. It is a solid and durable beam usually mounted on the rear or front of the tractor, enabling safe and stable connection to various agricultural equipment. The drawbar is widely used in agriculture, where it plays a key role in working with various equipment such as ploughs, trailers, spreaders or harvesting machines. Thanks to its solid construction and versatility, the drawbar allows farmers to quickly adapt the tractor to various tasks, which significantly improves the efficiency and effectiveness of work on the farm.

Hitch beam 70 cm CAT 1 universal for three-point linkage suspensions.

Dimensions:

• Total length: 845 mm.
• Beam length: 700 mm.
• Diameter of holes: 28 mm.
• Hole spacing: 100 mm.
• Hitch pin diameter: 22 mm.

Application: all mini-tractors and tractors with TUZ (three-point suspension system) category 1.
