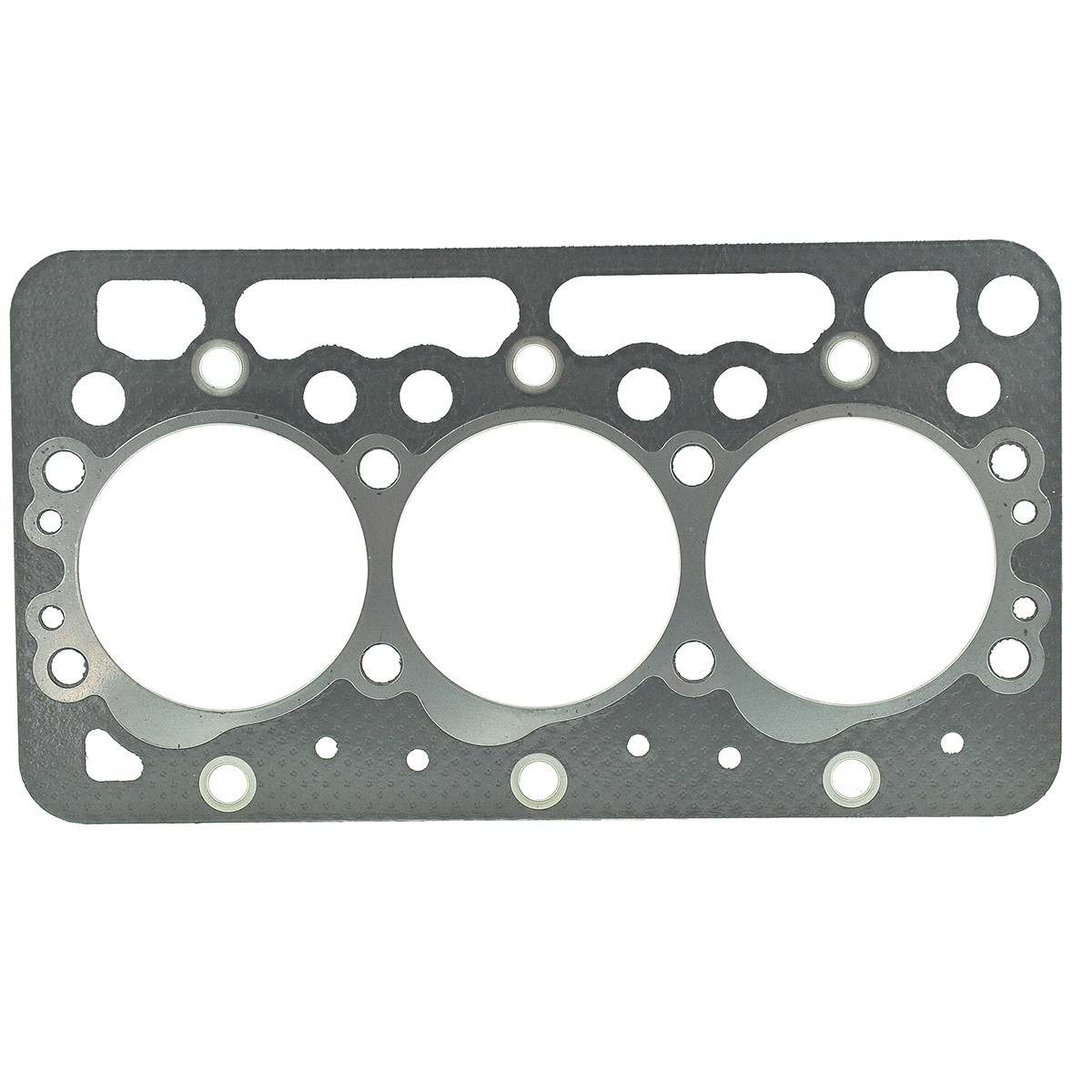

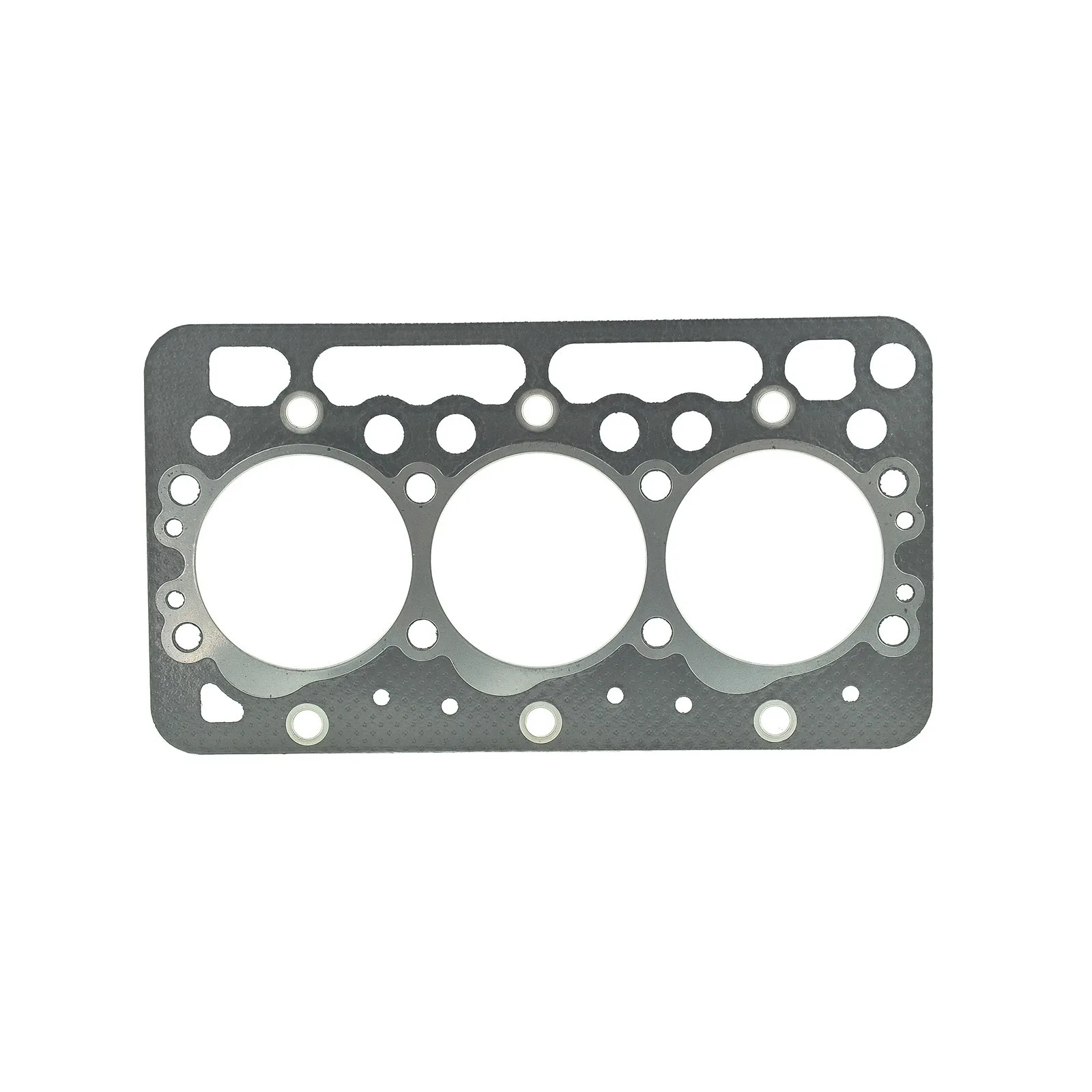

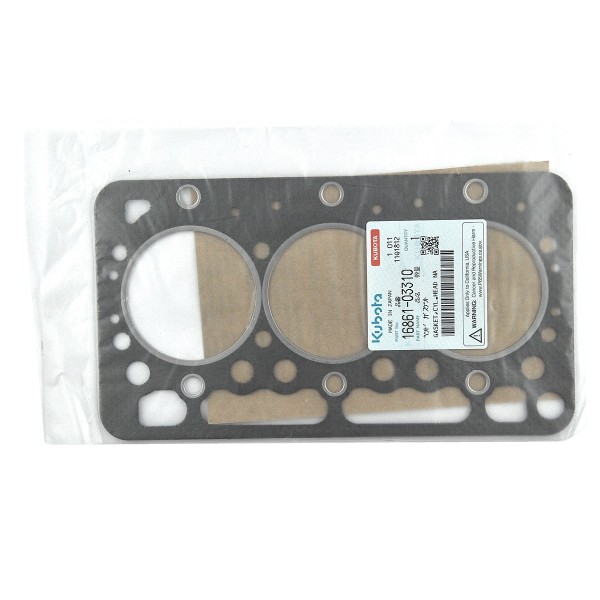

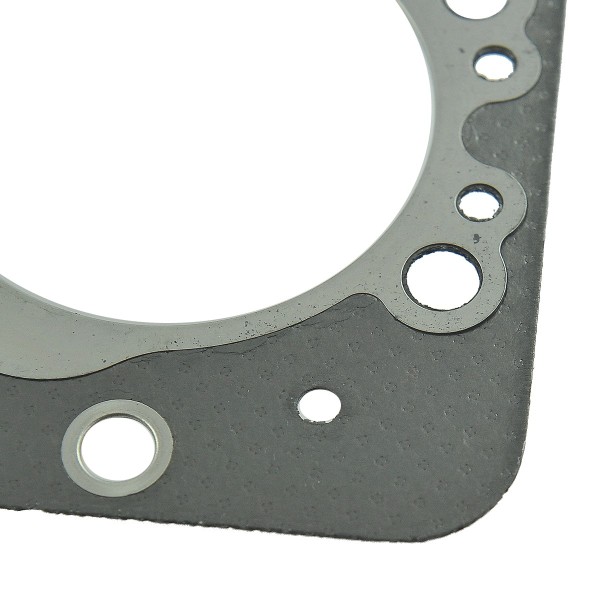

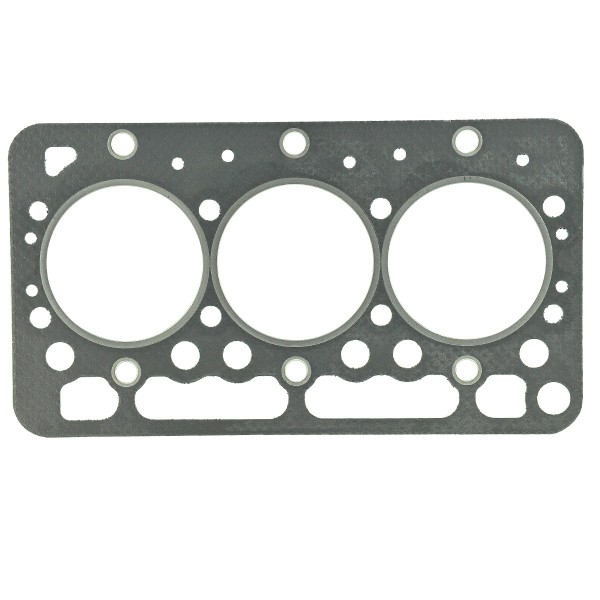

Cylinder head gasket / Ø66 mm / Kubota D662 / Kubota Aste A-13 / B1410 / GB13

Engine head gasket (metal, multi-layer) with dimensions 242 x 133 mm , piston hole diameter 66 mm and thickness 1.50 mm for Kubota tractors of the Kubota Aste A-13, Kubota B1410, Kubota GB13 series with Kubota D662 engines and others.

The cylinder head gasket is a gasket that is installed at the point where the engine head connects to the engine block. The point where the block connects to the head must be tight for the engine to function properly. The cylinder head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels, and to separate and prevent the two fluids from mixing. The second task of the gasket is thermal insulation, because part of the engine block can heat up from the working combustion chambers, even up to 2000 degrees Celsius.

Dimensions :

• length: 242 mm,
• width: 133mm,
• thickness: 1.35 mm,
• piston hole diameter: 66 mm,
• comparison numbers: %C3% B8-66-mm-kubota-d662-kubota-aste-a-13b1410gb13-16861-03310-metal.html">D662 , %C3% B8-66-mm-kubota-d662-kubota-aste-a-13b1410gb13-16861-03310-graphite.html">D662/A13 ,
• part numbers: 16861-03310.

Engine models :

• Kubota D662.

Tractor models :

• Kubota Aste A-13,
• Kubota B1410,
• Kubota GB13.

The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).

Magazine : K18:B19:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
