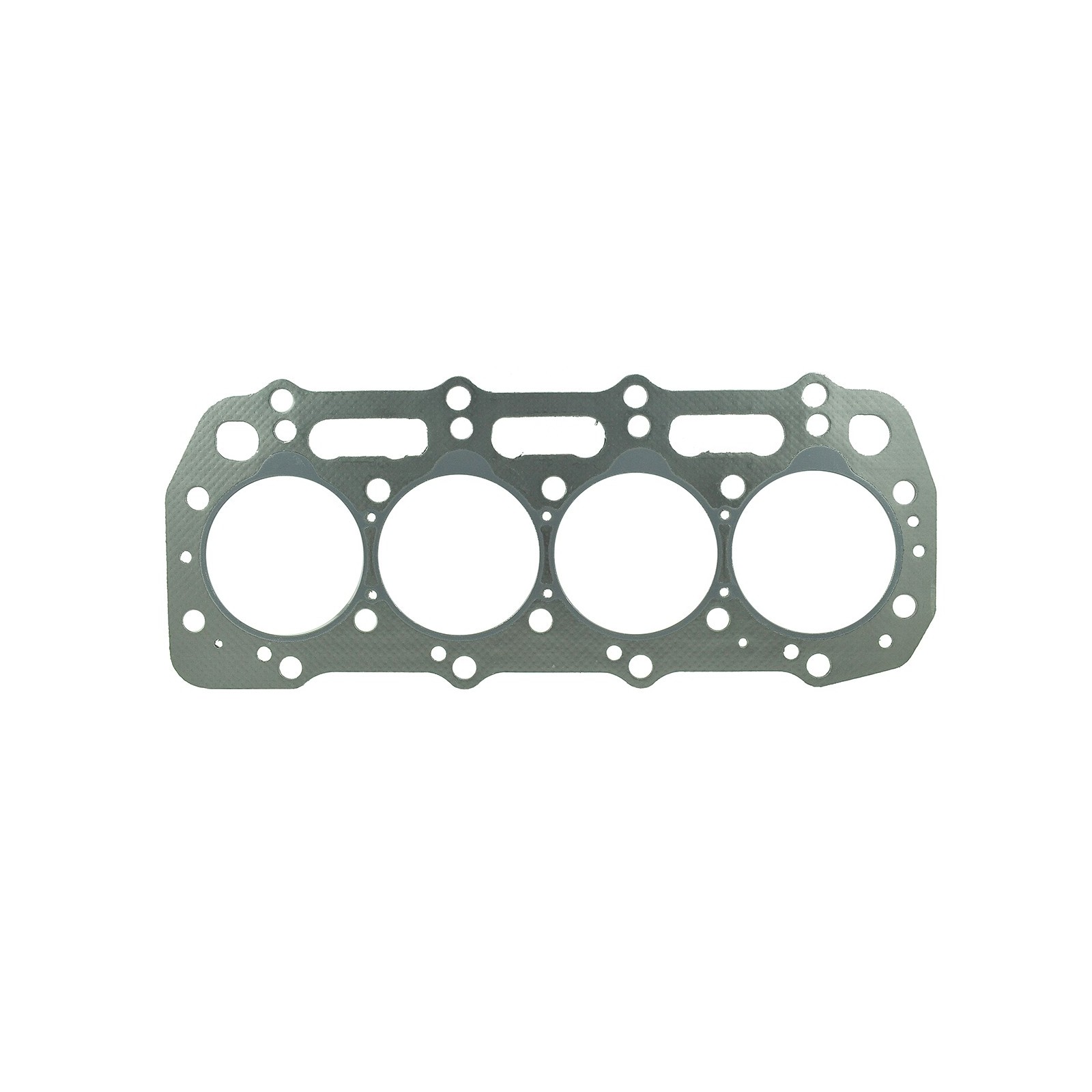

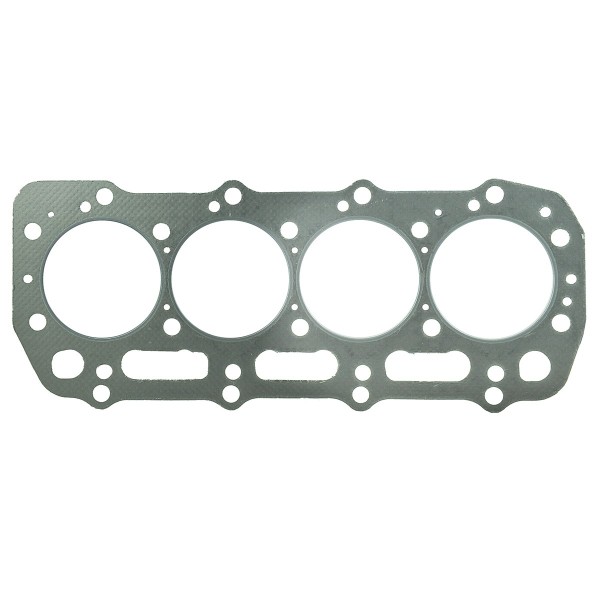

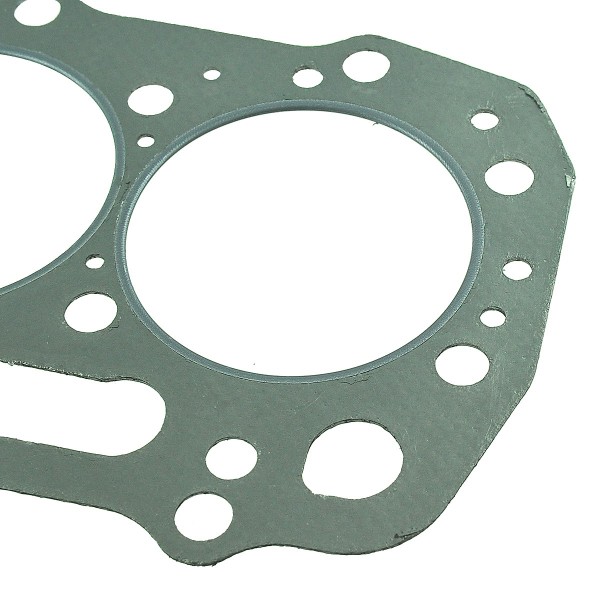

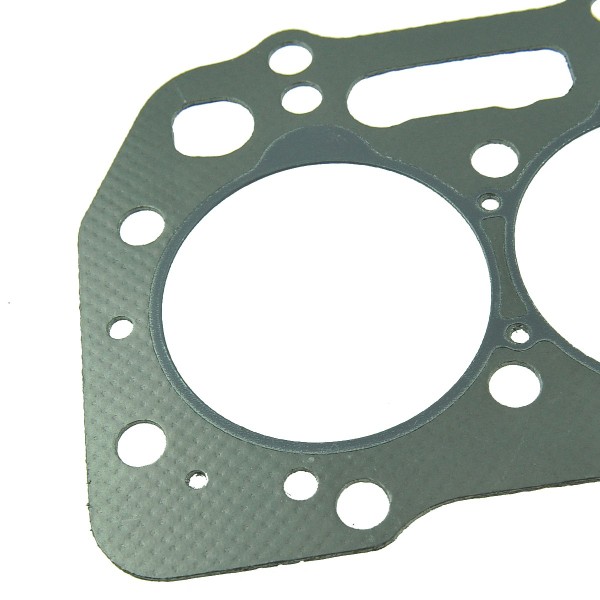

Head gasket / Ø84 mm / Shibaura N844/N844T / Shibaura S440/ST440 / SBA111147520

Engine head gasket with dimensions 165 x 412 mm , piston hole diameter 86 mm and thickness 1.50 mm for Shibaura tractors of the Shibaura S440, Shibaura ST440 series and other machines with Perkins 104-19, Perkins404D-22TA , Shibaura N844, Shibaura N844T and other .

The engine head gasket is a gasket that is installed where the engine head connects to the engine block. The place where the block connects to the head must be tight for proper engine operation. The head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels and to separate and prevent mixing of both fluids. The second task of the gasket is thermal insulation, because part of the engine block may heat up from the operating combustion chambers, up to 2000 degrees Celsius.

Dimensions :

• length: 412 mm,
• width: 165 mm,
• thickness: 1.50 mm,
• diameter of piston holes: 86 mm,
• original part numbers: SBA111147520,
• comparison numbers: 111147520,
• part numbers: N844_GRAPHITE.

Engine models :

Perkins :

• Perkins 104-19,
• Perkins 404D-22TA.

Shibaura :

• Shibaura N844,
• Shibaura N844T.

Tractor models :

Shibaura :

• Shibaura S440,
• Shibaura ST440.

The first signs of head gasket wear, gasket burnout, or gasket blowing are uneven operation of a hot engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank). ).

Warehouse :
M01:D23:S01
