Kubota D1703
Head gasket / Ø 87 mm / Kubota D1703/D1462 / Kubota L1-255 / Kubota L3408 / 16487-03310 / HGK4311E / BLACK
Do you have any questions?
Head gasket / Ø 87 mm / Kubota D1703/D1462 / Kubota L1-255 / Kubota L3408 / 16487-03310 / HGK4311E / BLACK

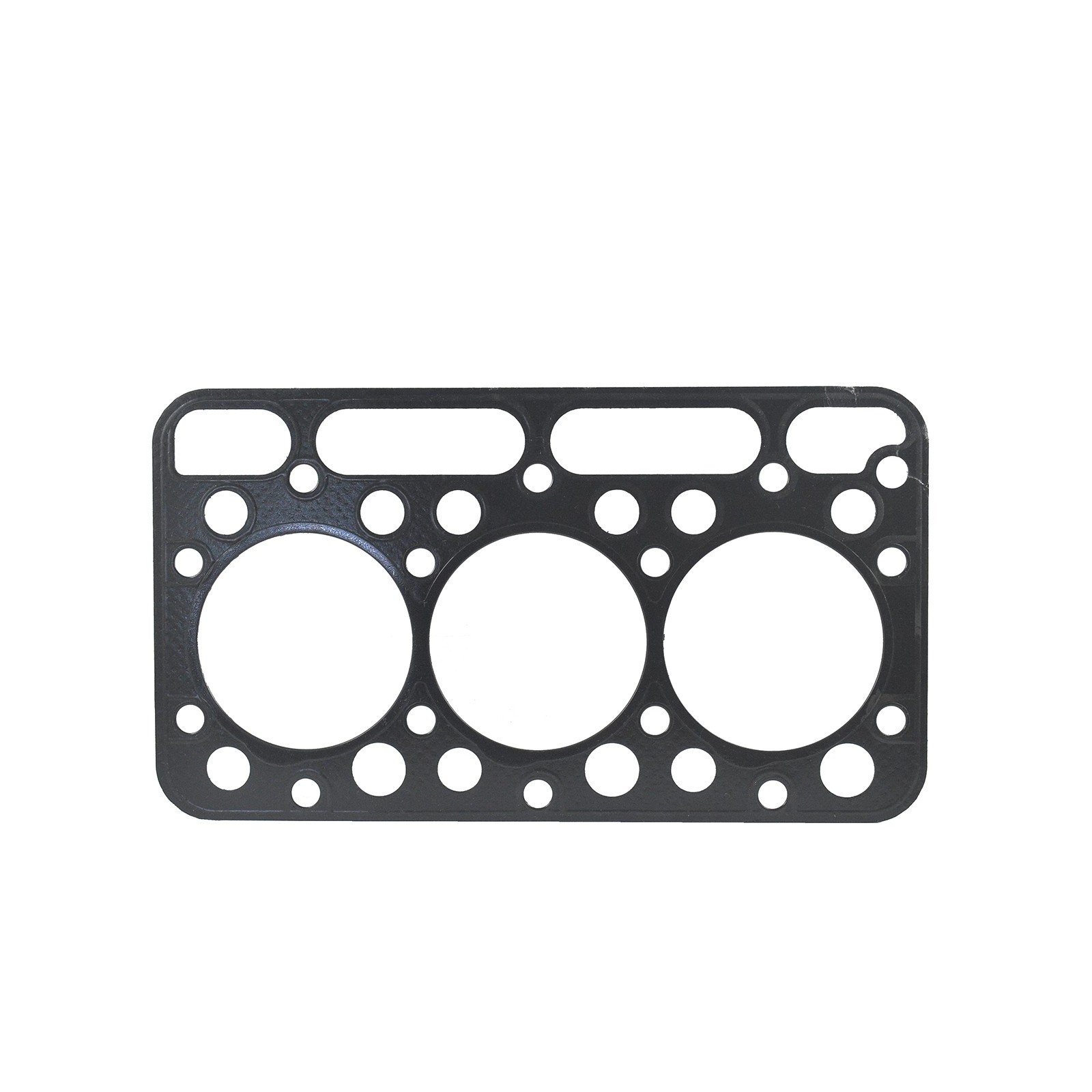

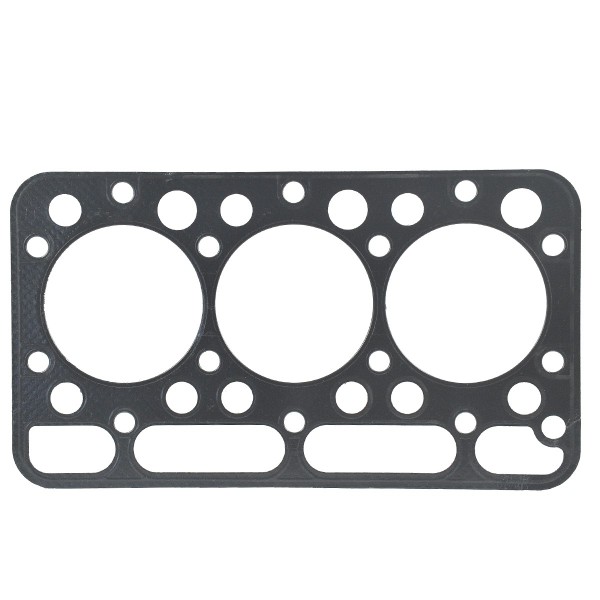

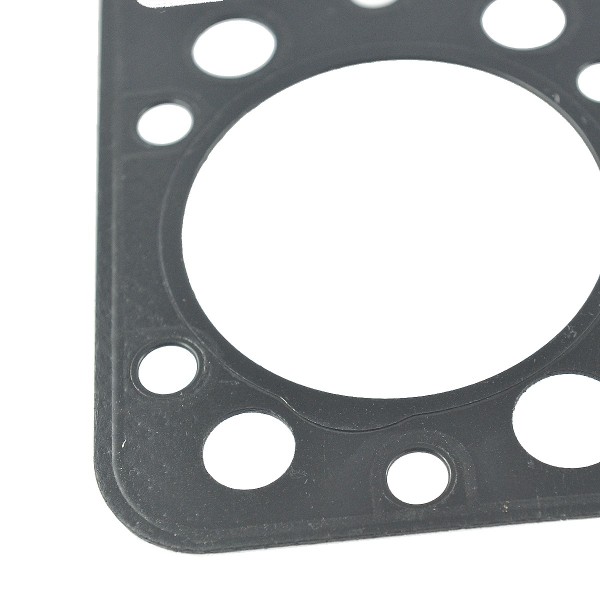

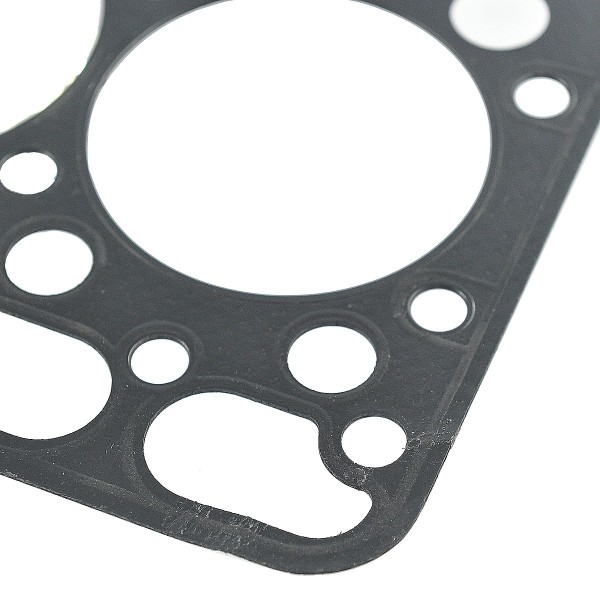

Engine head gasket with dimensions of 175 x 314 mm , piston hole diameter of 87 mm and thickness of 1.60 mm for Kubota tractors of the Kubota L1-255 series with Kubota D1703, Kubota D1462 and other engines.
The engine head gasket is a gasket that is installed where the engine head connects to the engine block. The place where the block connects to the head must be tight for proper engine operation. The head gasket is designed to seal the operation of the cylinders, coolant channels and lubrication channels and to separate and prevent mixing of both fluids. The second task of the gasket is thermal insulation, because part of the engine block may heat up from the operating combustion chambers, up to 2000 degrees Celsius.
Dimensions :
- length: 314 mm,
- width: 175 mm,
- thickness: 1.60 mm,
- diameter of piston holes: 88 mm,
- original part numbers: 16487-03310,
- comparison numbers: 6-15-100-01 (graphite), 6-15-100-05 (metal), 6-15-100-25 (fiber), D1703-N (Stainless),
- part numbers: HGK4311E.
Engine models :
Kubota :
- Kubota D1462,
- Kubota D1703.
The first signs of head gasket wear, gasket burnout, or gasket blowing are uneven operation of a hot engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank). ).
Warehouse :
M01:D14:S01
