Head gasket / LS U43 / LS U50 / LS U60 / EGQ116 / Q1160043 / no. 40006823

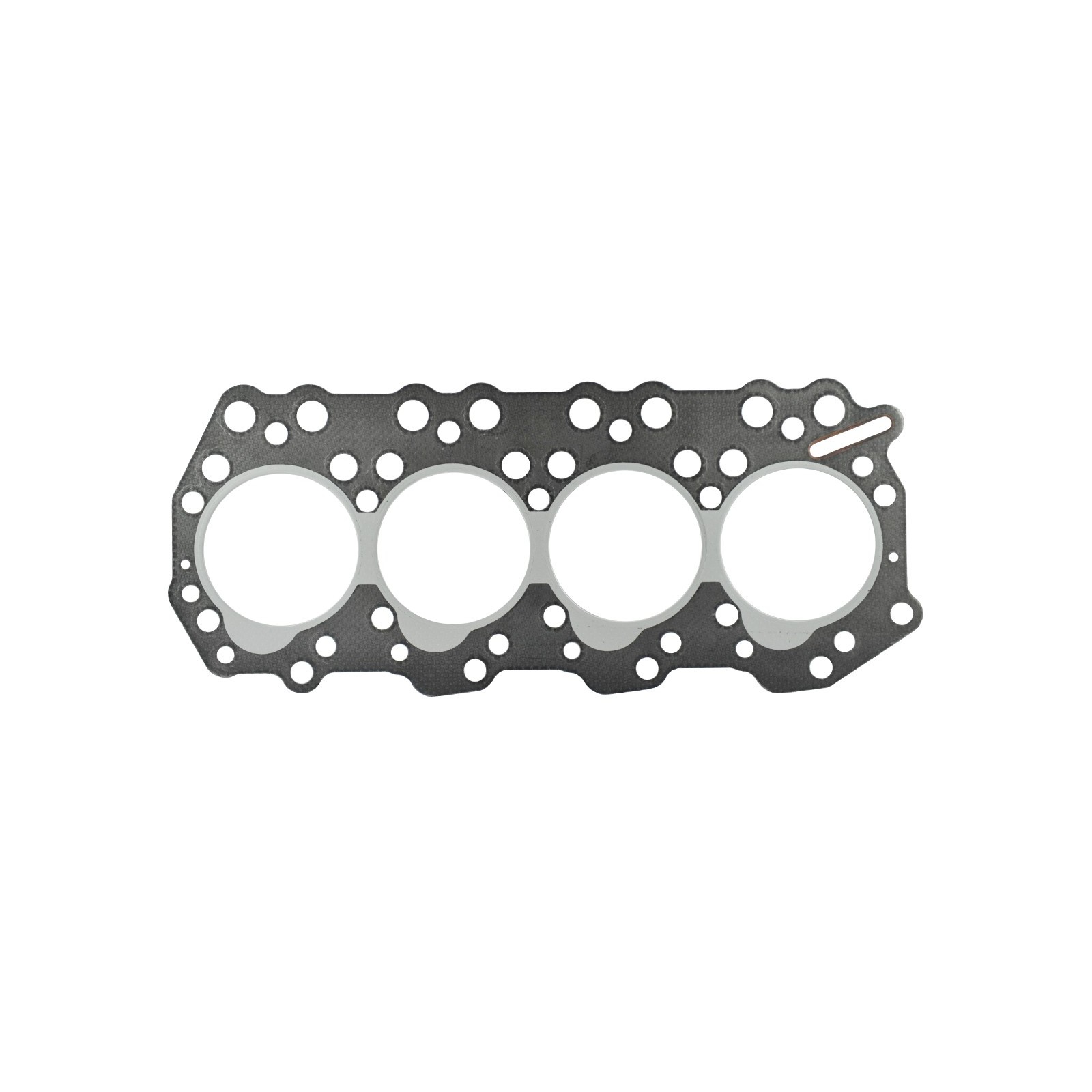

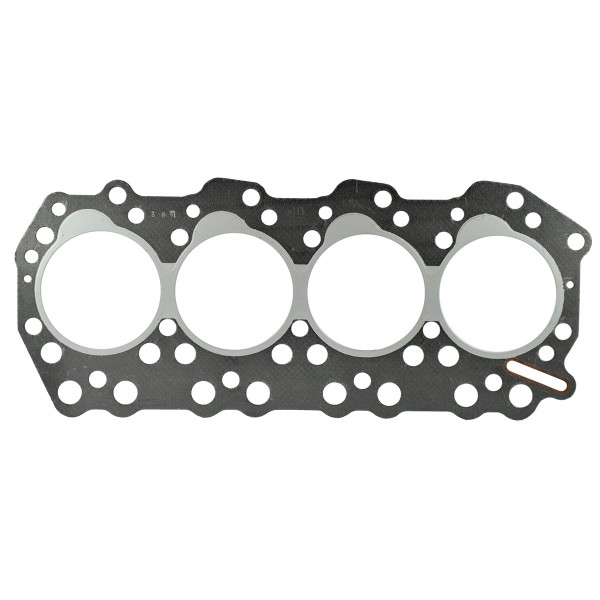

Engine head gasket 20020337 with dimensions 440 x 185 mm , piston hole diameter 89.50 mm and thickness 1.40 mm for LS Tractor tractors of the LS U43, LS U50, LS U60 series and others.

The cylinder head gasket is a gasket installed at the junction between the cylinder head and the engine block. The connection between the block and the cylinder head must be airtight for the engine to function properly. The cylinder head gasket seals the cylinders, coolant passages, and lubrication channels, and prevents the two fluids from mixing. The gasket's second purpose is thermal insulation, as part of the engine block can heat up to 2000 degrees Celsius from the combustion chambers.

Dimensions :

• length: 440 mm,
• width: 185mm,
• thickness: 1.40 mm,
• piston hole diameter: 89.50 mm,
• part numbers: Q1160043, 40006823.

Tractor models :

• LS U43,
• LS U50,
• LS U60.

The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).

Magazine : L01:M25 S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
