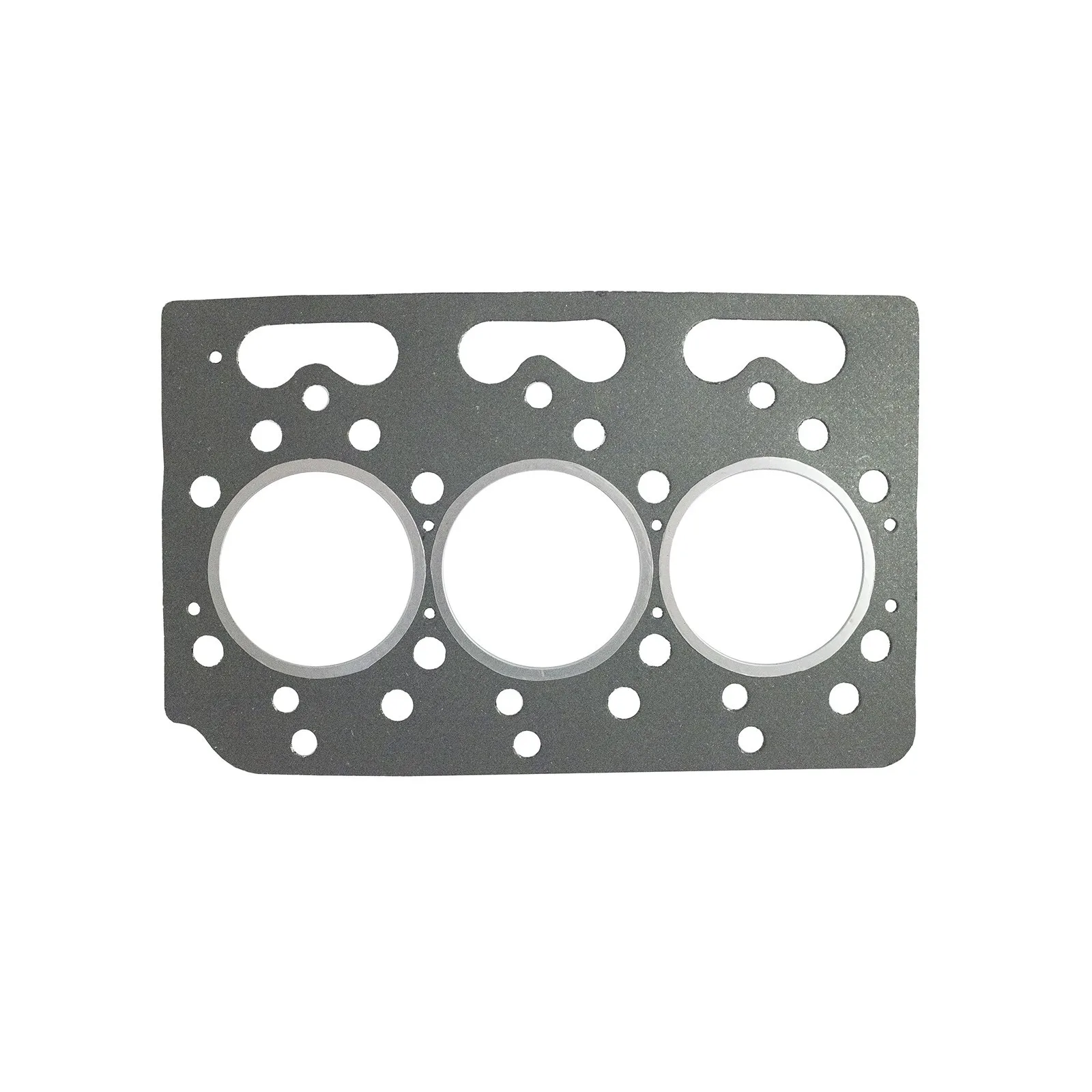

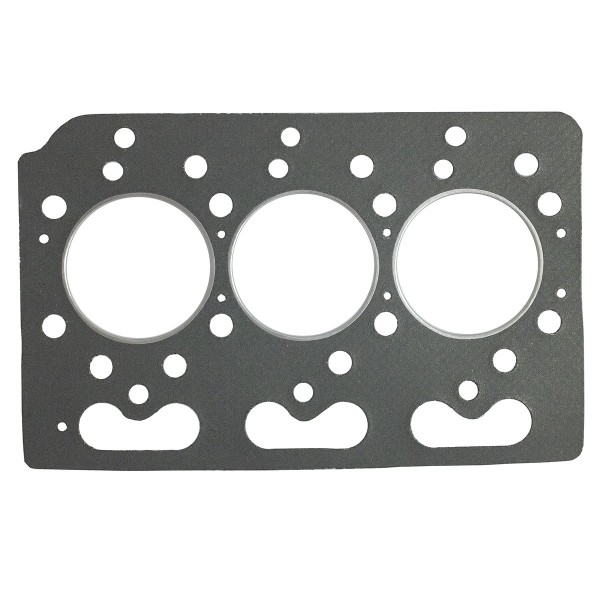

Gasket for Shibaura SL1643 heads, Ø 73 mm

285x180mm cylinder head gasket , 73mm piston bore diameter and 1.30mm thickness for Shibaura SL series tractors.

The cylinder head gasket is a gasket that is installed where the cylinder head meets the engine block. The place of connection of the block with the head must be tight for the correct operation of the engine. The head gasket seals the operation of the cylinders, coolant channels and lubrication channels, and separates and does not mix these two fluids. The second task of the gasket is thermal insulation, because a part of the engine block can heat up from working combustion chambers even up to 2000 degrees Celsius. The first signs of wear, burnout of the head gasket j are uneven operation of a warm engine, loss of coolant l or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles in the coolant (expansion tank) visible to the naked eye.

Dimensions :

• Length: 285 mm,
• Width: 180 mm,
• Thickness: 1.30 mm,
• Holes diameter: 73 mm,

Tractor models:

Shibaura:

• Shibaura SL 1643,

Warehouse :
M01: D15: S03
