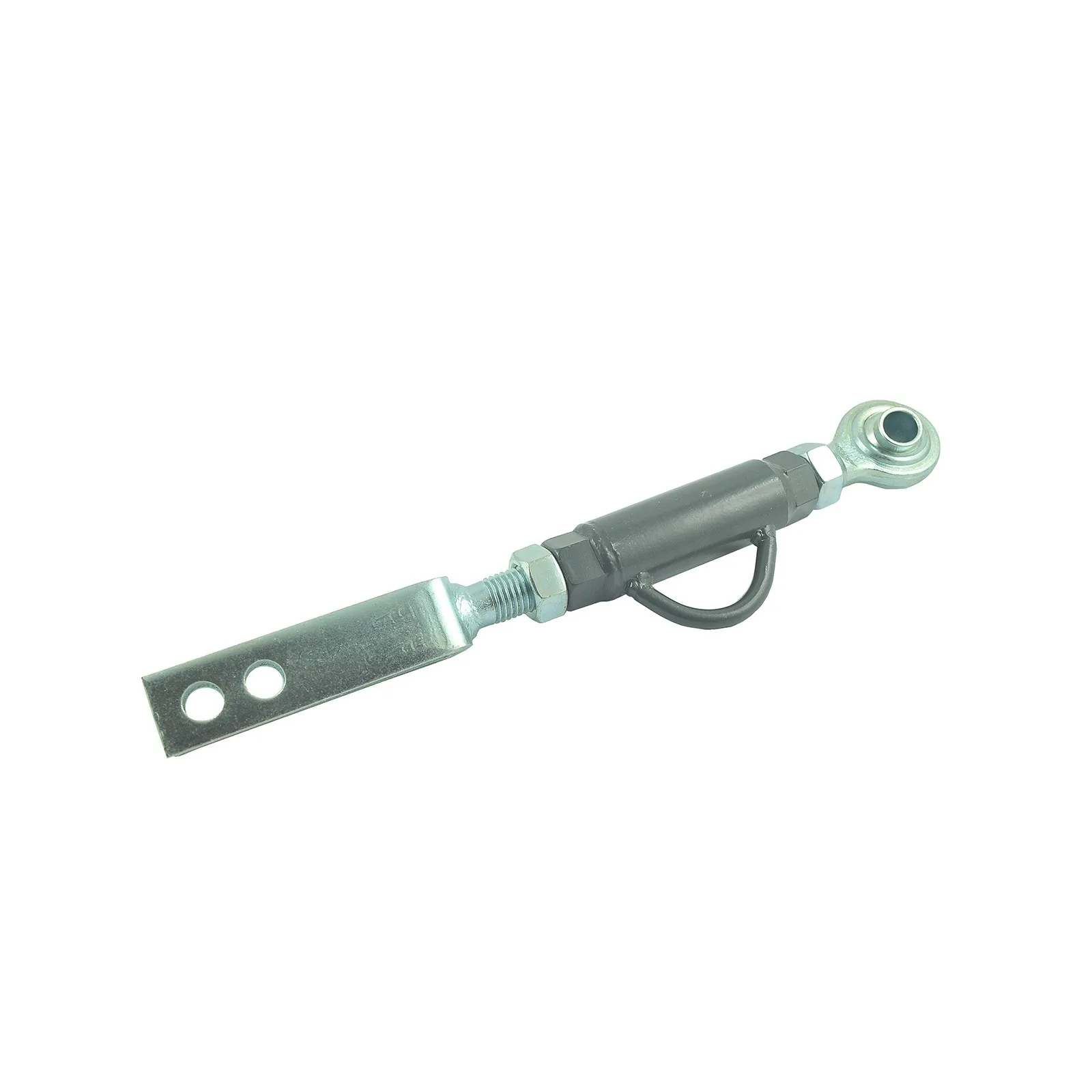

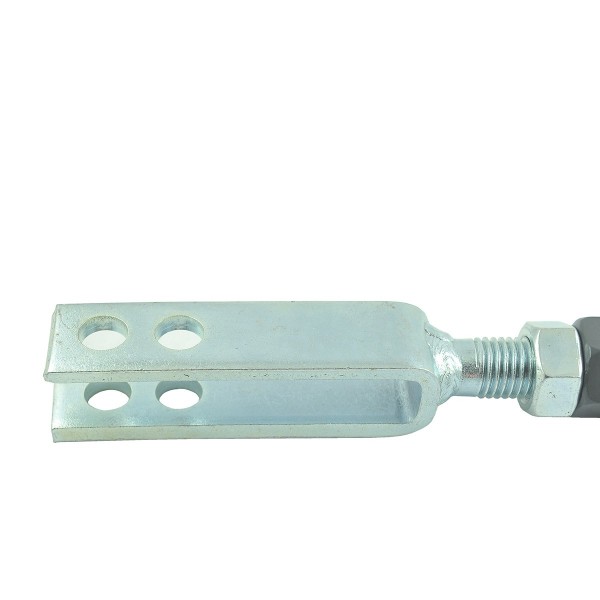

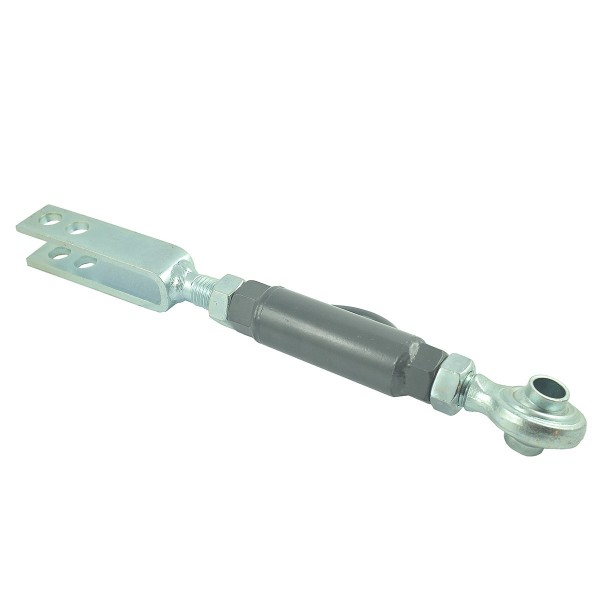

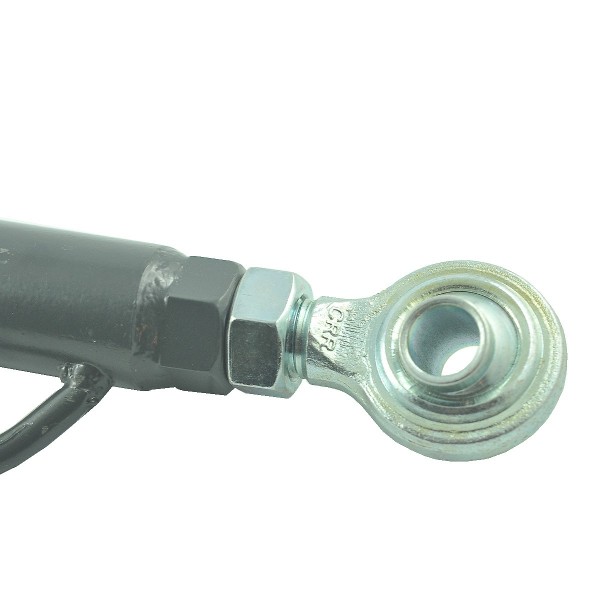

Adjustable arm hanger / TUBE CAT I / 360 mm / Kubota L3408 / L3608 / L4508 / L4708

Right lower arm hanger ( 5-02-111-23 three-point linkage ) with mechanical adjustment (leveling) for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708 series and others.

The arm hanger with three-point linkage adjustment, designed for Kubota L3408, L3608, L4508 and L4708 models, is a reliable solution that ensures optimal adjustment to the tractor. Thanks to the angle adjustment and the length of 360 mm, the user has full control over the setting, which translates into ease of use and greater work efficiency. The product is characterized by a solid construction, which guarantees long-term operation and safety during use.

Dimensions :

• total length: 440 mm (minimum total length with screws tightened to maximum),
• working length: 360 / 390 mm, (minimum working length with maximally tightened screws, measured from centre to centre of the pin holes),
• diameter: 42 mm.
• diameter of pin holes: 16.50 / 16.50 / 19.50 mm,
• original part numbers: W9501-35040,
• part numbers: 6-02-102-13.

Tractor models :

Kubota :

• Kubota L3408,
• Kubota L3608,
• Kubota L4508,
• Kubota L4708.

Magazine : K13:38

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
