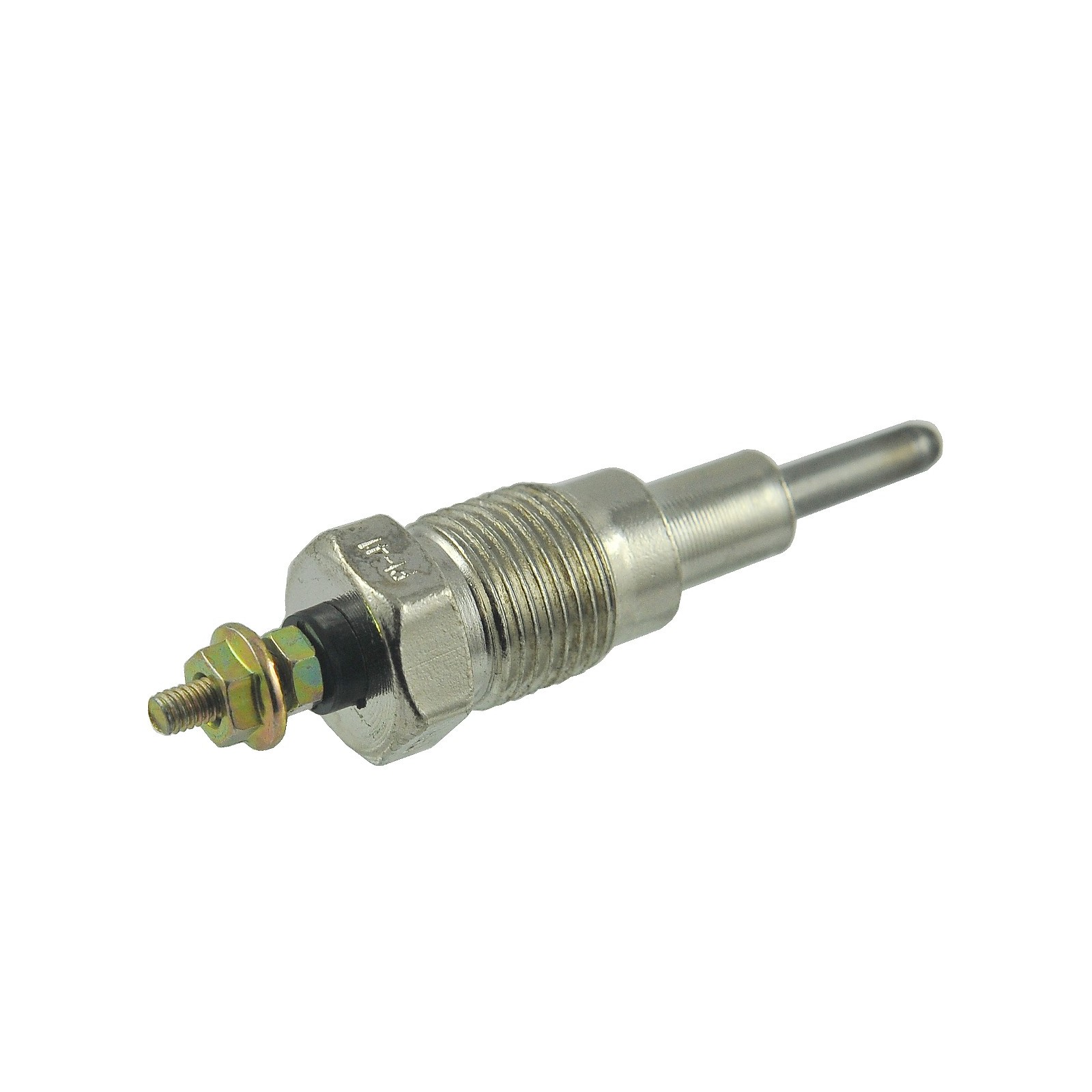

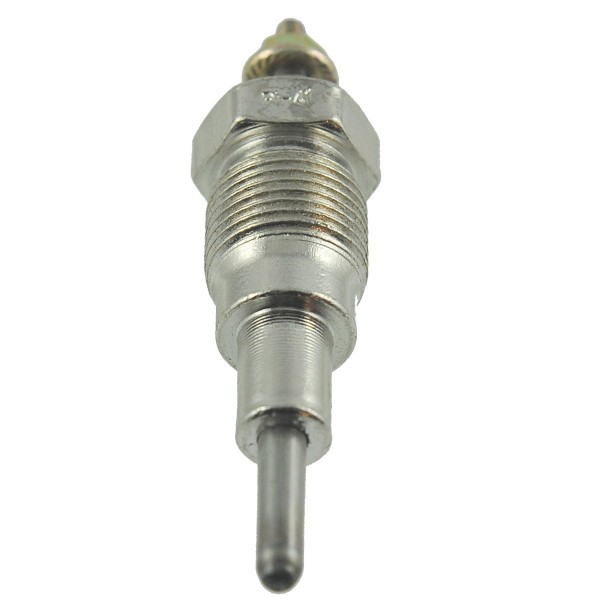

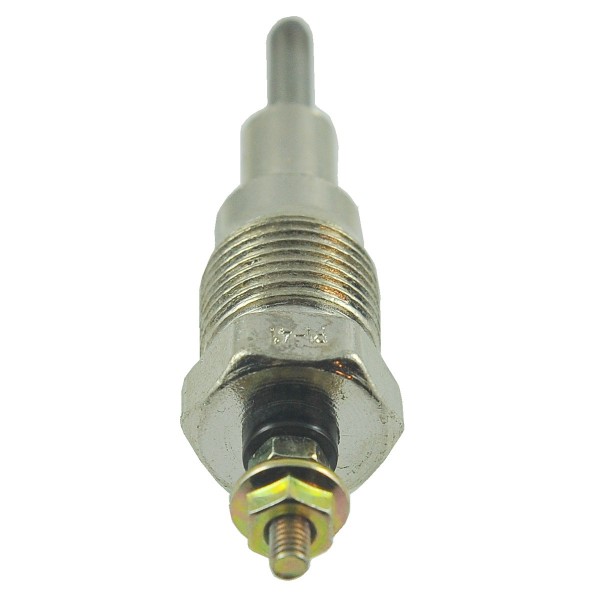

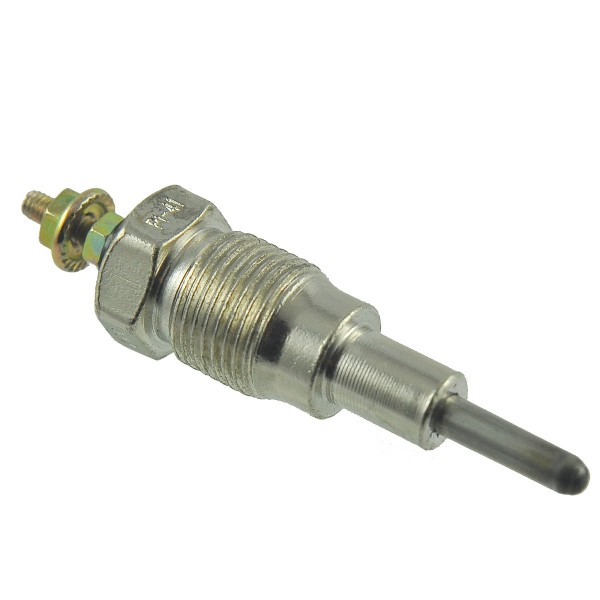

Glow plug / P1-41 / 10.5V / Kubota Z1300 / Kubota L240 / L280 / 5-26-107-03

Glow plug with a total length of 82 mm and a filament length of 14 mm with a thread M18x 1.50 for tractors Kubota brand Kubota L240, Kubota L280 series with Kubota Z1300 engines and others.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air drawn further into the engine facilitates ignition and starting the engine.

Dimensions :

• current voltage: 10.5V,
• total length: 82 mm,
• filament length: 19 mm,
• thread length: 10 / 12 mm.
• thread 1: M18 x 1.50,
• thread 2: M4,
• key size: 19,
• original part numbers: -,
• comparison numbers: -,
• part numbers: PI-41, 5-26-107-03.

Engine models :

Kubota :

• Kubota Z1300.

Tractor models :

Kubota :

• Kubota L240,
• Kubota L280.

A faulty glow plug is a common cause of the engine not starting and the machine not being grounded. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine, or excessive engine noise.

Magazine : M01:A12:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
