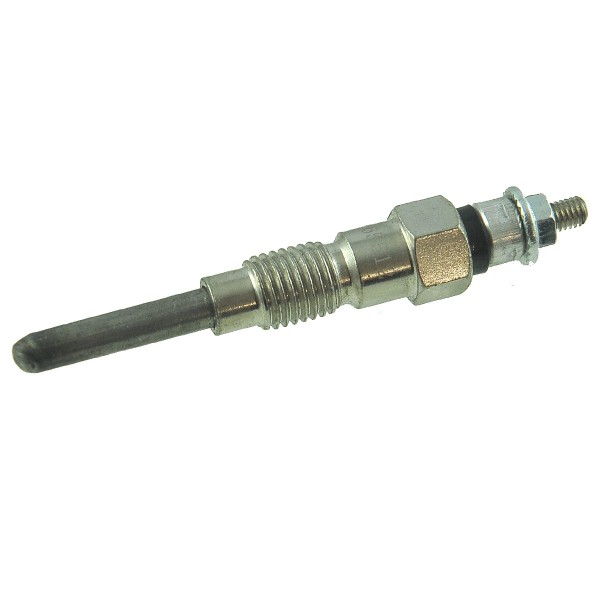

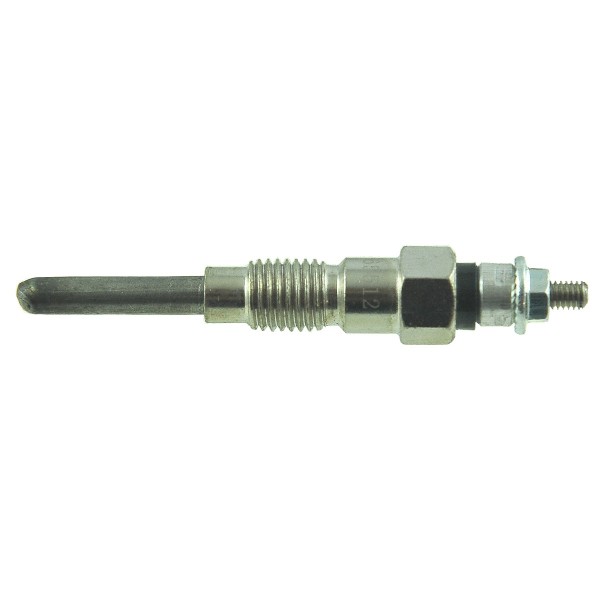

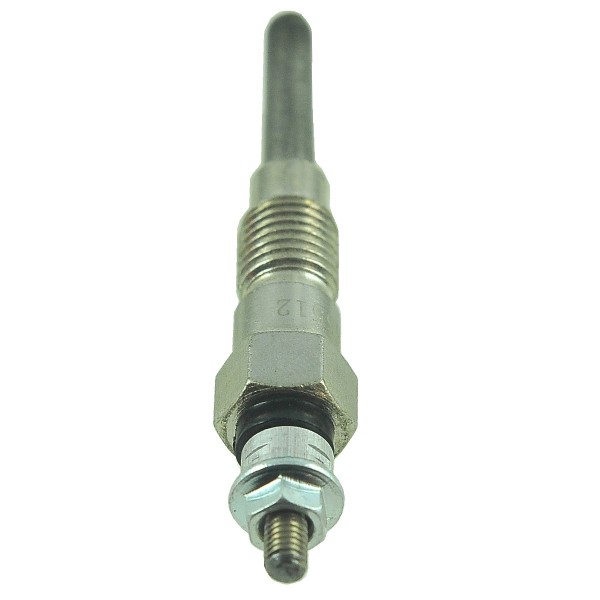

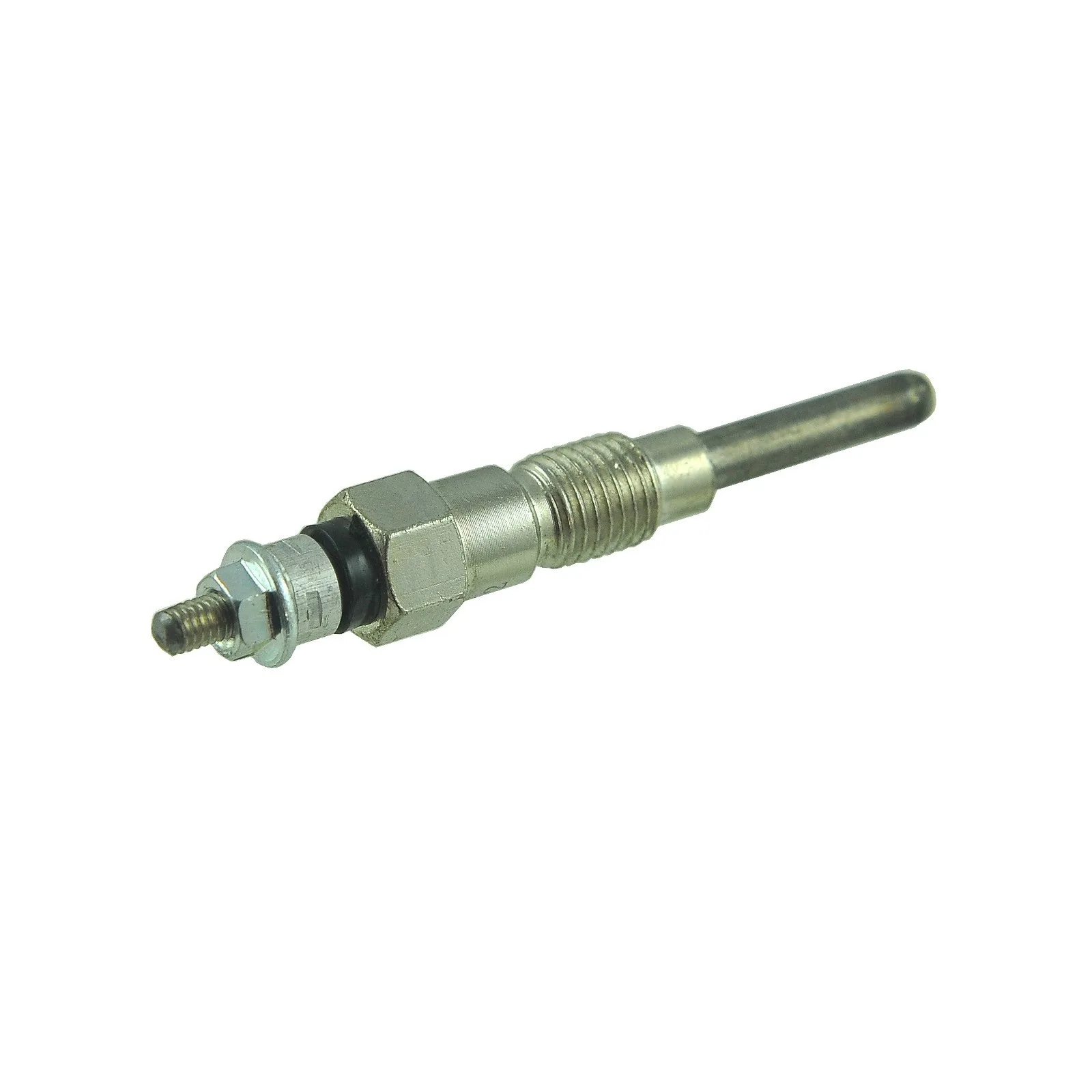

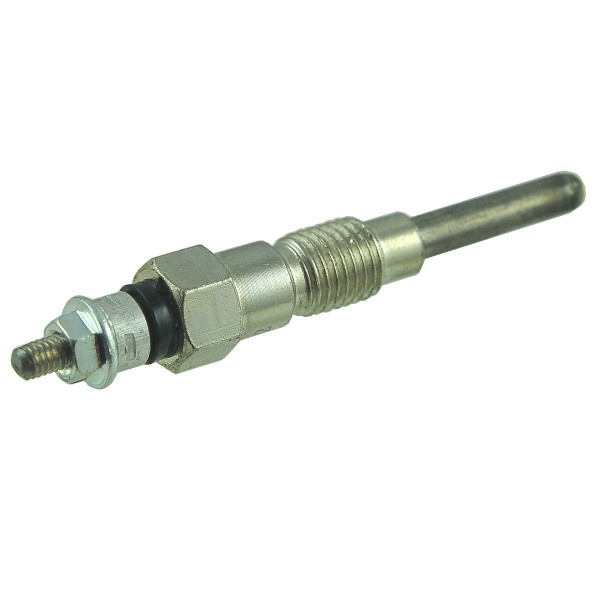

Glow plug / 11V / M10 / 76mm / Kubota D905 / D1005 / D1105 / V1305 / V1405 / V1505

Glow plug with a total length of 76 mm and a filament length of 25 mm with M10 x 1.00 thread for Kubota tractors of the Kubota A-15, Kubota A-17, Kubota A-19, Kubota A-155, Kubota A-175, Kubota A-195, Kubota B1700, Kubota B1710, Kubota B2400, Kubota B2620, Kubota GB15, Kubota GB16, Kubota GB18, Kubota GB20, Kubota GB150, Kubota GB155, Kubota GB160, Kubota GB170, Kubota GB175, Kubota GB180, Kubota GB200, Kubota X-20 series , Hinomoto brands Hinomoto CX13, Hinomoto CX14, Hinomoto CX16, Hinomoto CX18, Hinomoto CX19, Hinomoto CX130, Hinomoto CX140, Hinomoto CX150, Hinomoto CX160, Hinomoto CX180, Hinomoto CX200 with engines Kubota D905, Kubota D1005, Kubota D1105, Kubota V1305, Kubota V1405, Kubota V1505 and others.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions :

• current voltage: 11V,
• total length: 76 mm,
• filament length: 25 mm,
• thread length: 10 / 10 mm.
• thread 1: M10 x 1.00,
• thread 2: M4 x 0.75,
• key size: 12,
• original part numbers: 0100800044,
• comparison numbers: 16261-65511,
• part numbers: NGK 3238, NGK Y709R, 16241-65512.

Engine models :

Kubota:

• Kubota D905,
• Kubota D1005,
• Kubota D1105,
• Kubota V1305,
• Kubota V1405,
• Kubota V1505.

Tractor models :

Kubota :

• Kubota A-15,
• Kubota A-17,
• Kubota A-19,
• Kubota A-155,
• Kubota A-175,
• Kubota A-195,
• Kubota B1700,
• Kubota B1710,
• Kubota B2400,
• Kubota B2620,
• Kubota GB15,
• Kubota GB16,
• Kubota GB18,
• Kubota GB20,
• Kubota GB150,
• Kubota GB155,
• Kubota GB160,
• Kubota GB170,
• Kubota GB175,
• Kubota GB180,
• Kubota GB200,
• Kubota X-20.

Hinomoto :

• Hinomoto CX13,
• Hinomoto CX14,
• Hinomoto CX16,
• Hinomoto CX18,
• Hinomoto CX19,
• Hinomoto CX130,
• Hinomoto CX140,
• Hinomoto CX150,
• Hinomoto CX160,
• Hinomoto CX180,
• Hinomoto CX200.

Lawnmower models :

Kubota :

• Kubota ZD25F,
• Kubota ZD28,
• Kubota ZD28F,
• Kubota ZD326P,
• Kubota ZD326RP,
• Kubota ZD326S,
• Kubota ZD331LP,
• Kubota ZD331P,
• Kubota ZD331RP.

A faulty glow plug is a common cause of the engine not starting and the machine not being grounded. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
