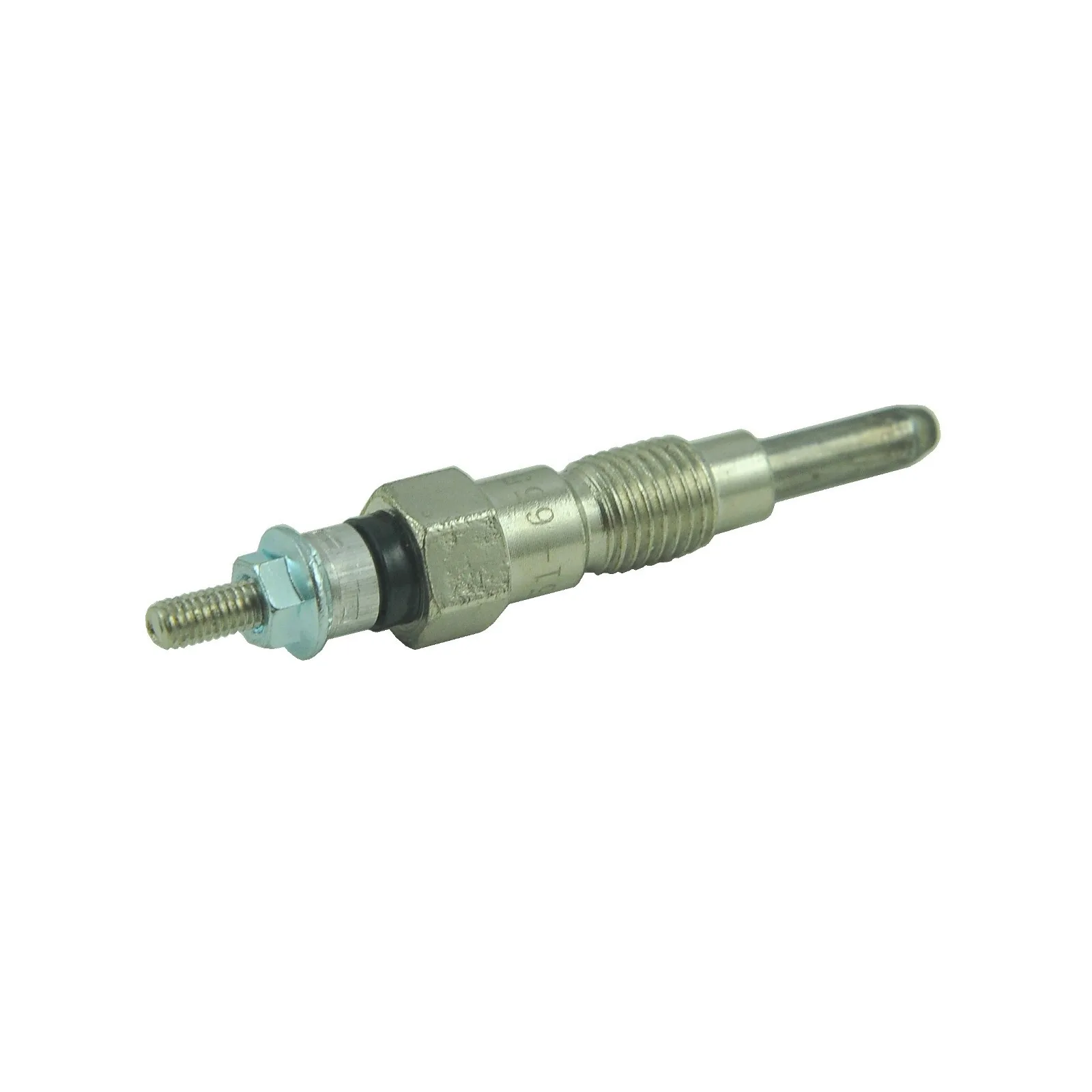

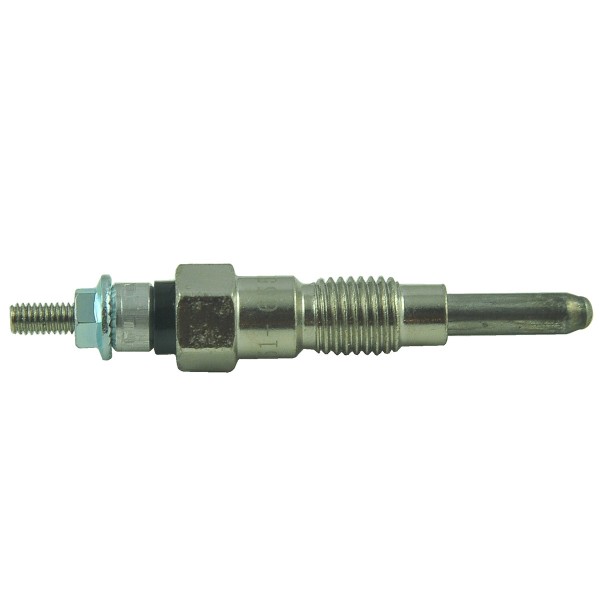

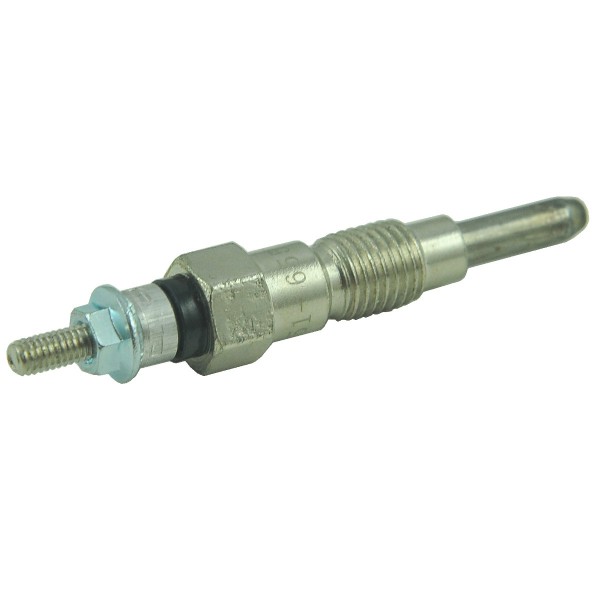

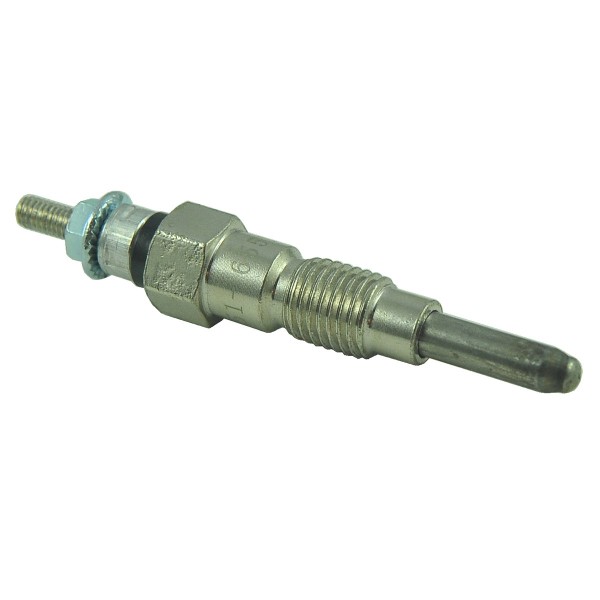

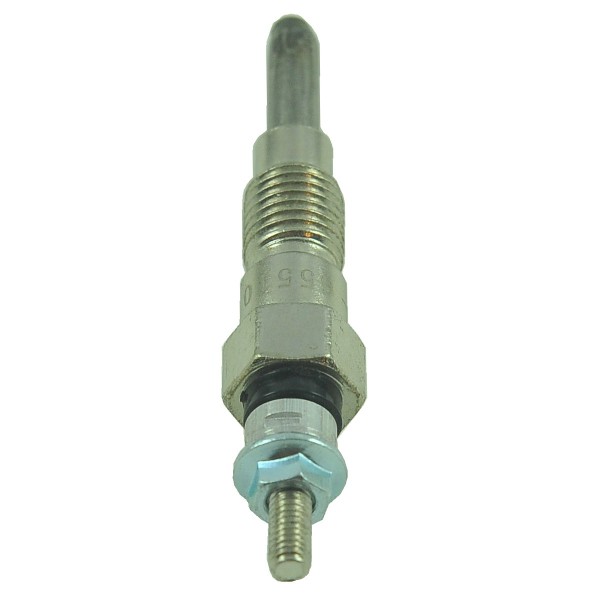

Glow plug / 10.5V / 72mm / Yanmar 3TN75 / 3TNA75 / 3TNT5U / 129155-77801

129155-77801
zł89.99
Tax included PL 23% Dostępny na zamówienie

73,16 netto

Do you have any questions?

Glow plug / 10.5V / 72mm / Yanmar 3TN75 / 3TNA75 / 3TNT5U / 129155-77801

Glow plug with a total length of 72 mm and a filament length of 18.50 mm with an M1 x 1.25 thread for Yanmar tractors of the Yanmar F18, Yanmar FX18, Yanmar F20, Yanmar FX18, Yanmar FX20 series with Yanmar 3TN75, Yanmar 3TNA75, Yanmar 3TNT5U and other engines.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions :

  • current voltage: 10.5V,
  • total length: 72 mm,
  • filament length: 18.50 mm,
  • thread length: 10 / 12 mm.
  • thread 1: M10 x 1.25,
  • thread 2: M4 x 0.75,
  • key size: 12,
  • comparison numbers: 129155-77800, 129795-77800,
  • part numbers: 129155-77801.

Engine models :

  • Yanmar 3TN75,
  • Yanmar 3TNA75,
  • Yanmar 3TNT5U.

Tractor models:

  • Yanmar F18,
  • Yanmar FX18,
  • Yanmar F20,
  • Yanmar FX20.

A faulty glow plug is a common cause of the engine not starting and the machine not being grounded. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:C64
Condition
New
Production
Substitute
Parts
Electrician
Engine model
- Yanmar 3TN75
Yanmar 3TNA75
Yanmar 3TNT5U
Tractor models
- Yanmar F20
- Yanmar FX18
- Yanmar FX20
Yanmar F18
Voltage (V)
10,5
Overall length (mm)
72
Filament Length(mm)
18.50
Thread(s) length (mm)
10 / 12
Wrench size
12
Thread
M4 x 0.75
M10 x 1.25
Comparison numbers
129155-77800
129795-77800
Part number
129155-77801
