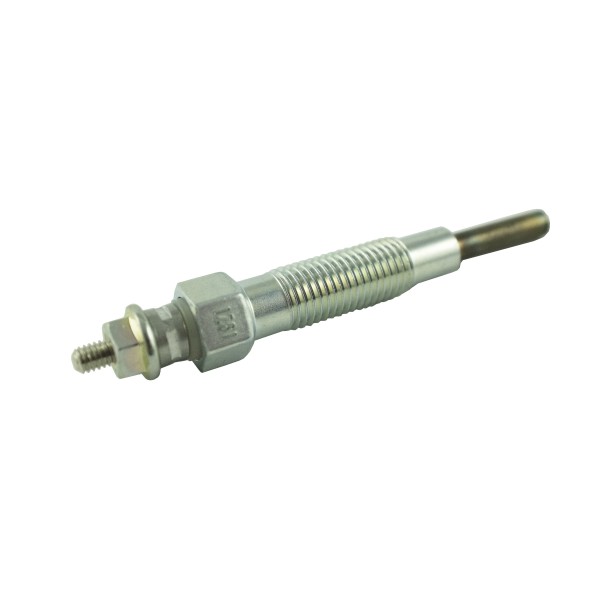

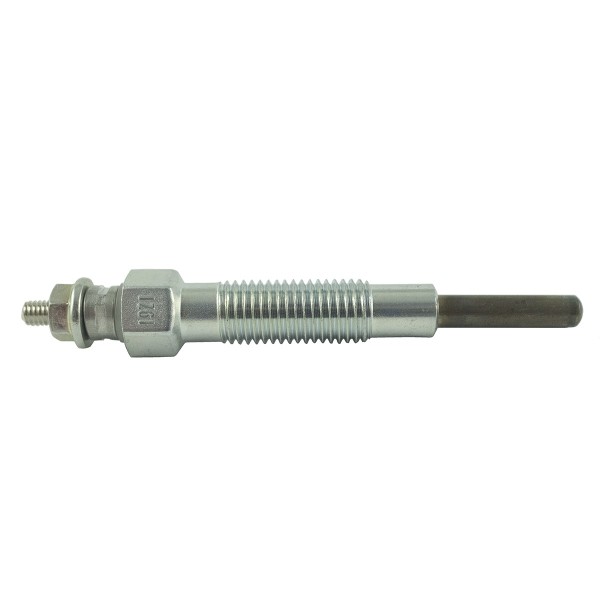

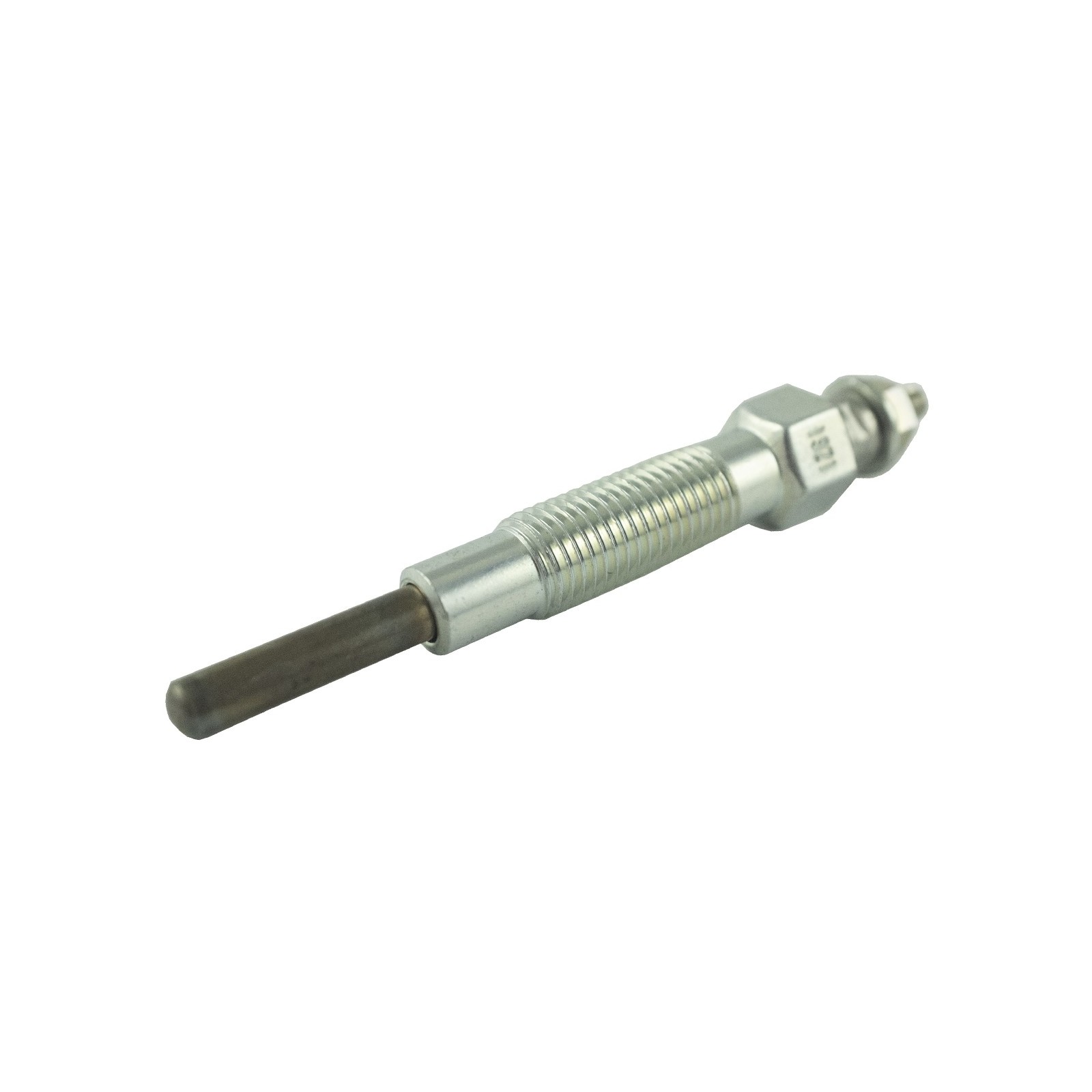

Glow Plug / 87mm / Mistubishi / Iseki / Shibuara / Ford

Glow plug with a total length of 87 mm and a filament length of 22 mm with an M10 x 1.25 thread for tractors and mini tractors from Mitsubishi, Yanmar, Iseki, Shibaura and others.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions :

• total length: 87 mm,
• filament length: 22 mm,
• thread: M10 x 1.25 mm / M4,
• thread length: 22 mm,
• tightening torque: 15-20 Nm,
• key size: 12,

Engine models :

• Mitsubishi S3L2-11A.

Tractor models :

• Mitsubishi MT1401,
• Mitsubishi MT1401D,
• Mitsubishi MT1601,
• Mitsubishi MT1601DT,
• Mitsubishi MT1801,
• Mitsubishi MT1801DT,
• Mitsubishi MT2001,
• Mitsubishi MT2001DT,
• Mitsubishi MT200.

A faulty glow plug is a common cause that prevents the engine from starting and the machine from grounding. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
