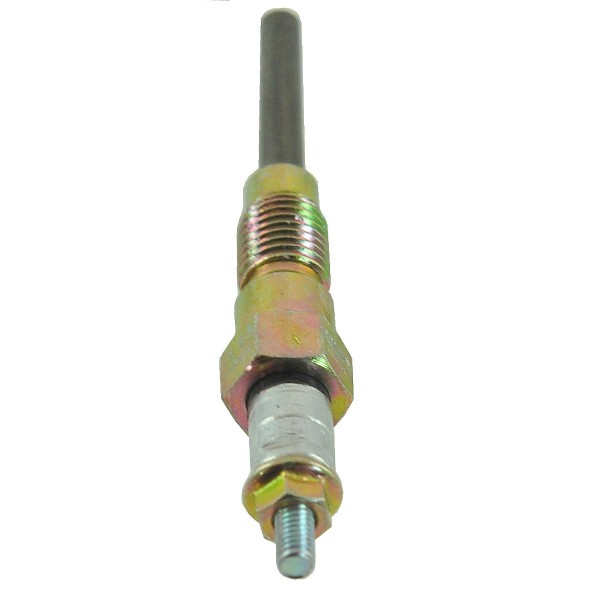

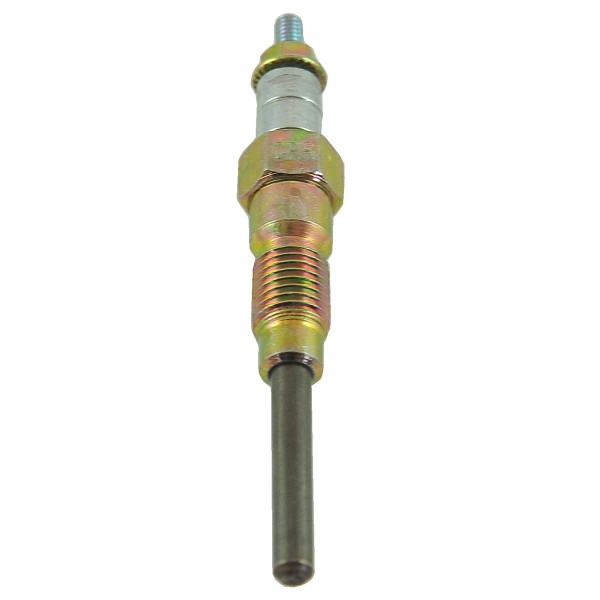

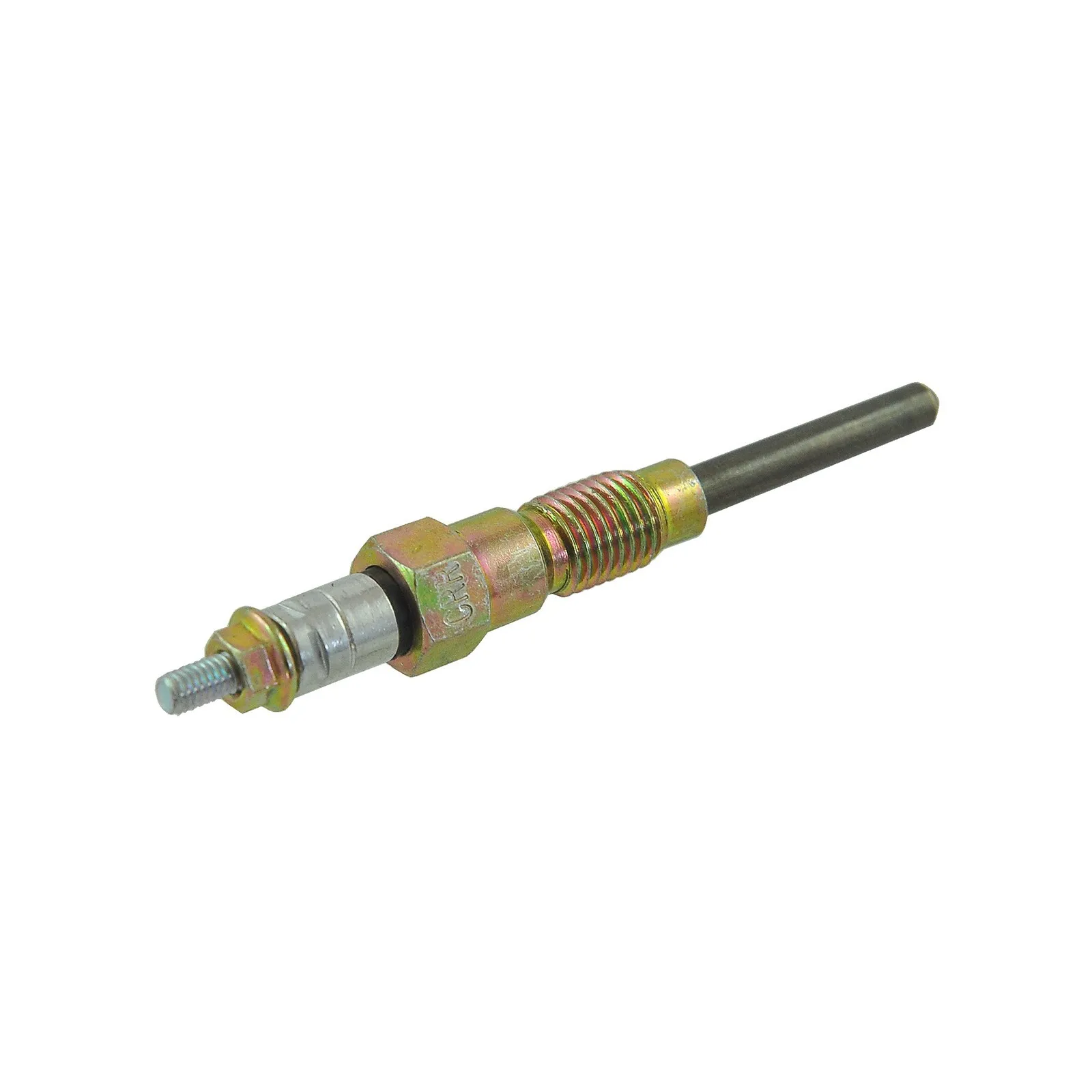

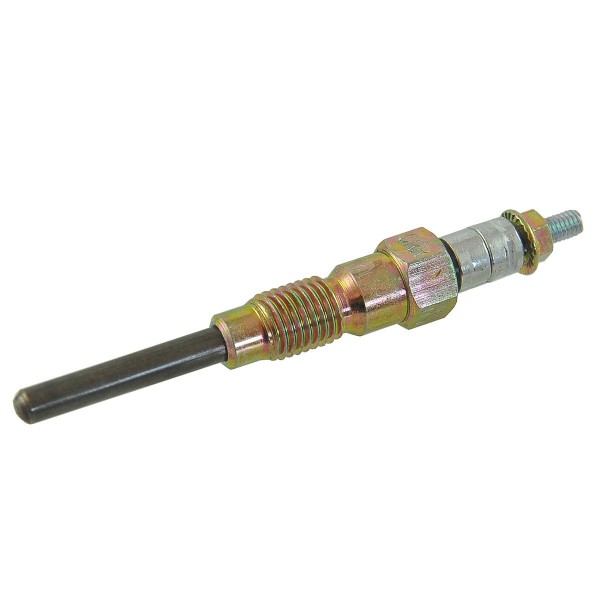

Glow plug / Kubota L3408 / Kubota D1403

Glow plug with a total length of 88 mm and a filament length of 30 mm with an M10x1.25 thread for Kubota tractors of the Kubota L3408 series and others.

Glow plugs are mounted in the engine block in such a way that the heating tip is located in the intake manifold chamber. The rapid increase in the temperature of the glow plug tip is caused by the current that flows through the glow plugs when the ignition key is turned to the glow plug heating position. The rapid increase in the temperature of the glow plug tip heats the air, and the heated air sucked further into the engine facilitates ignition and starting the engine.

Dimensions :

• current voltage: 11V,
• total length: 88 mm,
• filament length: 30 mm,
• thread length: 10 / 10 mm.
• thread 1: M10 x 1.25,
• thread 2: M4,
• key size: 12,
• original part numbers: NGK Y716RS, 19077-65510,
• part numbers: 6-26-103-02.

Tractor models :

• Kubota L3408.

Engine models :

• Kubota D1403.

A faulty glow plug is a common cause of the engine not starting and the machine not being grounded. The first signs of faulty glow plugs are increased smoke coming from the exhaust system when starting the engine, excessive vibration shortly after starting the engine or excessively loud engine operation.

Magazine : M01:C64:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
