Available

Others in the offer of this manufacturer >

Condition

New

Minimum required tractor power (HP HP PS)

Weight (kg)

520

Go to full specification >

BHMS 175 tractor excavator with Geograss shift

Name: BHMS 175 tractor excavator with Geograss shift
Brand: Geograss
SKU: BHMS175_GEO
Price: 20399 PLN
Availability: InStock

Reference BHMS175_GEO

zł20,399.00

Tax included PL 23%

16584,55 netto

Dostępność (5 Quantity):

Do you have any questions?

Watch the video

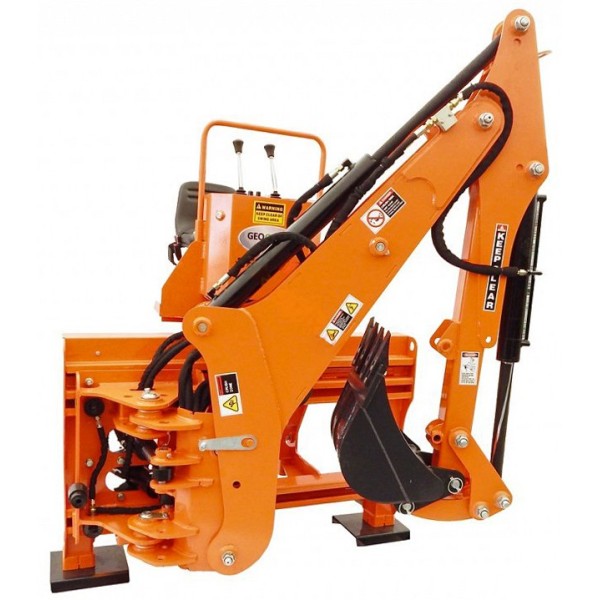

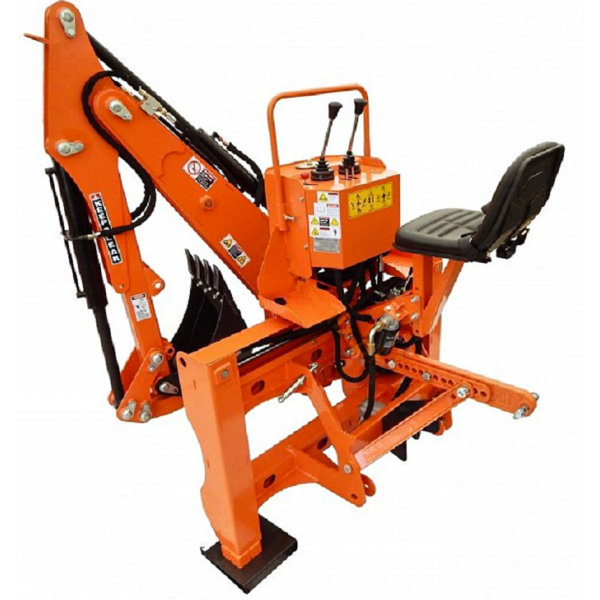

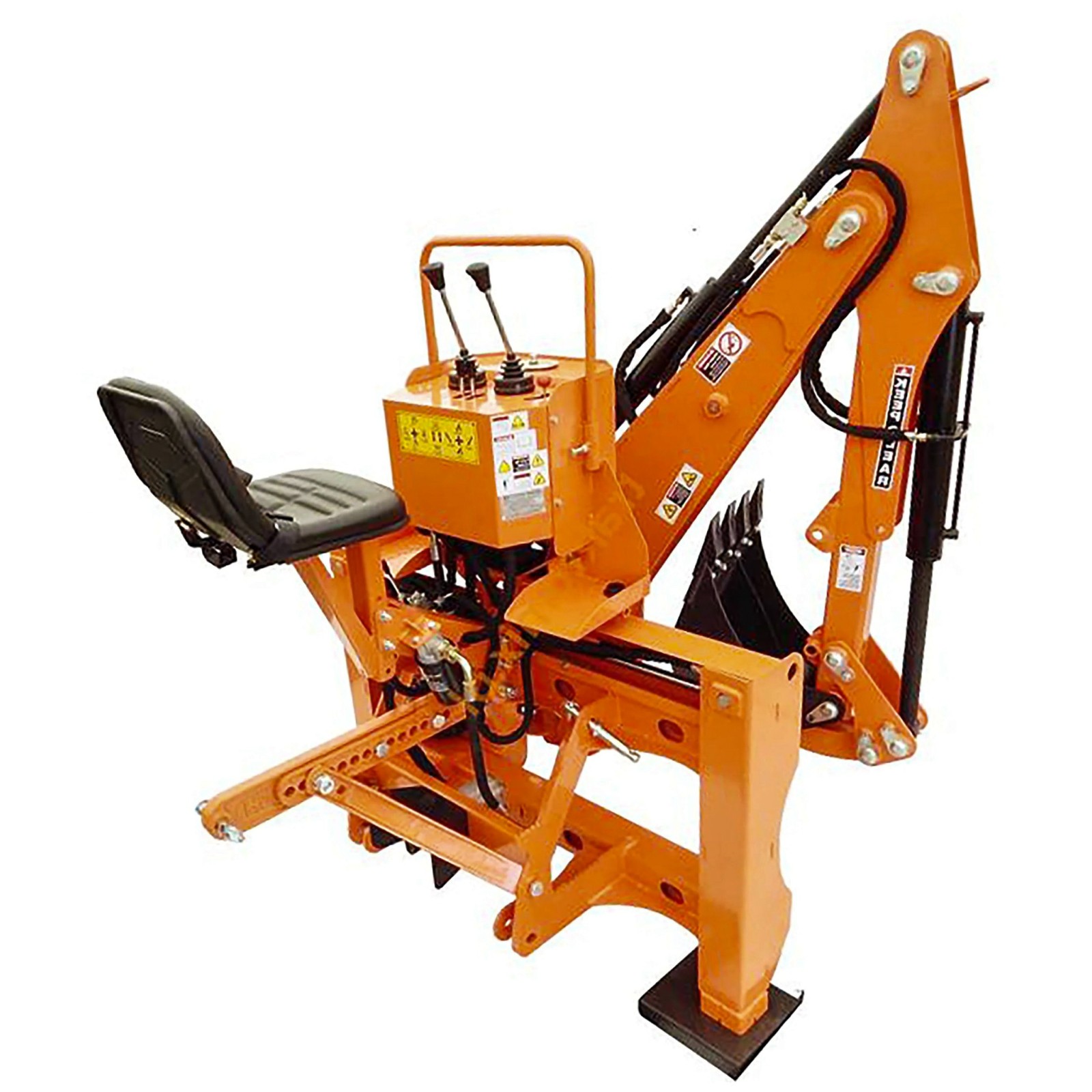

BHMS 175 tractor excavator with Geograss shift

Ground construction or garden work, but also planting plants or installing irrigation require good, solid equipment . The dimensions of a classic excavator and their price do not always suit us. With a tractor, an alternative to standard excavators are tractor excavators , allowing more possibilities and working also in narrow small spaces.

The BHMS95 tractor excavator is equipped with a seat for the operator and its own hydraulic pump . Stably located in the excavator, the pump allows you to operate the arm and bucket as well as the side stabilizers.

The pump is powered by the tractor's PTO/PTO shaft. The drive from the tractor's PTO shaft is 540 rpm .

This model has an additional function - the ability to change the position of the working arm , which allows you to work in close proximity to fences or walls of buildings. This is possible thanks to the support arms extending downwards and not unfolding to the side.

A tractor with a minimum power of 30 HP is required for the proper operation of the excavator.

The excavator is attached to the rear three-point hitch on the 3-point attachment of the Cat-1 tractor.

The standard width of the spoon is 30 cm .

Specification

Condition

New

Equipment

Excavator

Minimum required tractor power (HP HP PS)

Maximum digging depth (mm)

1750

Max digging radius (mm)

2600

NEXT DOOR

3 point
KAT I

Maximum throwing height (mm)

1850

Weight (kg)

520

loading height (mm)

1850

Bucket rotation angle (°)

180

Maximum height (mm)

3120

Geograss

GEOGRASS is a direct importer of agricultural machinery from Japan. The company's equipment is equipped with increased durability bearings and stronger components, making the structure even more stable. Increased parameters give GEOGRASS devices increased durability and even longer failure-free operation.

Our store's offer includes GEOGRASS machines, including: such as:
