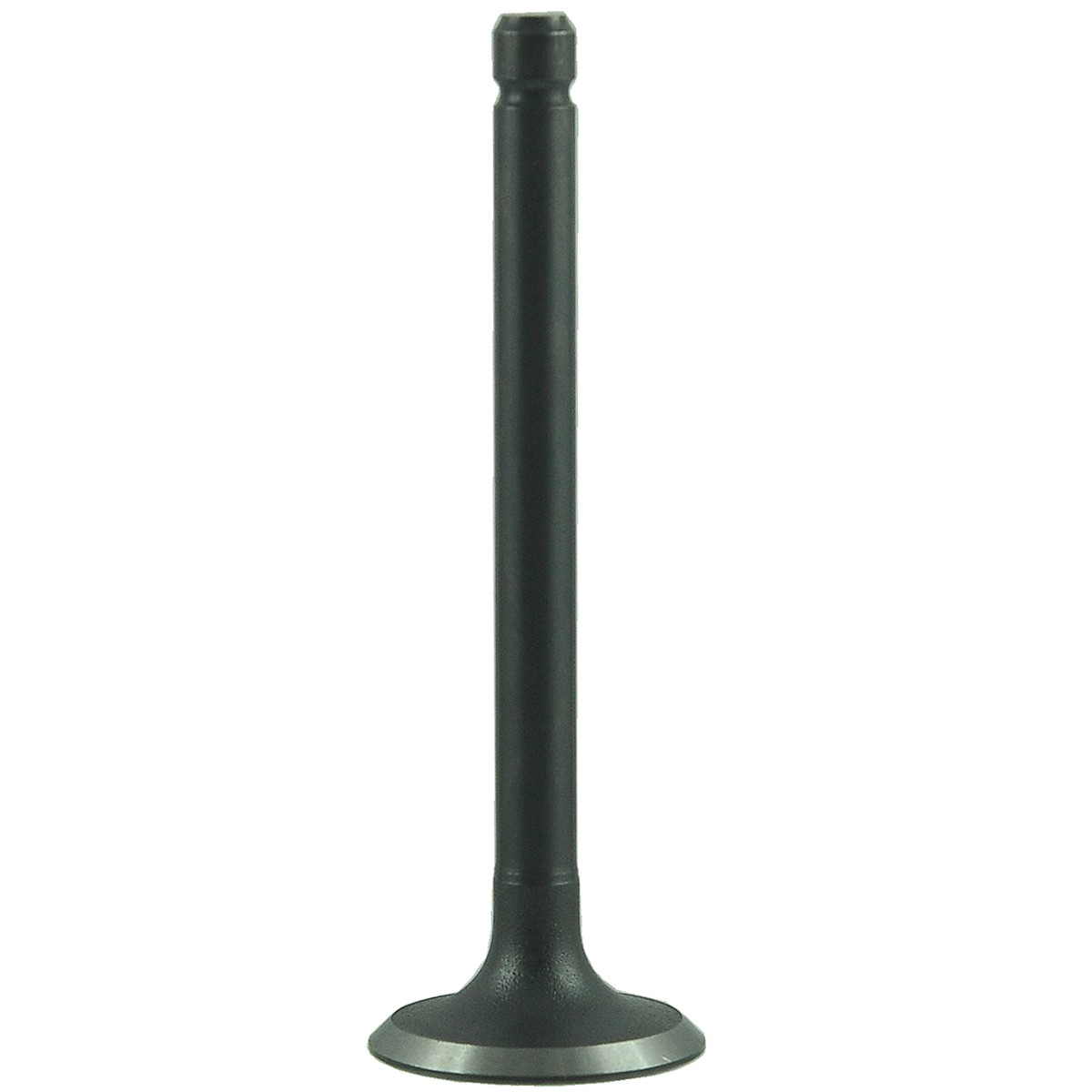

Engine Valve / IN / Kubota Z650 / Z750 / Z751 / Z851 / Kubota L185 / L225 / L1501 / L2601

IN inlet valve ( %C3% B3r-exhaust-engine-valve-ex-8-x-27-x-10150-mm-kubota-z650z750z751z851-kubota-l185l225l1501l2601-15221-13121.html">15221-13120 ) with a length of 101.50 mm and a head diameter of 33 mm for Kubota tractors of the Kubota L185, Kubota L225, Kubota L235, Kubota L245, Kubota L275, Kubota L285, Kubota L295, Kubota L345, Kubota L355, Kubota L1500, Kubota L1501, Kubota L1801, Kubota L2000, Kubota L2050 series, Kubota L2200, Kubota L2201, Kubota L2202, Kubota L2402, Kubota L2600, Kubota L2601, Kubota M4050, Kubota M4500, Kubota M4950 with engines Kubota D1100, Kubota D1102, Kubota D1302, Kubota D1402, Kubota DH1101, Kubota V1500, Kubota V1501, Kubota V1502, Kubota V1902, Kubota V3307, Kubota Z650, Kubota Z750, Kubota Z751, Kubota Z851 and others.

Engine valves are components that are located in the head (overhead valve engine) or engine block (bottom valve engine) and their main task is to properly control the flow of air, fuel-air mixture and exhaust gases. We distinguish two types of valves:

• intake valves are responsible for opening the chamber in order to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

The valves consist of a rod with a plate at the end and are cast in one piece. The engine valves are made of special steel resistant to extremely high temperatures created during fuel combustion, so-called heat-resistant steel.

Dimensions :

• total length: 101.50 mm,
• shaft diameter: 8 mm,
• mushroom diameter: 33 mm,
• original part numbers: 15221-13121,
• comparison numbers: %C3% B3r-inlet-exhaust-outlet-kubota-all-models.html">6-24-101-01 ,
• part number: -.

Engine models

Kubota :

• Kubota D1100,
• Kubota D1102,
• Kubota D1302,
• Kubota D1402,
• Kubota DH1101,
• Kubota V1500,
• Kubota V1501,
• Kubota V1502,
• Kubota V1902,
• Kubota V3307,
• Kubota Z650,
• Kubota Z750,
• Kubota Z751,
• Kubota Z851.

Tractor models :

Kubota :

• Kubota L185,
• Kubota L225,
• Kubota L235,
• Kubota L245,
• Kubota L275,
• Kubota L285,
• Kubota L295,
• Kubota L345,
• Kubota L355,
• Kubota L1500,
• Kubota L1501,
• Kubota L1801,
• Kubota L2000,
• Kubota L2050,
• Kubota L2200,
• Kubota L2201
• Kubota L2202,
• Kubota L2402,
• Kubota L2600,
• Kubota L2601,
• Kubota M4050,
• Kubota M4500,
• Kubota M4950.

Engine valves are components that wear out when working in difficult conditions and under the influence of high temperatures. The most common valve damage is valve stem abrasion and carbon deposits. Valve deposits are the result of using low-quality oil, and valve head wear causes leaks in the system and loss of engine power.

Magazine: M01:J31

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
