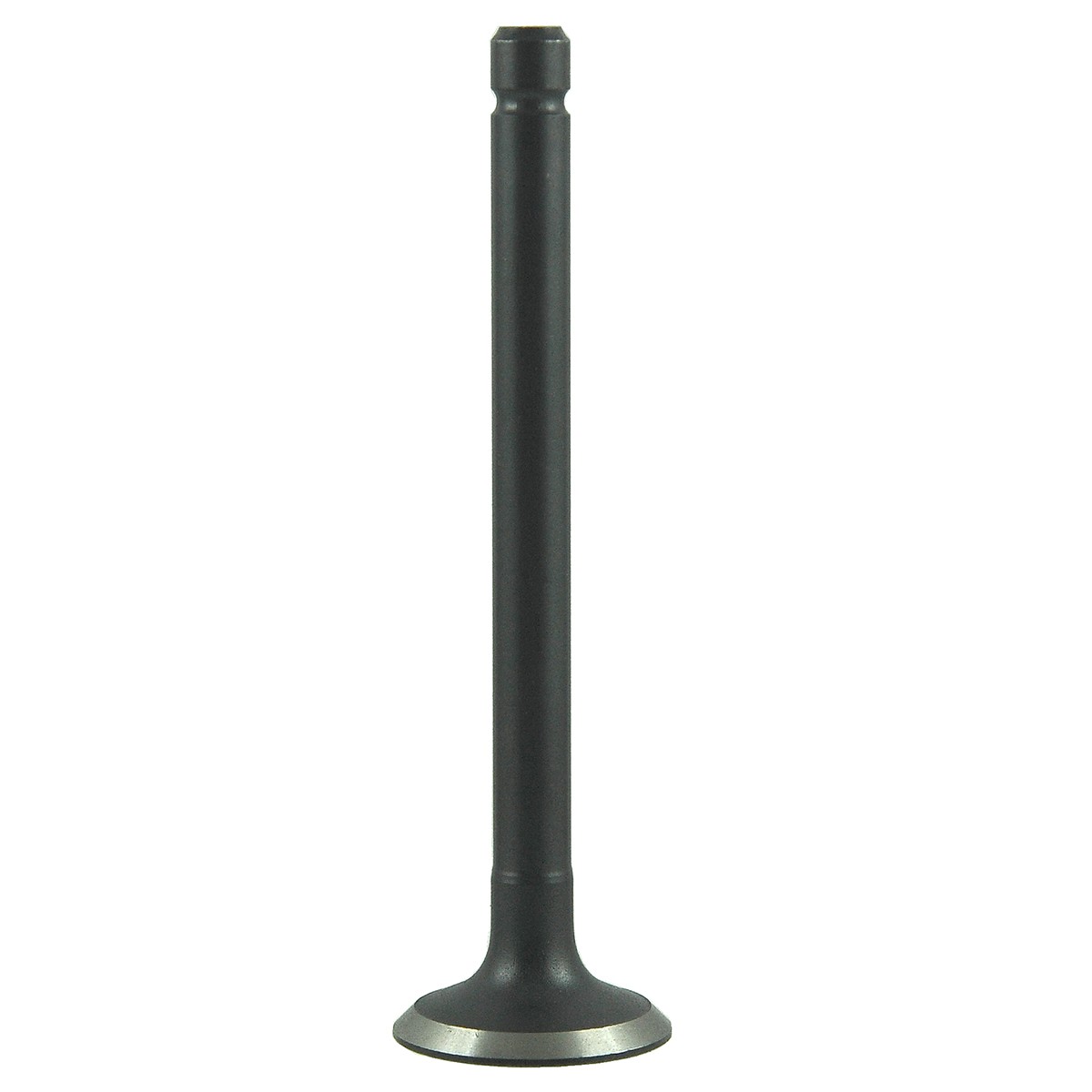

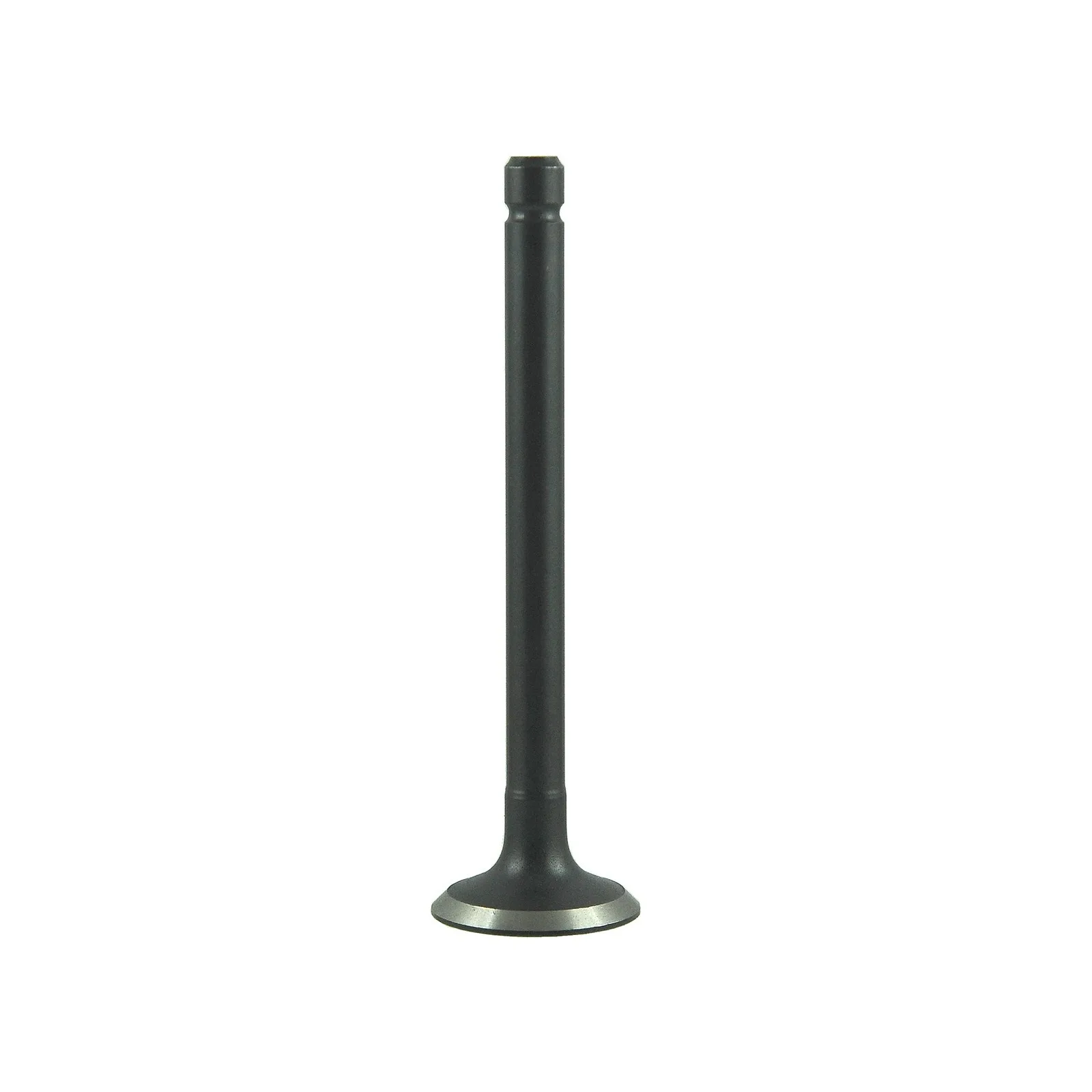

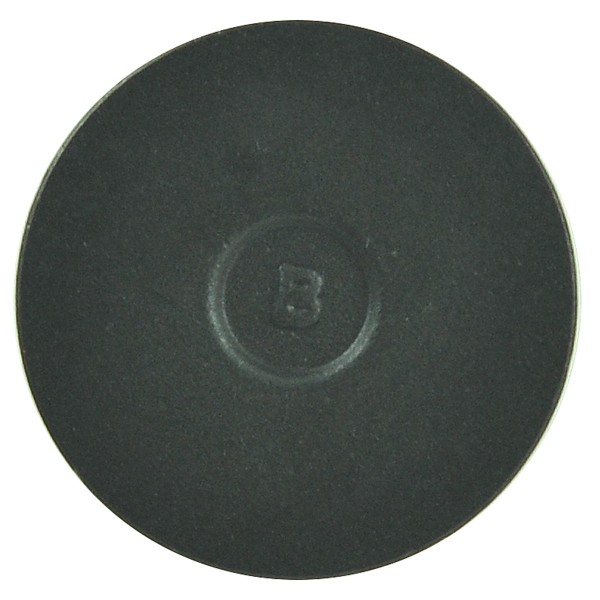

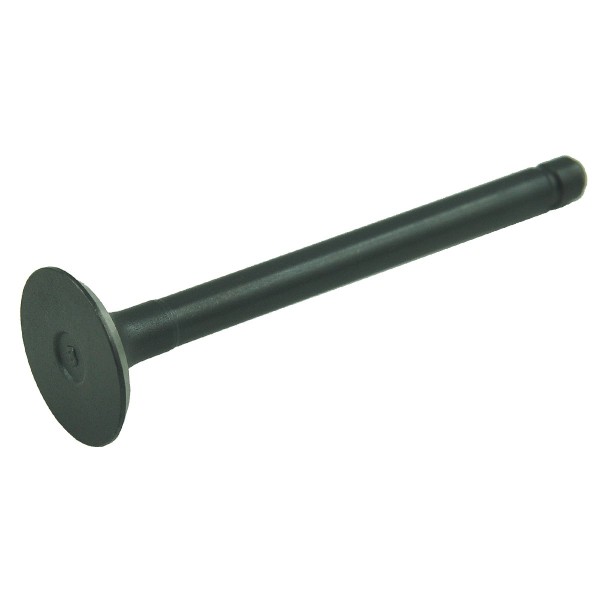

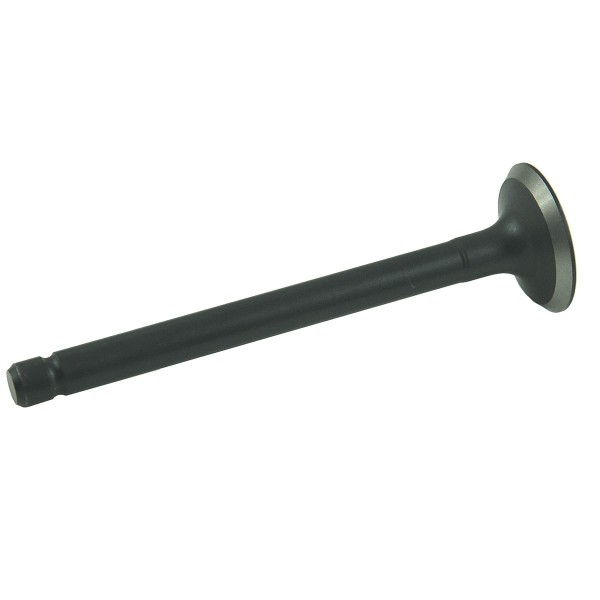

Engine Valve / EX / Kubota D1403 / D1503 / D1703 / V1903 / V2003 / V2203

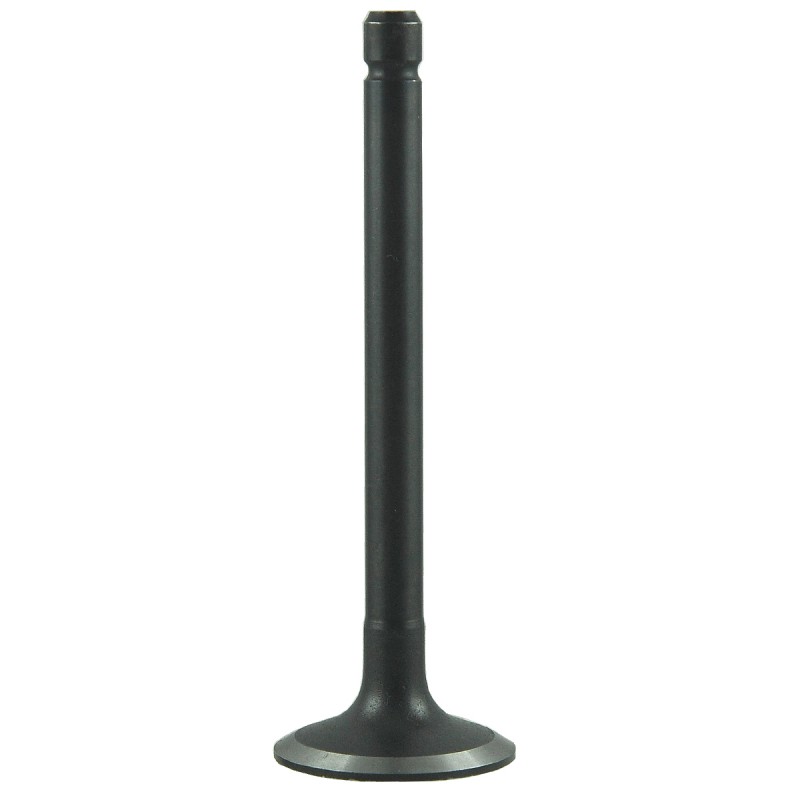

EX inlet valve (IN inlet valve 16484-13110) with a length of 102.30 mm and a poppet diameter of 28.50 mm for Kubota tractors with Kubota D1403, Kubota D1503, Kubota D1703, Kubota V1903, Kubota V2003, Kubota V2203 and other engines.

Engine valves are components located in the cylinder head (overhead valve engine) or engine block (lower valve engine). Their main function is to properly control the flow of air, the fuel-air mixture, and exhaust gases. There are two types of valves:

• intake valves are responsible for opening the chamber to draw in the appropriate amount of fuel mixture,
• exhaust valves, responsible for removing gases generated during engine operation from the chamber.

The valves consist of a rod with a disc at the end and are fully cast. Engine valves are made of special steel resistant to the extremely high temperatures generated during fuel combustion, known as heat-resistant steel.

Dimensions :

• total length: 102.30 mm,
• shaft diameter: 8 mm,
• mushroom diameter: 28.50 mm,
• original part numbers: 16484-13120,
• comparison numbers: -,
• part number: -.

Engine models

Kubota :

• Kubota D1403,
• Kubota D1503,
• Kubota D1703,
• Kubota V1903,
• Kubota V2003,
• Kubota V2203.

Engine valves are components that wear out when working in difficult conditions and under the influence of high temperatures. The most common valve damage is valve stem abrasion and carbon deposits. Valve deposits are the result of using low-quality oil, and valve head wear causes leaks in the system and loss of engine power.

Magazine: K18:A14:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
