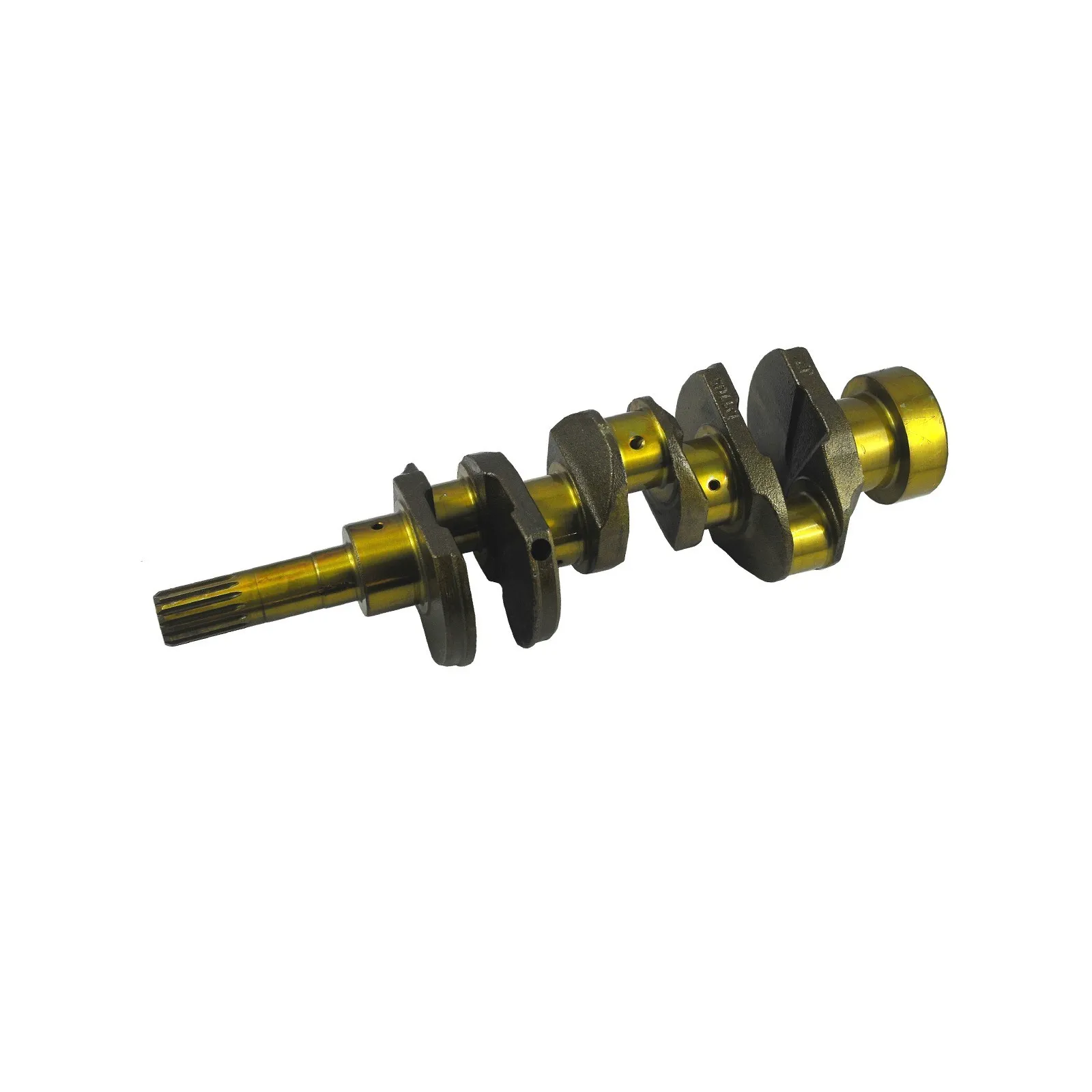

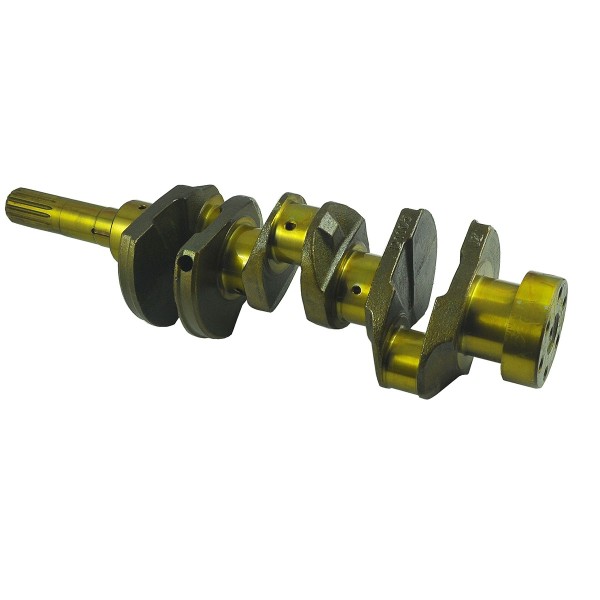

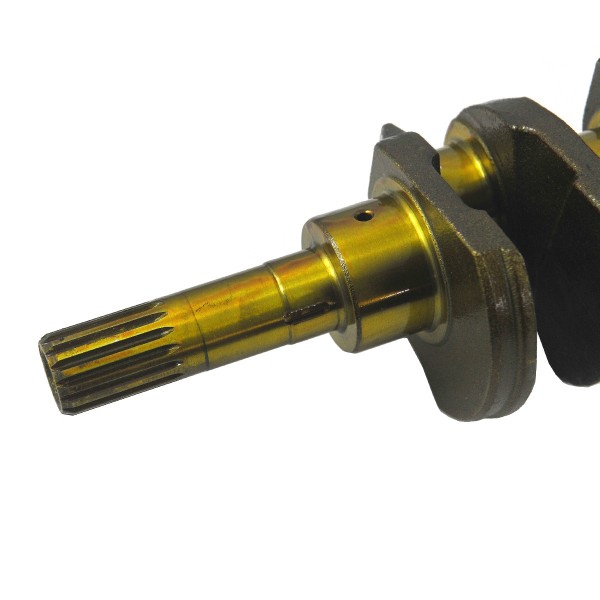

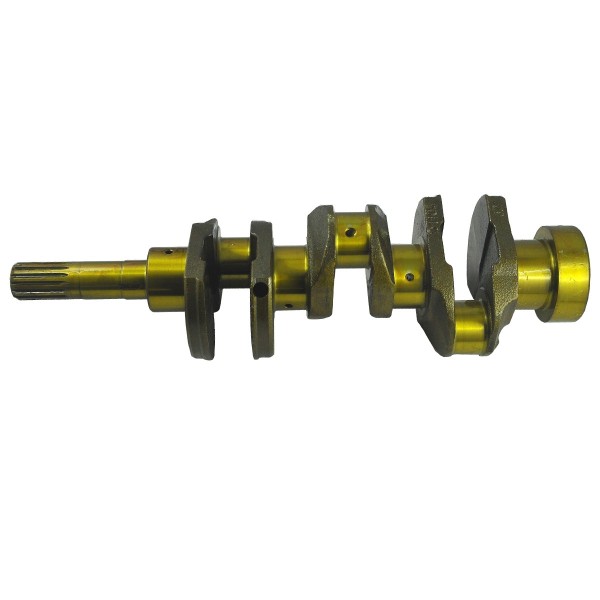

Crankshaft / Kubota D1105 / Ø 48 mm

Crankshaft with main journal with a diameter of 48 mm for Kubota tractors with Kubota D1105 engines.

The crankshaft is a key element of the internal combustion engine, responsible for converting the reciprocating motion of the pistons into rotary motion that powers the vehicle. In four-stroke engines , the crankshaft is usually hollow, which allows for effective lubrication of the big end bearing and main journals using engine oil, which is pressed under pressure. In two-stroke engines, which are often lubricated with a fuel-oil mixture, the crankshaft is of a solid construction, which allows for the installation of rolling bearings at the main and crank journals. The shafts in two-stroke diesel engines are constructed in a way similar to the shafts of four-stroke engines, i.e. they are hollow, which facilitates their effective lubrication.

Dimensions :

• total length: 410 mm,
• main journal diameter: 48 mm,
• connecting rod journal diameter: 40 mm,
• jump height: -,
• number of teeth: 15T,
• comparison numbers: 16261-23012, 16261-23013,
• original part numbers: 16261-23010.

Engine models :

Kubota :

• Kubota D1105.

Tractor models :

Kubota :

• Kubota B2400,
• Kubota B2410,
• Kubota B26,
• Kubota B2620,
• Kubota B2630,
• Kubota B7610.

Magazine : L01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
