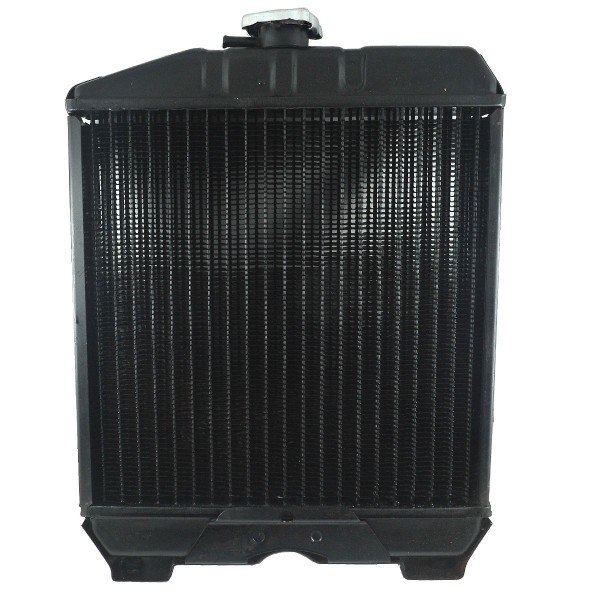

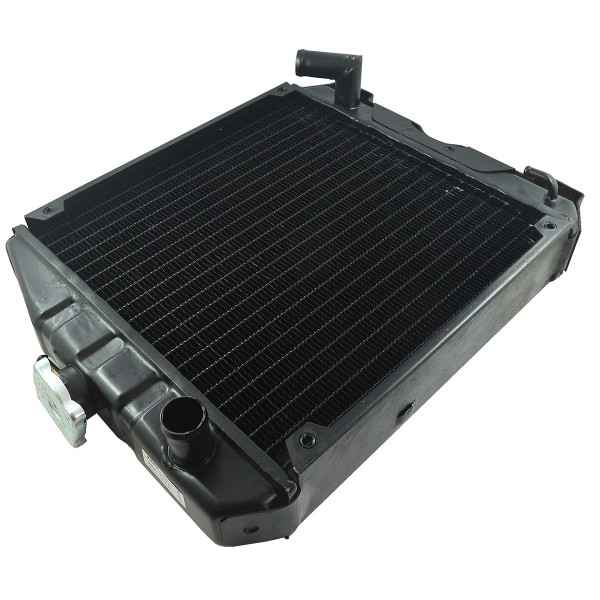

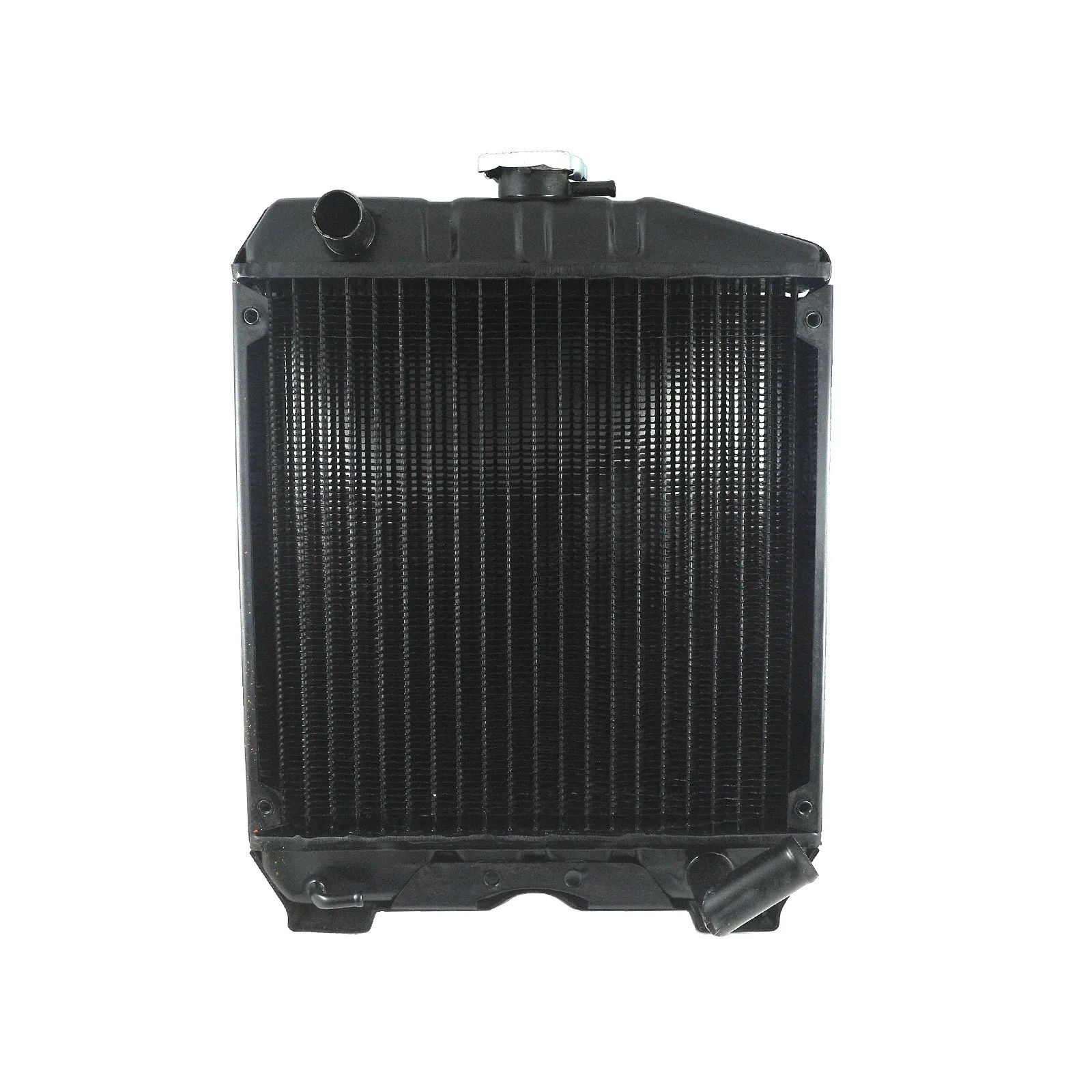

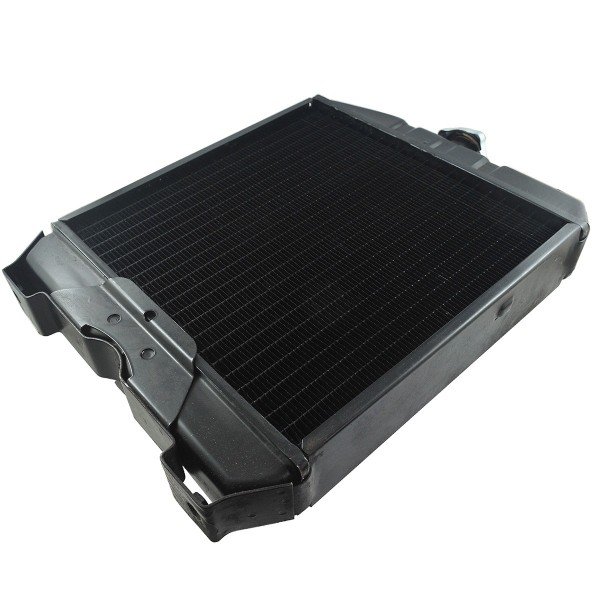

Radiator / Hinomoto E222 / E1802 / E1804 / E2002 / E2004 / E2302 / E2304

Radiator with a height of 450 mm, width of 350 mm and thickness of 80 mm for Hinomoto tractors of the Hinomoto E222, Hinomoto E1802, Hinomoto E1804, Hinomoto E2002, Hinomoto E2004, Hinomoto E2302, Hinomoto E2304 series with Toyosha CS112, Toyosha CS122, Toyosha MS135, Toyosha MS142 and other engines.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions:

• height 450 mm (measured without cap),
• width 350 mm,
• thickness 80mm,
• mounting bolt spacing height 290 mm, width 325 mm,
• original part numbers: ,
• Comparative numbers:
• part numbers -.

Tractor models :

Hinomoto :

• Hinomoto E222,
• Hinomoto E1802,
• Hinomoto E1804,
• Hinomoto E2002,
• Hinomoto E2004,
• Hinomoto E2302,
• Hinomoto E2304.

Engine models :

Toyosha:

• Toyosha CS112,
• Toyosha CS122,
• Toyosha MS135,
• Toyota MS142.

Warehouse :
K19

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
