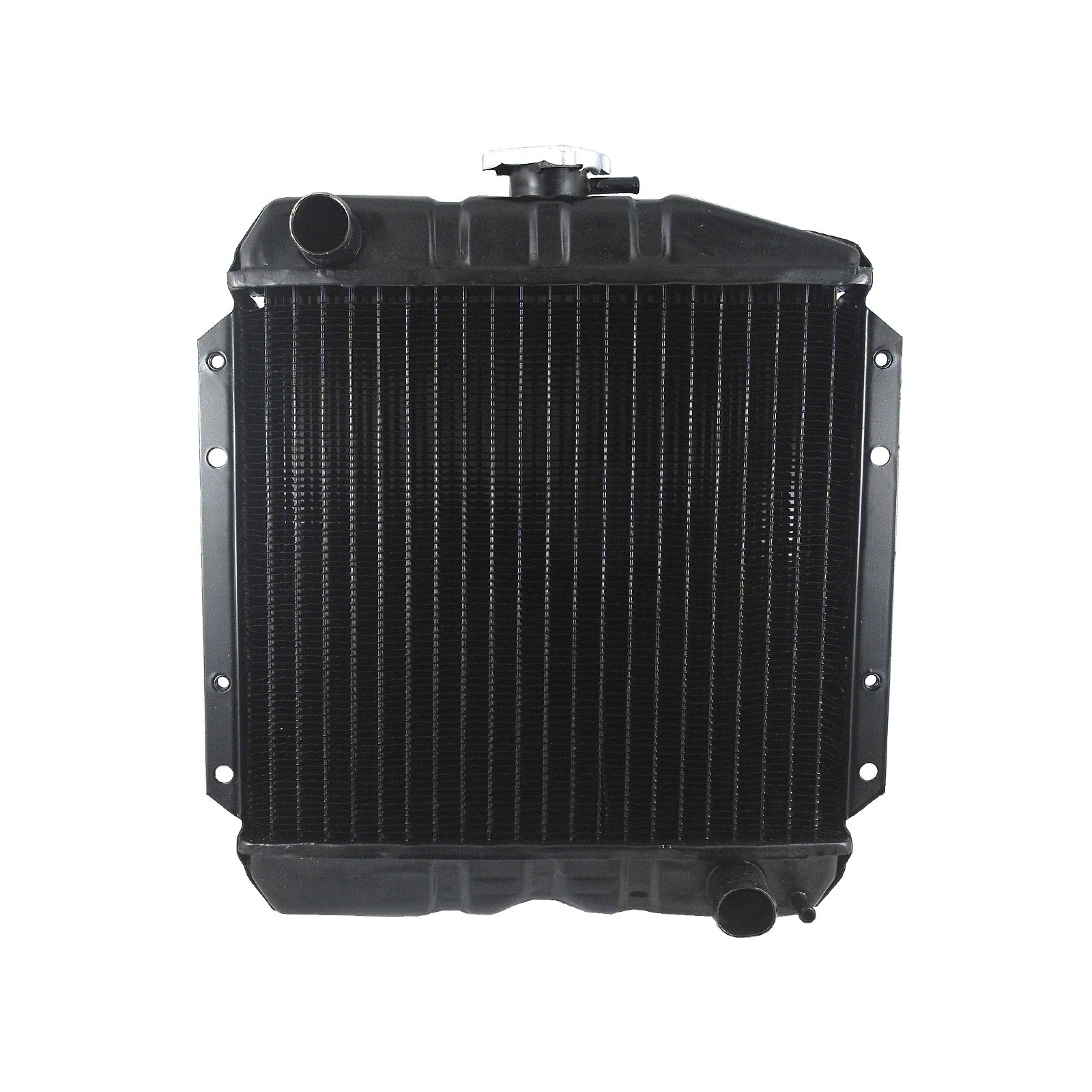

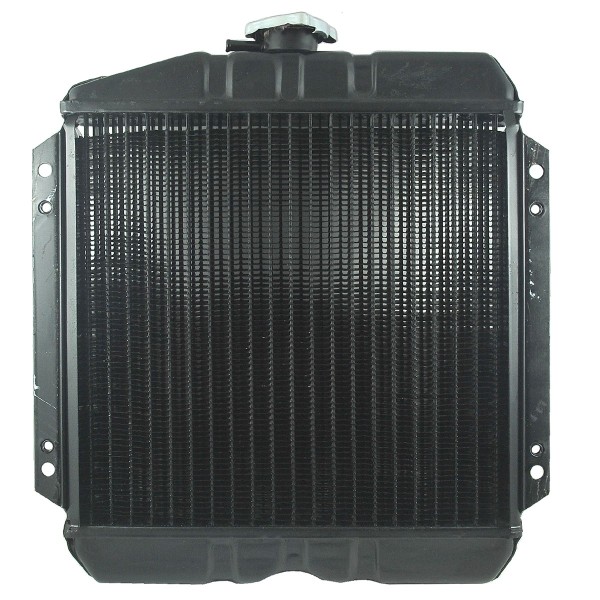

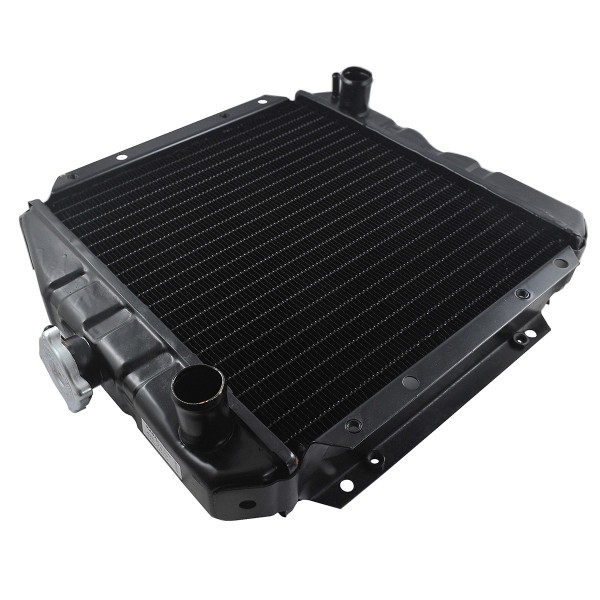

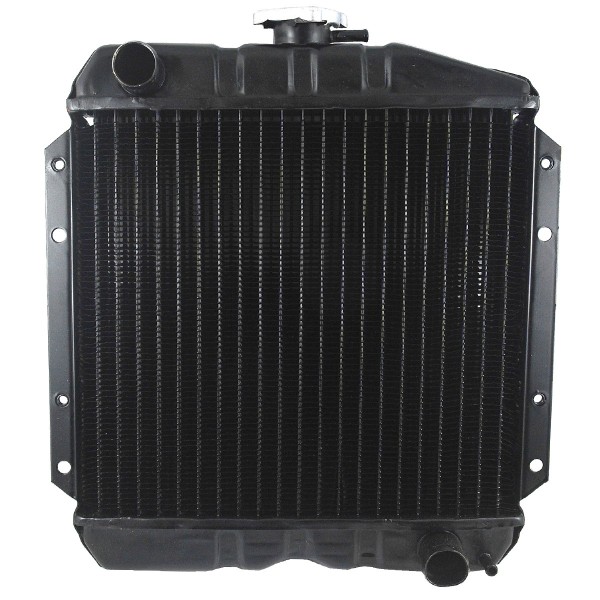

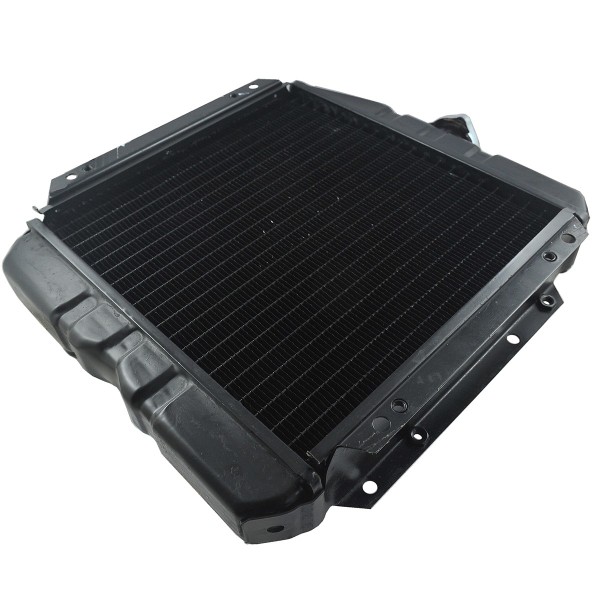

Radiator / Hinomoto E1804 (Type 2)

Radiator with a height of 420 mm, width of 390 mm and thickness of 80 mm for Hinomoto tractors of the Hinomoto E1804 series and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions:

• height 420 mm (measured without cap),
• width: 390mm,
• thickness 80mm,
• mounting bolt spacing height 290 mm, width 325 mm,
• original part numbers: 8119-6001-000,
• Comparative numbers:
• part numbers ARK7038.

Tractor models :

Hinomoto :

• Hinomoto E1804.

Warehouse :
K19

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
