zł1,850.00
To order
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Toyosha S100
Tractor models
Hinomoto C172
Hinomoto C174
Hinomoto E180
Hinomoto N200
Hinomoto C174
Hinomoto E180
Hinomoto N200
Thickness (mm)
65
Width (mm)
390
Radiator / Hinomoto C172 / C174 / E180 / N200
R_H_CS100
Do you have any questions?
Radiator / Hinomoto C172 / C174 / E180 / N200

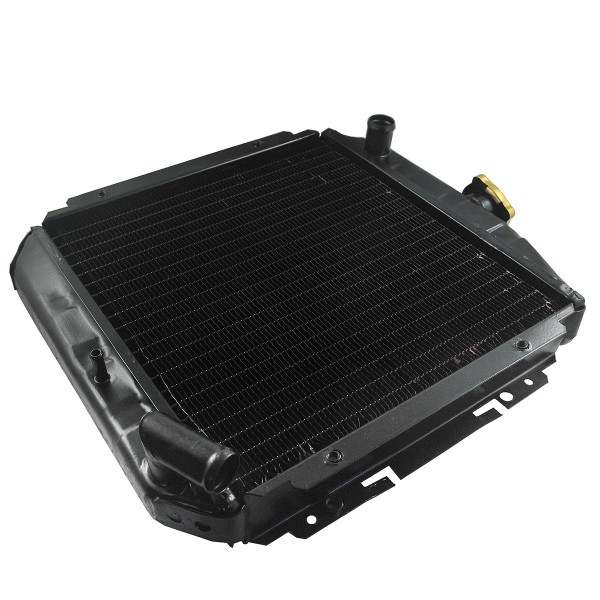

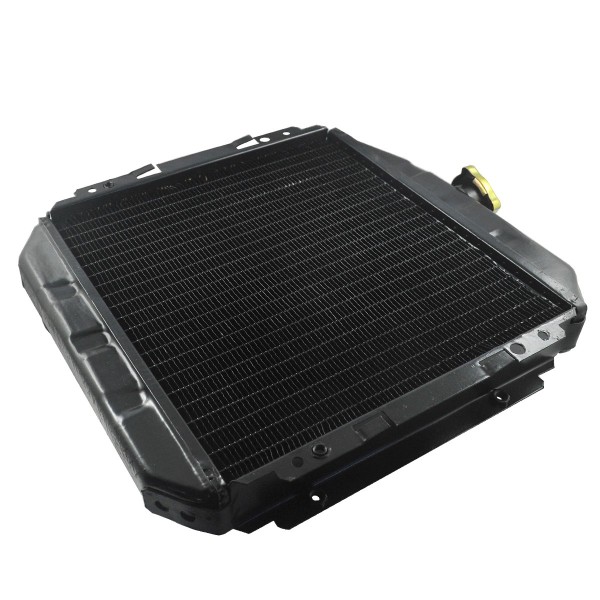

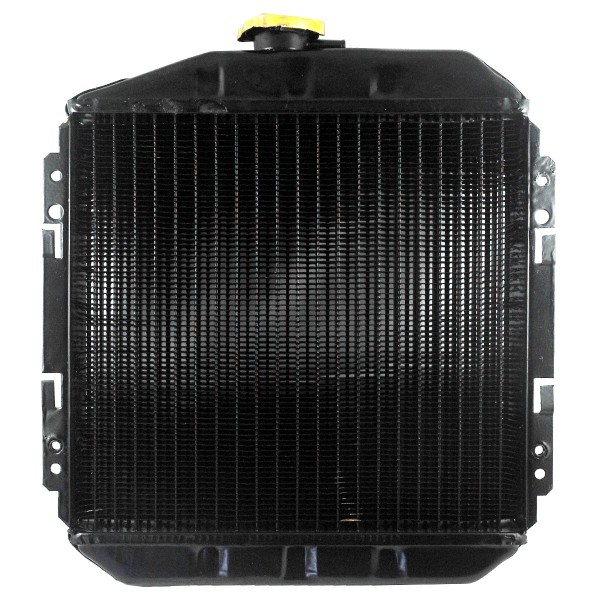

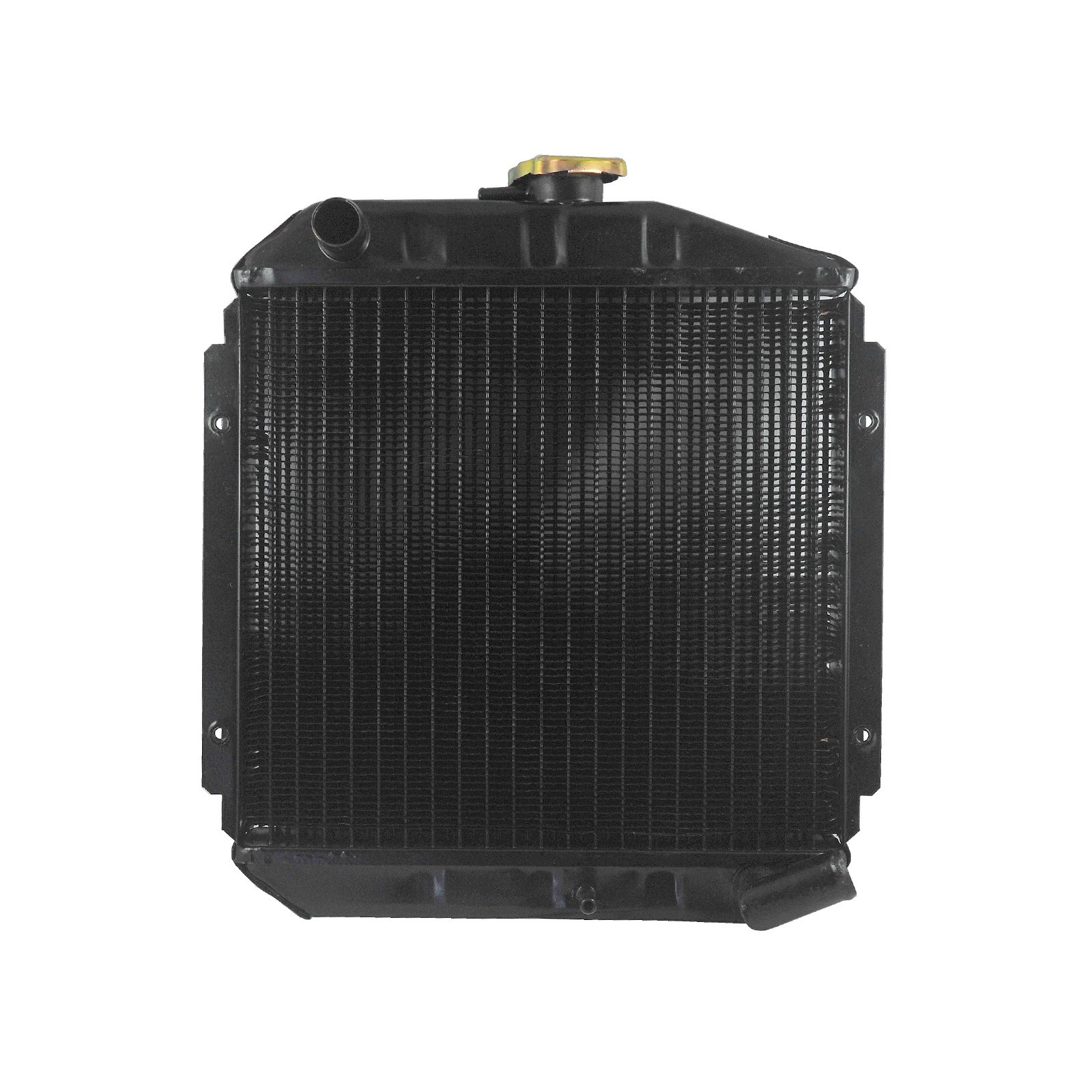

Radiator with a height of 425 mm , width of 390 mm and thickness of 65 mm for Hinomoto tractors of the Hinomoto C172, Hinomoto C174, Hinomoto E180, Hinomoto N200 series and others.
The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.
Dimensions :
- height: 425 mm.
- width: 390 mm.
- thickness: 6.50 mm,
- spacing of mounting screw holes: 170 x 370 mm,
- nozzle diameter: 25 mm (IN), 28 mm (OUT),
- original part numbers: -.
The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.
Magazine: M33
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M33
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Toyosha S100
Tractor models
Hinomoto C172
Hinomoto C174
Hinomoto E180
Hinomoto N200
Hinomoto C174
Hinomoto E180
Hinomoto N200
Thickness (mm)
65
Width (mm)
390
Connection diameter (a) (mm)
25
28
28
Bolt hole spacing (mm)
170
370
370
Total height (mm)
425
