zł1,450.00
To order
Condition
New
Production
OEM
Parts
Cooling system
Tractor models
VST Fieldtrac 927
Length (mm)
120
Width (mm)
390
Connection diameter (a) (mm)
22
27
27
Radiator / VST Fieldtrac 927
JTK03A00060A2
Do you have any questions?

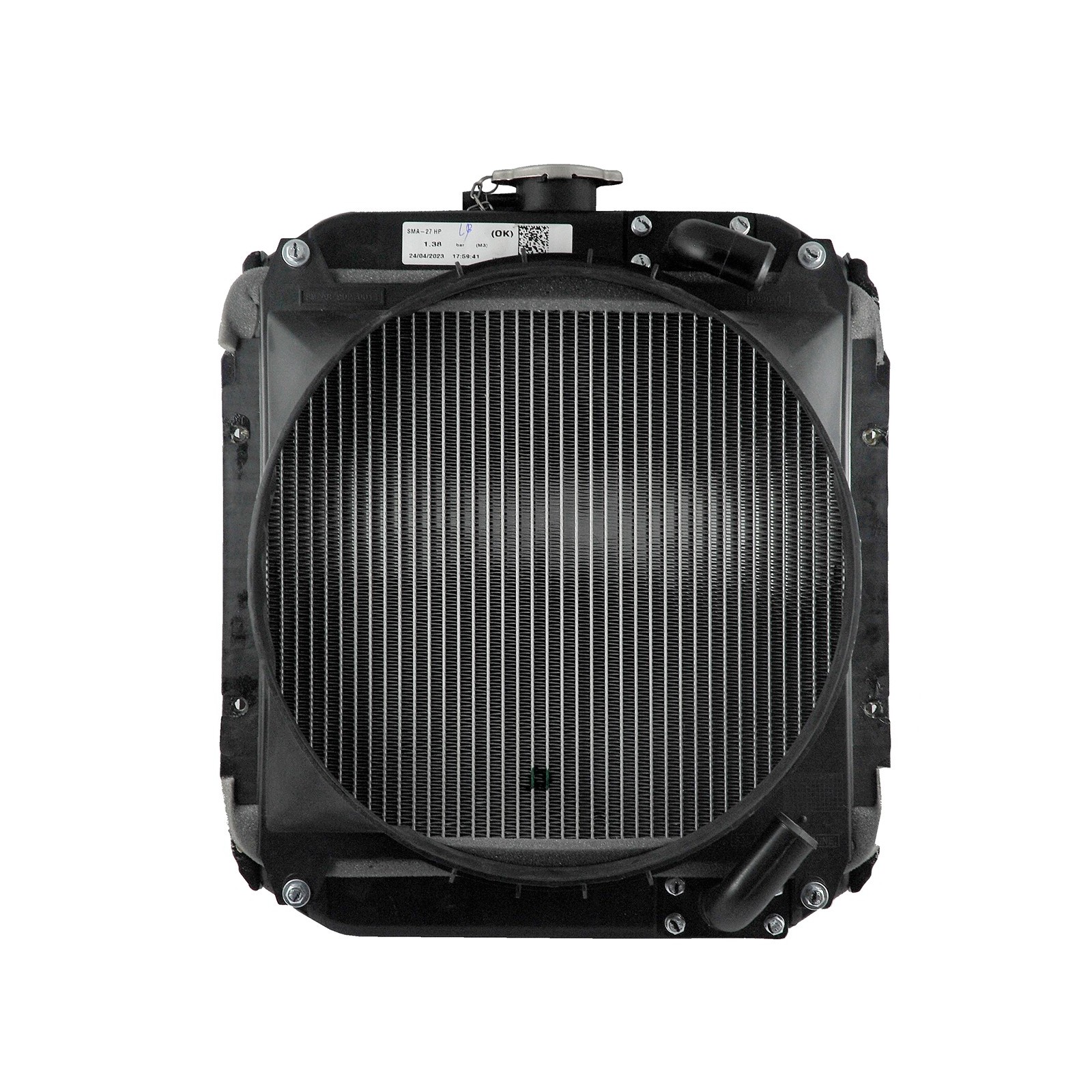

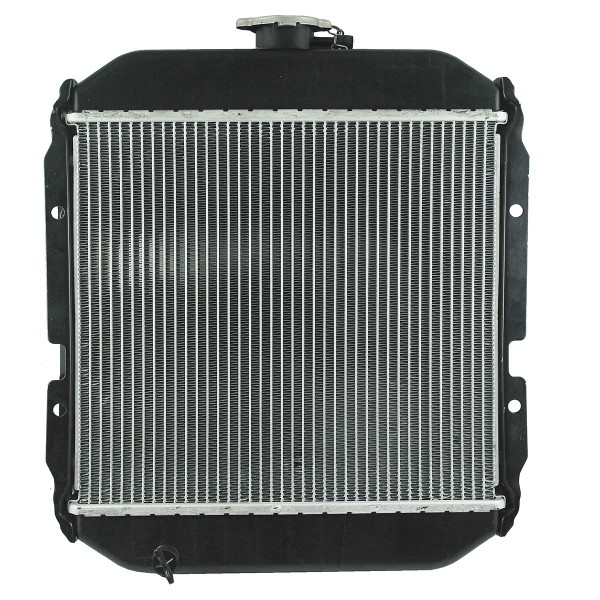

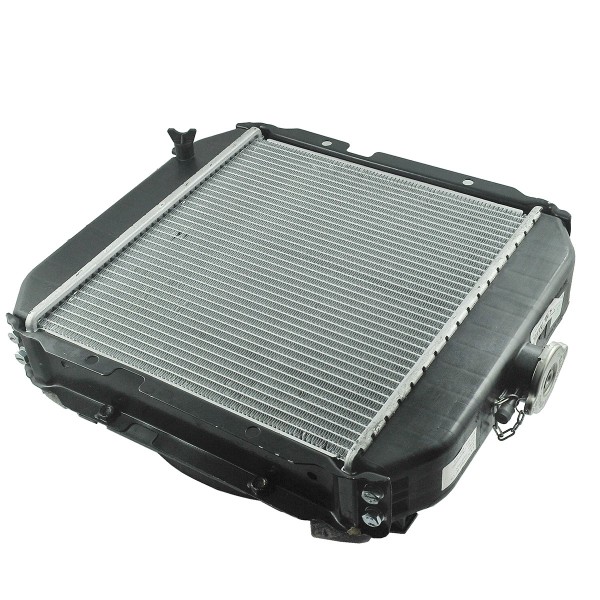

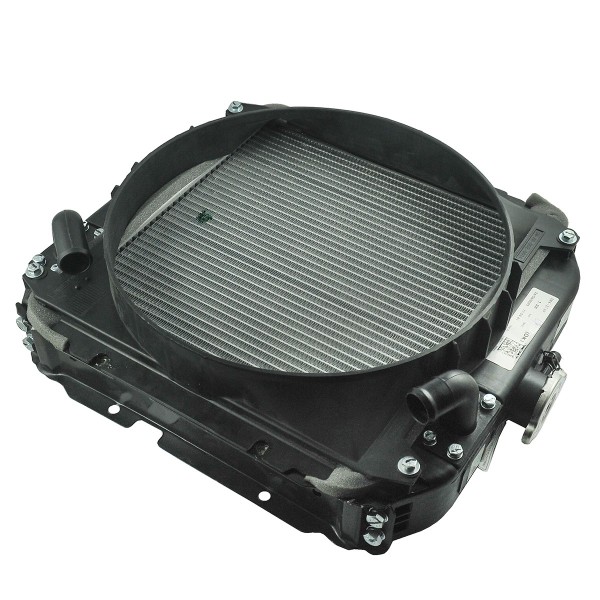

Radiator / VST Fieldtrac 927
Radiator 460 mm high, 390 mm wide and 120 mm thick for Japanese VST tractors VST 927 series and others.
The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.
Dimensions :
- height: 460 mm.
- width: 390 mm.
- length: 120mm,
- spacing of mounting screw holes: 370 x 165 mm,
- nozzle diameter: internal 22 mm, external 27 mm,
- part numbers: JTK03A00060A2.
The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.
Magazine : M01:E42
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:E42
Condition
New
Production
OEM
Parts
Cooling system
Tractor models
VST Fieldtrac 927
Length (mm)
120
Width (mm)
390
Connection diameter (a) (mm)
22
27
27
Bolt hole spacing (mm)
165
370
370
Total height (mm)
460
VST Tillers Tractors is the number 1 company producing mini tractors and small tractors for the horticultural and agricultural industries in India. The company was established in 1911 and at the beginning of its activity it dealt with petroleum products and car sales.
In 1967, near the city of Bangalore, VST Tillers began production, producing small engines and small agricultural equipment, and in 1984, in cooperation with the Japanese company Mitsubishi Agricultural Machinery, it produced the first mini tractor. For over 50 years, VST Tillers tractors has been improving its products and introducing new agricultural solutions to meet the expectations of customers around the world.
VST is present in over 20 countries and is increasingly chosen as a manufacturer of machines in the compact tractor sector. At the beginning of their activity, VST Tillers products could be found under the trade name VST Mitsubishi, but for over a decade, VST products have had their own trade brands, including VST Shakti, Fieldtrac, VST Euro, and despite the passage of time and the company's global reach, VST mini tractors are still powered by their own engines. , which were built in cooperation with Mitsubishi (Mitsubishi Agricultural Machinery).
Thanks to the growing reputation and high quality of equipment production , VST Tilllers machines have successfully entered the Asian, European and American markets.
