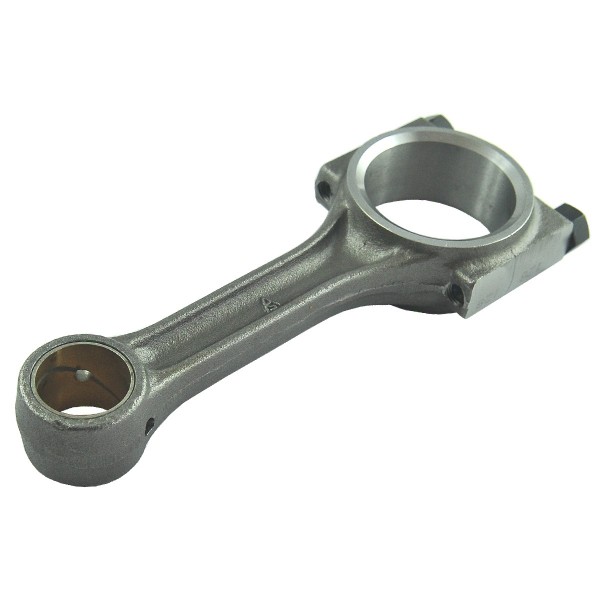

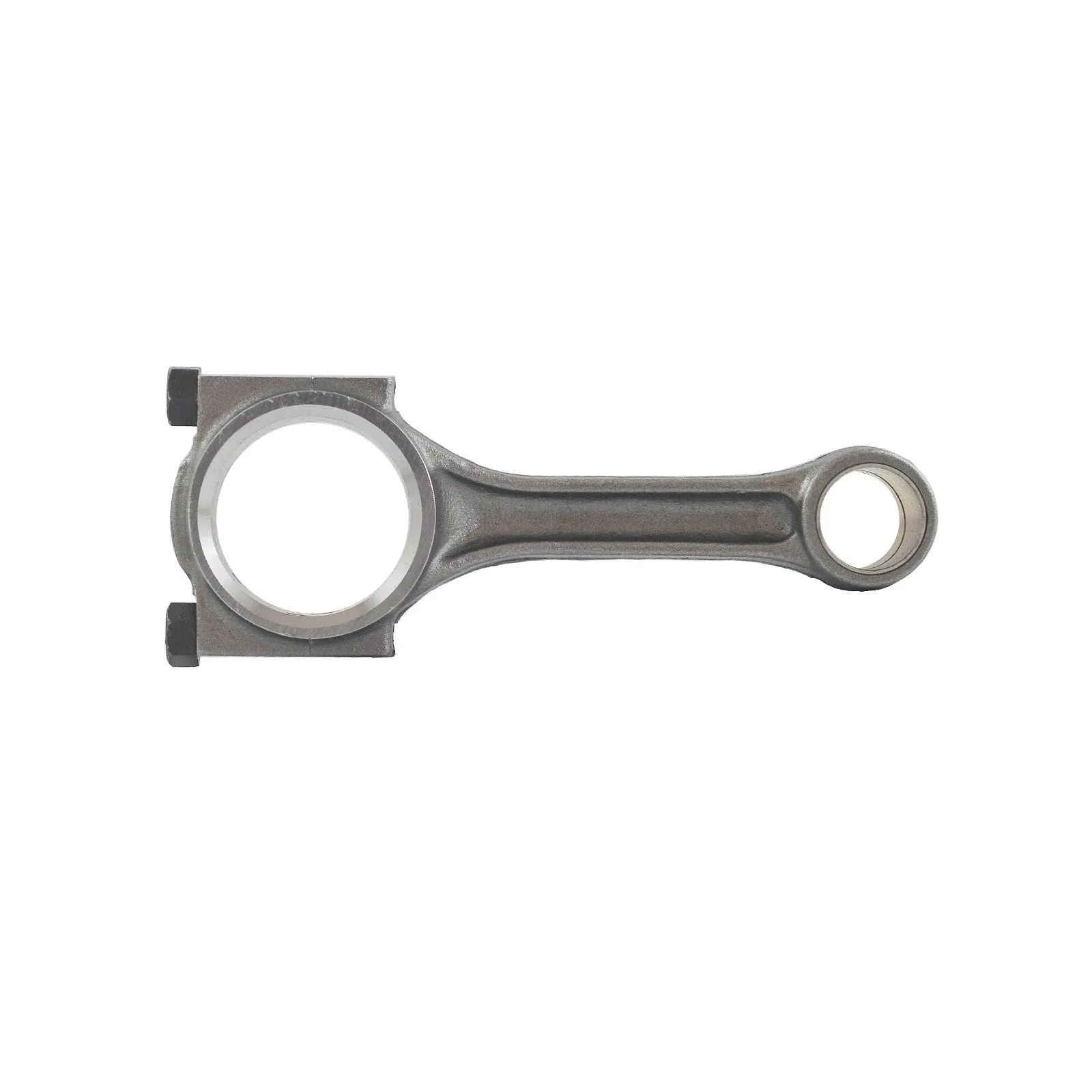

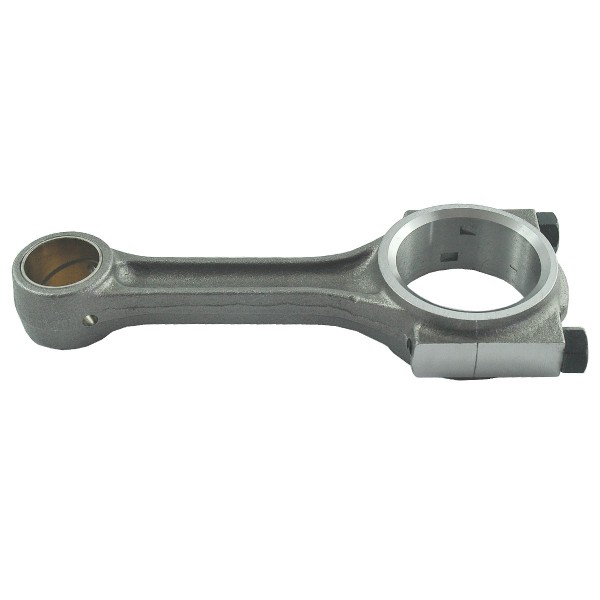

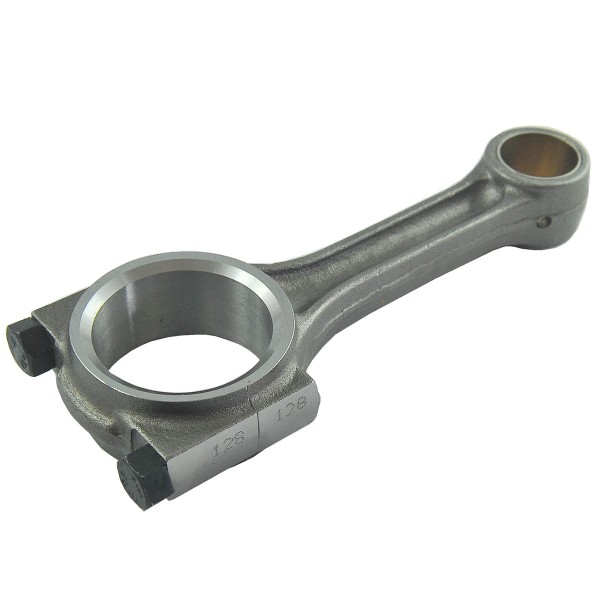

Connecting rod / 260 mm / Yanmar 2T84 / 2T90 / 2TR16 / 2TR17 / 2TR20 / 3T84 / 3T90 / 729322-23100

Connecting rod with a total length of 260 mm for Yanmar tractors of the Yanmar YM195, Yanmar YM240, Yanmar YM330, Yanmar YM336, Yanmar YM1600, Yanmar YM1700, Yanmar YM1900, Yanmar YM2000, Yanmar YM2210, Yanmar YM2210B, Yanmar YM2620, Yanmar YM2820, Yanmar YM3000, Yanmar YM3110, Yanmar YM3220, Yanmar YM3810, Yanmar YM4220, Yanmar YM4300 series with Yanmar 2T84, Yanmar 2T90, Yanmar 2TR16, Yanmar 2TR17, Yanmar 2TR20 engines, Yanmar 3T84, Yanmar 3T90 and others.

A connecting rod is a moving part of the engine responsible for the movement of the pistons. A connecting rod connects the moving elements of the engine, i.e. the crankshaft and the pistons. A connecting rod consists of three parts: the head (the place of connection with the piston), the foot (mounting on the crankshaft) and the shaft.

Dimensions :

• total length: 260 mm,
• width: 83 mm,
• height: 34 mm,
• diameter of holes: 30 / 57 mm,
• original part numbers: 729322-23100,
• part numbers: .

Tractor models :

Yanmar :

• Yanmar YM195,
• Yanmar YM240,
• Yanmar YM330,
• Yanmar YM336,
• Yanmar YM1600,
• Yanmar YM1700,
• Yanmar YM1900,
• Yanmar YM2000,
• Yanmar YM2210,
• Yanmar YM2210B,
• Yanmar YM2620,
• Yanmar YM2820,
• Yanmar YM3000,
• Yanmar YM3110,
• Yanmar YM3220,
• Yanmar YM3810,
• Yanmar YM4220,
• Yanmar YM4300.

Engine model :

Yanmar :

• Yanmar 2T84,
• Yanmar 2T90,
• Yanmar 2TR16,
• Yanmar 2TR17,
• Yanmar 2TR20,
• Yanmar 3T84,
• Yanmar 3T90.

Warehouse :
K18:A13:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
