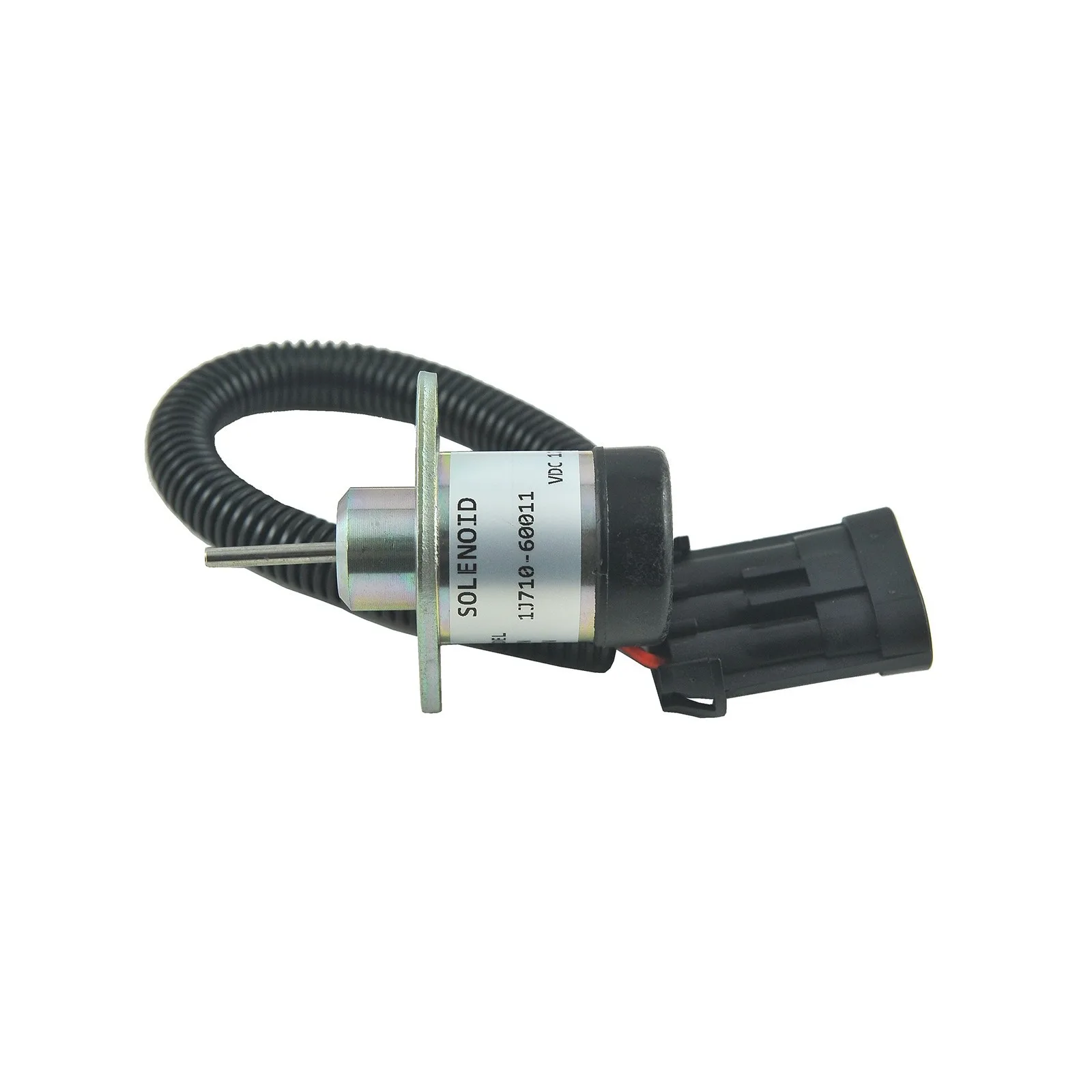

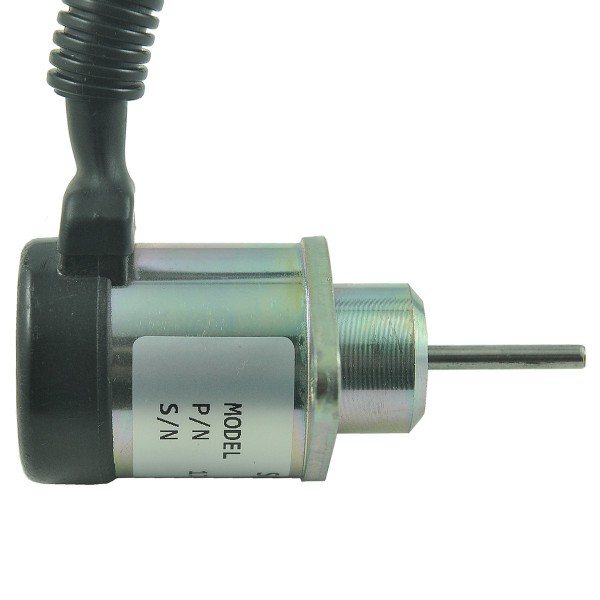

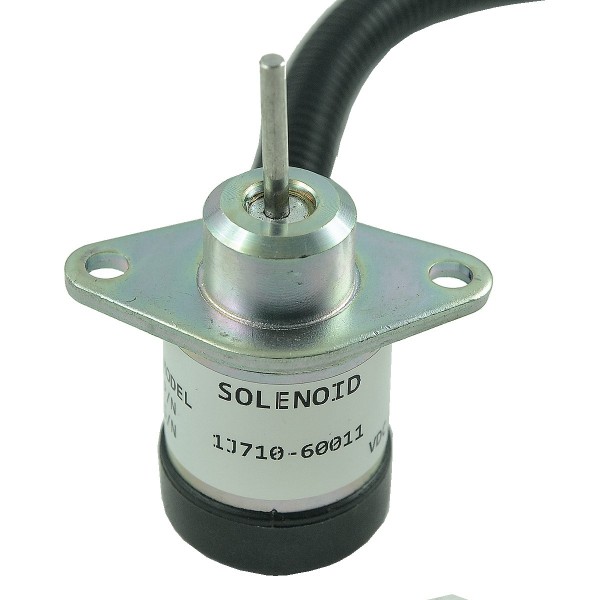

Extinguisher coil / 12V / Kubota B1700 / B2100 / B2400 / Kubota V1505 / V2607 / V3800

Selenoid extinguishing coil with a diameter of 34 mm and a total length of 64 mm (measured from the rod) for Bobcat tractors and machines of the Bobcat brand series Bobcat 863, Bobcat 864, Bobcat 873, Bobcat 883, Bobcat A220, Bobcat A300, Bobcat S160, Bobcat S220, Bobcat S250, Bobcat S300, Bobcat S750, Bobcat S770, Bobcat S850, Bobcat T250, Bobcat T300, Bobcat T320, Bobcat T750, Bobcat T770, Bobcat T780 , Kubota brands Kubota B1700, Kubota B2100, Kubota B2400 with Kubota V1505, Kubota V2607, Kubota V3800 engines and others.

The extinguishing coil , solenoid valve , or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The extinguishing coil's task is to turn off the engine. The extinguishing choke is an electrical device operating at a voltage of 12V and often in oil immersion.

Dimensions :

• voltage: 12V,
• diameter: 30 mm,
• total length (without rod): 58 mm,
• rod length: 19 mm,

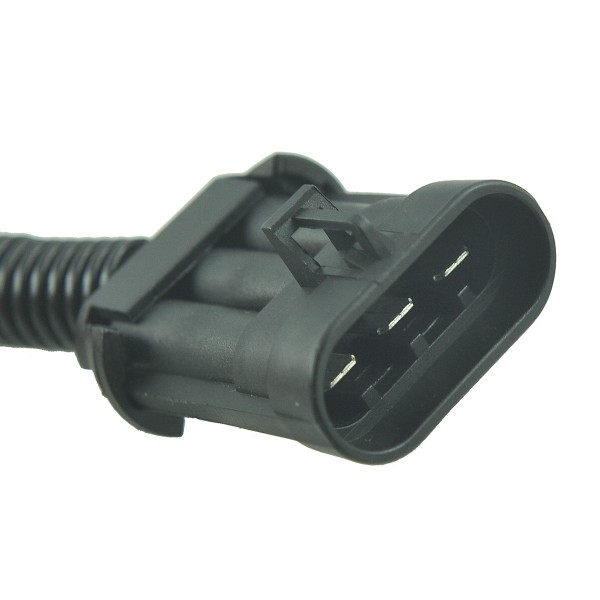

• number of pins: 3 pcs.
• cable length: 250 mm,
• spacing of mounting screw holes: 55 mm,
• original part numbers: 6686715, 04272956, 0427-2956,
• reference numbers: 6689034, 1503ES12A-5UC9S, ELL70-0064, 1G577-60011,
• part numbers: 1J710-60011.

Tractor models :

Kubota :

• Kubota B1700,
• Kubota B2100,
• Kubota B2400.

Machine models :

Bobcat :

• Bobcat 863,
• Bobcat 864,
• Bobcat 873,
• Bobcat 883,
• Bobcat A220,
• Bobcat A300,
• Bobcat S160,
• Bobcat S220,
• Bobcat S250,
• Bobcat S300,
• Bobcat S750,
• Bobcat S770,
• Bobcat S850,
• Bobcat T250,
• Bobcat T300,
• Bobcat T320,
• Bobcat T750,
• Bobcat T770,
• Bobcat T780.

Engine models :

Kubota :

• Kubota V1505,
• Kubota V2607,
• Kubota V3800.

The first signs of a failed extinguishing coil are problems with starting the engine, rough idling or jerking when starting off. Sometimes problems with the correct operation of the extinguishing coil are due to a weakly charged battery.

Magazine : M01:B74

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
