zł320.00
To order
Condition
New
Production
Substitute
Parts
Electrician
Engine model
Kubota D722
Kubota D902
Kubota Z482
Kubota D902
Kubota Z482
Voltage (V)
12V
Length (mm)
150
Diameter (mm)
46

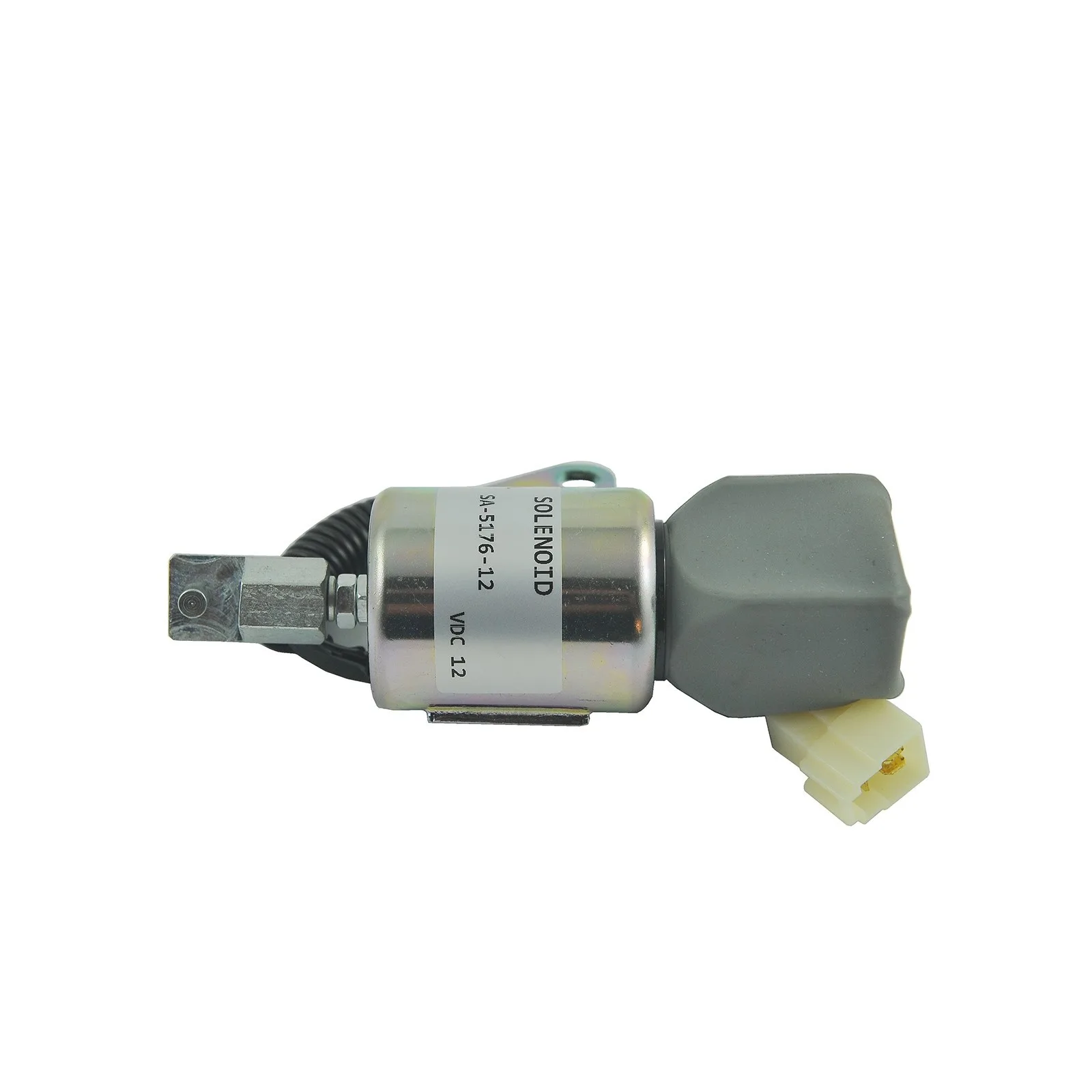

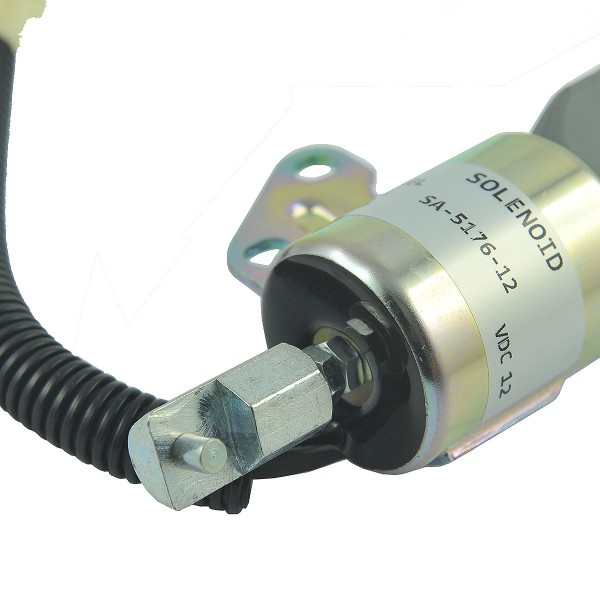

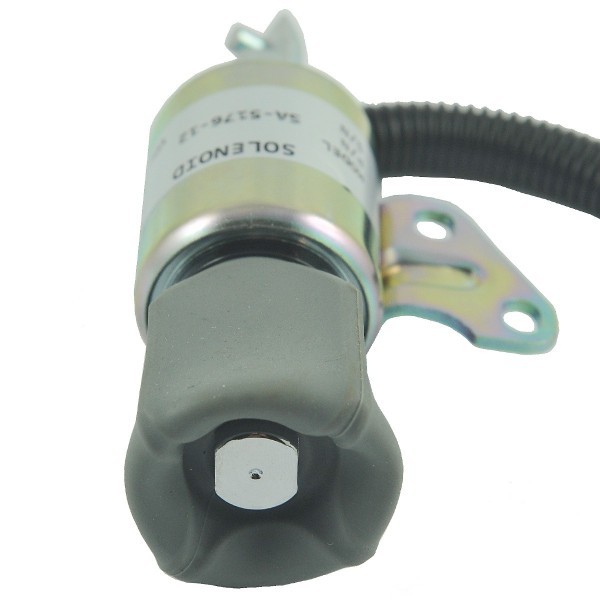

Engine shutdown coil / 12V / Kubota D722 / D902 / Z482 / SA-5176-12 / SA-4899-12
SA-5176-12/SA-4899-12
Do you have any questions?
Engine shutdown coil / 12V / Kubota D722 / D902 / Z482 / SA-5176-12 / SA-4899-12
12V Selenoid extinguishing coil with a diameter of 46 mm and a total length of 150 mm for Kubota tractors of the Kubota D722, Kubota D902, Kubota Z482 series and others.
The extinguishing coil , solenoid valve , or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The extinguishing coil's task is to turn off the engine. The extinguishing choke is an electrical device operating at a voltage of 12V and often in oil immersion.
Dimensions :
- total length: 150 mm,
- diameter: 46 mm,
- voltage:12V,

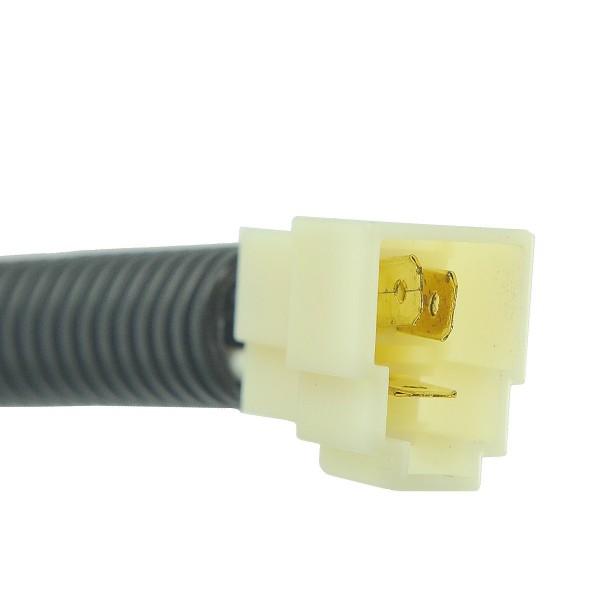

- number of pins: 3 pcs.
- cable length: 150 mm,
- spacing of mounting screw holes: 30 mm,
- reference numbers: 1756ES-12SULB1S5, 1756ES
- part numbers: SA-5176-12, SA-4899-12.
Engine models :
Kubota :
- Kubota D722,
- Kubota D902,
- Kubota Z482.
The first signs of a failed extinguishing coil are problems with starting the engine, rough idling or jerking when starting off. Sometimes problems with the correct operation of the extinguishing coil are due to a weakly charged battery.
Magazine : M01:B74
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:B74
Condition
New
Production
Substitute
Parts
Electrician
Engine model
Kubota D722
Kubota D902
Kubota Z482
Kubota D902
Kubota Z482
Voltage (V)
12V
Length (mm)
150
Diameter (mm)
46
Wire length(s) (mm)
150
Bolt hole spacing (mm)
30
Number of pins (pcs.)
3
Comparison numbers
1756ES
1756ES-12SULB1S5
1756ES-12SULB1S5
Part number
SA-4899-12
SA-5176-12
SA-5176-12
