Extinguisher coil / 24V / Yanmar 3TNV / 3TNE88 / 4TNV / Selenoid / 1503ES-24S5SCU12S / 119233-77932

Product code: 1503ES-24S5SCU12S / 119653-77950
Brand 4FARMER
Country of production 4FARMER
View other model
zł299.00
Includes VAT 23%

Lowest price from 30 days: zł299.00

Product description

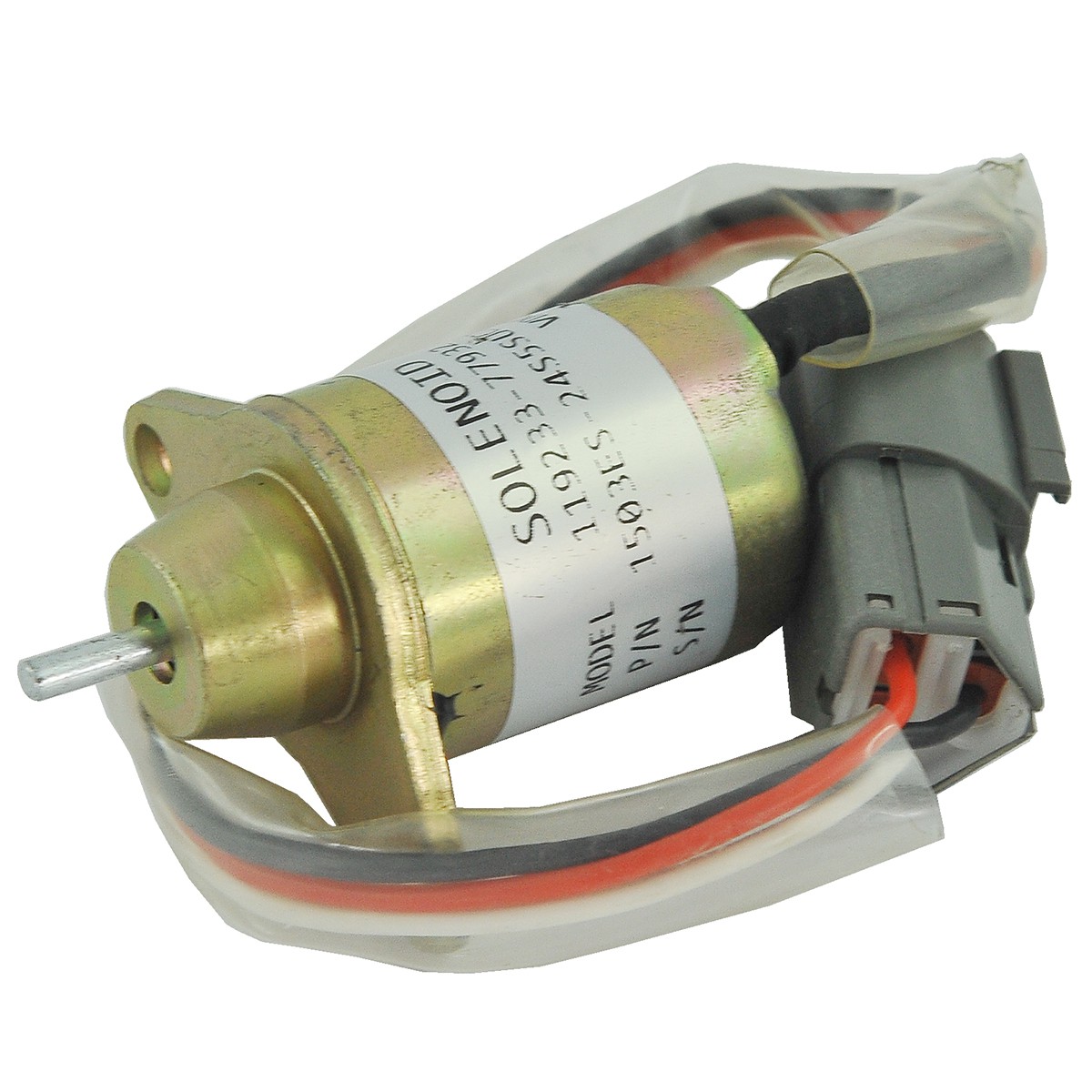

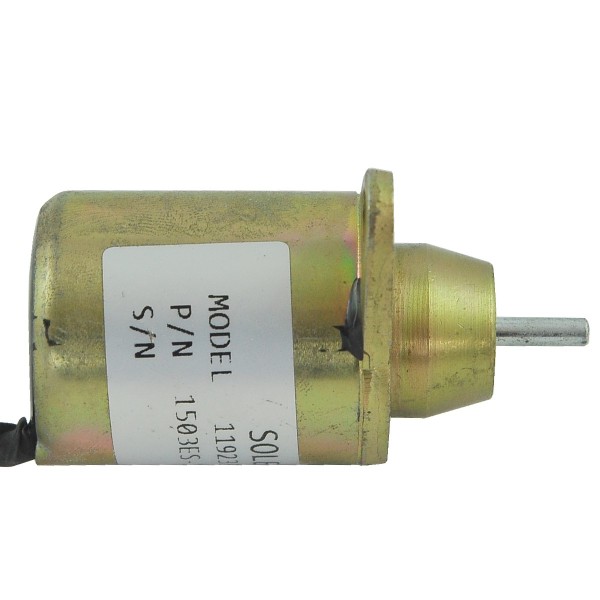

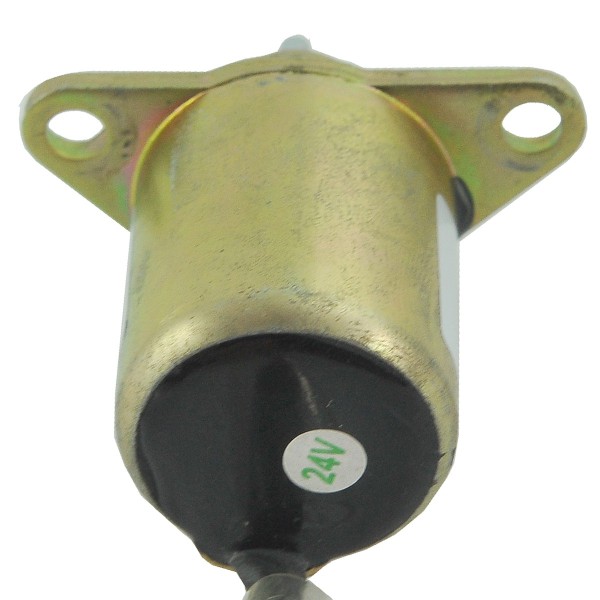

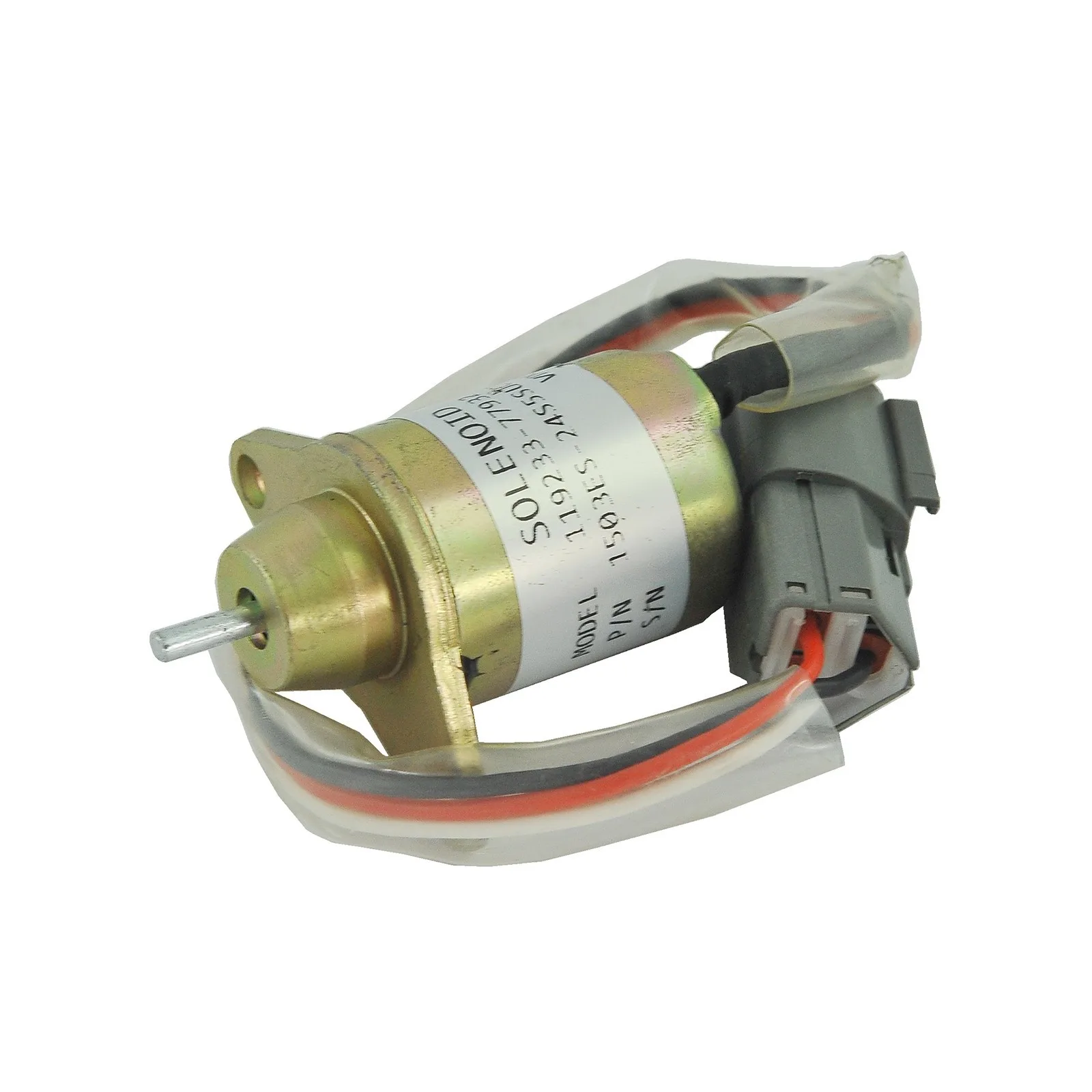

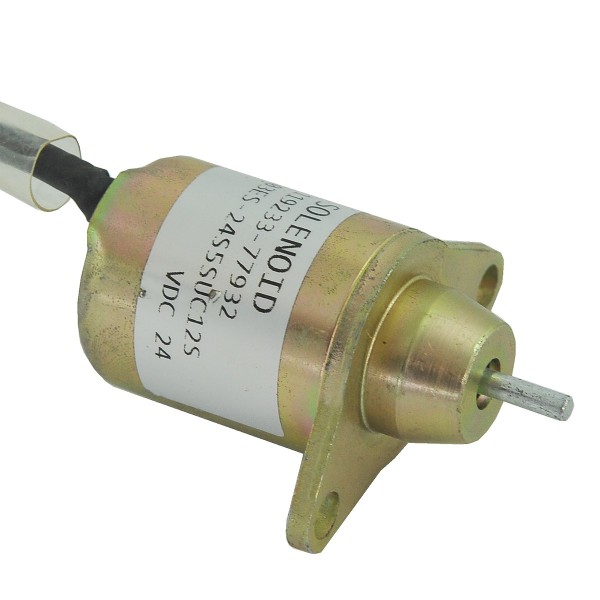

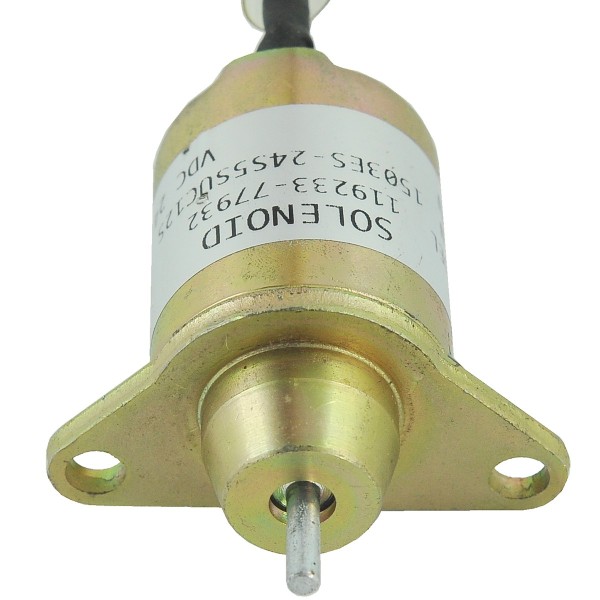

Selenoid 24V extinguishing coil with a diameter of 38 mm and a total length of 64 mm for Yanmar, John Deere tractors with Yanmar 3TNV, Yanmar 3TNE, Yanmar 4TNV and other engines.

The extinguishing coil , solenoid valve , or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The extinguishing coil's task is to turn off the engine. The extinguishing choke is an electrical device operating at 24 V and often in oil immersion.

Dimensions :

  • voltage: 24V,
  • diameter: 38 mm,
  • total length (without rod): 64 mm,
  • rod length: 13 mm,

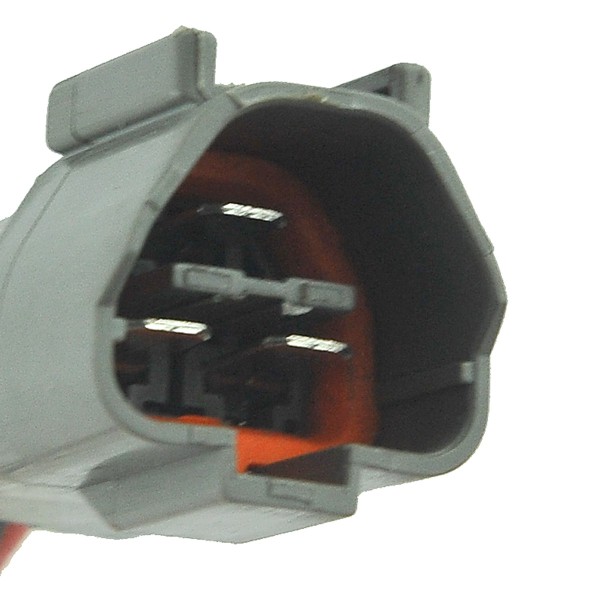

  • number of pins: 3 pcs.
  • spacing of mounting screw holes: 53 mm,
  • cable length: 260 mm,
  • original part numbers: 119653-77950,
  • part number: 1503ES-24S5SCU12S.

Engine models :

  • Yanmar 3TNV,
  • Yanmar 3TNE88,
  • Yanmar 4TNV.

The first signs of a failed extinguishing coil are problems with starting the engine, rough idling or jerking when starting off. Sometimes problems with the correct operation of the extinguishing coil are due to a weakly charged battery.

Magazine : M01:C74 S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
53
Post length (mm)
13
Engine model
Yanmar 3TNE88
