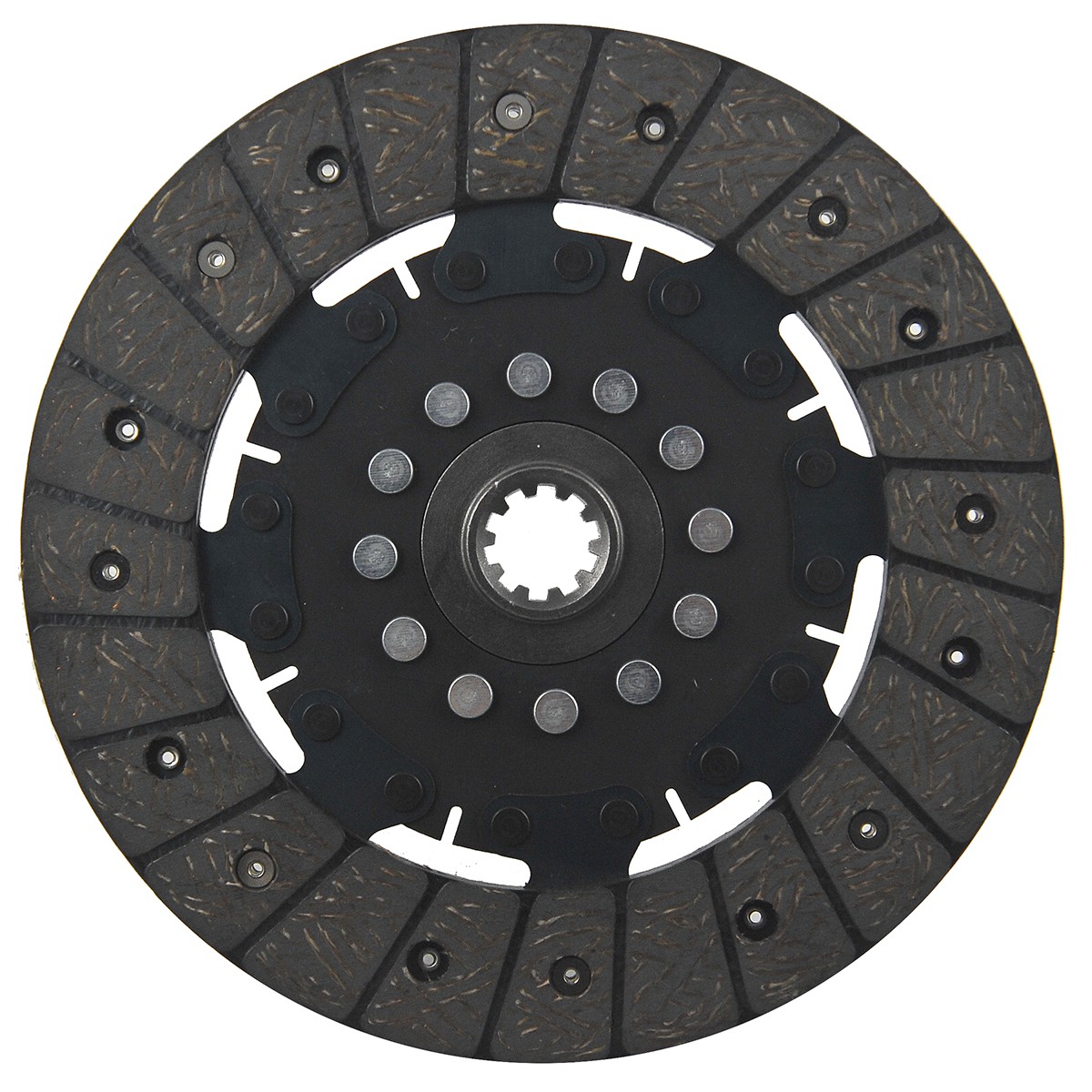

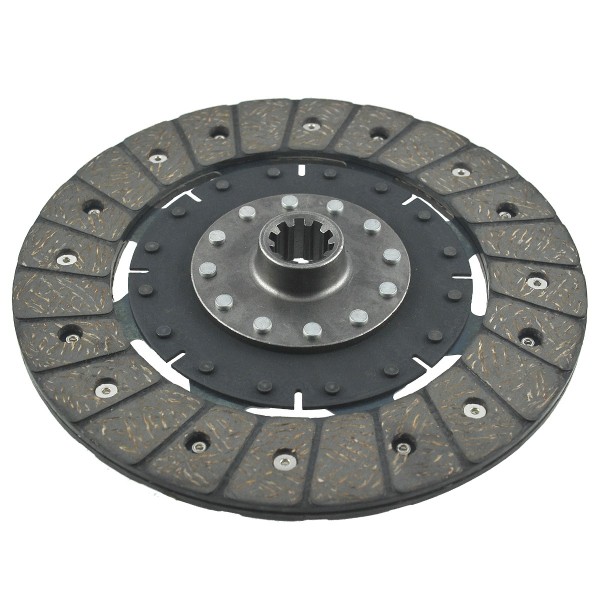

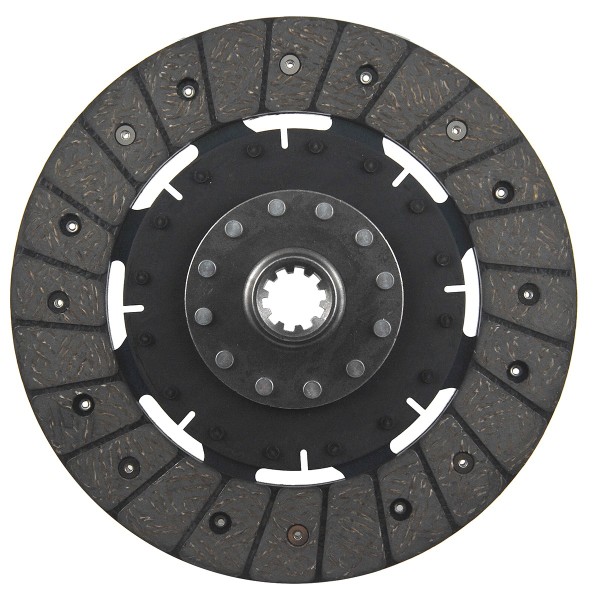

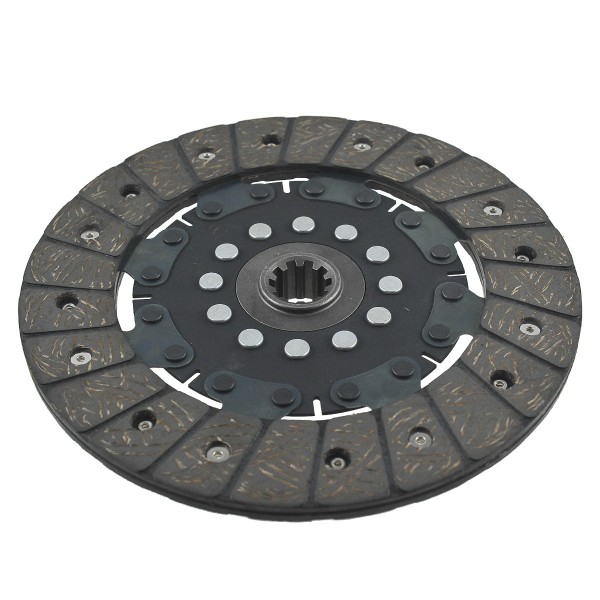

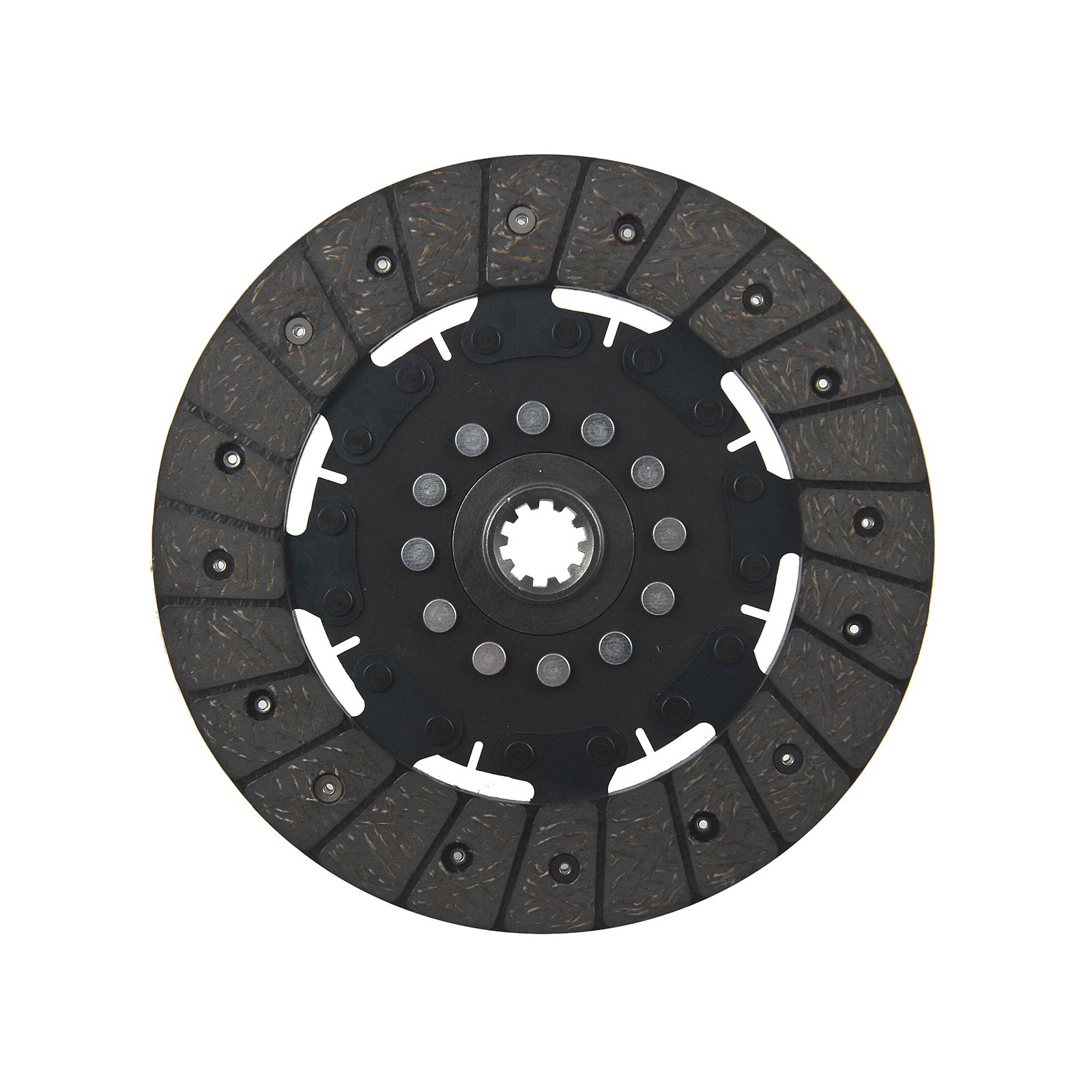

Clutch Disc / 10T / 212 mm / Shibaura SD1603 / SD1643 / SD1803 / SD1840 / SD1843 / SD2003 / SD2043 / CDSType3

Clutch disc (pressure %C5% 82a-shibaura-s325sd1643sd1840sd1843sd2043sd2200sd2243sd2443sd2643sd2843se2540.html">SSDTYPES3 ) with a diameter of 212 mm , internal diameter measured between teeth 23.80 mm and 19.50 mm measured with spline teeth for Shibaura tractors of the Shibaura SD1603, Shibaura SD1643, Shibaura SD1803, Shibaura SD1840, Shibaura SD1843, Shibaura SD2003, Shibaura SD2043, Shibaura SD2200, Shibaura SD2203, Shibaura SD2243 series, Shibaura SD2403, Shibaura SD2443, Shibaura SD2603, Shibaura SD2643, Shibaura SD2803, Shibaura SD2843, Shibaura SE2540 others.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 212 mm,
• Inner diameter: 23.80 mm (measured between teeth), 19.50 (measured with cutter),
• Thickness: 9 mm,
• Hub height: 25 mm,
• Number of teeth: 10T,
• Part numbers: CDSType3.

Tractor models :

• Shibaura SD1603,
• Shibaura SD1643,
• Shibaura SD1803,
• Shibaura SD1840,
• Shibaura SD1843,
• Shibaura SD2003,
• Shibaura SD2043,
• Shibaura SD2200,
• Shibaura SD2203,
• Shibaura SD2243,
• Shibaura SD2403,
• Shibaura SD2443,
• Shibaura SD2603,
• Shibaura SD2643,
• Shibaura SD2803,
• Shibaura SD2843,
• Shibaura SE2540.

The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.

Magazine: K18:A27

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
