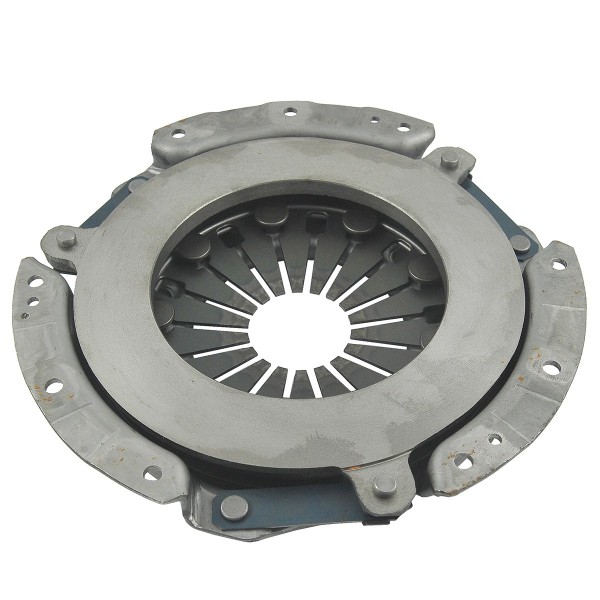

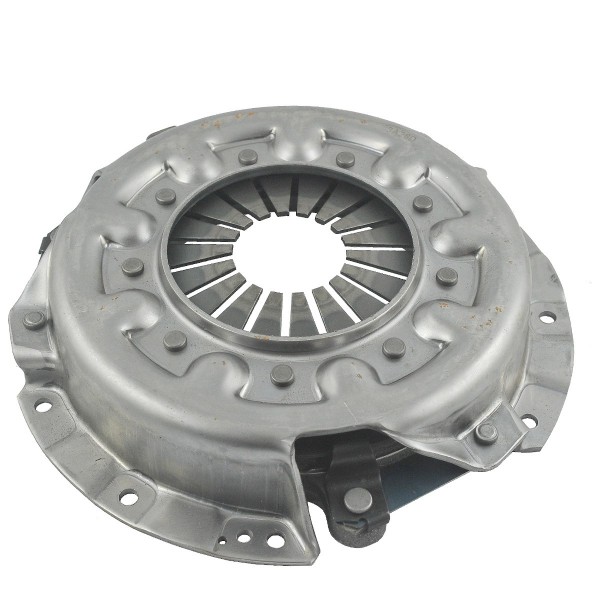

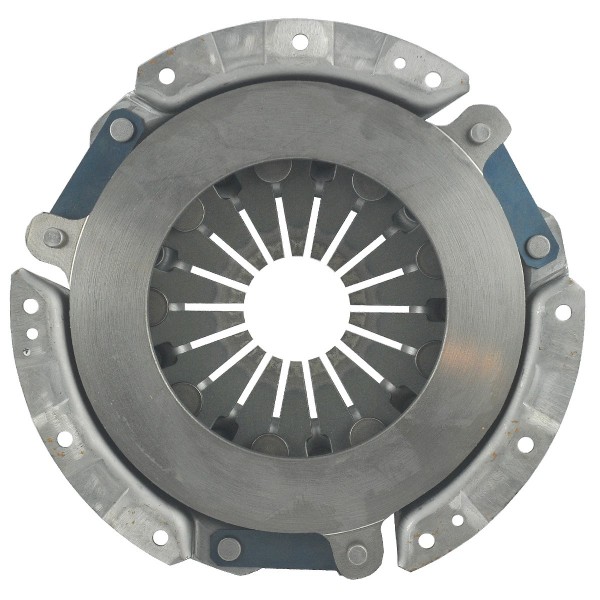

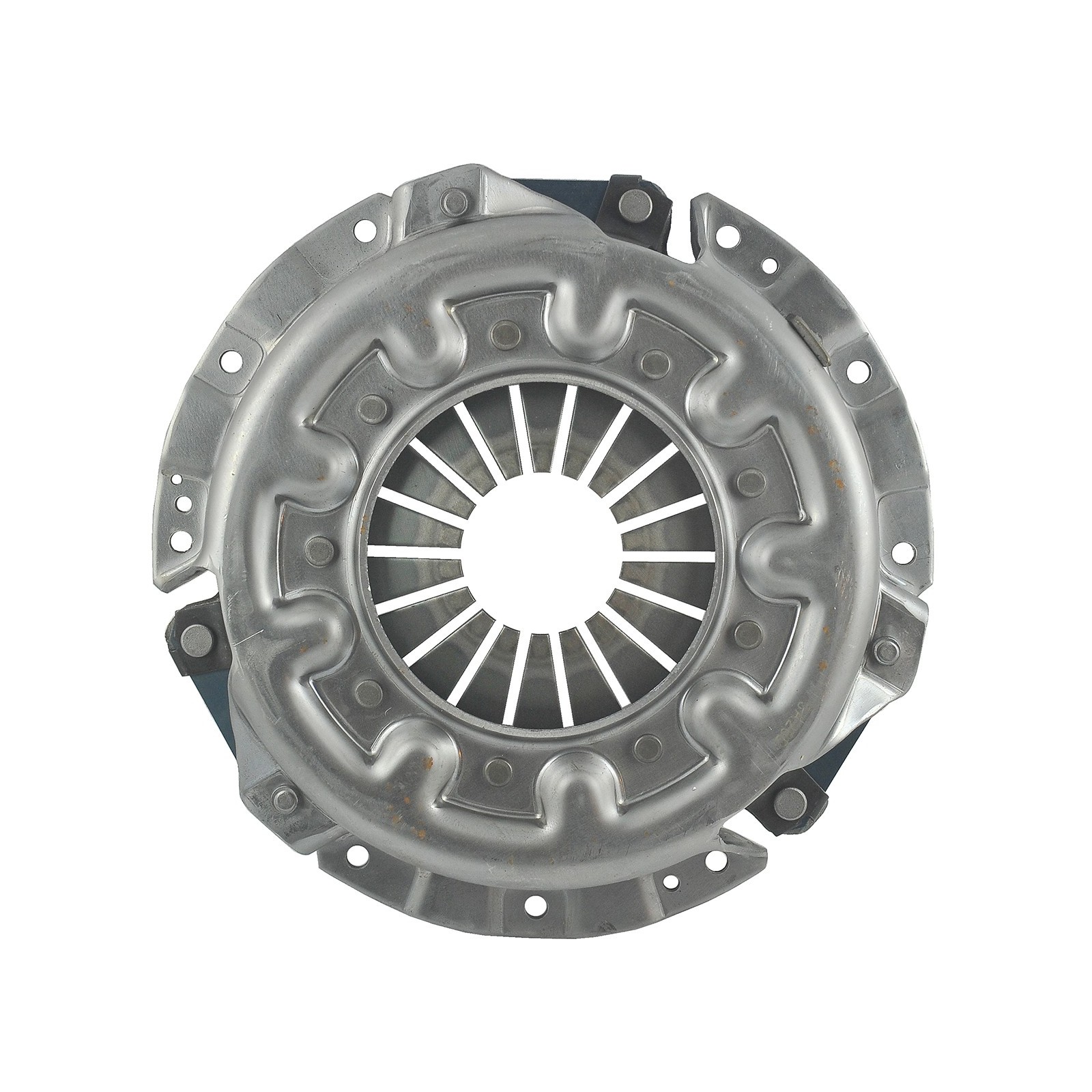

Clutch Pressure Plate / 9-1/2" / Kubota L2900 / L3300 / L3430 / L4100 / L4240 / L4300 / L4400 / L4508 / L4708 / L5018

Clutch disc pressure plate (disc 6-05-100-03 , bearing 6-23-114-02 ) with a housing diameter of 300 mm for Kubota tractors of the Kubota L2900, Kubota L3300, Kubota L3430, Kubota L4100, Kubota L4240, Kubota L4300, Kubota L4400, Kubota L4508, Kubota L4708, Kubota L5018, Kubota L5740 series and others.

The clutch pressure plate is the element connecting the gearbox to the engine and is therefore responsible for transferring torque from the engine, through the gearbox to the tractor's running gear. To simplify this entire complicated process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing the driving speed ratios. The clutch pressure plate consists of a housing, compression springs, and a disc, and its main task is to exert the appropriate friction force on the clutch disc, a force sufficient to prevent these two elements (pressure plate and disc) from rotating at different speeds.

Dimensions :

• housing diameter: 300 mm.
• pressure plate diameter: 156 / 238 mm.
• mounting screw hole spacing: 278 mm (measured diagonally), 140 mm (measured apart),
• original part numbers: TA020-20600, TC403-20600,
• comparison numbers: 6-26-102-04 ,
• part numbers: 3A26D.

Tractor models :

Kubota :

• Kubota L2900,
• Kubota L3300,
• Kubota L3430,
• Kubota L4100,
• Kubota L4240,
• Kubota L4300,
• Kubota L4400,
• Kubota L4508,
• Kubota L4708,
• Kubota L5018,
• Kubota L5740.

The first signs of a worn clutch are an unusual sound when pressing or releasing the clutch pedal, an unpleasant smell or grinding of the gearbox. When replacing the clutch, it is recommended to replace all the elements (disc, pressure plate, bearing) because these elements often wear out at the same time.
