Product description

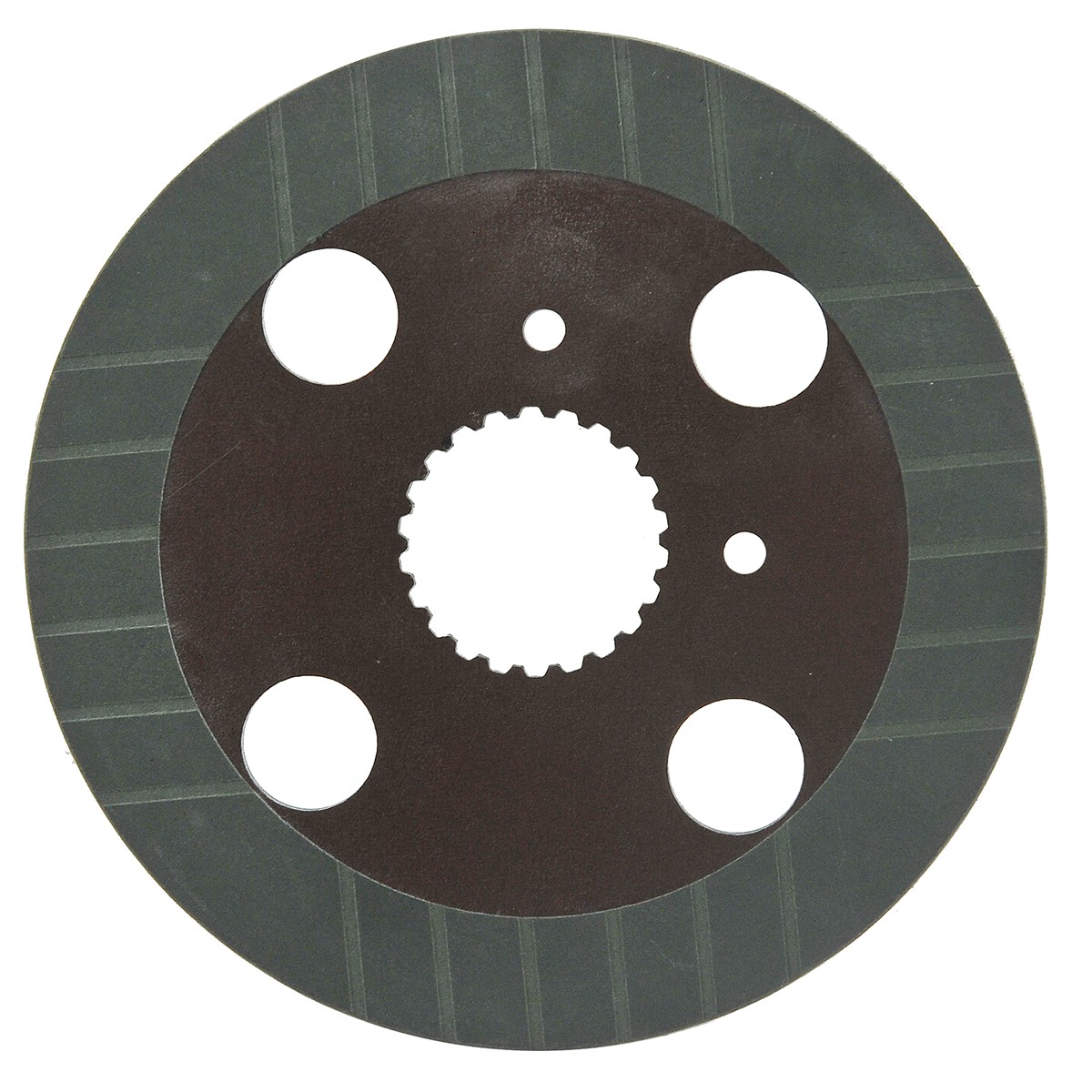

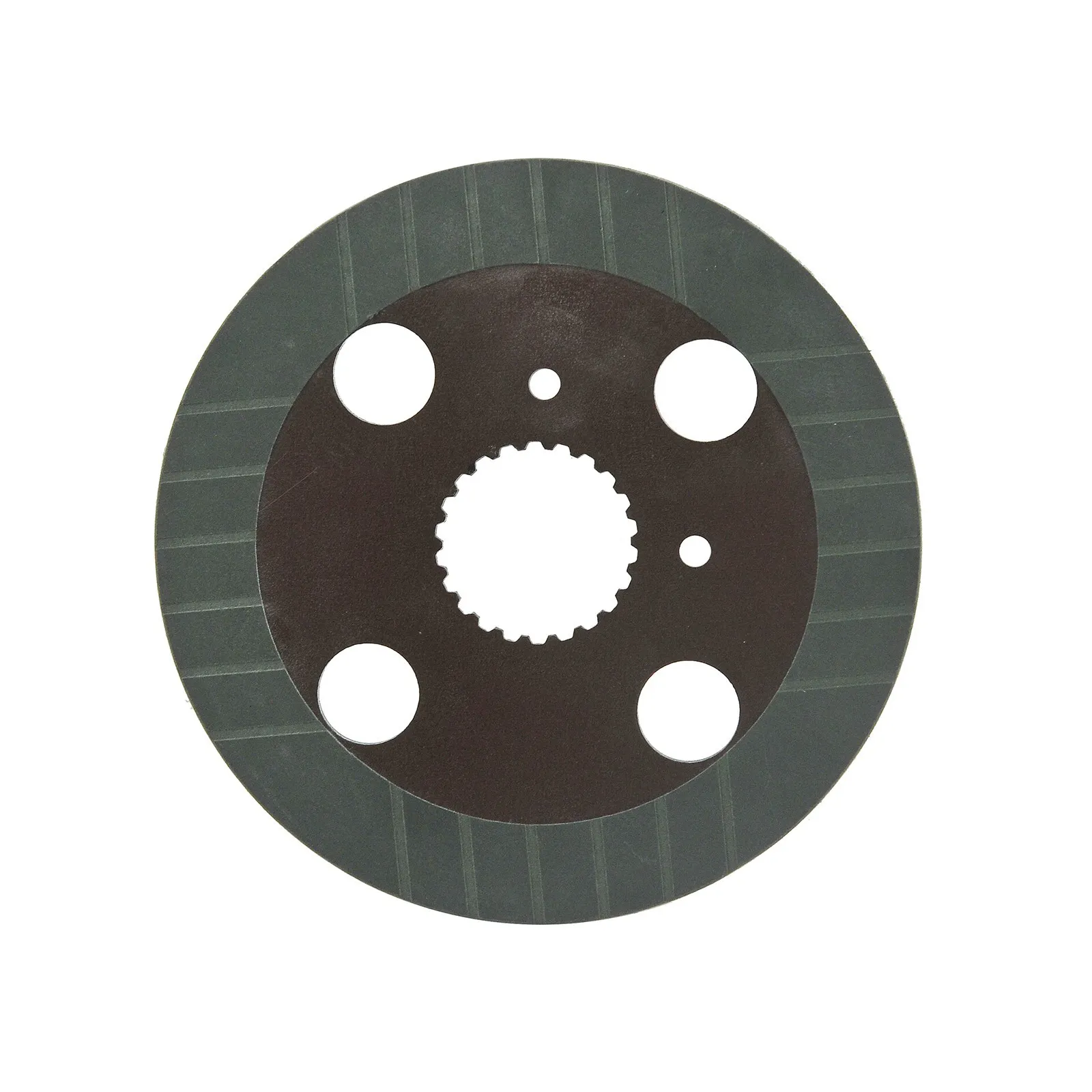

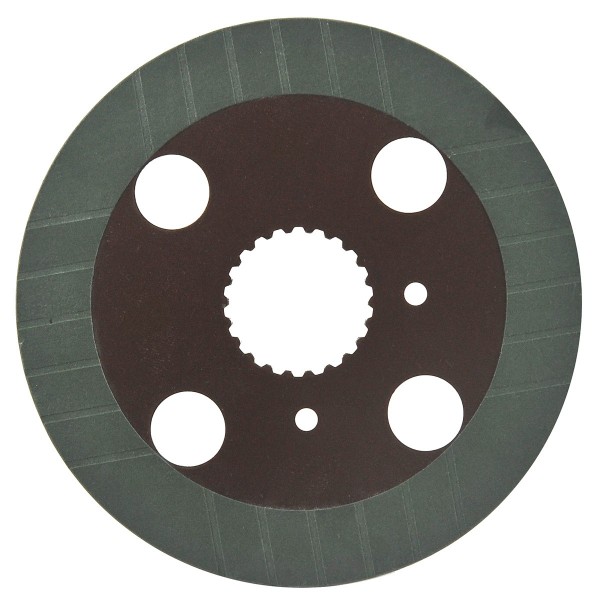

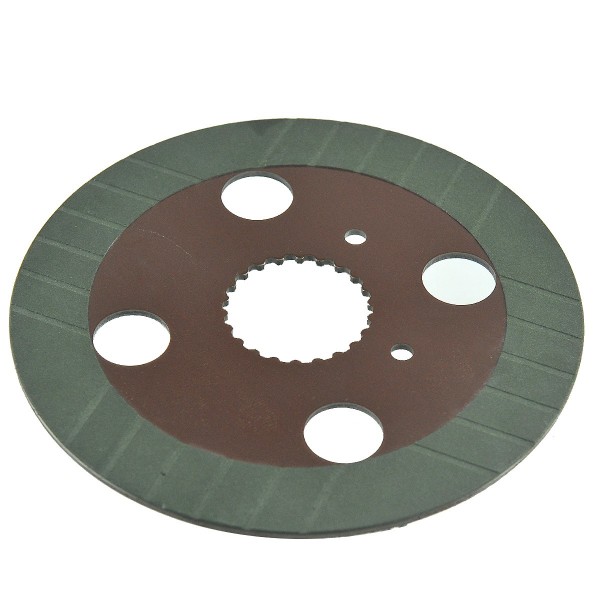

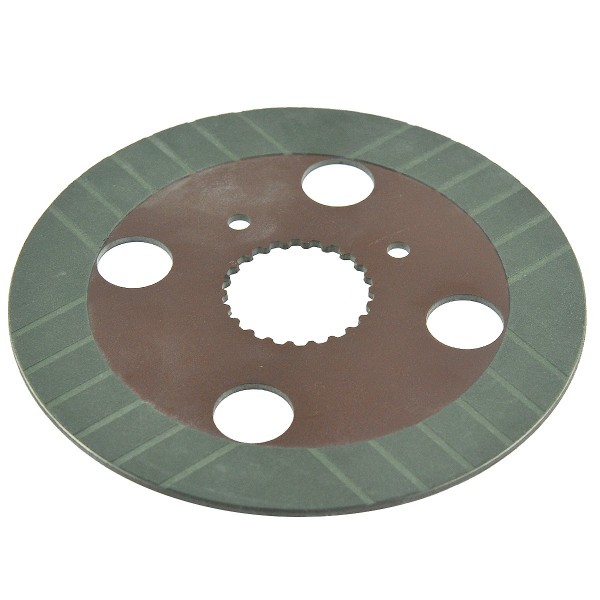

Brake disc 22T (brake shaft %C5% 9Bci-do-iseki/753-wa %C5% 82ek-17t10t22t-217-mm-iseki-tl1900tl1901tl2100tl2101tl2300tl2301tl2500tl2501tl2700tl2701-1444-323-0020-00.html">9-19-103-06 ) with an outer diameter of 152 mm and an inner diameter of 37 / 40 mm for Iseki tractors of the Iseki TL1900, Iseki TL2100, Iseki TL2300, Iseki TL2500, Iseki TL2700 series and Others. Brake discs are components of the braking system, most often made of cast iron, which is resistant to high temperatures and high friction. Agricultural tractor brake discs often have holes for better ventilation and the removal of gases generated during braking.
Dimensions :
- Outer diameter: 152 mm,
- Inner diameter: 40 mm (measured between cutter teeth), 37 mm (measured together with cutter),
- Thickness: 3.50 mm,
- Number of teeth: 22T,
- Part numbers: 9-91-100-02.
Tractor models :
- Iseki TL1900,
- Iseki TL2100,
- Iseki TL2300,
- Iseki TL2500,
- Iseki TL2700.
Magazine : K18:A18:S01
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Brake disc /..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
