zł45.00
To order
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Iseki TL1900
Iseki TL2700
Iseki TL2700
Number of teeth (pcs/T-teeth)
19T / 35T / 28T
Height (mm)
39.50
Inner Diameter (mm)
31

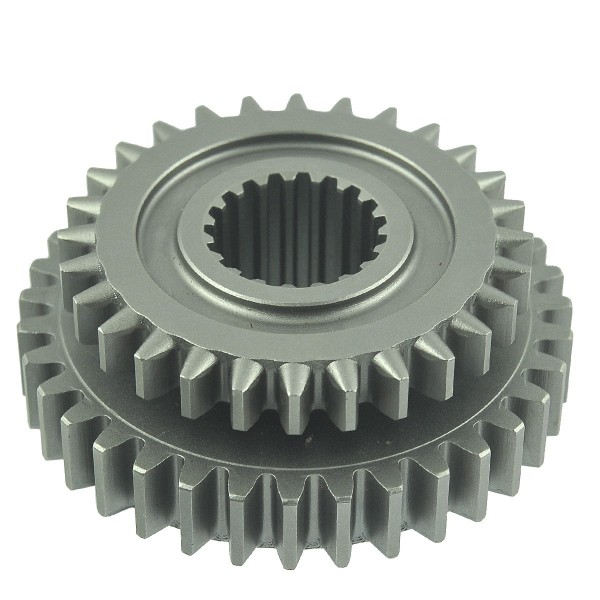

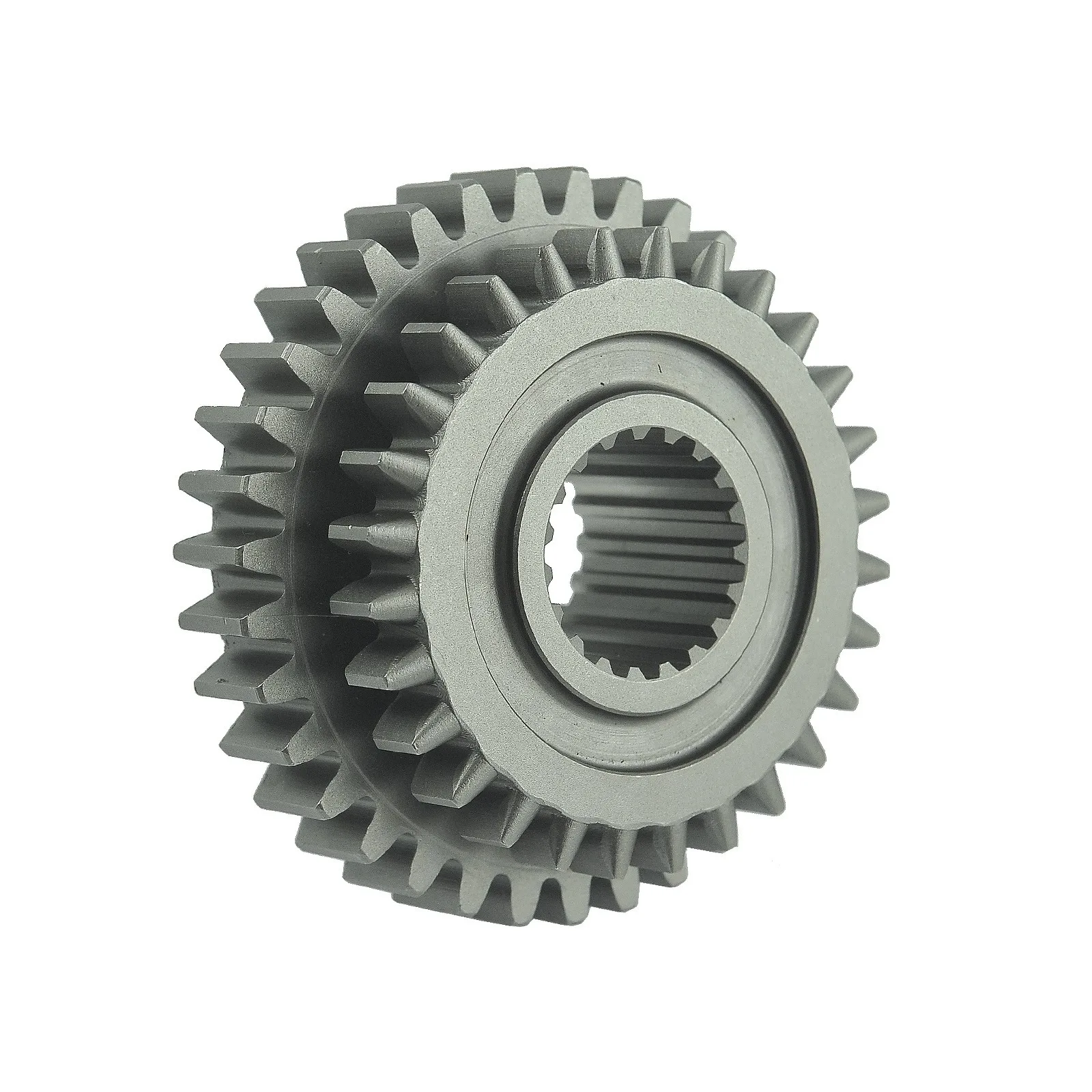

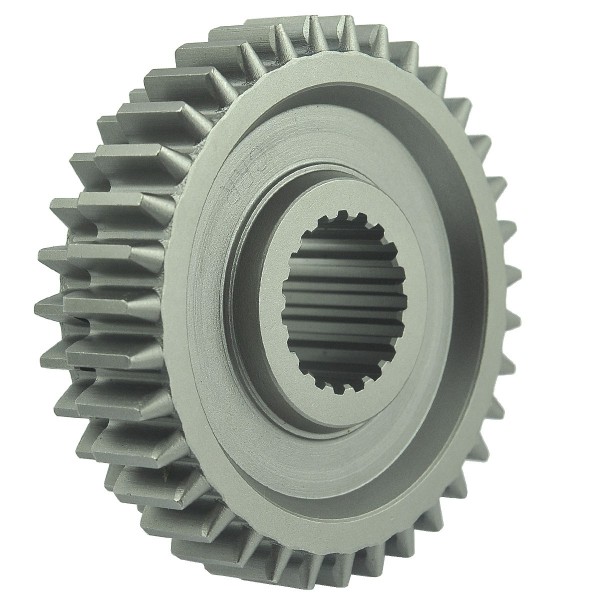

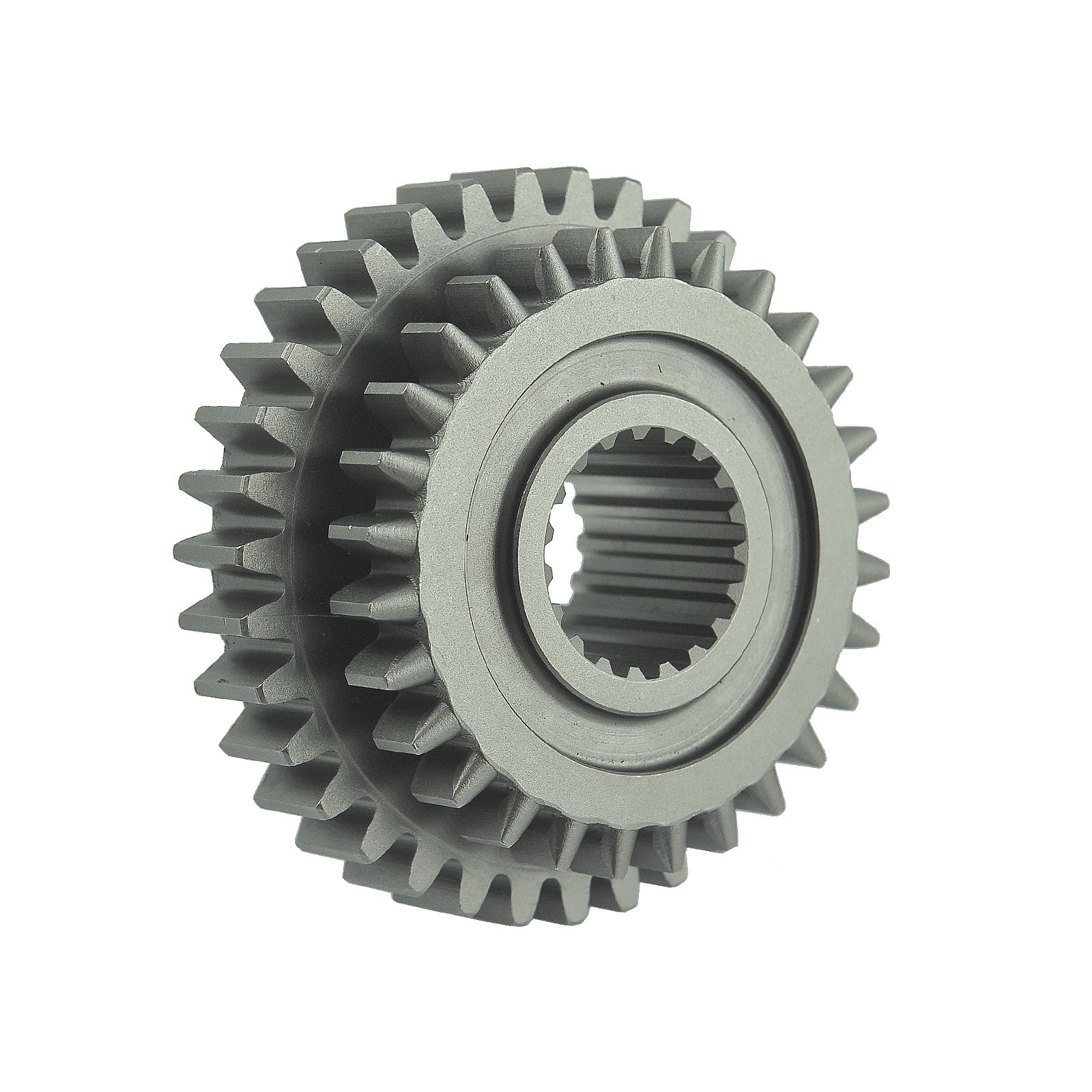

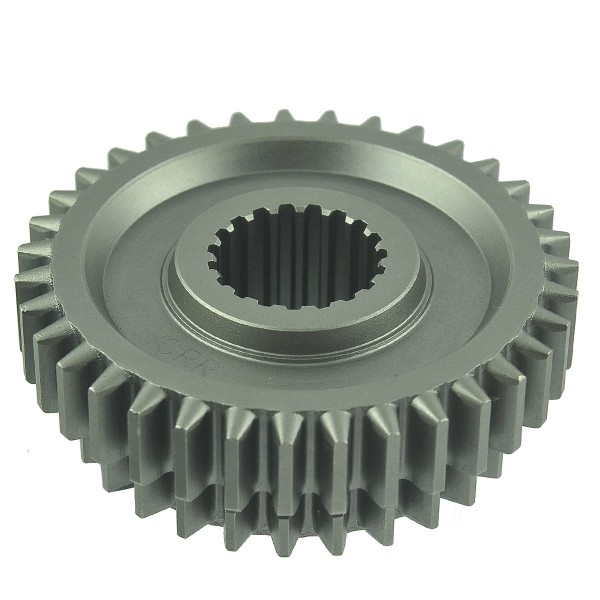

Sprocket / 19T/35T/28T / Iseki TL1900/TL2700 / 9-19-107-04
9-19-107-04
Do you have any questions?
Sprocket / 19T/35T/28T / Iseki TL1900/TL2700 / 9-19-107-04
19T / 35T / 28T second gear sprocket with an outer diameter of 90 / 108 mm , an inner diameter of 34.70 / 31 mm and a height of 39.50 mm for Iseki tractors of the Iseki TL1900, Iseki TL2700 and other series.
Dimensions :
- height: 39.50mm,
- rack diameter (35T). 108 mm (measured together with teeth), 94.50 mm (measured between cutter teeth),
- rack diameter (28T). 90 mm (measured together with the teeth), 76.50 mm (measured between the teeth of the cutter),
- internal diameter: 31 mm (measured together with the teeth), 34.50 mm (measured between the teeth of the cutter),
- number of teeth: 19T / 35T / 28T,
- part numbers: 9-19-107-04
Tractor models :
Iseki :
- Iseki TL1900,
- Iseki TL2700.
Warehouse :
M01:K72
Specification
Magazyn: M01:K72
Condition
New
Production
Substitute
Parts
Drive
Tractor models
Iseki TL1900
Iseki TL2700
Iseki TL2700
Number of teeth (pcs/T-teeth)
19T / 35T / 28T
Height (mm)
39.50
Inner Diameter (mm)
31
Rack diameter (mm)
76.50 / 90 (28T)
94.50/ 108 (35T)
94.50/ 108 (35T)
Part number
9-19-107-04
Iseki is the third largest manufacturer of agricultural machinery in Japan. It is characterized primarily by a continuous optimization process drawing energy from the combination of Japanese precision and German inventiveness. Since 1961, the company has been producing tractors, which quickly gained recognition not only in Japan. This is evidenced by the fact that ISEKI & Co., Ltd tractors have been and are sold all over the world under various names, including: AGCO, Bolens, Massey Ferguson and White. Several models that were sold in Japan were manufactured by the Italian Landini or French Massey Ferguson plants.
From the beginning of its activity , Iseki has focused primarily on the needs of users. It is currently described as one of the core suppliers in Japan and Europe and as a specialized manufacturer with a complete system solution for many customers. Iseki is associated with: competence, longevity, sustainable development and maximum efficiency.
When producing tractors, they use only high-quality materials and tools. Before releasing the product to the market, Iseki thoroughly tests the product in terms of careful design, reliability and manufacturing quality. Nowadays, Iseki invests in development and modernization, as evidenced by the opening in 2009 of a new training center for technical employees and dealers.
