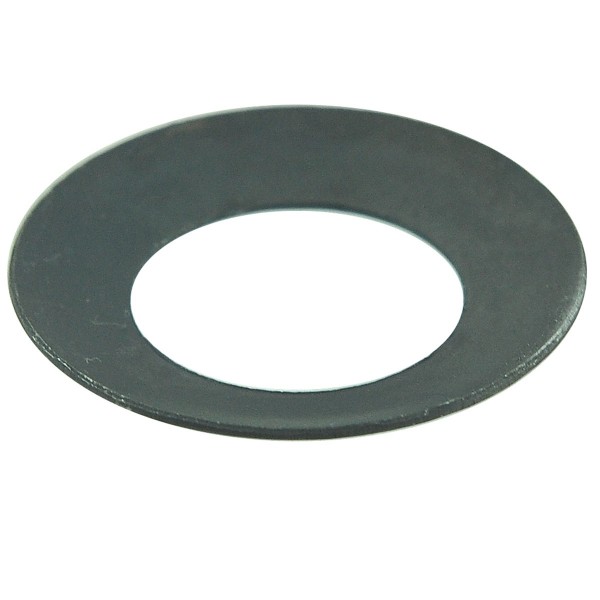

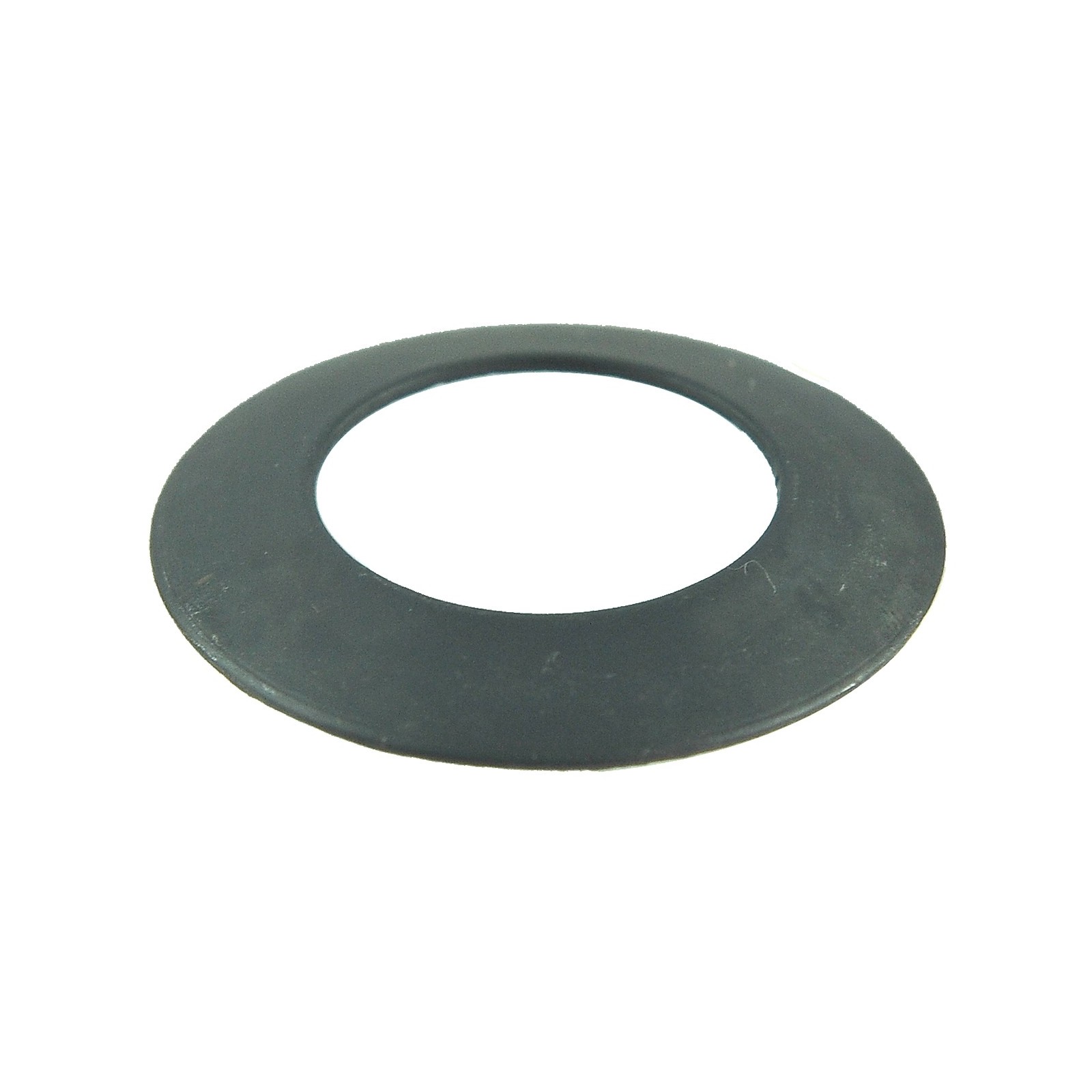

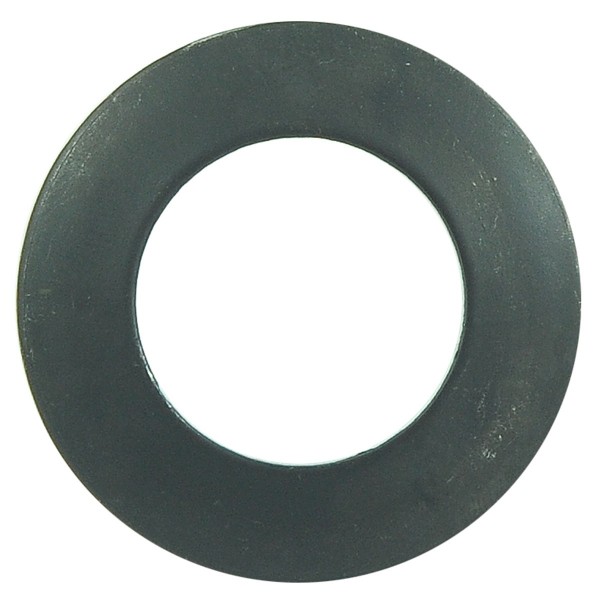

Sprocket conical washer / Ø 23.50 x 41 mm / Cub Cadet EX450 / Yanmar EF453T / EF494T 5-26-211-22

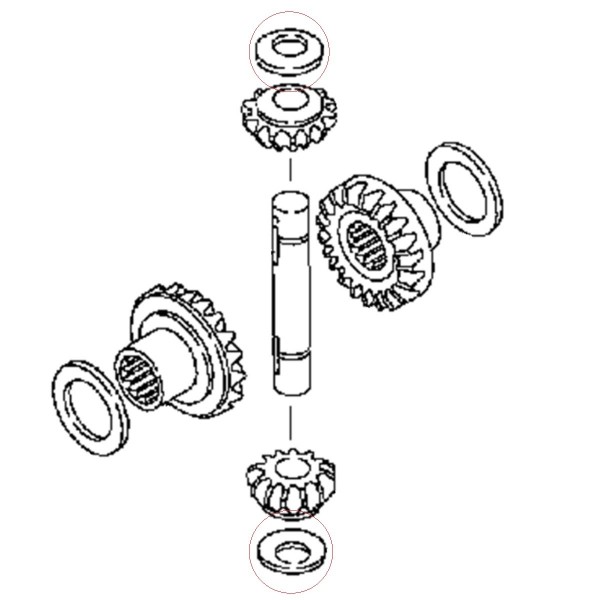

Differential gear cone washer (gear 5-19-108-40, 198320-31570, pin 5-25-125-10,, 198320-31820) with an inner diameter of 23.50 mm, an outer diameter of 41.50 mm and a thickness of 1.00 mm to Cub Cadet tractors Cub Cadet EX450 series, Yanmar tractors Y anmar EF453T, Yanmar EF494T and others.

A washer is a basic element that occurs in all screw connections, and their main task is to separate the nut from the connected element. Another function is to prevent spontaneous unscrewing of screws in threaded connections. Additionally, copper washers can act as a seal and are used due to the plasticity of the metal, high anti-corrosion properties. Washers are divided into three groups: ordinary (protective, increasing the pressure surface of the screw), securing against unscrewing (spring), equalizing, spacer, copper sealing (for leveling when the connected elements are not perfectly smooth), special sealing and others.

Dimensions :

• inner diameter: 23.50 mm,
• outer diameter: 41 mm,
• thickness: 1.00 mm,
• original part numbers: 198320-31630,
• comparison numbers: -,
• part numbers: 5-26-211-22.

Tractor models :

Cub Cadet :

• Cub Cadet EX450.

Yanmar :

• Yanmar EF453T,
• Yanmar EF494T.

Warehouse:
K18:F13:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
