Available
Others in the offer of this manufacturer >
State
New
Production
OEM
Parts
WOM
Torque (Nm/rpm)
393
Diameter (mm)
3.20
Overall length (mm)
960
Recommended tractor power (hp)
to 47
Go to full specification >
wishlist

PTO shaft 04B - 96 cm / up to 47 HP

04B-96
zł279.00
Tax included PL 23%

226,83 netto

  • Dostępność (9 Quantity): stock
wishlist

Do you have any questions?

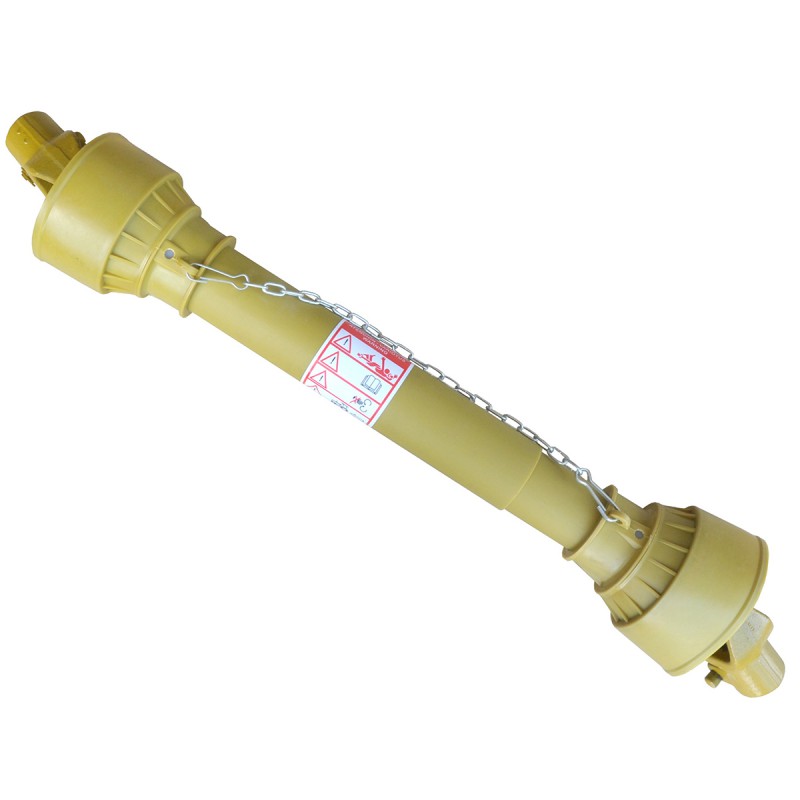

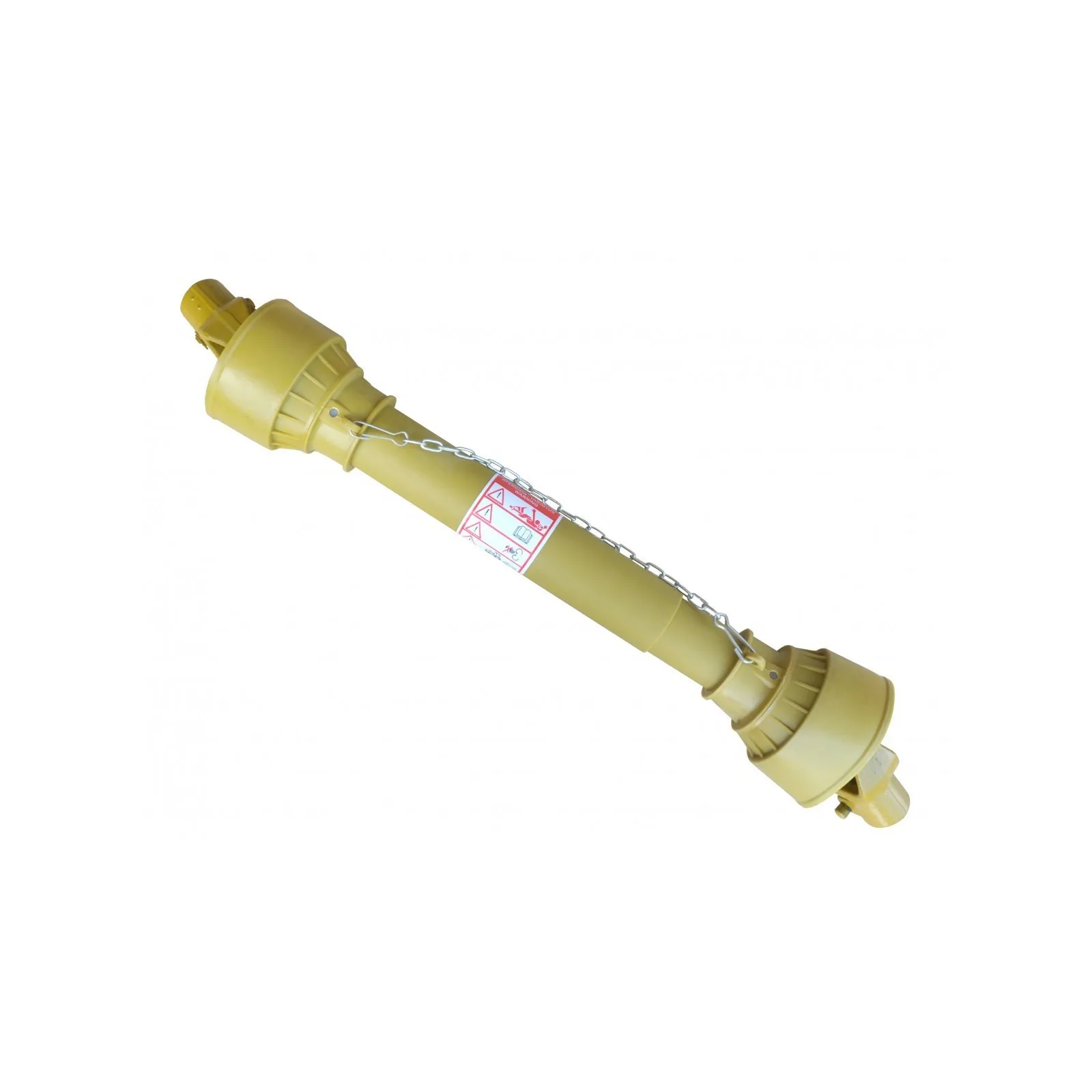

PTO shaft 04B - 96 cm / up to 47 HP

PTO shaft without protection , total length 960 mm (minimum) for tillers and other agricultural machines.

The power take-off shaft is a shaft that transmits power. Rotational movement from the tractor to the attached machine and is designed to work at an angle to the tractor. The power take-off shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. The PTO shaft is the common name for three types of shaft:

  • tractor power take-off shaft (PTO),
  • power transmission shaft, e.g. tubular or telescopic,
  • power take-off shaft in the machine (WPM).

How to choose the right PTO shaft?

The cross-joint telescopic shaft comes in several types and is divided according to the length and the value of the transmitted torque. The minimum torque value is the parameter that is the main parameter that we must consider when choosing a shaft. The nominal Nm value is the value of the transmitted torque, which decreases with the extension of the shaft above the value specified by the manufacturer. The next step when buying a shaft is to choose the right length. To choose the right shaft, measure the distance from the tractor's PTO shaft to the machine's PTO shaft and then measure the PTO shaft from center to center of the joints.

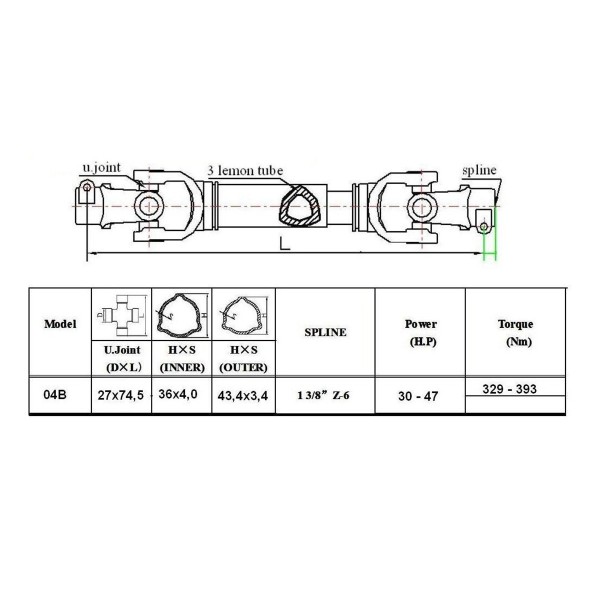

Dimensions :

  • total length: 960 mm,
  • transmitted power: up to 47 HP,
  • torque: up to 393 Nm

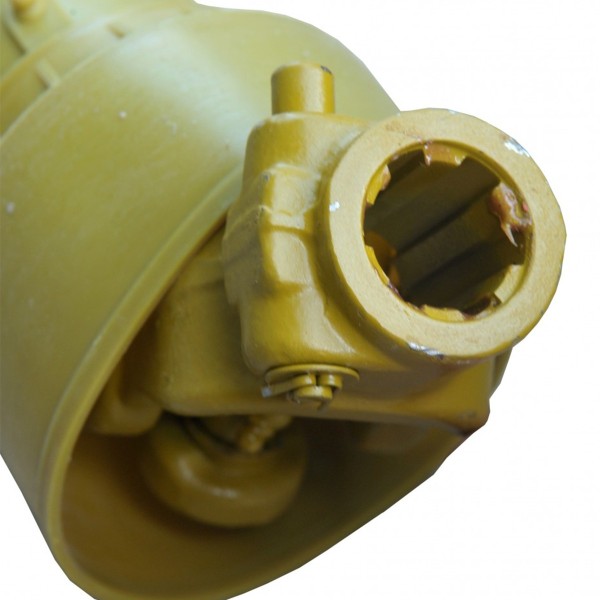

  • standard spline: 6/6 - 1 3/8
  • triangular pipe profile (36x4.0; 43.5x3.4)

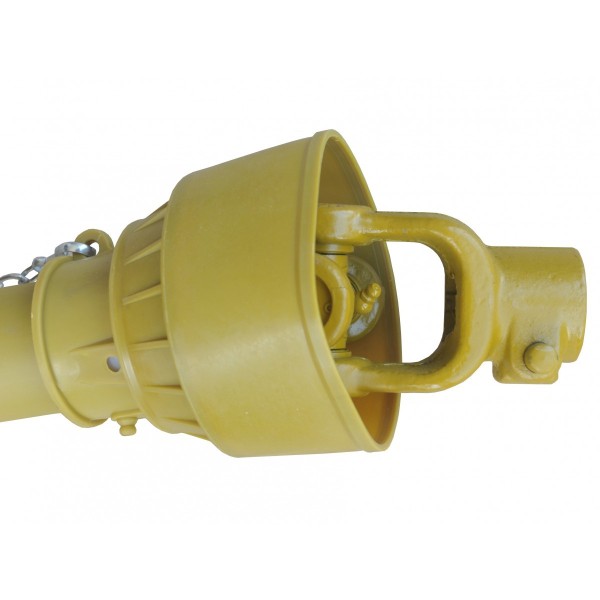

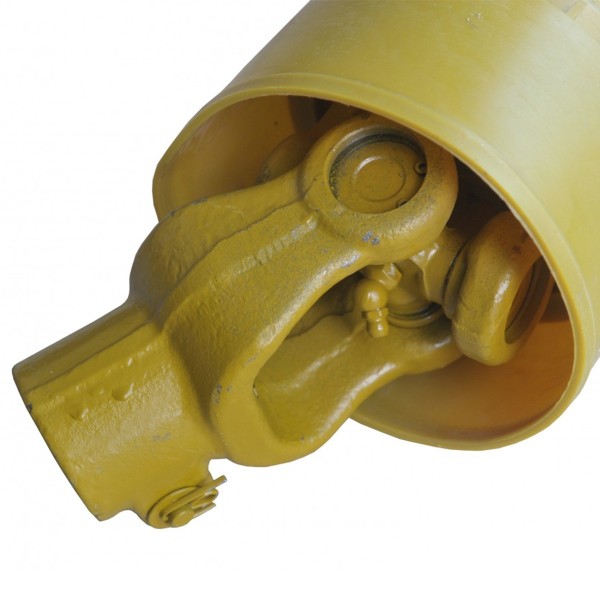

  • universal joints: (27x74.5) with grease nipples,
  • plastic cover.

Warehouse
K15

Specification

Magazyn: K15
State
New
Production
OEM
Parts
WOM
Torque (Nm/rpm)
393
Diameter (mm)
3.20
Overall length (mm)
960
Recommended tractor power (hp)
to 47
Type
Pipe
Universal joint
27x74.5
Pipe profile
Triangular
