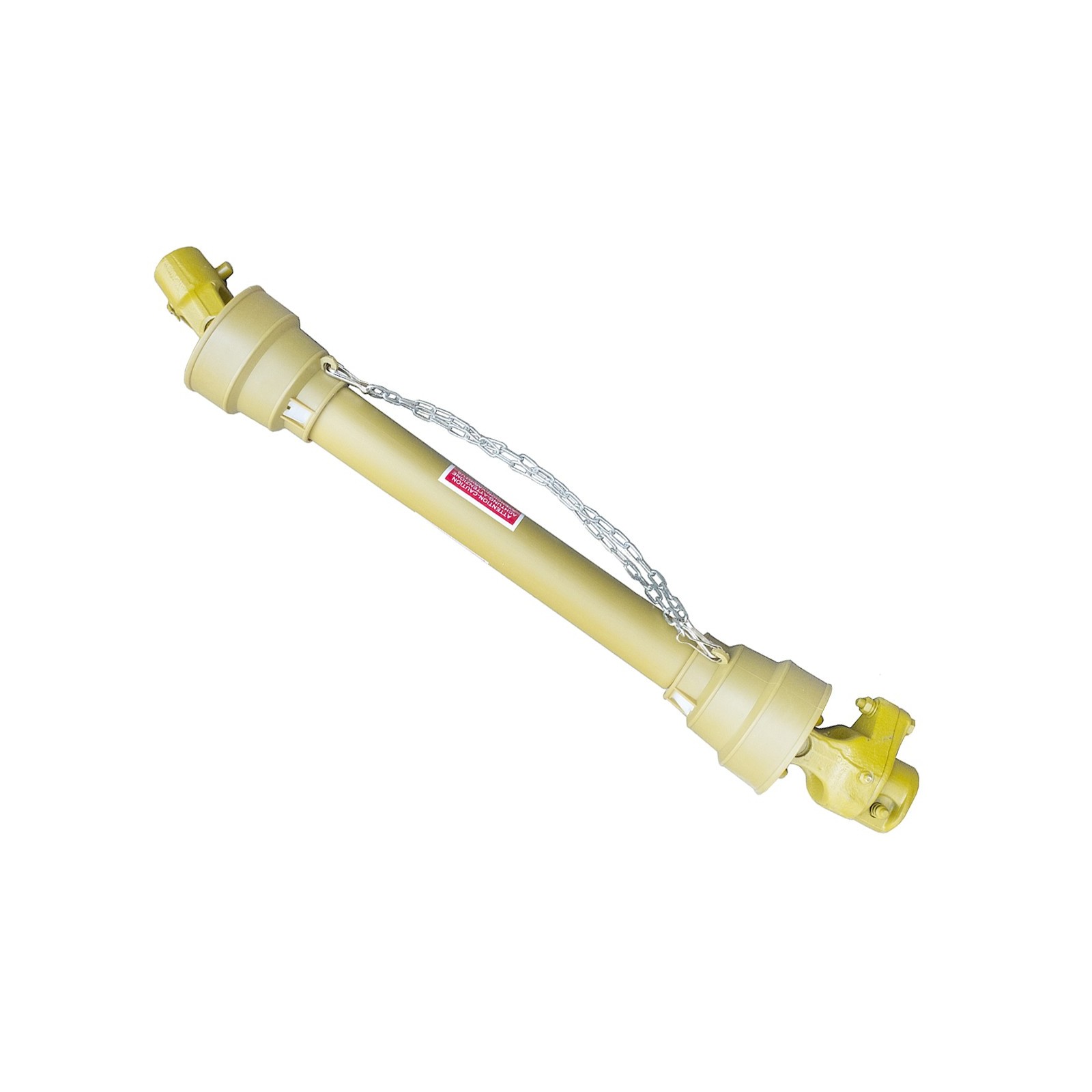

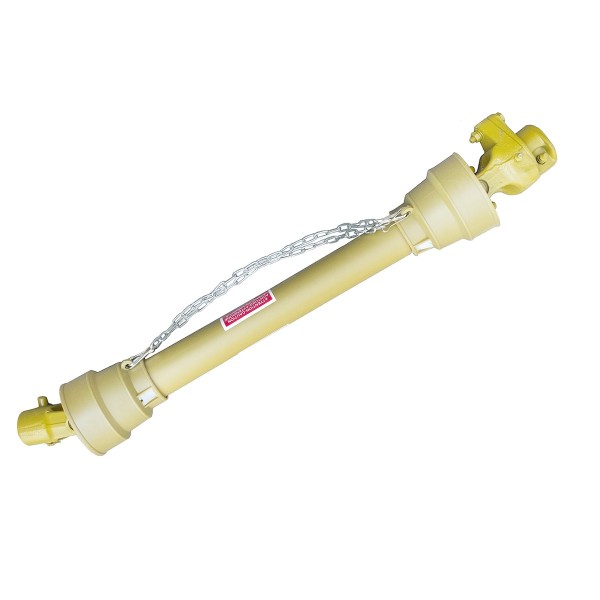

PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50
search
2 osoby oglądają ten produkt
  • PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50
  • PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50
  • PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50
  • PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50
    +4

PTO power take-off (transmission) shaft / 500 mm / 105 - 130 Nm 1-3 / 8 / 025B / LF-50

Product code: 025B/LF-50
Brand 4FARMER
Country of production 4FARMER
View other model
2 people purchased this product
zł345.00
Includes VAT 23%

Lowest price from 30 days: zł345.00

Ask for availability

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Unavailable
0 pcs
On order See details Leasing & financing for businesses See details

Product description

What is a PTO and how does a PTO work?

The power transmission shaft is the drive transmission shaft. The rotary motion from the tractor to the connected machine is designed to work at an angle to the tractor. The power transmission shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. A PTO shaft is the common name for three types of shaft:

  • tractor power take-off shaft (PTO)
  • power transmission shaft, e.g. tubular or telescopic,
  • power take-off shaft in the machine (WPM).

How to choose the right PTO shaft?

The universal articulated telescopic shaft comes in several types and is divided according to the length and value of the transferred torque. The minimum value of the torque is a parameter that is the main parameter that we must follow when choosing a shaft. Nominal Nm is the torque transmission value that decreases as the shaft extends beyond the value specified by the manufacturer. The next step when buying a roller is choosing the right length. To select the right shaft, measure the distance from the tractor PTO to the machine's PTO shaft and then measure the PTO shaft from the center to the center of the joints.

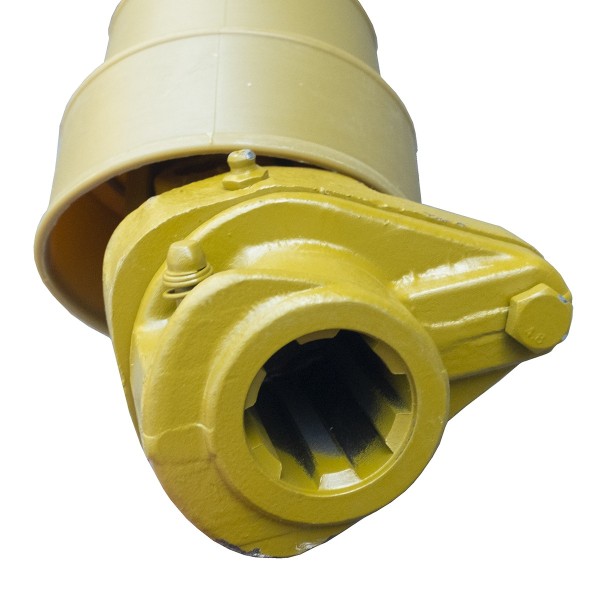

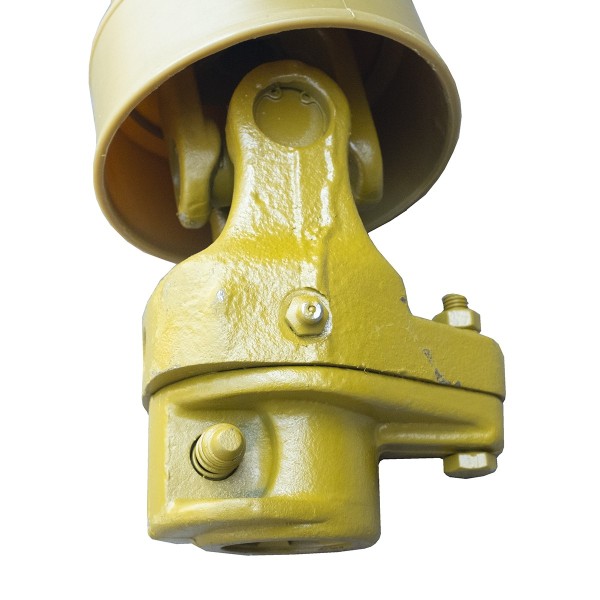

WOM shaft protection 025B / LF-50 - breakaway wedge.

The tear-off wedge of the PTO shaft is an element that protects the machine and the shaft itself from damage while the tractor is working with the machine. The tear-off wedge is an additional element, an extension of the multi-wedge, which is attached with a screw. When the machine locks up, high rotational force breaks the mounting bolt. The shaft continues to turn but no longer transmits torque to the machine. The break wedge is repaired by installing a new bolt.

Dimensions :

  • total length: 500 mm,
  • length from the cross to the cross: 300 mm,

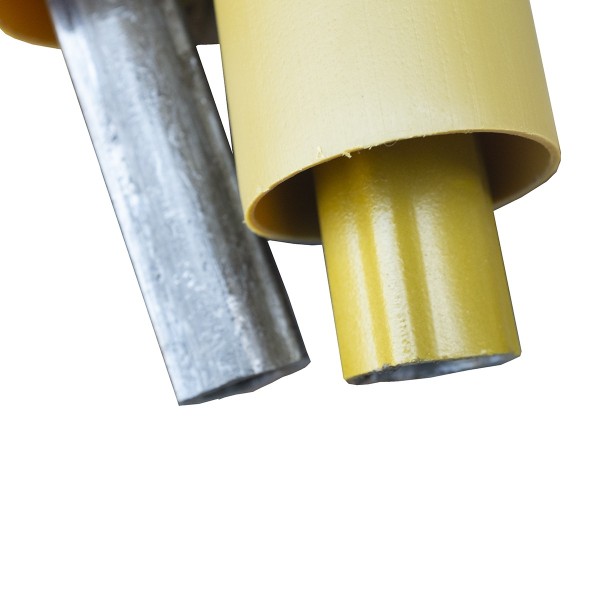

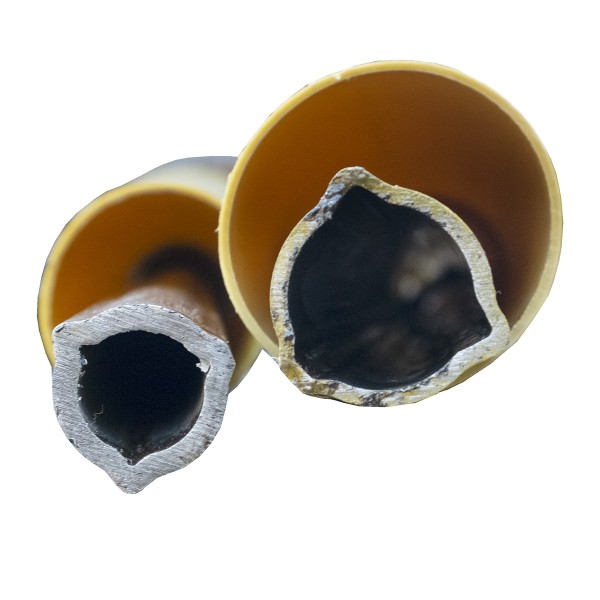

  • pipe diameter: 26.5 x 3.5; 32.5 x 2.6 (triangular cross-section),

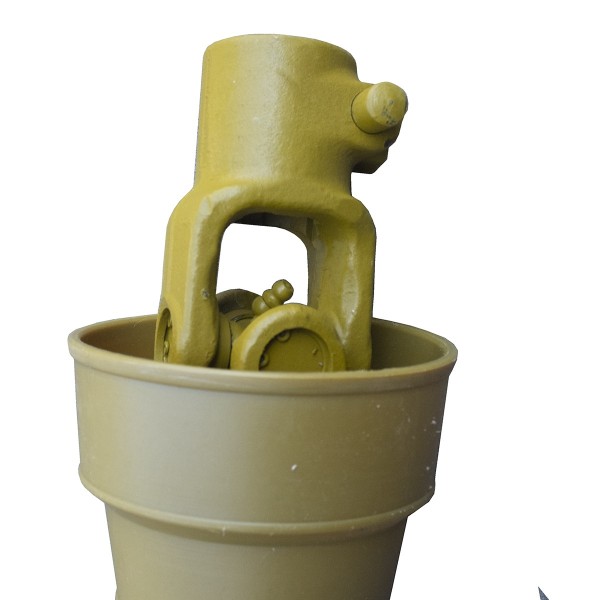

  • dimensions of the crosses: 54 x 55 mm,
  • splinter. 1-1 / 8 inch, 35mm (measured between cutter teeth), 30mm (measured with cutter teeth together),
  • number of teeth: 6T / 6T,
  • torque: 105 - 130 Nm ,
  • weight: 6 kg.

The power transmission shaft with the shear wedge 025B can be shortened by shortening both pipe parts by the same length.

We sell the power transmission shaft with a shear wedge type 025B-LF in 5 sizes
  • PTO shaft 025B-LF50 - 500 mm,
  • PTO shaft 025B-LF60 - 600 mm,
  • PTO shaft 025B-LF70 - 700 mm,
  • PTO shaft 025B-LF80 - 800 mm,
  • PTO shaft 025B-LF130 - 1300 mm.

Specifications

Condition
New

Reviews of PTO power..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

What are the benefits of using a transport box on a small farm, and what are their typical capacities?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Transport boxes are among the most versatile accessories for mini tractors. On small farms, they allow for the convenient transport of crops, timber, tools, or bulk materials without the need for a trailer. The load capacity of typical boxes ranges from 200 to even 600 kg, depending on the model and tractor power. Thanks to the tipping system (mechanical or hydraulic), unloading is quick and requires little physical effort.

How do front weights improve tractor stability when working with heavy rear implements?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Weight kits mounted on the front axle are crucial for maintaining the stability and controllability of a mini tractor. When working with heavy machines suspended on the rear three-point linkage (e.g., flail mowers or plows), the front of the tractor can be unnaturally lightened, which worsens the grip of the steering wheels. Additional front ballast restores optimal weight distribution, preventing dangerous "galloping" of the machine and increasing safety when working on slopes.

Why is safe fuel storage in certified canisters so important for diesel engines?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Storing diesel fuel requires the use of certified canisters that are resistant to hydrocarbons and do not chemically react with the fuel. High-quality fuel tanks prevent the ingress of contaminants and moisture, which is critical for modern diesel injection systems. Using certified containers minimizes the risk of fuel pump and injector failure and ensures fire safety in the garage or workshop.
