Water pump - Kubota V1505

Name: Water pump - Kubota V1505
Brand: 4FARMER
SKU: 16239-73430 / 16241-73034
Price: 249 PLN
Availability: OutOfStock

Reference 16239-73430 / 16241-73034

zł249.00

Tax included PL 23% Dostępny na zamówienie

202,44 netto

To order

Do you have any questions?

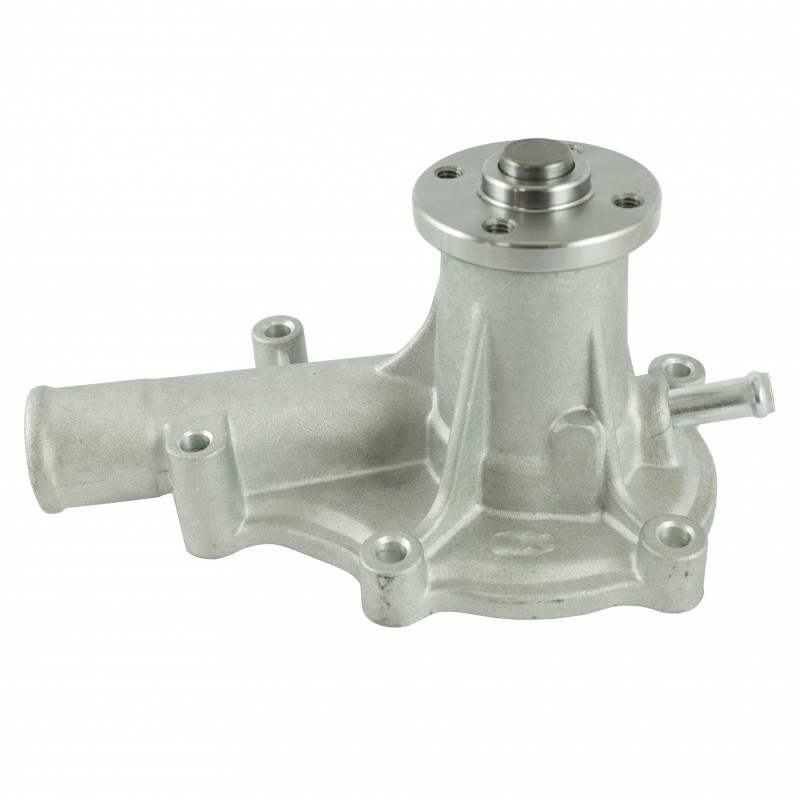

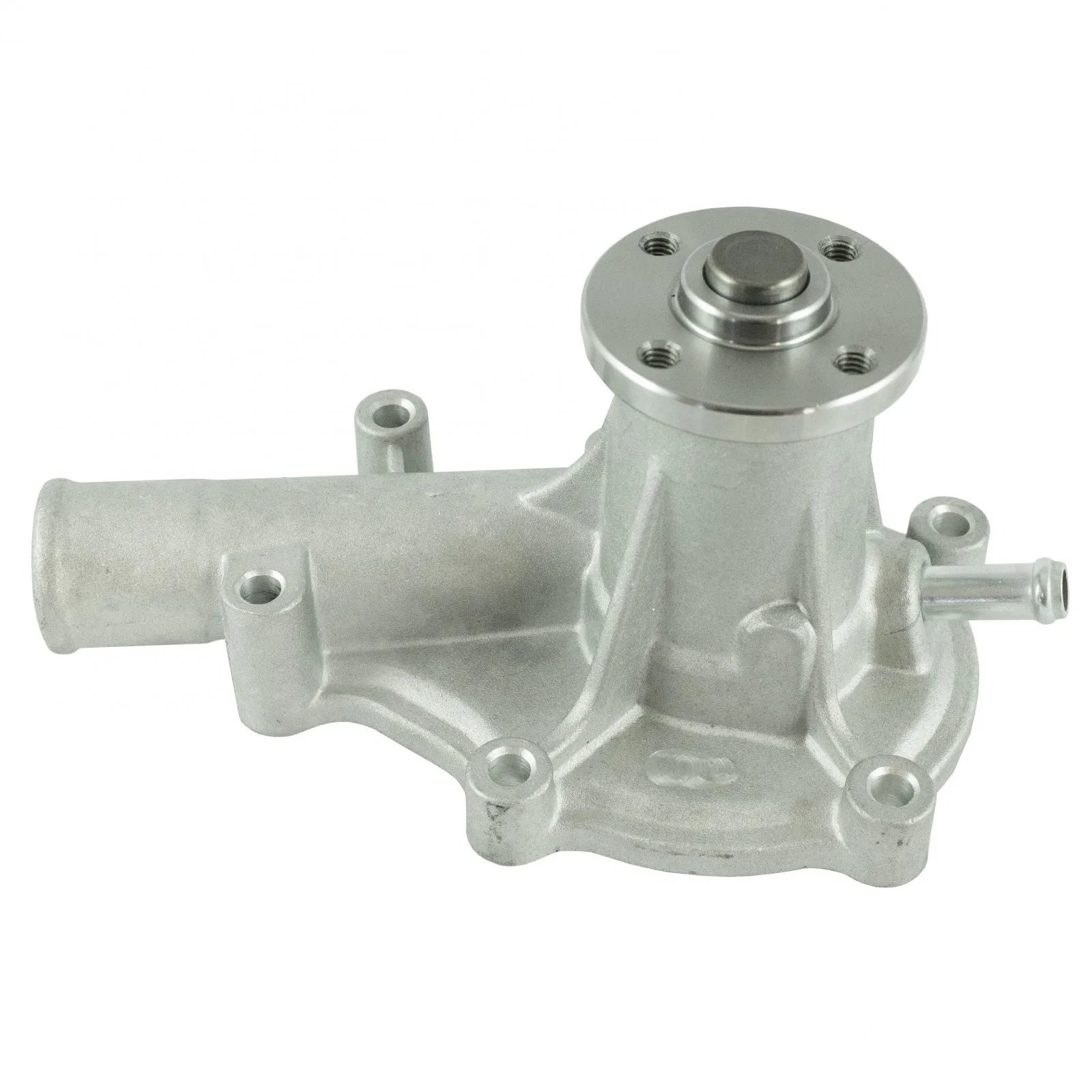

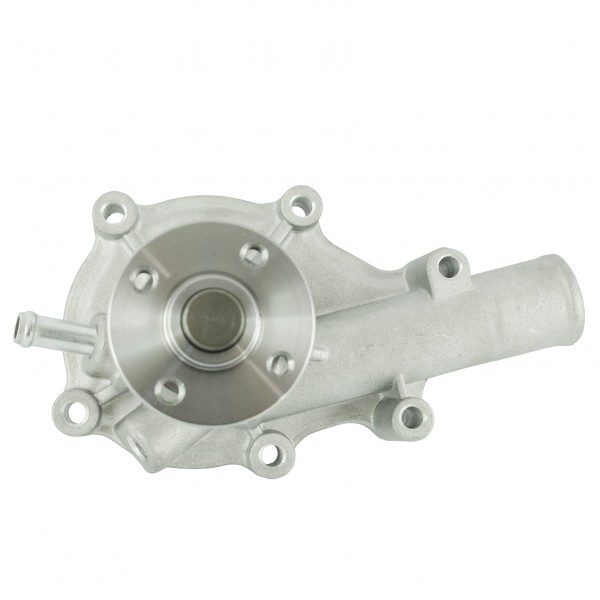

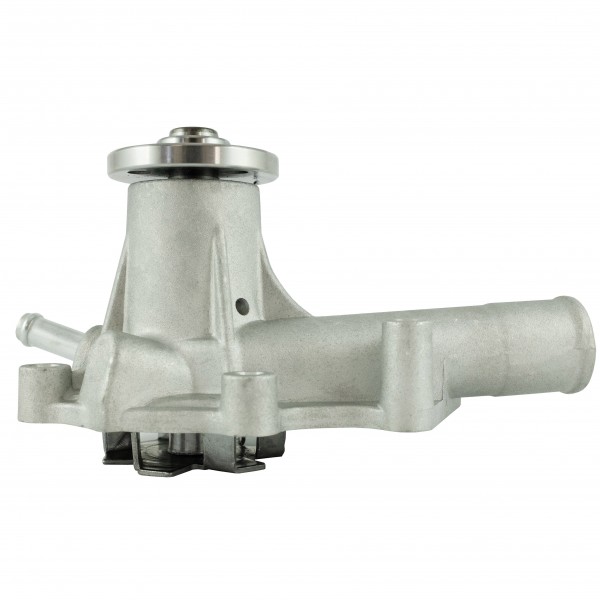

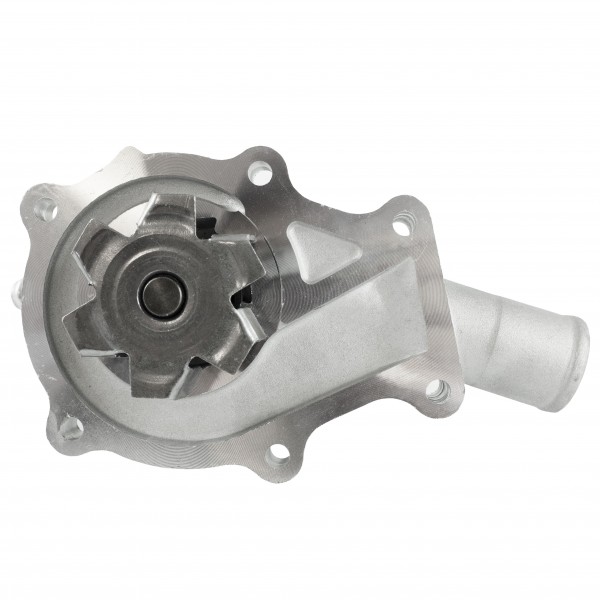

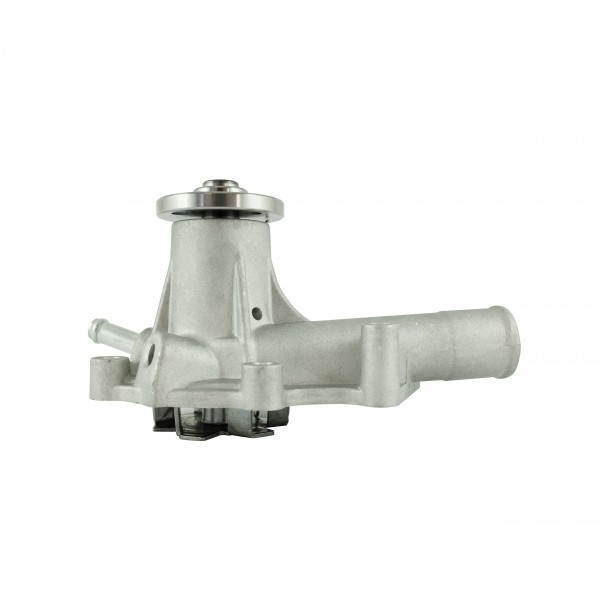

Water pump - Kubota V1505

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw the belt pulley in order, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator while the engine is running.

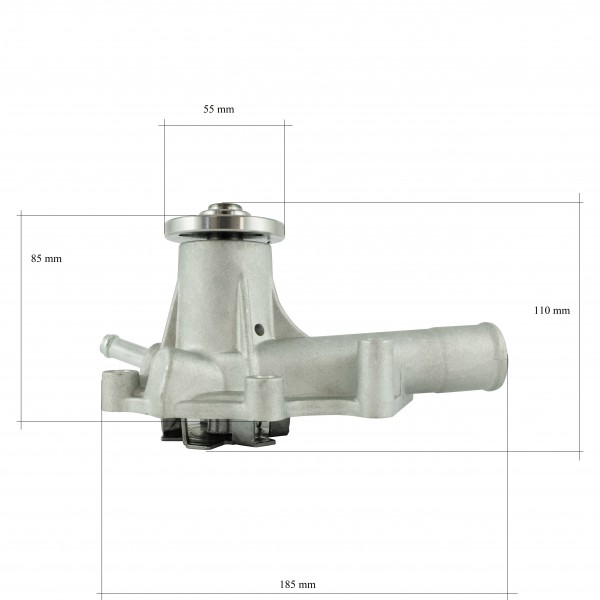

Dimensions:

Length: 185mm.
Height: 85 / 110 mm.
Width: 100mm.
Wheel diameter: 55 mm.
Rotor diameter: 69 mm.
Connector diameter: inside: 7 / 24 mm, outside: 9 / 30 mm.
Wheel bolt hole spacing: 42 mm (measured diagonally), 30 mm (measured apart).
Diameter of wheel bolt holes: 4.80 mm.

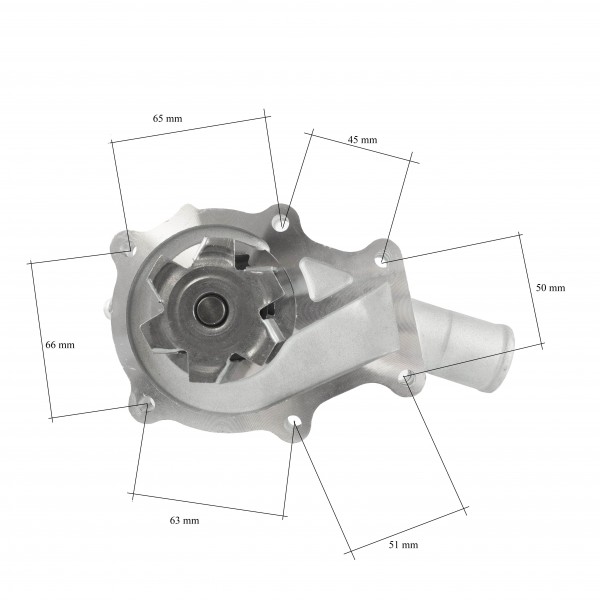

The spacing of the holes for mounting the bolts to the engine block is visible in the photo.
Diameter of pump mounting holes: 7 mm.

Magazine: M01:B11

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:B11

Condition

New

Production

Substitute

Parts

Cooling system

Engine model

- Kubota V1505

Tractor models

- Kubota B3200HSD
- Kubota B3200HSDWO
Kubota B2910
Kubota B2910 HSD
Kubota B3000
Kubota B3030
Kubota B3030 HSD
Kubota B3200
Kubota B3300
Kubota B3300SU
Kubota B7800
Kubota B7800 HSD
Kubota Bb260
Kubota F3560
Kubota F3680
Kubota GT-5
Kubota GT-8
Kubota GT-30
Kubota LX3310
Kubota ST30

Length (mm)

185

Height (mm)

Width (mm)

100

Wheel diameter (mm)

Rotor diameter (mm)
